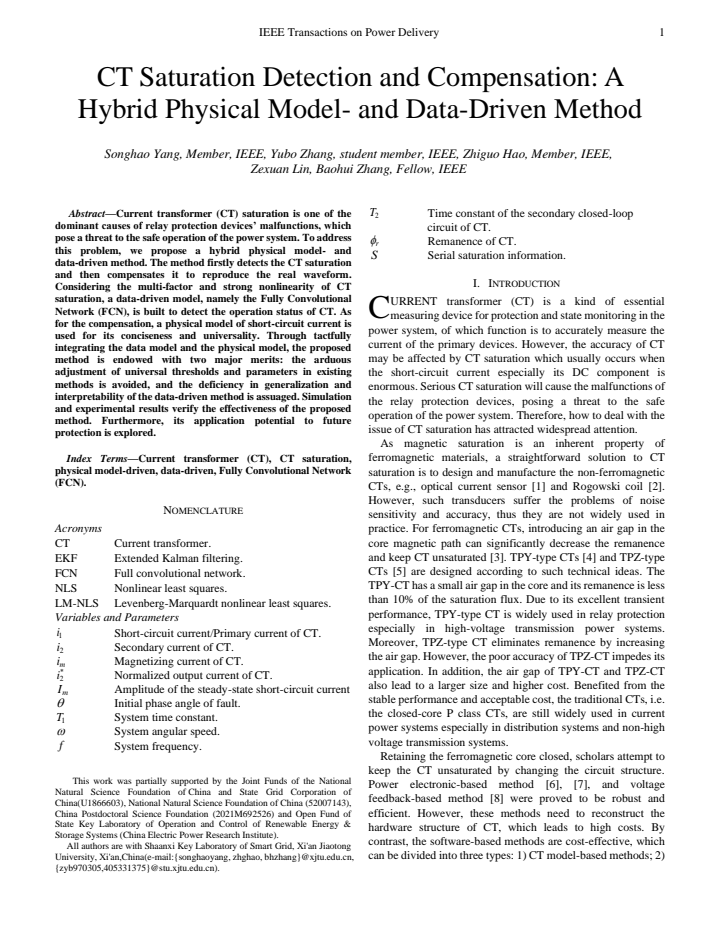

CT Saturation Detection and Compensation: A Hybrid Physical Model- and Data-Driven Method

Songhao Yang , Yubo Zhang , Zhiguo Hao , Zexuan Lin , Baohui Zhang This is my paper

Pith reviewed 2026-05-10 19:55 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords current transformer saturationsaturation detectionwaveform compensationhybrid methodfully convolutional networkshort-circuit current modelrelay protectionpower system
0
0 comments X

The pith

A hybrid neural-physical method detects current transformer saturation and reconstructs the true waveform without manual threshold tuning.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a hybrid approach combining a Fully Convolutional Network with a physical short-circuit current model to detect and compensate for CT saturation in power systems. The network identifies saturation from waveform data while the physical model reconstructs the undistorted current once saturation is flagged. This integration is intended to remove the need for adjusting universal thresholds and parameters that burden existing techniques. It also aims to improve the generalization and interpretability shortcomings of purely data-driven methods. Simulation and experimental results are presented to support effectiveness and explore uses in relay protection.

Core claim

The method first employs a Fully Convolutional Network trained on simulation and experimental data to classify the operating status of the current transformer as saturated or unsaturated. Upon detection of saturation, a concise physical model of the short-circuit current is applied to compensate the measured waveform and recover the real primary current. The hybrid structure avoids arduous universal threshold adjustments while mitigating generalization and interpretability deficits of data-driven approaches alone.

What carries the argument

The hybrid integration where a Fully Convolutional Network performs saturation detection and a short-circuit current physical model performs waveform compensation.

If this is right

  • Relay protection devices can operate more reliably during faults by receiving compensated undistorted current signals.
  • Saturation handling no longer requires case-by-case threshold or parameter tuning across different CTs and system conditions.
  • The physical model component supplies interpretability that pure neural methods lack, aiding diagnosis of protection events.
  • The approach can be applied to future digital protection schemes that require accurate secondary current reproduction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same detection-plus-physical-model pattern could apply to other sensor nonlinearities in power systems where a usable physical reconstruction equation exists.
  • If the network generalizes, protection systems might experience fewer false trips or delayed operations during severe faults.
  • The hybrid structure may ease regulatory or safety-case acceptance because the compensation step remains traceable to established circuit equations.

Load-bearing premise

The neural network trained on limited data will correctly detect saturation under all unseen operating conditions, and the physical short-circuit model will accurately reconstruct the true waveform once saturation is flagged.

What would settle it

A real-world test case with operating conditions outside the training distribution where the method either misses saturation or produces a compensated waveform that deviates substantially from independent high-accuracy measurements.

Figures

Figures reproduced from arXiv: 2604.05334 by Baohui Zhang, Songhao Yang, Yubo Zhang, Zexuan Lin, Zhiguo Hao.

Figure 11
Figure 11. Figure 11: CT saturation hardware experiment [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 14
Figure 14. Figure 14: The time-delay caused by the proposed method in relay protection. 1  : length of data window,  2 : updating period of data window 3  : time delay of the proposed method, Tdelay: delay time of backup protection [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
read the original abstract

Current transformer (CT) saturation is one of the dominant causes of relay protection devices' malfunctions, which pose a threat to the safe operation of the power system. To address this problem, we propose a hybrid physical model- and data-driven method. The method firstly detects the CT saturation and then compensates it to reproduce the real waveform. Considering the multi-factor and strong nonlinearity of CT saturation, a data-driven model, namely the Fully Convolutional Network (FCN), is built to detect the operation status of CT. As for the compensation, a physical model of short-circuit current is used for its conciseness and universality. Through tactfully integrating the data model and the physical model, the proposed method is endowed with two major merits: the arduous adjustment of universal thresholds and parameters in existing methods is avoided, and the deficiency in generalization and interpretability of the data-driven method is assuaged. Simulation and experimental results verify the effectiveness of the proposed method. Furthermore, its application potential to future protection is explored.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a hybrid physical model- and data-driven method for detecting and compensating current transformer (CT) saturation. A Fully Convolutional Network (FCN) detects saturation from multi-factor nonlinear behavior, after which a concise physical model of short-circuit current reconstructs the true waveform. The integration is claimed to eliminate arduous threshold/parameter tuning required by existing methods while mitigating the generalization and interpretability shortcomings of pure data-driven approaches. Effectiveness is asserted via simulation and experimental results, with potential extension to future protection schemes.

Significance. If the hybrid method demonstrates reliable detection and accurate compensation across operating conditions, it would address a key source of relay malfunctions in power systems. Combining data-driven flexibility for detection with a universal physical reconstruction step could reduce reliance on manual tuning while retaining interpretability, offering a practical advance for protection engineering.

major comments (3)
  1. [Abstract] Abstract: the statement that 'simulation and experimental results verify the effectiveness' provides no quantitative metrics (detection accuracy, compensation RMSE, false-positive rates, or baseline comparisons), error bars, or cross-validation details, leaving the central claims of improved generalization and avoidance of tuning unsupported by evidence.
  2. [FCN detection component] FCN detection section: training occurs on limited simulation plus experimental data without reported out-of-distribution testing across CT ratios, burdens, or inception angles; because compensation is applied only after the FCN flags saturation, any undetected cases directly degrade waveform reconstruction and undermine the claimed generalization merit.
  3. [Compensation and integration] Hybrid integration: the physical short-circuit current model is asserted to be universal and parameter-free once triggered, yet no sensitivity analysis shows how FCN misclassifications (false negatives or positives) propagate to overall error; this conditional dependence makes the 'tactful integration' claim load-bearing but unverified.
minor comments (2)
  1. [Results] Add explicit dataset statistics (number of cases, range of parameters) and a table comparing the proposed method against at least two published baselines on the same test cases.
  2. [Notation and equations] Clarify notation for secondary burden and CT ratio to ensure consistency between the physical model equations and the FCN input features.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We have carefully reviewed each major comment and will revise the paper to address the concerns about quantitative evidence, generalization testing, and sensitivity analysis while preserving the core contributions of the hybrid method.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that 'simulation and experimental results verify the effectiveness' provides no quantitative metrics (detection accuracy, compensation RMSE, false-positive rates, or baseline comparisons), error bars, or cross-validation details, leaving the central claims of improved generalization and avoidance of tuning unsupported by evidence.

    Authors: We agree that the abstract would be strengthened by including quantitative metrics. In the revised version, we will incorporate specific performance figures such as detection accuracy, compensation RMSE, false-positive rates, and baseline comparisons drawn from the simulation and experimental results already presented in the manuscript body. revision: yes

  2. Referee: [FCN detection component] FCN detection section: training occurs on limited simulation plus experimental data without reported out-of-distribution testing across CT ratios, burdens, or inception angles; because compensation is applied only after the FCN flags saturation, any undetected cases directly degrade waveform reconstruction and undermine the claimed generalization merit.

    Authors: The training data was generated to cover a variety of CT ratios, burdens, and inception angles through both simulation and laboratory experiments. We acknowledge that explicit out-of-distribution testing is not separately reported. In the revision, we will add a dedicated evaluation subsection with additional OOD test cases to better substantiate the generalization claims. revision: yes

  3. Referee: [Compensation and integration] Hybrid integration: the physical short-circuit current model is asserted to be universal and parameter-free once triggered, yet no sensitivity analysis shows how FCN misclassifications (false negatives or positives) propagate to overall error; this conditional dependence makes the 'tactful integration' claim load-bearing but unverified.

    Authors: We recognize the value of quantifying the effect of detection errors on compensation performance. The revised manuscript will include a sensitivity analysis that examines error propagation under controlled rates of false negatives and positives, demonstrating the robustness of the hybrid integration. revision: yes

Circularity Check

0 steps flagged

No significant circularity; hybrid detection and compensation remain independent

full rationale

The paper's core chain consists of training an FCN on simulation/experimental data for saturation detection followed by application of an independent short-circuit current physical model for compensation. No equations or steps reduce by construction to fitted inputs, no self-citations are load-bearing, and no uniqueness theorems or ansatzes are smuggled in. The claimed merits (avoiding threshold tuning, improved interpretability) are design assertions verified externally on held-out simulations and experiments rather than tautological re-statements of the training data. This is the normal non-circular outcome for a hybrid ML-plus-physics method.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that a trained FCN can reliably classify saturation states and that a standard short-circuit current equation suffices for waveform reconstruction; no new entities are postulated.

free parameters (1)
  • FCN network weights and hyperparameters
    Learned from training data to perform saturation detection.
axioms (1)
  • domain assumption The short-circuit current physical model accurately represents the unsaturated waveform under fault conditions
    Invoked to justify the compensation step after detection.
