arxiv: 2604.05392 · v1 · submitted 2026-04-07 · 🌌 astro-ph.GA

Accurate polarization calibration of FAST spectral data for measurements of Zeeman splittings of OH megamasers in IRAS 02524+2046

L. G. Hou , X. Y. Gao , Tao Hong , J. L. Han This is my paper

Pith reviewed 2026-05-10 19:32 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords polarization calibrationFAST telescopeOH megamasersZeeman splittingmagnetic fieldsIRAS 02524+2046Stokes VL-band receiver
0
0 comments X

The pith

Accurate polarization calibration of FAST data detects ten Zeeman-split components in the OH megamaser of IRAS 02524+2046, revealing magnetic fields from -24.5 mG to +20.6 mG.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a high-precision Mueller matrix calibration for spectral polarization observations with the FAST telescope's L-band 19-beam receiver, achieving 0.01 to 0.08 percent accuracy in circular polarization across 1050-1450 MHz. This solution is applied to observations of IRAS 02524+2046 to resolve previously unexplained anomalies in the 1667/1665 MHz flux ratio and complex Stokes V signatures. The calibrated data show narrower line components visible only in circular polarization, with ten components exhibiting significant Zeeman splitting. A sympathetic reader would care because the results indicate in situ magnetic fields mostly oriented positively and spanning a wider velocity range than previously recognized.

Core claim

We determined the Mueller matrix solution for spectral observations across the 1050-1450 MHz frequency range with an accuracy of about 0.01%-0.08% for circular polarization. We then applied it to FAST observational data of IRAS 02524+2046. Our fit of the total power and circular polarization spectra revealed ten line components with significant Zeeman splitting (>3sigma), indicating in situ magnetic fields with a strength of approximately -24.5 mG to +20.6 mG, most of which (8/10) have positive values. The 1667 MHz OH megamaser emissions probably span a wide velocity range from ~54750 to ~53580 km/s.

What carries the argument

The Mueller matrix solution for the L-band 19-beam receiver, which corrects instrumental polarization leakage to isolate true Stokes V signatures at the level needed for 3-sigma Zeeman detections.

If this is right

  • The 1667 MHz emission spans a velocity range indicating greater complexity in the megamaser structure than earlier total-power spectra suggested.
  • Eight of the ten detected magnetic field values are positive, implying a preferred orientation in the masing gas.
  • Narrower line components become distinguishable once circular polarization is accurately isolated.
  • The calibration enables reliable Zeeman measurements that were previously limited by instrumental effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same calibration approach could be tested on other FAST targets with known polarized masers to check for consistent field strength distributions.
  • Positive field dominance may connect to larger-scale magnetic structures in the host galaxy if the megamaser traces a starburst or AGN outflow.
  • Future multi-epoch observations could test whether the field values remain stable, providing a direct probe of dynamical evolution in the masing region.

Load-bearing premise

The derived calibration solution remains stable and accurate enough across the specific frequencies and beam positions for this source, without residual instrumental leakage that could mimic or mask the circular polarization signals at the 3-sigma level.

What would settle it

Independent re-observation of the same source with a different telescope or calibration method that fails to recover at least eight of the ten Zeeman components above 3 sigma, or measures field strengths outside the reported -24.5 to +20.6 mG range, would falsify the detections.

Figures

Figures reproduced from arXiv: 2604.05392 by J. L. Han, L. G. Hou, Tao Hong, X. Y. Gao.

Figure 2

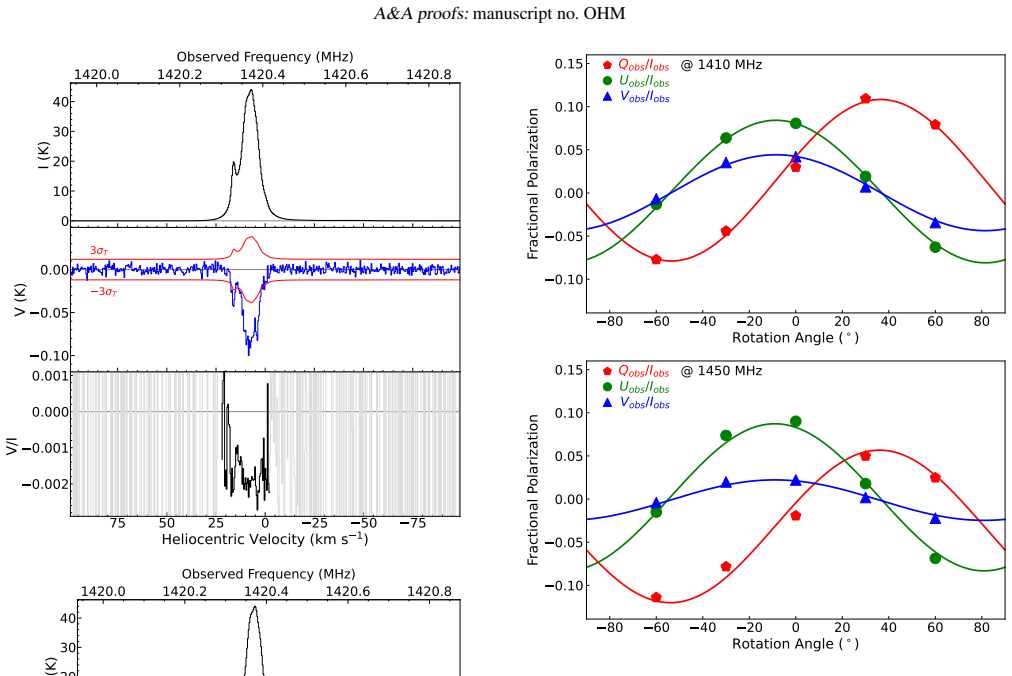

Figure 2. Figure 2: Fitting the observed fractional polarizations in two example fre￾quency channels of 1410 MHz (upper) and 1450 MHz (lower) to derive the Mueller matrix elements. The different symbols indicate different observed fractional polarization components, as shown in the plots. The solid curves show the fitting results. The data were obtained from FAST observations on 19 August 2023. trix from FAST’s five 3C 286 dr… view at source ↗
Figure 1
Figure 1. Figure 1: Calibrated results of the Galactic H i 21 cm lines using the two approaches described in Sect. 3.1 and Sect. 3.2. These FAST observa￾tions targeted IRAS 02524+2046 at Galactic coordinates (l, b) = (158.0◦ , −33.3◦ ), with a total integration time of 110 minutes. The upper panels demonstrate that the quick calibration method using injected reference signals achieves polarization measurement accuracy of ∼0.2… view at source ↗
Figure 3

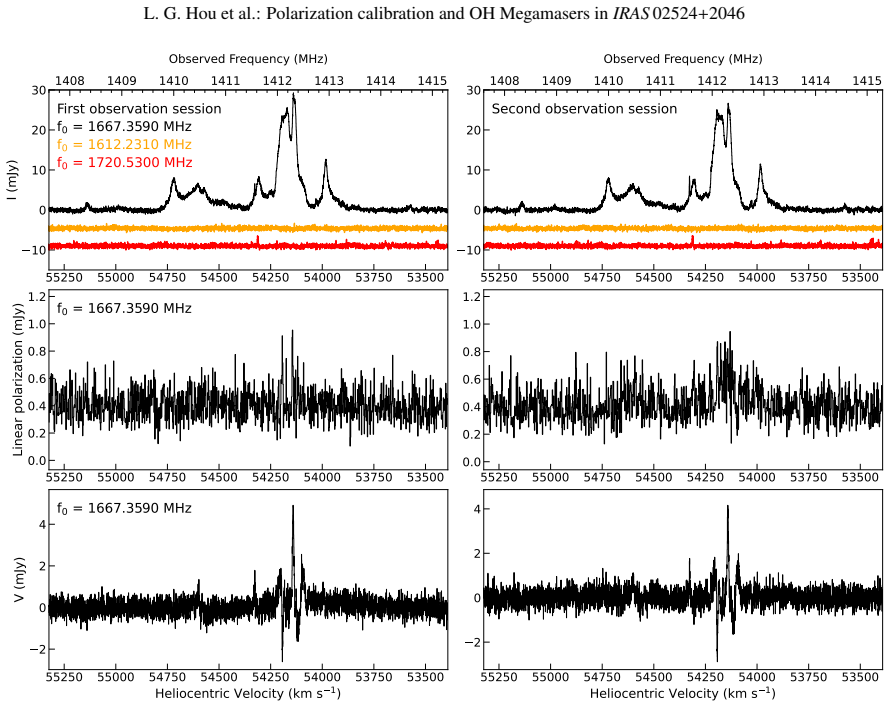

Figure 3. Figure 3: OH megamaser emission from IRAS 02524+2046 observed by FAST during two observation sessions. Top panels: Stokes I spectra aligned by heliocentric velocity for the OH ground-state transitions. The vertical offsets are applied for clarity. Middle panels: Linear polarization spectra for the 1665 MHz and 1667 MHz OH megamaser lines. Bottom panels: Circular polarization spectra for both OH transitions. 1408 140… view at source ↗
Figure 4

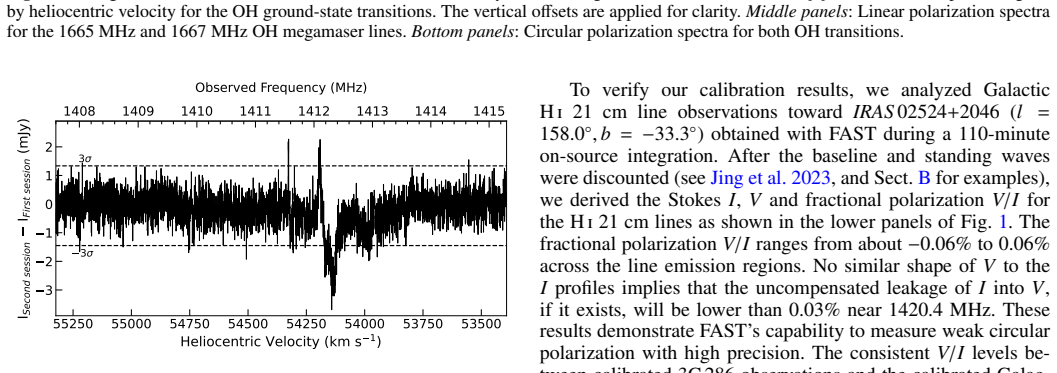

Figure 4. Figure 4: Difference in the Stokes I spectrum between two observation sessions, indicating the one-day variation in the spectral lines. the χ values of ∼ 28◦ to 32◦ at 1420 MHz given by Ching et al. (2025). Across our observed frequency range, the calibrated V/I values are around zero, with absolute median and mean values of 0.03%±0.01% and 0.06%±0.01%, respectively. We understand that the circular polarization of 3… view at source ↗
Figure 5

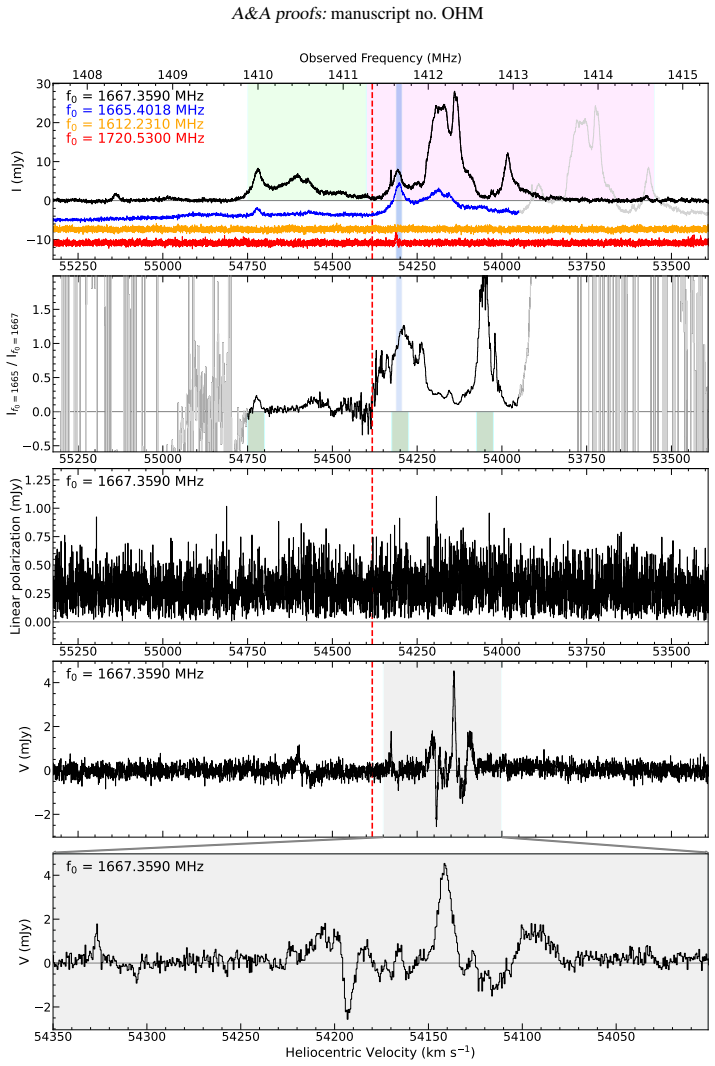

Figure 5. Figure 5: OH megamaser emissions from IRAS 02524+2046 observed by FAST for 110 minutes. Top panel: Stokes I spectra of the OH ground state aligned by heliocentric velocity, with given vertical offsets for clarity. The dashed vertical line marks the heliocentric velocity vhelio = cz = 54 382 km s−1 of IRAS 02524+2046 for a redshift z = 0.1814 from optical spectrophotometry (Darling & Giovanelli 2006). The thick light… view at source ↗
Figure 6

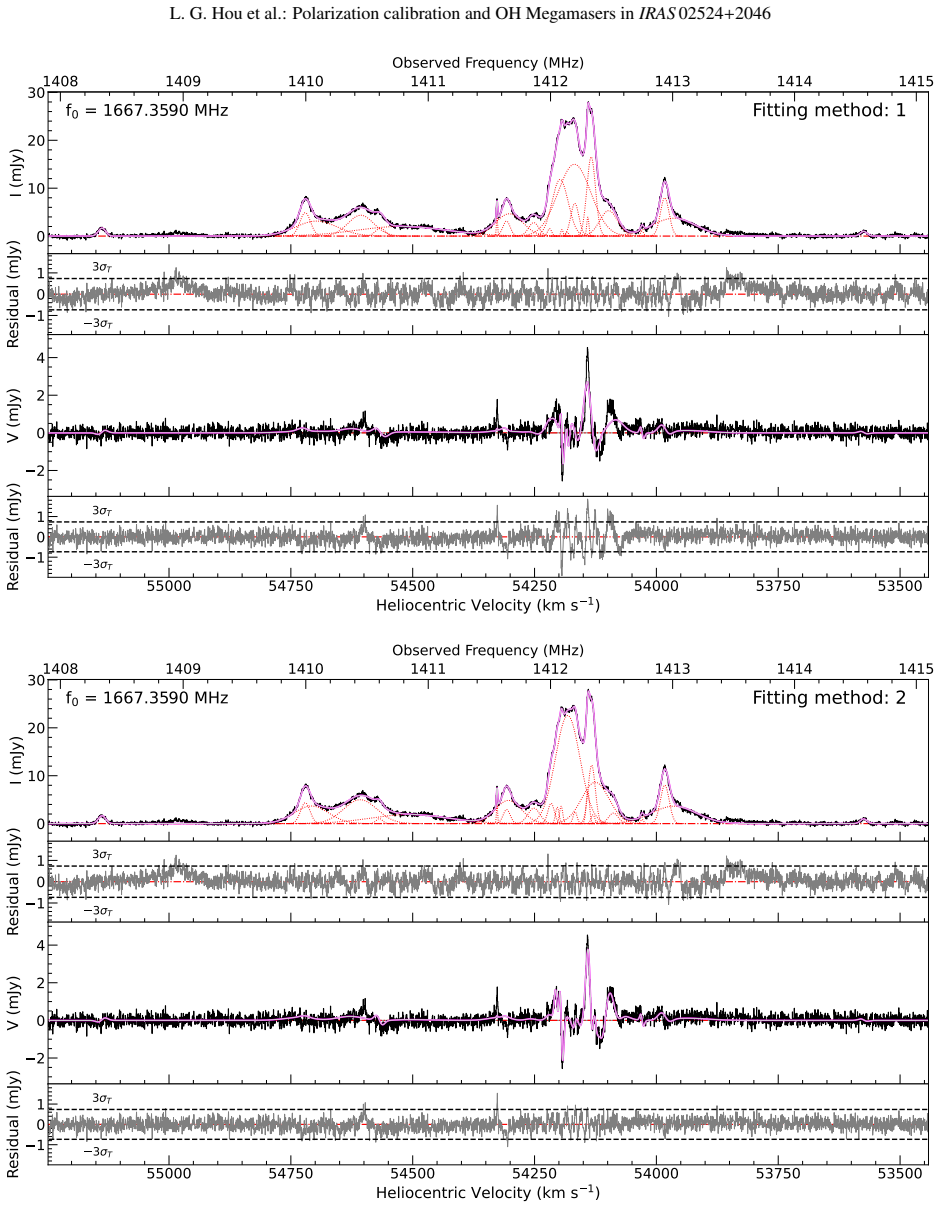

Figure 6. Figure 6: Zeeman-splitting analysis of OH megamaser lines from IRAS 02524+2046. Upper panels: Stokes I and V spectral fits obtained using the method described in Sect 4.2.1 (fitting method 1), while the lower panels display results from another approach in Sect. 4.2.2 (fitting method 2). For heliocentric velocity calculations, we adopted a rest frequency of ν0 = 1667.3590 MHz, although some spectral features origina… view at source ↗
read the original abstract

An accurate polarization calibration is essential for a spectral data analysis and Zeeman splitting measurements. Two anomalies challenge our understanding of OH megamasers in IRAS 02524+2046: an unexplained 1667/1665 MHz flux-ratio deviation, and complex Stokes V signatures. Well-calibrated sensitive polarization observations are required to understand them. We develop a polarization calibration solution for the L-band 19-beam receiver installed on the Five-hundred-meter aperture spherical radio telescope (FAST) to achieve a high calibration accuracy and thus enable accurate measurements of the OH megamaser properties in IRAS 02524+2046. We determined the Mueller matrix solution for spectral observations across the 1050-1450 MHz frequency range with an accuracy of about 0.01%-0.08% for circular polarization. We then applied it to FAST observational data of IRAS 02524+2046. Our results show narrower emission line components in the OH megamasers than previously reported, which are indistinguishable in the total power spectrum, but are detected in the circular polarization spectrum. The 1667 MHz OH megamaser emissions probably span a wide velocity range from ~54750 to ~53580 km/s, indicating greater complexity than previously recognized. Our fit of the total power and circular polarization spectra for IRAS 02524+2046 revealed ten line components with significant Zeeman splitting (>3sigma), indicating in situ magnetic fields with a strength of approximately -24.5 mG to +20.6 mG, most of which (8/10) have positive values.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a Mueller-matrix polarization calibration for FAST's L-band 19-beam receiver over 1050-1450 MHz, achieving 0.01-0.08% accuracy in circular polarization, and applies it to OH megamaser observations of IRAS 02524+2046. This yields narrower line components than previously reported, a wide velocity span for the 1667 MHz emission, and ten fitted components with >3σ Zeeman splitting that imply in-situ magnetic fields ranging from -24.5 mG to +20.6 mG (mostly positive).

Significance. If the calibration residuals are demonstrably below the 3σ threshold used for component selection, the work supplies the first detailed magnetic-field measurements for this source and addresses reported anomalies in the 1667/1665 MHz flux ratio and Stokes V complexity. The calibration procedure itself could be reusable for other FAST spectral-line polarization programs.

major comments (2)
  1. [Abstract / calibration description] Abstract and calibration section: the stated 0.01–0.08 % circular-polarization accuracy is presented without quantitative residual-leakage maps, on-source validation spectra, or frequency-dependent error budgets evaluated at the exact frequencies and beam positions of IRAS 02524+2046. Because eight of the ten reported Zeeman components are described as undetectable in Stokes I yet fitted from V, even small residuals could be misinterpreted as astrophysical splitting at the >3σ level used for selection.
  2. [Results / spectral fitting] Results section on spectral fitting: the ten-component model is fitted jointly to total-power and circular-polarization spectra, but no table or figure shows the formal uncertainties on the fitted Stokes-V amplitudes or the reduced-χ² values when the same components are forced to zero V amplitude. This information is required to confirm that the reported Zeeman detections are not driven by the calibration solution itself.
minor comments (2)
  1. [Abstract] The velocity range quoted for the 1667 MHz emission (~54750 to ~53580 km s⁻¹) appears to contain a typographical inversion; the numerical ordering should be checked against the spectra.
  2. [Methods] Notation for the Mueller-matrix elements is introduced without an explicit equation or table listing the fitted values and their uncertainties across the band.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We agree that additional quantitative details on calibration residuals and fitting statistics are needed to fully support the Zeeman detections. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract / calibration description] Abstract and calibration section: the stated 0.01–0.08 % circular-polarization accuracy is presented without quantitative residual-leakage maps, on-source validation spectra, or frequency-dependent error budgets evaluated at the exact frequencies and beam positions of IRAS 02524+2046. Because eight of the ten reported Zeeman components are described as undetectable in Stokes I yet fitted from V, even small residuals could be misinterpreted as astrophysical splitting at the >3σ level used for selection.

    Authors: We appreciate the referee highlighting this point. Section 3 of the manuscript details the Mueller-matrix calibration procedure and reports the achieved accuracy based on on-axis and off-axis measurements across 1050-1450 MHz. However, we acknowledge that explicit residual-leakage maps, on-source validation spectra, and frequency-dependent error budgets evaluated specifically at the frequencies and beam positions of IRAS 02524+2046 were not provided. In the revised manuscript we will add these quantitative assessments to demonstrate that residual leakage lies well below the 3σ threshold used for component selection, confirming that the Stokes V signals originate from astrophysical Zeeman splitting rather than calibration artifacts. revision: yes

  2. Referee: [Results / spectral fitting] Results section on spectral fitting: the ten-component model is fitted jointly to total-power and circular-polarization spectra, but no table or figure shows the formal uncertainties on the fitted Stokes-V amplitudes or the reduced-χ² values when the same components are forced to zero V amplitude. This information is required to confirm that the reported Zeeman detections are not driven by the calibration solution itself.

    Authors: We agree that these statistics are essential for validating the detections. Although the joint fitting procedure and >3σ selection criterion are described in Section 4, the manuscript does not include the requested table of formal uncertainties on Stokes V amplitudes or the comparative reduced-χ² values. In the revised version we will add a table listing the fitted V amplitudes with their formal uncertainties, together with the reduced-χ² for the full model and for the null model in which all V amplitudes are forced to zero. This will enable readers to independently assess the statistical significance of the Zeeman splittings. revision: yes

Circularity Check

0 steps flagged

No significant circularity; calibration and Zeeman fitting remain independent steps

full rationale

The paper first derives a Mueller matrix calibration solution for the FAST L-band 19-beam receiver across 1050-1450 MHz, stating an accuracy of 0.01%-0.08% for circular polarization, then applies this fixed solution to the IRAS 02524+2046 observations. The subsequent spectral fitting that identifies ten line components with >3-sigma Zeeman splitting and infers B-field strengths is performed on the already-calibrated Stokes I and V data. No equation or claim reduces the reported magnetic-field values to the calibration inputs by definition, no fitted parameter is relabeled as a prediction, and no self-citation is invoked as the sole justification for the central result. The derivation chain therefore contains independent content and is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the accuracy of the derived Mueller matrix and the assumption that observed circular polarization is dominated by Zeeman effect rather than other instrumental or astrophysical contributions.

free parameters (1)
  • Mueller matrix elements
    Determined empirically across the frequency band to achieve the stated 0.01-0.08% accuracy; values are fitted rather than derived from first principles.
axioms (1)
  • domain assumption The polarization properties of the 19-beam receiver are stable over the observation period and can be represented by a frequency-dependent Mueller matrix.
    Invoked when applying the calibration solution to the target data.
