arxiv: 2604.06117 · v1 · submitted 2026-04-07 · 🧮 math.DS · cs.SY· eess.SY

On Permanence of Conservative Replicator Dynamics with Four Strategies

Haoyu Yin , Xudong Chen , Bruno Sinopoli This is my paper

Pith reviewed 2026-05-10 18:42 UTC · model grok-4.3

classification 🧮 math.DS cs.SYeess.SY
keywords replicator dynamicspermanencedigraph classificationconservative dynamicsfour strategiesperiodic orbitsLyapunov stabilitypayoff matrix
0
0 comments X

The pith

Conservative replicator dynamics with four strategies are permanent precisely when the payoff matrix belongs to one of five digraph classes, with all interior non-equilibrium trajectories then forming Lyapunov-stable periodic orbits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper determines when four-strategy conservative replicator dynamics keep all population types bounded away from extinction by linking the constant payoff matrix to its directed graph. Exactly five digraph classes turn out to be necessary and sufficient for permanence. In every permanent case the interior dynamics consist solely of stable periodic orbits rather than equilibria or other attractors. A reader would care because the result supplies an exhaustive classification of long-term coexistence and cycling for any four-type evolutionary game whose payoffs are fixed and conservative.

Core claim

We establish necessary and sufficient conditions for permanence to occur by associating the payoff matrix with its digraph, revealing exactly five distinct digraph classes governing the global behavior. We further show that, whenever the dynamics is permanent, every non-equilibrium trajectory in the relative interior of the simplex is a Lyapunov-stable periodic orbit. Together with the classification of the boundary phase portraits, these results provide a complete characterization of the global dynamics in the four-strategy case with permanence.

What carries the argument

The digraph of the payoff matrix, which partitions all possible global behaviors into exactly five classes that control permanence and interior orbit structure.

If this is right

  • The five digraph classes together with boundary portraits give a complete global picture of the flow on the simplex.
  • Permanent systems admit no interior equilibria or chaotic attractors; only stable periodic orbits fill the relative interior.
  • Permanence is decided entirely by the directed graph structure induced by the payoff entries.
  • Boundary behavior can be analyzed separately and then combined with the interior classification.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same graph-reduction approach may extend to five or more strategies by identifying analogous finite classes of digraphs.
  • Conservative replicator flows appear to exclude chaos in the permanent regime, suggesting a broader link between volume preservation and periodic coexistence.
  • The result supplies a concrete test for whether four competing types in a fixed-payoff model will cycle indefinitely rather than have some die out.

Load-bearing premise

The replicator equations are conservative and generated by constant, time-independent payoff matrices.

What would settle it

A constant payoff matrix whose digraph lies outside the five classes yet produces a permanent flow, or a permanent system containing a non-periodic interior trajectory.

Figures

Figures reproduced from arXiv: 2604.06117 by Bruno Sinopoli, Haoyu Yin, Xudong Chen.

Figure 1
Figure 1. Figure 1: The five isomorphism classes of GA that contains cycle. The top row shows the graph GA. Among these, I and II each contain two directed 3-cycles; III contains both a directed 3-cycle and a directed 4-cycle; IV contains exactly one directed 3-cycle; and V is a directed 4-cycle. The bottom row shows the corresponding set L in ∆3 , matched columnwise. 2.2 A finer classification Up to isomorphism, there are fi… view at source ↗

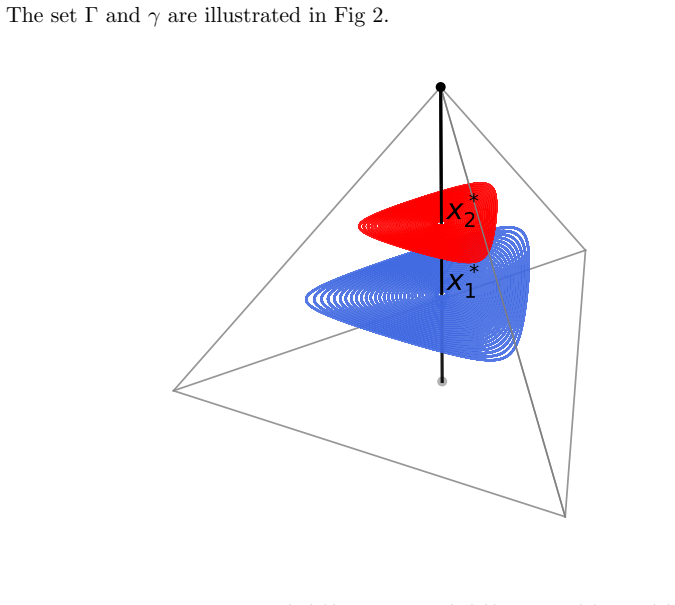

Figure 2
Figure 2. Figure 2: Visualization of Γz ′ ,z′′(x(0)) and Γz ′ ,z′′(y(0)) with x(0) ̸= y(0) induced by A, whose digraph is isomorphic to IV. Both Γ are smooth one-dimensional submanifolds and have finitely many connected components, each of which is diffeomorphic to S 1 . In the figure, x ∗ 1 is the time average of each trajectory γ in Γz ′ ,z′′(x(0)), and x ∗ 2 is the time average of each trajectory γ in Γz ′ ,z′′(y(0)). The … view at source ↗

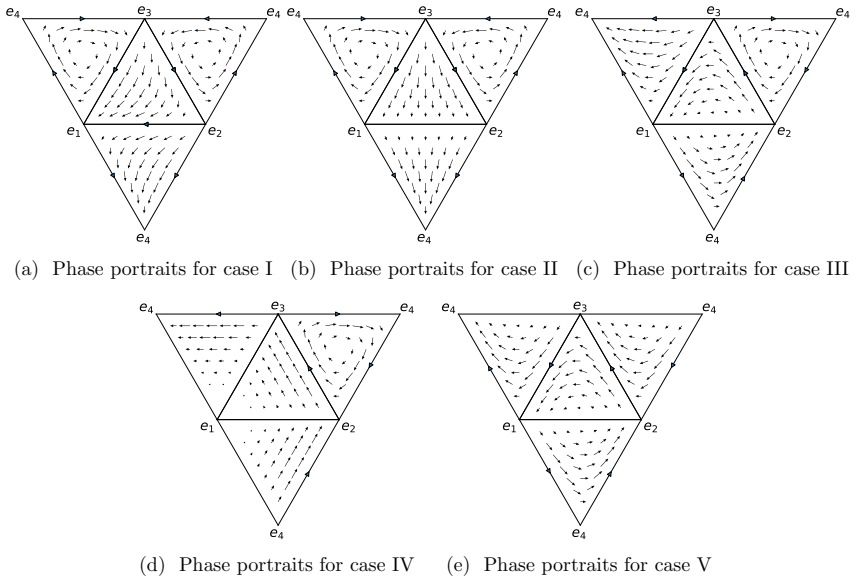

Figure 3
Figure 3. Figure 3: Phase portraits for all five classes. (b) For any x(0) ∈ int F−2, there exists a unique z ∈ E14, with z1 = x1(0), such that limt→∞ x(t) = z. (c) For any x(0) ∈ int F−3, there exists a unique z ∈ E12, with z1 = x1(0), such that limt→∞ x(t) = z. (d) For any x(0) ∈ int F−4, there exists a unique z ∈ E13, with z1 = x1(0), such that limt→∞ x(t) = z. For item 3-(a), we refer the reader to the phase portrait show… view at source ↗
read the original abstract

In this paper, we study four-strategy conservative replicator dynamics induced by constant payoff matrices. We establish necessary and sufficient conditions for permanence to occur by associating the payoff matrix with its digraph, revealing exactly five distinct digraph classes governing the global behavior. We further show that, whenever the dynamics is permanent, every non-equilibrium trajectory in the relative interior of the simplex is a Lyapunov-stable periodic orbit. Together with the classification of the boundary phase portraits, these results provide a complete characterization of the global dynamics in the four-strategy case with permanence.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper studies conservative replicator dynamics on the 4-simplex induced by constant skew-symmetric payoff matrices. It associates each such matrix with an oriented digraph on four vertices and proves that permanence occurs if and only if the digraph belongs to one of five explicitly described classes. In all such cases the authors further show that every non-equilibrium orbit in the relative interior is a Lyapunov-stable periodic orbit, and they classify the boundary phase portraits to obtain a complete global dynamical description.

Significance. If the stated classification and orbit-stability results hold, the manuscript supplies a rare complete qualitative picture for a low-dimensional conservative evolutionary game. The reduction of permanence to five sign-pattern classes is parameter-free with respect to entry magnitudes and rests on the existence of a first integral that forces closed orbits; this is a substantive advance for understanding global behavior in replicator systems.

minor comments (3)
  1. The precise definition of the digraph associated to a skew-symmetric payoff matrix (vertices, directed edges, and handling of zero entries) should be stated explicitly in the introduction or §2 rather than assumed from context.
  2. The boundary phase-portrait classification would be easier to follow if each of the five digraph classes were accompanied by a single representative figure showing the flow on the faces.
  3. In the proof that interior orbits are periodic, a short reminder of how the first integral is constructed from the skew-symmetry of the payoff matrix would improve readability for readers outside the immediate subfield.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive and insightful summary of our manuscript, as well as for recommending minor revision. We are pleased that the significance of the digraph classification for permanence and the Lyapunov stability of interior orbits has been recognized as a substantive advance in understanding global behavior in low-dimensional replicator systems. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper derives necessary and sufficient conditions for permanence in conservative four-strategy replicator dynamics by associating the skew-symmetric payoff matrix with its oriented digraph, classifying the resulting boundary phase portraits, and using an interior first integral to establish that non-equilibrium trajectories are Lyapunov-stable periodic orbits. This classification into exactly five digraph classes follows directly from qualitative analysis of the low-dimensional conservative system and its sign patterns, without any reduction to fitted parameters, self-definitional equivalences, load-bearing self-citations, or ansatzes imported from prior work. The results are obtained from the system's equations and standard dynamical systems tools, remaining independent of the target claims.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper relies on standard mathematical structures for replicator dynamics and graph theory without introducing new free parameters or postulated entities.

axioms (2)
  • domain assumption Replicator dynamics are defined on the probability simplex with constant payoff matrices and satisfy the standard ODE existence and uniqueness properties.
    Invoked to analyze trajectories and permanence.
  • standard math Lyapunov stability and periodic orbit definitions from dynamical systems theory apply directly to the interior of the simplex.
    Used to establish stability of non-equilibrium trajectories.
