arxiv: 2604.06402 · v1 · submitted 2026-04-07 · 📡 eess.SP

G-AMC: A Green Automatic Modulation Classification Method

Chee-An Yu , Young-Kai Chen , C.-C. Jay Kuo This is my paper

Pith reviewed 2026-05-10 18:27 UTC · model grok-4.3

classification 📡 eess.SP
keywords automatic modulation classificationsparse codinghierarchical treegreen learninglightweight modelcomputational efficiencyfeature extractionsignal classification
0
0 comments X

The pith

Sparse coding followed by tree-based partitioning classifies radio modulations with 41% fewer parameters and computation reduced to one ten-thousandth of deep learning alternatives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a green learning pipeline for automatic modulation classification that first converts the received signal into a sparse coding representation, then pulls out statistical features from both that representation and the original waveform. These features feed into a tree that divides the classification space into successively finer subspaces. The design targets receivers that must identify modulation types blindly, without any pre-shared information about the incoming waveform. A reader would care because the resulting model uses far less memory and far fewer operations than lightweight neural networks while still delivering usable accuracy on standard test signals.

Core claim

The central claim is that sparse coding produces a sufficiently precise signal representation from which statistical features can be extracted, after which a hierarchically structured tree partitions the classification subspace so that modulation types are identified accurately with a model containing 41% fewer parameters and requiring only O(10^{-4}) of the floating-point operations of blind waveform recognition methods that lack prior waveform knowledge.

What carries the argument

The hierarchical tree that successively partitions the classification subspace after the input signal has been turned into a sparse coding representation.

If this is right

  • Receivers obtain usable modulation classification without pre-arranged waveform knowledge while using a model 41% smaller than lightweight deep learning alternatives.
  • Floating-point operations drop to O(10^{-4}) of those required by blind waveform recognition pipelines.
  • The pipeline remains transparent because each step (sparse representation, feature statistics, tree splits) can be inspected directly.
  • The approach demonstrates effectiveness on modulated features drawn from received signals under the evaluated conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The efficiency profile may make the method suitable for real-time use in battery-powered or edge receivers where deep networks are impractical.
  • Because the tree structure grows by splitting subspaces, the same framework could accommodate additional modulation types by extending the tree without retraining an entire network.
  • The reliance on sparse coding and explicit statistics opens the possibility of diagnosing misclassifications by examining which features drove a particular tree path.

Load-bearing premise

The sparse coding step must produce a representation precise enough that the extracted statistics reliably separate the modulation classes, and the tree must be adjustable so that accuracy holds while model size stays small across the tested modulations and channel conditions.

What would settle it

Running the method and a lightweight deep learning baseline on the same set of test waveforms and channel conditions, then checking whether measured parameter count, FLOPs, and classification accuracy match the stated reductions and performance levels.

Figures

Figures reproduced from arXiv: 2604.06402 by C.-C. Jay Kuo, Chee-An Yu, Young-Kai Chen.

Figure 1

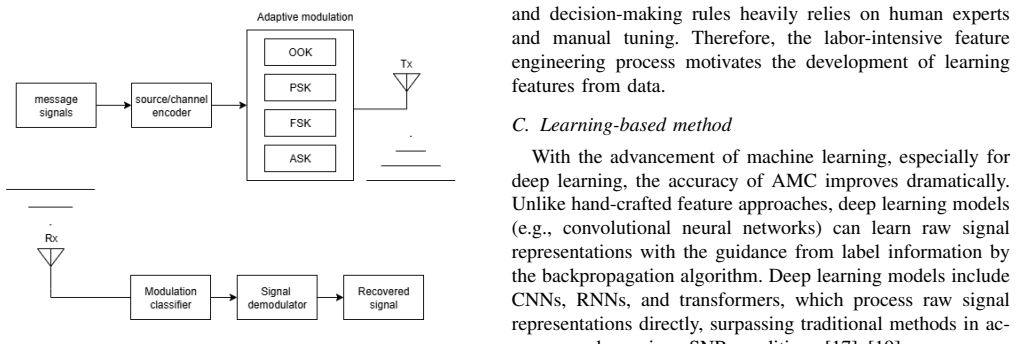

Figure 1. Figure 1: Overview of the adaptive modulation framework. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

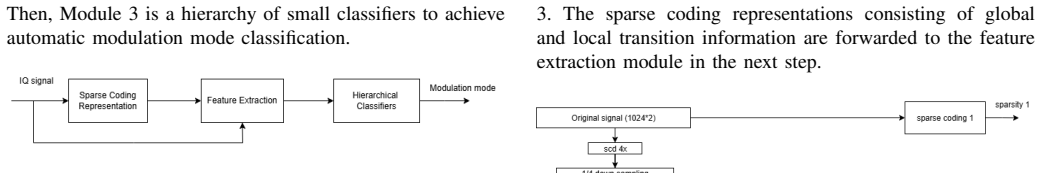

Figure 2. Figure 2: Overview of green automatic modulation classification pipeline. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

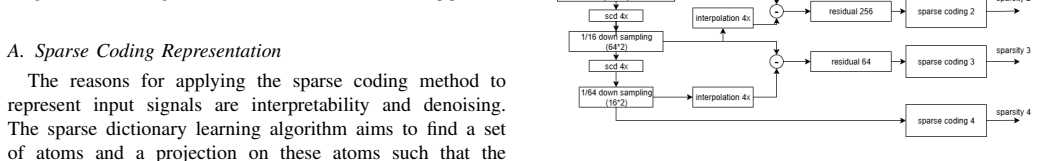

Figure 3. Figure 3: Overview of the sparse coding representation. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

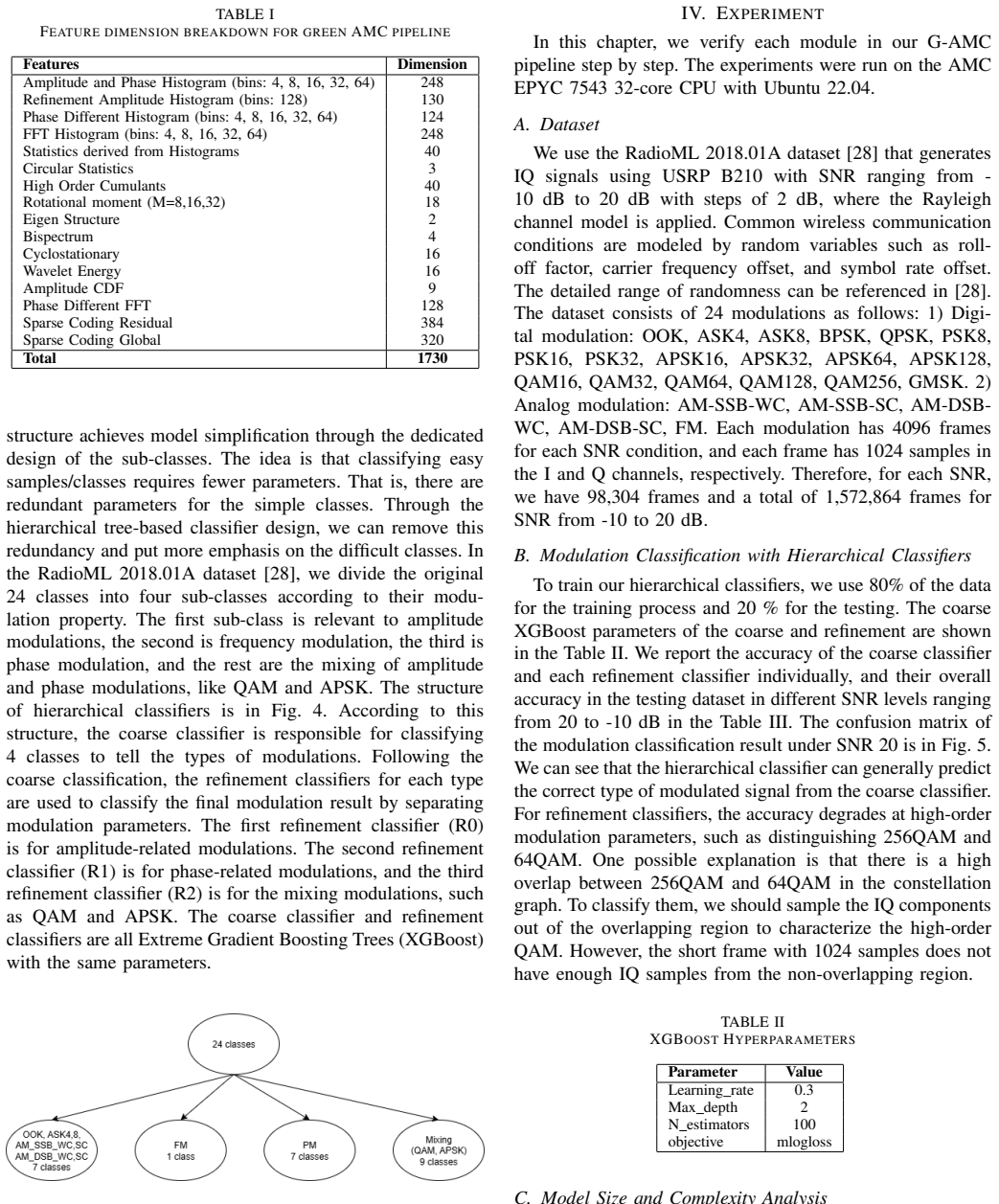

Figure 4. Figure 4: Hierarchical Classifiers. The coarse classifier classifies all classes [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

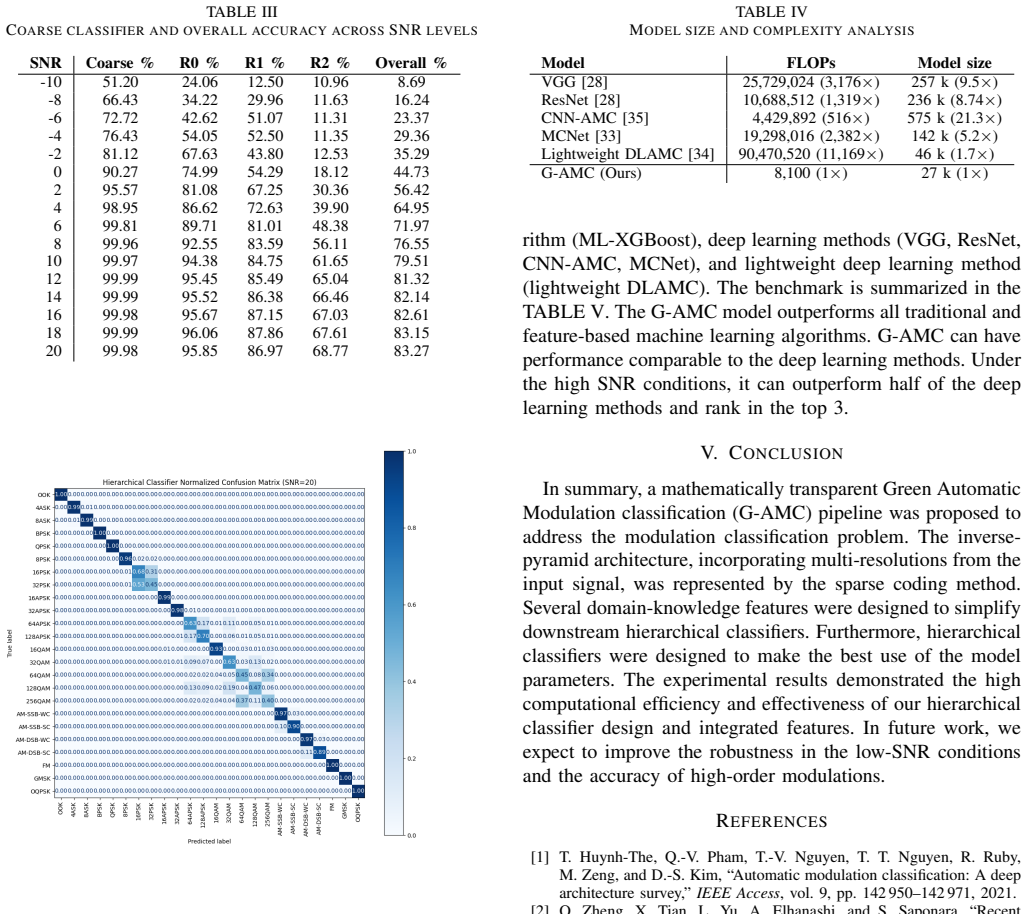

Figure 5. Figure 5: Confusion matrix of Hierarchical classifiers under SNR=20. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
read the original abstract

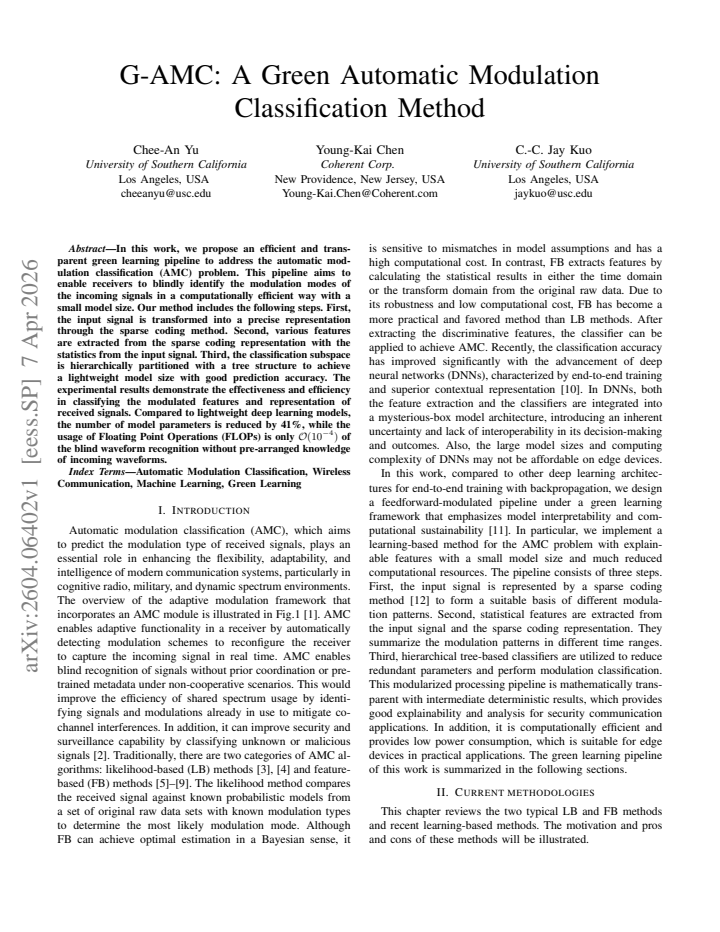

In this work, we propose an efficient and transparent green learning pipeline to address the automatic modulation classification (AMC) problem. This pipeline aims to enable receivers to blindly identify the modulation modes of the incoming signals in a computationally efficient way with a small model size. Our method includes the following steps. First, the input signal is transformed into a precise representation through the sparse coding method. Second, various features are extracted from the sparse coding representation with the statistics from the input signal. Third, the classification subspace is hierarchically partitioned with a tree structure to achieve a lightweight model size with good prediction accuracy. The experimental results demonstrate the effectiveness and efficiency in classifying the modulated features and representation of received signals. Compared to lightweight deep learning models, the number of model parameters is reduced by \textbf{41\%}, while the usage of Floating Point Operations (FLOPs) is only $\mathcal{O}(10^{-4})$ of the blind waveform recognition without pre-arranged knowledge of incoming waveforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes G-AMC, a green learning pipeline for automatic modulation classification (AMC). The method transforms the input signal via sparse coding, extracts statistical features from the sparse representation and original signal, and performs classification by hierarchically partitioning the feature space with a tree structure. Experimental results are asserted to demonstrate effectiveness, with a claimed 41% reduction in model parameters and FLOPs usage of order O(10^{-4}) relative to blind deep-learning waveform classifiers that lack pre-arranged knowledge of the incoming signals.

Significance. If the efficiency claims hold while preserving classification accuracy across standard modulation sets and realistic channel conditions, the approach would offer a transparent, low-complexity alternative to deep learning for AMC. This could be valuable for resource-constrained receivers in green communications, where model size and FLOPs directly impact energy use. The hierarchical tree design for lightweight yet accurate partitioning is a constructive element that adds interpretability.

major comments (2)
  1. [Abstract and results section] Abstract and results section: The central efficiency claims (41% parameter reduction and O(10^{-4}) FLOPs) are load-bearing for the paper's contribution, yet the manuscript provides no explicit breakdown or ablation isolating the computational cost of the sparse-coding front-end (e.g., iteration count, dictionary size, and matrix-vector operations in the chosen solver). Without this, it is impossible to verify whether total FLOPs remain orders of magnitude below DL baselines or whether the sparse representation step dominates.
  2. [Method and experimental sections] Method and experimental sections: The paper does not report the specific datasets, modulation alphabets, SNR ranges, or channel models used to obtain the stated accuracy and efficiency figures, nor does it supply baseline implementations or quantitative accuracy metrics (e.g., overall accuracy, per-class F1). This absence prevents assessment of whether the sparse-coding representation plus tree classifier reliably separates classes under the tested conditions.
minor comments (1)
  1. [Abstract] The notation O(10^{-4}) for relative FLOPs should be accompanied by the exact baseline model and measurement protocol (e.g., whether sparse-coding iterations are profiled on the same hardware).

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We agree that additional details are needed to fully substantiate the efficiency claims and experimental setup, and we will revise the manuscript to address these points.

read point-by-point responses

  1. Referee: [Abstract and results section] Abstract and results section: The central efficiency claims (41% parameter reduction and O(10^{-4}) FLOPs) are load-bearing for the paper's contribution, yet the manuscript provides no explicit breakdown or ablation isolating the computational cost of the sparse-coding front-end (e.g., iteration count, dictionary size, and matrix-vector operations in the chosen solver). Without this, it is impossible to verify whether total FLOPs remain orders of magnitude below DL baselines or whether the sparse representation step dominates.

    Authors: We agree that an explicit breakdown is required to verify the claims. In the revised manuscript, we will add a dedicated paragraph (or subsection) in the results section that reports the sparse coding solver parameters (e.g., number of iterations, dictionary size, and the exact solver used), together with a step-by-step FLOPs calculation for the matrix-vector operations in the sparse-coding stage. We will also include an ablation table that isolates the FLOPs contribution of the sparse-coding front-end versus the feature extraction and tree classifier stages, confirming that the overall complexity remains O(10^{-4}) relative to the deep-learning baselines. revision: yes

  2. Referee: [Method and experimental sections] Method and experimental sections: The paper does not report the specific datasets, modulation alphabets, SNR ranges, or channel models used to obtain the stated accuracy and efficiency figures, nor does it supply baseline implementations or quantitative accuracy metrics (e.g., overall accuracy, per-class F1). This absence prevents assessment of whether the sparse-coding representation plus tree classifier reliably separates classes under the tested conditions.

    Authors: We apologize for the lack of explicit reporting. The revised manuscript will contain a new “Experimental Setup” subsection that specifies the dataset(s) employed, the exact modulation alphabet (including the number of classes), the SNR range, and the channel models (e.g., AWGN and multipath fading). We will also report overall accuracy, per-class F1 scores, and confusion matrices, and will describe the baseline implementations (including the lightweight CNN architectures and their training details) to enable direct comparison. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical pipeline with external validation

full rationale

The paper describes G-AMC as a sequence of standard, non-derived steps—sparse coding to obtain a representation, extraction of statistical features from that representation and the input signal, and hierarchical tree-based partitioning of the classification subspace—whose effectiveness is asserted solely through experimental results on modulation classification accuracy, parameter count, and FLOPs. No equations, uniqueness theorems, or first-principles derivations are presented that would reduce any claimed prediction or efficiency metric to a fitted quantity or self-citation by construction. The 41% parameter reduction and O(10^{-4}) FLOPs claims are comparative empirical outcomes against external deep-learning baselines, not tautological re-statements of the method's own inputs. The derivation chain is therefore self-contained and independent of the patterns that would trigger circularity.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard signal-processing assumptions plus a small number of implementation choices whose values are not reported.

free parameters (2)
  • sparsity level for coding
    The first step invokes sparse coding whose sparsity parameter must be chosen; its value is not stated.
  • tree depth and splitting thresholds
    Hierarchical partitioning requires decisions on depth and split criteria that directly affect model size and accuracy; these are not quantified.
axioms (2)
  • domain assumption Sparse coding yields a precise representation of the received waveform
    Invoked as the first processing step without further justification in the abstract.
  • domain assumption Statistical features extracted from the sparse representation are sufficient to separate modulation classes
    Assumed when moving from representation to classification.

pith-pipeline@v0.9.0 · 5469 in / 1408 out tokens · 49744 ms · 2026-05-10T18:27:31.114817+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

35 extracted references · 35 canonical work pages

  1. [1]

    Automatic modulation classification: A deep architecture survey,

    T. Huynh-The, Q.-V . Pham, T.-V . Nguyen, T. T. Nguyen, R. Ruby, M. Zeng, and D.-S. Kim, “Automatic modulation classification: A deep architecture survey,”IEEE Access, vol. 9, pp. 142 950–142 971, 2021

    work page 2021

  2. [2]

    Recent advances in automatic modulation classification technology: Methods, results, and prospects,

    Q. Zheng, X. Tian, L. Yu, A. Elhanashi, and S. Saponara, “Recent advances in automatic modulation classification technology: Methods, results, and prospects,”International Journal of Intelligent Systems, vol. 2025, no. 1, p. 4067323, 2025

    work page 2025

  3. [3]

    Maximum-likelihood classification for digital amplitude-phase modulations,

    W. Wei and J. M. Mendel, “Maximum-likelihood classification for digital amplitude-phase modulations,”IEEE transactions on Commu- nications, vol. 48, no. 2, pp. 189–193, 2000

    work page 2000

  4. [4]

    Maximum-likelihood modulation classification for psk/qam,

    J. A. Sills, “Maximum-likelihood modulation classification for psk/qam,” inMILCOM 1999. IEEE Military Communications. Confer- ence Proceedings (Cat. No. 99CH36341), vol. 1. IEEE, 1999, pp. 217–220

    work page 1999

  5. [5]

    Novel automatic modulation classification using cumulant features for communications via multipath channels,

    H.-C. Wu, M. Saquib, and Z. Yun, “Novel automatic modulation classification using cumulant features for communications via multipath channels,”IEEE Transactions on Wireless Communications, vol. 7, no. 8, pp. 3098–3105, 2008

    work page 2008

  6. [6]

    Automatic modulation classification for cognitive radios using cyclic feature detection,

    B. Ramkumar, “Automatic modulation classification for cognitive radios using cyclic feature detection,”IEEE Circuits and Systems Magazine, vol. 9, no. 2, pp. 27–45, 2009

    work page 2009

  7. [7]

    Genetic algorithm optimized distribution sampling test for m-qam modulation classification,

    Z. Zhu, M. W. Aslam, and A. K. Nandi, “Genetic algorithm optimized distribution sampling test for m-qam modulation classification,”Signal Processing, vol. 94, pp. 264–277, 2014

    work page 2014

  8. [8]

    Fast and robust modulation classification via kolmogorov-smirnov test,

    F. Wang and X. Wang, “Fast and robust modulation classification via kolmogorov-smirnov test,”IEEE Transactions on Communications, vol. 58, no. 8, pp. 2324–2332, 2010. TABLE V CLASSIFICATION ACCURACY(%)ACROSS DIFFERENTSNRLEVELS. THE TOP THREE ACCURACY VALUES ARE MARKED IN BOLD,UNDERLINE,AND ITALIC,RESPECTIVELY. SNR kNN DT SVM ML- XGBoost[28]VGG[28]ResNet[2...

    work page arXiv 2010

  9. [9]

    Graphic constellations and dbn based automatic modulation classification,

    F. Wang, Y . Wang, and X. Chen, “Graphic constellations and dbn based automatic modulation classification,” in2017 IEEE 85th vehicular technology conference (VTC Spring). IEEE, 2017, pp. 1–5

    work page 2017

  10. [10]

    Deep residual learning for image recognition,

    K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2016, pp. 770–778

    work page 2016

  11. [11]

    Green learning: Introduction, examples and outlook,

    C.-C. J. Kuo and A. M. Madni, “Green learning: Introduction, examples and outlook,”Journal of Visual Communication and Image Represen- tation, vol. 90, p. 103685, 2023

    work page 2023

  12. [12]

    Efficient sparse coding al- gorithms,

    H. Lee, A. Battle, R. Raina, and A. Ng, “Efficient sparse coding al- gorithms,”Advances in neural information processing systems, vol. 19, 2006

    work page 2006

  13. [13]

    Accuracy analysis of feature- based automatic modulation classification via deep neural network,

    Z. Ge, H. Jiang, Y . Guo, and J. Zhou, “Accuracy analysis of feature- based automatic modulation classification via deep neural network,” Sensors, vol. 21, no. 24, p. 8252, 2021

    work page 2021

  14. [14]

    Automatic modulation classification using moments and likelihood maximization,

    M. Abu-Romoh, A. Aboutaleb, and Z. Rezki, “Automatic modulation classification using moments and likelihood maximization,”IEEE Com- munications Letters, vol. 22, no. 5, pp. 938–941, 2018

    work page 2018

  15. [15]

    Performance evaluation of feature-based automatic modulation classification,

    P. Ghasemzadeh, S. Banerjee, M. Hempel, and H. Sharif, “Performance evaluation of feature-based automatic modulation classification,” in 2018 12th international conference on signal processing and commu- nication systems (ICSPCS). IEEE, 2018, pp. 1–5

    work page 2018

  16. [16]

    Automatic mod- ulation classification using convolutional neural network with features fusion of spwvd and bjd,

    Z. Zhang, C. Wang, C. Gan, S. Sun, and M. Wang, “Automatic mod- ulation classification using convolutional neural network with features fusion of spwvd and bjd,”IEEE Transactions on Signal and Information Processing over Networks, vol. 5, no. 3, pp. 469–478, 2019

    work page 2019

  17. [17]

    Automatic modulation classification using contrastive fully convolutional network,

    S. Huang, Y . Jiang, Y . Gao, Z. Feng, and P. Zhang, “Automatic modulation classification using contrastive fully convolutional network,” IEEE Wireless Communications Letters, vol. 8, no. 4, pp. 1044–1047, 2019

    work page 2019

  18. [18]

    Mcformer: A transformer based deep neural network for automatic modulation classification,

    S. Hamidi-Rad and S. Jain, “Mcformer: A transformer based deep neural network for automatic modulation classification,” in2021 IEEE Global Communications Conference (GLOBECOM). IEEE, 2021, pp. 1–6

    work page 2021

  19. [19]

    Mobilerat: a lightweight radio transformer method for automatic modulation classification in drone communication systems,

    Q. Zheng, X. Tian, Z. Yu, Y . Ding, A. Elhanashi, S. Saponara, and K. Kpalma, “Mobilerat: a lightweight radio transformer method for automatic modulation classification in drone communication systems,” Drones, vol. 7, no. 10, p. 596, 2023

    work page 2023

  20. [20]

    Multitask-learning- based deep neural network for automatic modulation classification,

    S. Chang, S. Huang, R. Zhang, Z. Feng, and L. Liu, “Multitask-learning- based deep neural network for automatic modulation classification,” IEEE internet of things journal, vol. 9, no. 3, pp. 2192–2206, 2021

    work page 2021

  21. [21]

    Automatic modulation classification using deep residual neural network with masked modeling for wireless communications,

    Y . Peng, L. Guo, J. Yan, M. Tao, X. Fu, Y . Lin, and G. Gui, “Automatic modulation classification using deep residual neural network with masked modeling for wireless communications,”Drones, vol. 7, no. 6, p. 390, 2023

    work page 2023

  22. [22]

    Frequency learning attention networks based on deep learning for automatic mod- ulation classification in wireless communication,

    D. Zhang, Y . Lu, Y . Li, W. Ding, B. Zhang, and J. Xiao, “Frequency learning attention networks based on deep learning for automatic mod- ulation classification in wireless communication,”Pattern Recognition, vol. 137, p. 109345, 2023

    work page 2023

  23. [23]

    Automatic modulation classification via meta-learning,

    X. Hao, Z. Feng, S. Yang, M. Wang, and L. Jiao, “Automatic modulation classification via meta-learning,”IEEE Internet of Things Journal, vol. 10, no. 14, pp. 12 276–12 292, 2023

    work page 2023

  24. [24]

    Unsupervised feature learning and automatic modulation classification using deep learning model,

    A. Ali and F. Yangyu, “Unsupervised feature learning and automatic modulation classification using deep learning model,”Physical Com- munication, vol. 25, pp. 75–84, 2017

    work page 2017

  25. [25]

    Automatic modulation classification using different neural network and pca combinations,

    A. K. Ali and E. Erc ¸elebi, “Automatic modulation classification using different neural network and pca combinations,”Expert Systems with Applications, vol. 178, p. 114931, 2021

    work page 2021

  26. [26]

    Deep learning-based robust automatic modulation classification for cognitive radio networks,

    S.-H. Kim, J.-W. Kim, W.-P. Nwadiugwu, and D.-S. Kim, “Deep learning-based robust automatic modulation classification for cognitive radio networks,”IEEE access, vol. 9, pp. 92 386–92 393, 2021

    work page 2021

  27. [27]

    Image feature extraction and denoising by sparse coding,

    E. Oja, A. Hyv ¨arinen, and P. Hoyer, “Image feature extraction and denoising by sparse coding,”Pattern Analysis & Applications, vol. 2, no. 2, pp. 104–110, 1999

    work page 1999

  28. [28]

    Over-the-air deep learning based radio signal classification,

    T. J. O’Shea, T. Roy, and T. C. Clancy, “Over-the-air deep learning based radio signal classification,”IEEE Journal of Selected Topics in Signal Processing, vol. 12, no. 1, pp. 168–179, 2018

    work page 2018

  29. [29]

    Radar signal modulation recognition based on bispectrum features and deep learning,

    Z. Dong, F. Lv, T. Wan, K. Jiang, X. Fang, and L. Zhang, “Radar signal modulation recognition based on bispectrum features and deep learning,” in2021 International Conference on Computer Engineering and Application (ICCEA). IEEE, 2021, pp. 63–67

    work page 2021

  30. [30]

    Automatic modulation classification architectures based on cyclostationary features in impulsive environments,

    T. V . Cˆamara, A. D. Lima, B. M. Lima, A. I. Fontes, A. D. M. Martins, and L. F. Silveira, “Automatic modulation classification architectures based on cyclostationary features in impulsive environments,”IEEE access, vol. 7, pp. 138 512–138 527, 2019

    work page 2019

  31. [31]

    Multiwavelet packet entropy and its application in transmission line fault recognition and classifi- cation,

    Z. Liu, Z. Han, Y . Zhang, and Q. Zhang, “Multiwavelet packet entropy and its application in transmission line fault recognition and classifi- cation,”IEEE transactions on neural networks and learning systems, vol. 25, no. 11, pp. 2043–2052, 2014

    work page 2043

  32. [32]

    On supervised feature selection from high dimensional feature spaces,

    Y . Yang, W. Wang, H. Fu, C.-C. J. Kuoet al., “On supervised feature selection from high dimensional feature spaces,”APSIPA Transactions on Signal and Information Processing, vol. 11, no. 1, 2022

    work page 2022

  33. [33]

    Mcnet: An ef- ficient cnn architecture for robust automatic modulation classification,

    T. Huynh-The, C.-H. Hua, Q.-V . Pham, and D.-S. Kim, “Mcnet: An ef- ficient cnn architecture for robust automatic modulation classification,” IEEE Communications Letters, vol. 24, no. 4, pp. 811–815, 2020

    work page 2020

  34. [34]

    Lightweight deep learning model for automatic modulation classification in cognitive radio networks,

    S.-H. Kim, J.-W. Kim, V .-S. Doan, and D.-S. Kim, “Lightweight deep learning model for automatic modulation classification in cognitive radio networks,”IEEE Access, vol. 8, pp. 197 532–197 541, 2020

    work page 2020

  35. [35]

    Automatic modulation classification: A deep learning enabled approach,

    F. Meng, P. Chen, L. Wu, and X. Wang, “Automatic modulation classification: A deep learning enabled approach,”IEEE Transactions on Vehicular Technology, vol. 67, no. 11, pp. 10 760–10 772, 2018

    work page 2018
