arxiv: 2604.06803 · v1 · submitted 2026-04-08 · 🌌 astro-ph.GA

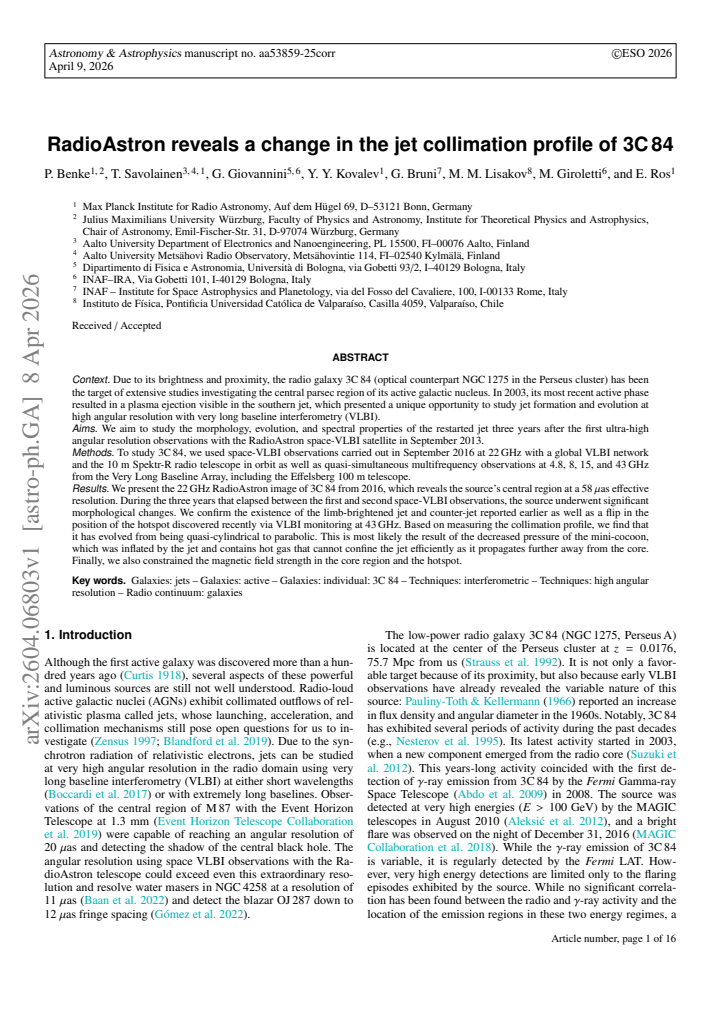

RadioAstron reveals a change in the jet collimation profile of 3C 84

P. Benke , T. Savolainen , G. Giovannini , Y. Y. Kovalev , G. Bruni , M. M. Lisakov , M. Giroletti , E. Ros This is my paper

Pith reviewed 2026-05-10 18:31 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords 3C 84jet collimationradio galaxyVLBImini-cocoonparabolic jetactive galactic nucleusRadioAstron
0
0 comments X

The pith

RadioAstron data show the jet in 3C 84 shifted from quasi-cylindrical to parabolic collimation over three years.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses new 22 GHz space-VLBI imaging of the nearby radio galaxy 3C 84 to track changes in its restarted southern jet between 2013 and 2016. Measuring the jet width versus distance from the core reveals a clear evolution from a nearly constant-width cylindrical shape to a widening parabolic profile. The authors attribute the change to a drop in confining pressure inside the mini-cocoon of hot gas that the jet has inflated around itself. This result matters because it shows that jet shape and propagation can be regulated by the local external medium on timescales of just a few years, directly affecting how energy is carried outward from the central black hole. The observations also confirm persistent limb brightening and a recent flip in hotspot position while providing estimates of magnetic field strength near the core and hotspot.

Core claim

Based on measuring the collimation profile, we find that it has evolved from being quasi-cylindrical to parabolic. This is most likely the result of the decreased pressure of the mini-cocoon, which was inflated by the jet and contains hot gas that cannot confine the jet efficiently as it propagates further away from the core.

What carries the argument

The measured jet collimation profile, which tracks how jet width varies with distance from the core and thereby indicates the strength of external confining pressure.

If this is right

  • The jet becomes less confined at larger distances once the surrounding hot gas pressure falls.
  • Restarted jets in other active galaxies may undergo similar shape transitions on short timescales.
  • Limb-brightened structures and hotspot positions can evolve rapidly as the jet adjusts to its environment.
  • Magnetic field estimates near the core and hotspot become possible from the same high-resolution data.
  • Energy transport from the black hole to larger scales is modulated by the evolving mini-cocoon.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Repeated high-resolution monitoring of other nearby AGN could reveal whether collimation-profile shifts are common when jets restart.
  • The mini-cocoon pressure mechanism may help explain why some jets remain narrow while others widen and deposit energy farther out.
  • Combining these VLBI results with X-ray or optical data on the surrounding hot gas could directly test the pressure-change interpretation.
  • If the profile change is pressure-driven, then models of jet feedback in galaxy clusters must incorporate time-dependent confinement.

Load-bearing premise

The observed change in collimation profile is caused by a decrease in mini-cocoon pressure rather than by variations in jet power, intrinsic ejection properties, or projection effects.

What would settle it

Multi-epoch VLBI imaging that shows the collimation profile remaining cylindrical even after independent measurements confirm a drop in gas pressure around the jet, or hydrodynamic simulations in which pressure reduction alone fails to produce a parabolic shape.

Figures

Figures reproduced from arXiv: 2604.06803 by E. Ros, G. Bruni, G. Giovannini, M. Giroletti, M. M. Lisakov, P. Benke, T. Savolainen, Y. Y. Kovalev.

Figure 1
Figure 1. Figure 1: Hybrid images of 3C 84 from the 2016 RadioAstron data. The core has been shifted to the map center in both images based [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Final image obtained via ehtim from the 22 GHz Ra￾dioAstron dataset overlaid with the contours of the clean image for comparison. The reduced χ 2 of the closure phases is indi￾cated in the upper-left corner. The core was shifted to the map center based on the values shown in Table C.2. ness temperature, Tb,min as (Lobanov 2015) Tb,min[K] = 3.09 b km!2 Vq mJy! , (2) where b is the baseline length, and Vq is… view at source ↗
Figure 3
Figure 3. Figure 3: RadioAstron images of 3C 84 from 2013 (white contours) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (u,v) coverage and minimum brightness temperatures estimated from the interferometric visibilities as described in Sect. 3 and Eq. 2 (Lobanov 2015). angle. Hence, by assuming an intrinsic brightness temperature value, we can obtain an estimate of the Doppler factor. Instead of the equipartition brightness temperature, Teq ≈ 5 × 1010 K (Readhead 1994), we adopted Tb,int = 2 × 1011 K suggested by Cohen et al… view at source ↗
Figure 7
Figure 7. Figure 7: Right panel: Core shift measurement with respect to the 43 GHz core position. Left panel: Positions of the lower-frequency cores with respect to the 43 GHz one. for the pixel and restoring beam sizes for the image pairs, we chose those of the lower-frequency map. As FITSalign allows the image area used for the cross-correlation to be selected, we tried to align the maps based on the optically thin lobe or … view at source ↗
Figure 8
Figure 8. Figure 8: Spectra of 3C 84 of the core (C1a+C1b+C1c) and jet (C3a+C3b+C3c) components and best-fit SSA models. Flux density errors are assumed to be 10%. Fit values are summarized in [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
read the original abstract

Due to its brightness and proximity, the radio galaxy 3C 84 (optical counterpart NGC 1275 in the Perseus cluster) has been the target of extensive studies investigating the central parsec region of its active galactic nucleus. In 2003, its most recent active phase resulted in a plasma ejection visible in the southern jet, which presented a unique opportunity to study jet formation and evolution at high angular resolution with very long baseline interferometry (VLBI). We aim to study the morphology, evolution, and spectral properties of the restarted jet three years after the first ultra-high angular resolution observations with the RadioAstron space-VLBI satellite in September 2013. To study 3C 84, we used space-VLBI observations carried out in September 2016 at 22 GHz with a global VLBI network and the 10 m Spektr-R radio telescope in orbit as well as quasi-simultaneous multifrequency observations at 4.8, 8, 15, and 43 GHz from the Very Long Baseline Array, including the Effelsberg 100 m telescope. We present the 22 GHz RadioAstron image of 3C 84 from 2016, which reveals the source's central region at a 58 microarcsecond effective resolution. During the three years that elapsed between the first and second space-VLBI observations, the source underwent significant morphological changes. We confirm the existence of the limb-brightened jet and counter-jet reported earlier as well as a flip in the position of the hotspot discovered recently via VLBI monitoring at 43 GHz. Based on measuring the collimation profile, we find that it has evolved from being quasi-cylindrical to parabolic. This is most likely the result of the decreased pressure of the mini-cocoon, which was inflated by the jet and contains hot gas that cannot confine the jet efficiently as it propagates further away from the core. Finally, we also constrained the magnetic field strength in the core region and the hotspot.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript reports 22 GHz RadioAstron space-VLBI imaging of 3C 84 from September 2016 at 58 microarcsecond resolution, combined with quasi-simultaneous VLBA observations at 4.8–43 GHz. It documents significant morphological evolution since the 2013 epoch, including confirmation of the limb-brightened jet and counter-jet, a flip in hotspot position, and a measured change in the jet collimation profile from quasi-cylindrical to parabolic. The authors interpret the profile evolution as most likely caused by decreased pressure in the jet-inflated mini-cocoon and provide constraints on core and hotspot magnetic field strengths.

Significance. If the reported collimation-profile evolution is robustly measured, the work supplies a rare, high-resolution observational constraint on temporal changes in AGN jet structure and external confinement, directly relevant to models of jet launching and propagation in restarted sources such as 3C 84. The direct VLBI imaging at microarcsecond scales and the multi-epoch comparison constitute the primary strengths.

major comments (1)
  1. [Abstract] Abstract: the central physical conclusion that the observed shift from quasi-cylindrical to parabolic collimation 'is most likely the result of the decreased pressure of the mini-cocoon' is presented without quantitative modeling, parameter grids, or statistical exclusion of the listed alternatives (jet-power variations, intrinsic ejection changes, or projection effects) over the three-year baseline. This causal attribution is load-bearing for the headline interpretation yet remains under-constrained by the data shown.
minor comments (1)
  1. [Methods] The methods description of component fitting and collimation-profile extraction should include explicit uncertainty budgets and the precise radial ranges over which the profile indices were measured to permit independent verification.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address the single major comment below and have revised the manuscript to strengthen the presentation of our interpretation while remaining faithful to the observational constraints.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central physical conclusion that the observed shift from quasi-cylindrical to parabolic collimation 'is most likely the result of the decreased pressure of the mini-cocoon' is presented without quantitative modeling, parameter grids, or statistical exclusion of the listed alternatives (jet-power variations, intrinsic ejection changes, or projection effects) over the three-year baseline. This causal attribution is load-bearing for the headline interpretation yet remains under-constrained by the data shown.

    Authors: We agree that the abstract presents the favored interpretation concisely. The supporting reasoning in the manuscript rests on the multi-epoch comparison: the collimation-profile change coincides with a clear flip in hotspot position and persistent limb-brightening, while the multi-frequency VLBA data show no significant variation in core or jet flux density that would be expected from a major change in jet power. Projection effects are disfavored by the consistent position angle and the detection of both jet and counter-jet at similar resolutions. Nevertheless, we acknowledge that a full quantitative exclusion of alternatives via parameter grids or hydrodynamic modeling is not provided. In the revised version we will (i) expand the discussion section with a dedicated paragraph qualitatively addressing each alternative and explaining why the mini-cocoon pressure decrease remains the most economical explanation given the data, (ii) add an explicit statement that detailed simulations lie beyond the scope of this observational paper, and (iii) soften the abstract wording to 'our favored interpretation is that the change results from decreased mini-cocoon pressure'. revision: partial

Circularity Check

0 steps flagged

No circularity: direct observational measurement with qualitative interpretation

full rationale

The paper's central result is an empirical measurement of the jet collimation profile from two epochs of RadioAstron VLBI imaging (2013 and 2016), showing a change from quasi-cylindrical to parabolic. This is obtained by direct fitting to the observed brightness distribution and does not rely on any derived equations, fitted parameters renamed as predictions, or self-citations that close a logical loop. The suggested cause (decreased mini-cocoon pressure) is presented as a qualitative interpretation without quantitative modeling, uniqueness theorems, or ansatzes imported from prior author work. No load-bearing step reduces the reported profile evolution to its own inputs by construction. The analysis remains self-contained as standard VLBI morphology analysis.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is observational; no mathematical derivations, fitted constants, or new postulated entities are introduced in the abstract. The mini-cocoon concept is referenced as prior knowledge.

pith-pipeline@v0.9.0 · 5717 in / 1171 out tokens · 36365 ms · 2026-05-10T18:31:49.336553+00:00 · methodology
