arxiv: 2604.06855 · v1 · submitted 2026-04-08 · 📡 eess.SP

Multi-User Symbol Detection with XL Reception: Dynamic Metasurface Antennas with Low Resolution ADCs

Rahul K. Pal , Soumya P. Dash , Barathram Ramkumar , George C. Alexandropoulos This is my paper

Pith reviewed 2026-05-10 18:01 UTC · model grok-4.3

classification 📡 eess.SP
keywords dynamic metasurface antennaslow resolution ADCshybrid beamformingmulti-user detectionXL arraysMSE minimizationuplink symbol detectionBussgang decomposition
0
0 comments X

The pith

XL DMA receivers with b-bit ADCs perform accurate multi-user symbol detection via joint hybrid combiner optimization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines uplink multi-user communications using extremely large dynamic metasurface antenna arrays where each RF chain connects to a low-resolution ADC. It sets up a non-convex mean squared error minimization task to design the hybrid analog-digital combiner that recovers symbols from multiple users under DMA hardware limits. The authors apply the Bussgang decomposition together with a simplified model to obtain an efficient joint solution for the combining weights. A sympathetic reader would care because this approach promises to cut hardware cost and power in large antenna systems while preserving detection quality, making XL arrays more practical for dense wireless networks.

Core claim

By exploiting the Bussgang decomposition and a tractable modeling framework, we propose an efficient joint design of the hybrid A/D combining parameters. Our numerical evaluations showcase that XL DMA receivers can perform highly accurate multi-user symbol detection, revealing attractive trade-offs between hardware complexity and MSE performance.

What carries the argument

Bussgang decomposition applied to a tractable model of the non-convex hybrid combiner optimization under DMA constraints and low-resolution ADCs.

If this is right

  • Partially connected DMA architectures with reduced RF chains can still support reliable uplink multi-user symbol recovery.
  • Hardware complexity can be traded against MSE performance by choosing the number of bits b in the ADCs.
  • The joint design extends conventional hybrid beamforming methods to metasurface-based front-ends.
  • Numerical results indicate that the approach works under realistic multi-user channel conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar low-resolution designs might apply to downlink transmission or to other metasurface configurations beyond the partially connected case studied here.
  • The framework could inform power budgeting in future dense 6G deployments that rely on XL arrays.
  • Testing the same optimization under time-varying channels would reveal how often the combiner must be redesigned.

Load-bearing premise

The Bussgang decomposition and tractable model produce designs that remain effective when applied to real DMA hardware and wireless channels.

What would settle it

Running the proposed combiner on measured DMA prototype data with b-bit ADCs and comparing achieved MSE against the values reported in the paper's simulations; a large gap would falsify the approximation's accuracy.

Figures

Figures reproduced from arXiv: 2604.06855 by Barathram Ramkumar, George C. Alexandropoulos, Rahul K. Pal, Soumya P. Dash.

Figure 1

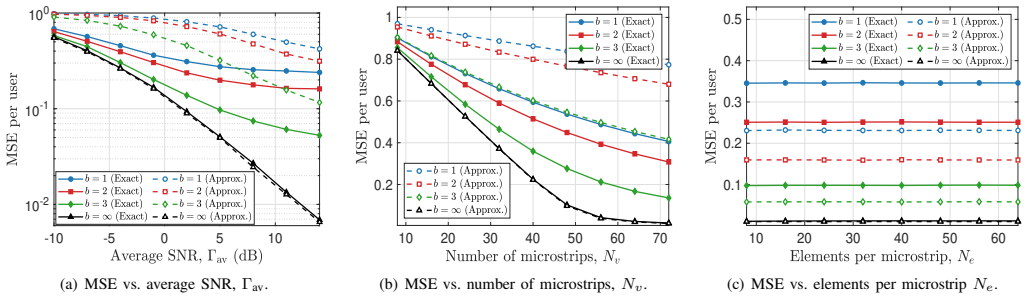

Figure 1. Figure 1: Comparison of the exact MSE and the MSE obtained using [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
read the original abstract

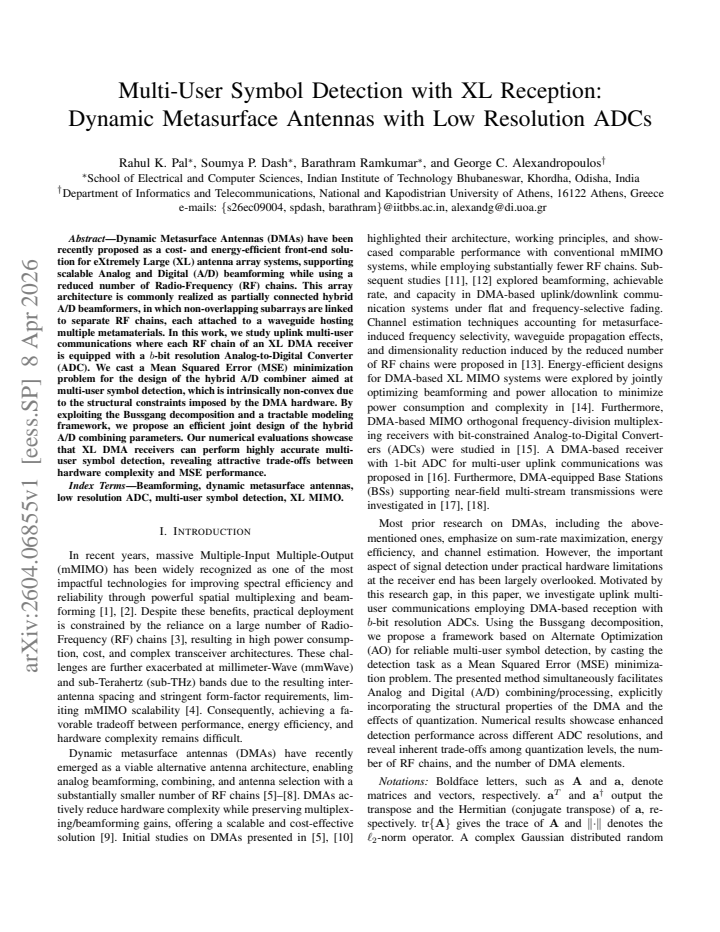

Dynamic Metasurface Antennas (DMAs) have been recently proposed as a cost- and energy-efficient front-end solution for eXtremely Large (XL) antenna array systems, supporting scalable Analog and Digital (A/D) beamforming while using a reduced number of Radio-Frequency (RF) chains. This array architecture is commonly realized as partially connected hybrid A/D beamformers, in which non-overlapping subarrays are linked to separate RF chains, each attached to a waveguide hosting multiple metamaterials. In this work, we study uplink multi-user communications where each RF chain of an XL DMA receiver is equipped with a $b$-bit resolution Analog-to-Digital Converter (ADC). We cast a Mean Squared Error (MSE) minimization problem for the design of the hybrid A/D combiner aimed at multi-user symbol detection, which is intrinsically non-convex due to the structural constraints imposed by the DMA hardware. By exploiting the Bussgang decomposition and a tractable modeling framework, we propose an efficient joint design of the hybrid A/D combining parameters. Our numerical evaluations showcase that XL DMA receivers can perform highly accurate multi-user symbol detection, revealing attractive trade-offs between hardware complexity and MSE performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper studies uplink multi-user symbol detection at an XL DMA receiver where each RF chain uses a b-bit ADC. It formulates hybrid A/D combiner design as a non-convex MSE minimization problem and solves it via Bussgang decomposition together with a tractable DMA model, yielding an efficient joint optimization procedure. Numerical results are used to claim highly accurate detection and favorable complexity-MSE trade-offs.

Significance. If the Bussgang-based designs retain their reported accuracy under exact quantization, the work would provide a practical route to hardware-efficient XL arrays by trading RF chains and ADC bits for acceptable MSE. The approach builds on established linearization techniques to obtain a tractable optimization, which is a methodological strength for this class of constrained beamforming problems.

major comments (2)
  1. [§V] §V (Numerical Results): The reported MSE curves and 'highly accurate' detection claims are obtained exclusively under the Bussgang linearization; no side-by-side comparison against the exact nonlinear quantizer (clipping/rounding) is provided for low b or correlated multi-user XL channels, leaving open whether the complexity-MSE trade-offs remain valid when the approximation error grows.
  2. [§III and §IV] §III (Problem Formulation) and §IV (Proposed Design): The Bussgang gain and distortion terms are treated as fixed once the combiner is designed, yet the paper supplies neither an a-priori error bound on the linearization nor an iterative refinement procedure that would account for the dependence of the effective input distribution on the hybrid combiner itself.
minor comments (2)
  1. [Abstract] The abstract states that the problem is 'intrinsically non-convex' but does not indicate whether the proposed algorithm is guaranteed to converge or only locally optimal; a brief statement on this point would improve clarity.
  2. [§II] Notation for the DMA waveguide response and the hybrid combiner matrices could be introduced with a single consolidated table to reduce cross-referencing in the system model.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and indicate the planned revisions.

read point-by-point responses

  1. Referee: [§V] §V (Numerical Results): The reported MSE curves and 'highly accurate' detection claims are obtained exclusively under the Bussgang linearization; no side-by-side comparison against the exact nonlinear quantizer (clipping/rounding) is provided for low b or correlated multi-user XL channels, leaving open whether the complexity-MSE trade-offs remain valid when the approximation error grows.

    Authors: We agree that direct validation against the exact nonlinear quantizer strengthens the claims, especially for low b and correlated XL channels. In the revised manuscript we will add side-by-side MSE curves in Section V that apply the Bussgang-designed combiner to both the linear model and the true clipping/rounding operation, covering the low-bit and correlated-channel regimes already considered in the paper. This will explicitly show whether the reported complexity-MSE trade-offs remain representative. revision: yes

  2. Referee: [§III and §IV] §III (Problem Formulation) and §IV (Proposed Design): The Bussgang gain and distortion terms are treated as fixed once the combiner is designed, yet the paper supplies neither an a-priori error bound on the linearization nor an iterative refinement procedure that would account for the dependence of the effective input distribution on the hybrid combiner itself.

    Authors: The Bussgang parameters are computed from the combiner output variance under the standard Gaussian-input assumption used throughout the quantized beamforming literature; this choice yields a tractable joint optimization. We acknowledge that no a-priori error bound is derived and that the parameters are not updated after the initial design. In the revision we will introduce an alternating procedure in Section IV that iteratively refines the Bussgang gain and distortion using the statistics of the current combiner output, and we will add a short discussion of the approximation quality supported by the existing numerical results. revision: partial

Circularity Check

0 steps flagged

No circularity: derivation uses standard Bussgang and tractable DMA model without self-referential reduction

full rationale

The paper formulates an MSE minimization problem for hybrid A/D combiner design under DMA hardware constraints and low-resolution ADCs, then applies the Bussgang decomposition (a standard technique for Gaussian signals) together with a tractable modeling framework to obtain an efficient solution. These steps are drawn from established signal-processing literature and do not reduce the reported numerical MSE results or complexity-performance trade-offs to fitted parameters, self-citations, or definitions that are equivalent to the inputs by construction. The central claim of accurate multi-user symbol detection follows from applying the resulting combiner to the system model; no load-bearing step collapses into a tautology or renames a known result as a novel prediction. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The approach rests on the Bussgang decomposition as a modeling tool for quantization and a tractable framework for the non-convex problem; these are standard in the domain rather than newly invented.

axioms (1)
  • domain assumption Bussgang decomposition provides a sufficiently accurate linear model for the quantization noise introduced by b-bit ADCs in the DMA combiner
    Invoked to enable tractable MSE minimization under hardware constraints.

pith-pipeline@v0.9.0 · 5526 in / 1064 out tokens · 56212 ms · 2026-05-10T18:01:28.780930+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    Holographic MIMO communications: Theoretical foun- dations, enabling technologies, and future directions,

    T. Gong et al., “Holographic MIMO communications: Theoretical foun- dations, enabling technologies, and future directions,” IEEE Commun. Surveys & Tuts. , vol. 26, no. 1, pp. 196–257, 2024

    work page 2024

  2. [2]

    Massive MIMO for maximal spectral efficiency: How many users and pilots should be allocated?

    E. Bj¨ ornson et al. , “Massive MIMO for maximal spectral efficiency: How many users and pilots should be allocated?” IEEE Trans. Wireless Commun., vol. 15, no. 2, pp. 1293–1308, 2016

    work page 2016

  3. [3]

    Hybrid architectures with few-bit ADC receivers: Achiev - able rates and energy-rate tradeoffs,

    J. Mo et al., “Hybrid architectures with few-bit ADC receivers: Achiev - able rates and energy-rate tradeoffs,” IEEE Trans. Wireless Commun. , vol. 16, no. 4, pp. 2274–2287, 2017

    work page 2017

  4. [4]

    Ultramassive MIMO systems at terahertz bands: Prospects and challenges,

    A. Faisal et al. , “Ultramassive MIMO systems at terahertz bands: Prospects and challenges,” IEEE V eh. Technol. Mag. , vol. 15, no. 4, pp. 33–42, 2020

    work page 2020

  5. [5]

    Dynamic metasurface antennas for 6G extreme massive MIMO communications,

    N. Shlezinger et al. , “Dynamic metasurface antennas for 6G extreme massive MIMO communications,” IEEE Wireless Commun. , vol. 28, no. 2, pp. 106–113, 2021

    work page 2021

  6. [6]

    Analysis of a waveguide-fed metasurface antenna,

    D. R. Smith et al. , “Analysis of a waveguide-fed metasurface antenna,” Phys. Rev. Appl. , vol. 8, no. 5, 2017

    work page 2017

  7. [7]

    Beamforming design for dynami c metasur- face antennas-based massive multiuser MISO downlink syste ms,

    J.-C. Chen and C.-H. Hsu, “Beamforming design for dynami c metasur- face antennas-based massive multiuser MISO downlink syste ms,” IEEE Open J. Commun. Society , vol. 5, pp. 1387–1398, 2024

    work page 2024

  8. [8]

    Near-field localiz ation with dynamic metasurface antennas at THz: A CRB minimizing appro ach,

    I. Gavras and G. C. Alexandropoulos, “Near-field localiz ation with dynamic metasurface antennas at THz: A CRB minimizing appro ach,” IEEE Wireless Commun. Lett. , vol. 14, no. 7, pp. 1854–1858, 2025

    work page 2025

  9. [9]

    Electromagnetic based communication model for dynamic metasurface antennas,

    R. J. Williams et al. , “Electromagnetic based communication model for dynamic metasurface antennas,” IEEE Trans. Wireless Commun., vol. 21, no. 10, pp. 8616–8630, 2022

    work page 2022

  10. [10]

    Wireless sensing using dynamic metasurface antennas: Challenges and opportunities,

    G. Lan et al. , “Wireless sensing using dynamic metasurface antennas: Challenges and opportunities,” IEEE Commun. Mag. , vol. 58, no. 6, pp. 66–71, 2020

    work page 2020

  11. [11]

    Uplink and downlink capacity m aximization of a P2P DMA-based communication system,

    S. F. Kimaryo and K. Lee, “Uplink and downlink capacity m aximization of a P2P DMA-based communication system,” IEEE Trans. Wireless Commun., vol. 23, no. 10, pp. 14 037–14 051, 2024

    work page 2024

  12. [12]

    Near-field b eam tracking with extremely large dynamic metasurface antennas,

    P . Gavriilidis and G. C. Alexandropoulos, “Near-field b eam tracking with extremely large dynamic metasurface antennas,” IEEE Trans. Wireless Commun., vol. 24, no. 7, pp. 6257–6272, 2025

    work page 2025

  13. [13]

    Channel estimation for dynamic metasurface antennas,

    M. Rezvani and R. Adve, “Channel estimation for dynamic metasurface antennas,” IEEE Trans. Wireless Commun. , vol. 23, no. 6, pp. 5832– 5846, 2024

    work page 2024

  14. [14]

    Energy efficiency maximization of massive MIMO com- munications with dynamic metasurface antennas,

    L. Y ou et al. , “Energy efficiency maximization of massive MIMO com- munications with dynamic metasurface antennas,” IEEE Trans. Wireless Commun., vol. 22, no. 1, pp. 393–407, 2023

    work page 2023

  15. [15]

    Dynamic metasurface antennas for MIMO-OFDM receivers with bit-limited ADCs,

    H. Wang et al. , “Dynamic metasurface antennas for MIMO-OFDM receivers with bit-limited ADCs,” IEEE Trans. Commun. , vol. 69, no. 4, pp. 2643–2659, 2021

    work page 2021

  16. [16]

    Metasurface-based receivers with 1-bit ADCs for multi-user uplink communications,

    P . Gavriilidis et al. , “Metasurface-based receivers with 1-bit ADCs for multi-user uplink communications,” in Proc. IEEE ICASSP , Seoul, Korea, 2024, pp. 9141–9145

    work page 2024

  17. [17]

    Low-resolution dynamic metasurface antenna signaling in multiuser communications,

    Y . Qiu et al. , “Low-resolution dynamic metasurface antenna signaling in multiuser communications,” IEEE Trans. Commun. , vol. 74, pp. 812– 825, 2026

    work page 2026

  18. [18]

    Near-field localization with 1-bit quantized hybrid A/D reception,

    I. Gavras et al., “Near-field localization with 1-bit quantized hybrid A/D reception,” in Proc. IEEE ICASSP , Seoul, Korea, 2024, pp. 13 286– 13 290

    work page 2024

  19. [19]

    How do micro strip losses impact near-field beam depth in dynamic metasurface antenna s?

    P . Gavriilidis and G. C. Alexandropoulos, “How do micro strip losses impact near-field beam depth in dynamic metasurface antenna s?” in Proc. EUSIPCO , Palermo, Italy, 2025, pp. 1005–1009

    work page 2025

  20. [20]

    The Bussgang decompositio n of nonlinear systems: Basic theory and MIMO extensions [lecture notes],

    O. T. Demir and E. Bjornson, “The Bussgang decompositio n of nonlinear systems: Basic theory and MIMO extensions [lecture notes], ” IEEE Signal Proc. Mag. , vol. 38, no. 1, pp. 131–136, Jan. 2021

    work page 2021

  21. [21]

    Throughput analysis of massive MIMO uplink with low-resolution ADCs,

    S. Jacobsson et al., “Throughput analysis of massive MIMO uplink with low-resolution ADCs,” IEEE Trans. Wireless Commun. , vol. 16, no. 6, pp. 4038–4051, 2017

    work page 2017
