Extinction Distributions in Nearby Star-resolved Galaxies. II. M33

Yuxi Wang (1 , 2) , Yi Ren (1 , Jian Gao (3 , 4) , Bingqiu Chen (5) , Ying Li (1) ((1) Department of Astronomy , College of Physics
show 11 more authors
Electronic Engineering Qilu Normal University (2) Shandong Key Laboratory of Space Environment Exploration Technology (3) Institute for Frontiers in Astronomy Astrophysics Beijing Normal University (4) School of Physics Astronomy (5) South-Western Institute for Astronomy Research Yunnan University)
This is my paper

Pith reviewed 2026-05-10 18:10 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.SR
keywords extinction mapM33RGB starsdust distributioninterstellar mediumspiral armscolor excessV-band extinction
0
0 comments X p. Extension

The pith

High-resolution extinction map of M33 from resolved RGB stars reveals dust following spiral arms and hydrogen gas.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper constructs a detailed extinction map for M33 by fitting the multiband colors of its individually resolved red giant branch stars. This yields an angular resolution of about 6 arcseconds, or 24 parsecs, that displays uneven dust across the full disk, clearly marking spiral arms, inter-arm zones, and compact clouds. The map aligns closely with independent distributions of total hydrogen, neutral hydrogen, and carbon monoxide, confirming it traces both diffuse and dense interstellar material. Peak V-band extinction values reach 2.5 magnitudes per pixel with an average near 1.05 magnitudes, supplying a practical basis for correcting dust effects in stellar observations and preparing for future telescope work.

Core claim

By fitting multiband color indexes of individually resolved RGB stars from the PHATTER survey, an extinction map of M33 is constructed at approximately 6 arcsecond resolution. The map reveals the intricate and heterogeneous distribution of dust throughout the entire disk, with distinct delineation of spiral arms, inter-arm regions, and compact dust clouds. It exhibits strong spatial correspondence with the distributions of total hydrogen, H I, and CO. The derived V-band extinction reaches up to 2.5 mag per pixel, with a mean value of about 1.05 mag, providing new insights into the dust structure and a robust foundation for accurate extinction corrections.

What carries the argument

Fitting multiband color indexes of resolved RGB stars to derive color excess and per-pixel extinction values across the galaxy disk.

If this is right

  • The map enables accurate extinction corrections for stellar population studies throughout M33.
  • It traces both diffuse and dense interstellar medium components reliably.
  • It provides a foundation for future studies with telescopes including the Chinese Space Station Telescope.
  • It delineates dust structures aligned with spiral arms and gas distributions at 24 parsec scales.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same RGB-star fitting method could map dust in other nearby galaxies to compare interstellar medium patterns across different spiral systems.
  • The tight link to molecular gas tracers opens the possibility of using the map to study how dust affects local star formation efficiency within arms.
  • At this resolution the map could reveal whether small dust clouds act as shields or triggers for new star formation on sub-50-parsec scales.

Load-bearing premise

That the intrinsic colors of RGB stars can be modeled accurately enough from multiband photometry for color excesses to isolate dust extinction rather than stellar metallicity or age variations.

What would settle it

If the derived extinction map shows poor spatial correlation with independent dust tracers such as far-infrared emission maps or known compact dust features in M33.

Figures

Figures reproduced from arXiv: 2604.06983 by 2), (2) Shandong Key Laboratory of Space Environment, (3) Institute for Frontiers in Astronomy, 4), (4) School of Physics, (5) South-Western Institute for Astronomy Research, Astronomy, Astrophysics, Beijing Normal University, Bingqiu Chen (5), College of Physics, Electronic Engineering, Exploration Technology, Jian Gao (3, Qilu Normal University, Ying Li (1) ((1) Department of Astronomy, Yi Ren (1, Yunnan University), Yuxi Wang (1.

Figure 1

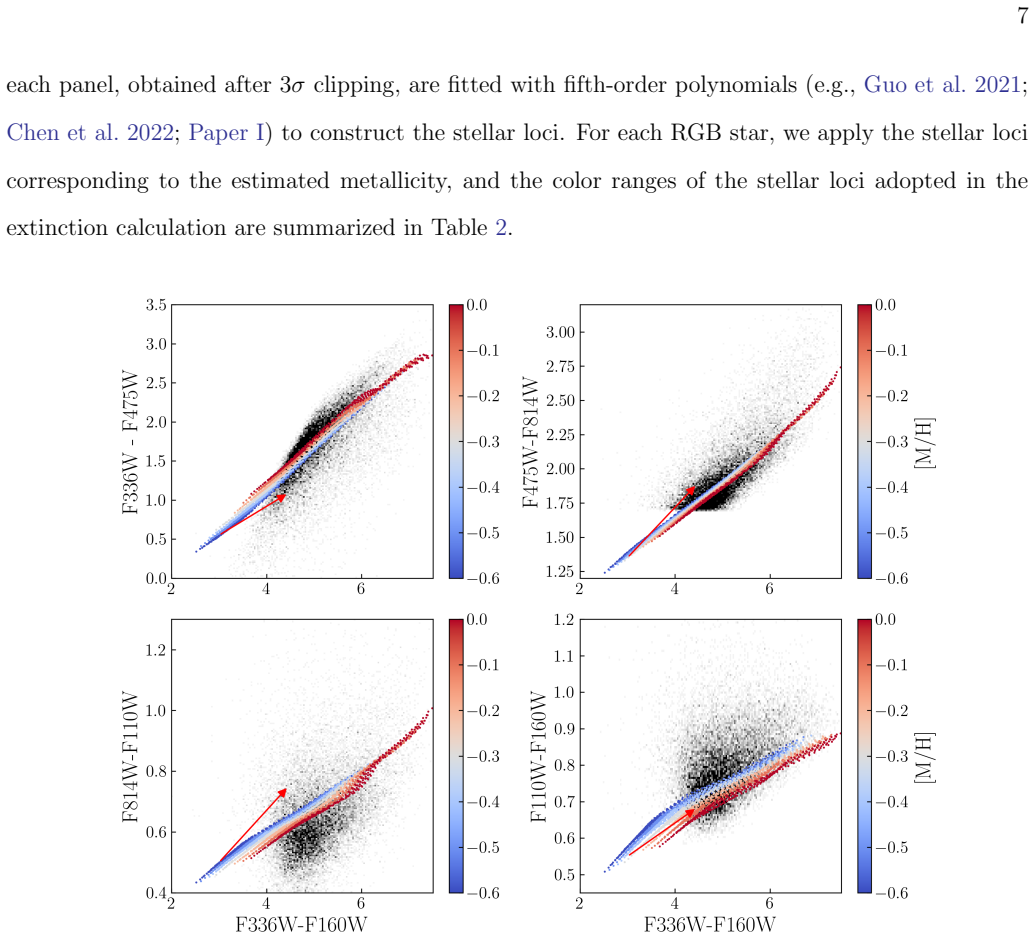

Figure 1. Figure 1: Color-color diagrams for RGB stars at different metallicities generated with the CMD 3.9 web interface. Gray contours show the observed RGB sample adopted in this work with foreground MW extinction corrected (darker shades indicate higher tracer density), and the red arrows indicate the reddening vector for AV = 1 mag assuming the mean extinction law of M33 (Wang et al. 2022). The sharp cutoff at F475W−F81… view at source ↗
Figure 2

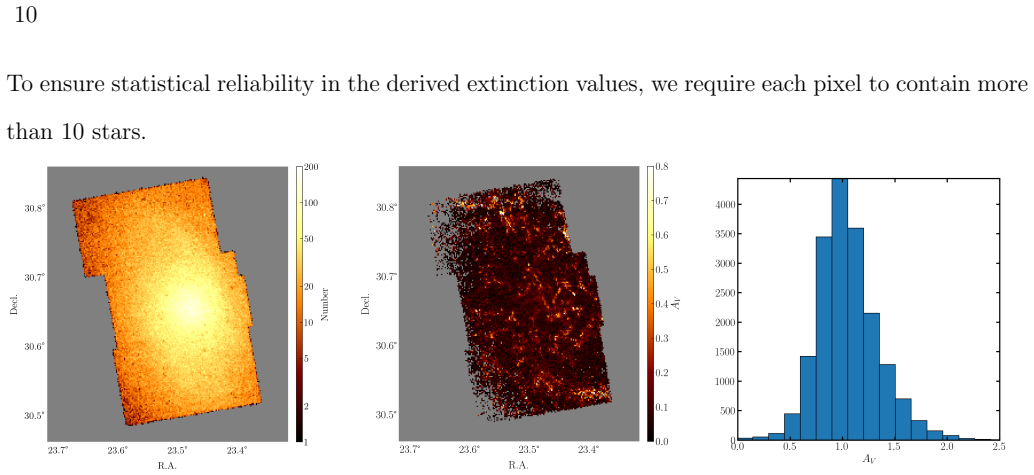

Figure 2. Figure 2: Left panel: distribution of the stellar counts in each pixel. Middle panel: distribution of AV variance. Right panel: histogram for AV values over all measured pixels [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

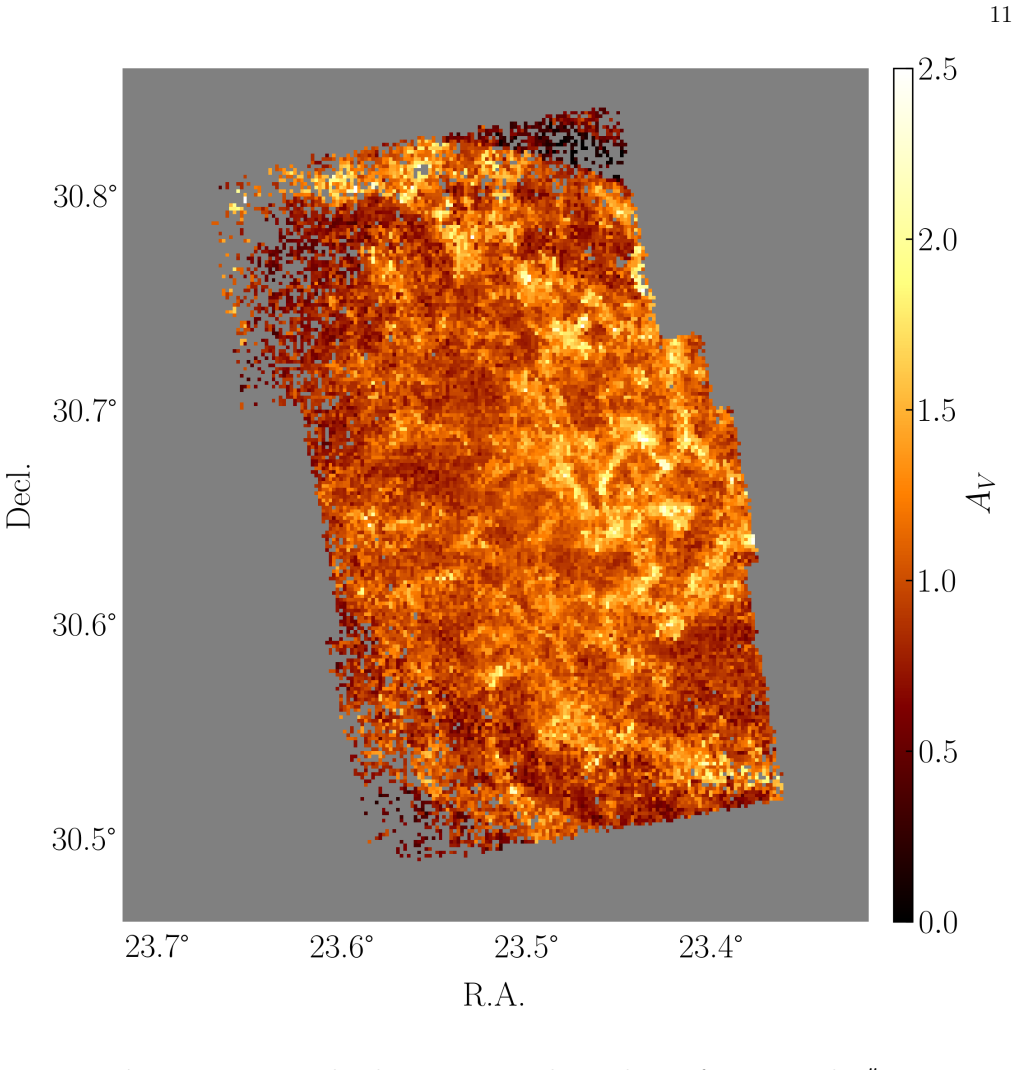

Figure 3. Figure 3: Extinction distribution in M33 with a resolution of approximately 6′′ . The extinction in [PITH_FULL_IMAGE:figures/full_fig_p011_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison between the extinction map constructed in this work and the Spitzer/IRAC 8 µm emission distribution. Left panel: Spitzer/IRAC 8 µm map at 12′′ resolution, with cyan contours showing the mean AV derived in this work. Right panel: pixel-by-pixel comparison, shown as a density plot of AV versus log(I8.0), with colors from red to blue indicating high to low point density. After convolving the extinc… view at source ↗
Figure 5
Figure 5. Figure 5: Left panels: maps of H (Keilmann et al. 2024, upper left), and H I (Gratier et al. 2010, lower left) column densities, with red contours indicating the mean AV value as determined in this work. Right panels: pixel-by-pixel comparison between extinction values and gas column densities. For each corresponding gas component, the horizontal axis shows the extinction value in the V band for each pixel determine… view at source ↗
Figure 6

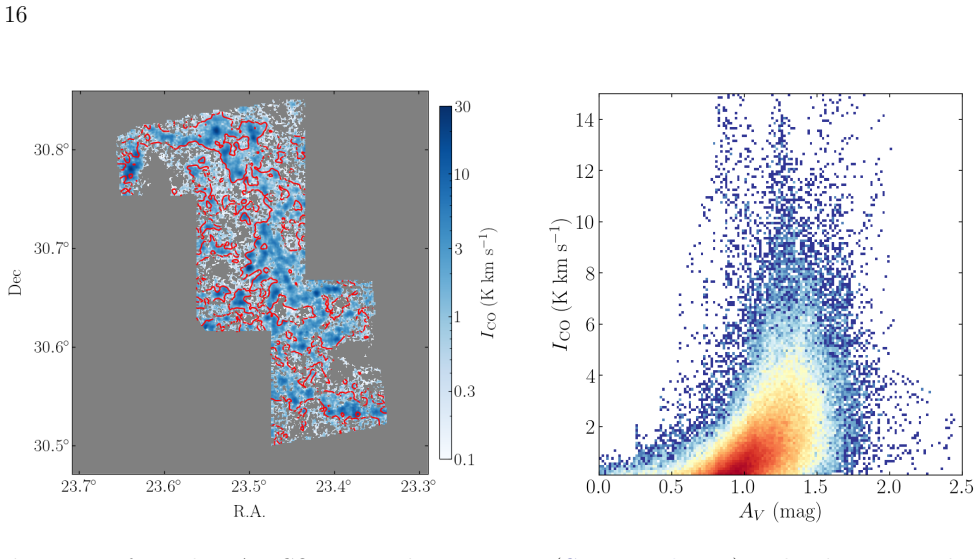

Figure 6. Figure 6: Left panel: IRAM CO integrated intensity map (Gratier et al. 2010), with red contours indicating the mean AV value as determined in this work. Right panel: a two-dimensional density map (density increases from blue to red) showing the relationship between extinction (AV ; x-axis) and integrated CO intensity (ICO; y-axis). (2022), who combined archival images from UV to IR for young star cluster population,… view at source ↗
read the original abstract

Extinction maps are essential for tracing interstellar dust and enabling accurate stellar population studies in galaxies. Here, a high-resolution extinction distribution of nearby galaxy M33 is constructed by fitting multiband color indexes of the individually resolved red giant branch (RGB) stars from the Panchromatic Hubble Andromeda Treasury: Triangulum Extended Region (PHATTER) survey. Achieving an angular resolution of approximately 6$^{\prime\prime}$ ($\sim$ 24.4 pc), the extinction map reveals the intricate and heterogeneous distribution of dust throughout the entire disk of M33, with distinct delineation of spiral arms, inter-arm regions, and compact dust clouds. In addition, it exhibits strong spatial correspondence with the distributions of total hydrogen, H I, and CO, underscoring the reliability of the extinction map for tracing both diffuse and dense components of the interstellar medium. The derived $V$-band extinction reaches up to 2.5 mag per pixel, with a mean value of about 1.05 mag. Beyond providing new insights into the dust structure of M33, the extinction map offers a robust foundation for accurate extinction corrections and will support future studies, including upcoming observations with the Chinese Space Station Telescope.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper derives a high-resolution (~6 arcsec, ~24 pc) extinction map of M33 by fitting multiband color indices of resolved RGB stars from the PHATTER survey. The map reaches A_V up to 2.5 mag (mean ~1.05 mag) and is reported to delineate spiral arms, inter-arm regions, and compact dust clouds while showing strong spatial correspondence with total hydrogen, H I, and CO distributions.

Significance. If the derived extinctions reliably isolate dust rather than stellar-population effects, the map would supply a useful high-resolution template of dust structure across an entire nearby disk galaxy, supporting extinction corrections for stellar-population work and comparisons with ISM tracers. The reported gas-tracer correlations provide an independent consistency check, but the absence of quantitative validation leaves the robustness of the central claim uncertain.

major comments (3)
  1. The fitting procedure that converts observed colors to extinction (implicitly by subtracting an assumed intrinsic RGB locus) is not described with sufficient detail on how the locus is constructed or tested. Given M33’s documented radial metallicity gradient of ~0.03–0.05 dex kpc⁻¹ and mixed-age RGB populations, any mismatch between the assumed locus and local stellar properties will be absorbed into the extinction values, potentially imprinting spurious structure that correlates with star-formation history rather than dust alone.
  2. No synthetic-data tests or error-propagation analysis are presented to quantify how uncertainties in the intrinsic-color model, photometric errors, and population variations propagate into the final A_V map. Without these, the claimed “strong spatial correspondence” with gas tracers cannot be distinguished from possible correlated biases arising from the same underlying stellar-density field.
  3. The resolution and pixel-by-pixel A_V statistics (maximum 2.5 mag, mean 1.05 mag) are stated without an accompanying assessment of how the method behaves in low-density inter-arm regions versus dense arms, where the RGB sampling density and metallicity spread differ; this directly affects the reliability of the heterogeneous-dust claim.
minor comments (3)
  1. The abstract and introduction would benefit from a concise statement of the exact number of RGB stars used and the typical photometric depth in each band to allow readers to gauge sampling completeness.
  2. Figure captions should explicitly state the color scale, units, and any smoothing applied to the extinction map and the comparison gas-tracer images.
  3. A short discussion of how the adopted extinction curve (or zero-point) was chosen, and whether alternative curves were tested, would clarify the systematic uncertainty budget.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We have addressed each of the major comments point by point below. We agree that additional methodological details and validation are warranted and will revise the paper accordingly to strengthen the presentation and robustness of the extinction map.

read point-by-point responses

  1. Referee: The fitting procedure that converts observed colors to extinction (implicitly by subtracting an assumed intrinsic RGB locus) is not described with sufficient detail on how the locus is constructed or tested. Given M33’s documented radial metallicity gradient of ~0.03–0.05 dex kpc⁻¹ and mixed-age RGB populations, any mismatch between the assumed locus and local stellar properties will be absorbed into the extinction values, potentially imprinting spurious structure that correlates with star-formation history rather than dust alone.

    Authors: We agree that the Methods section requires more explicit detail on locus construction and testing to address potential biases from the metallicity gradient and mixed stellar populations. In the revised manuscript we will expand this section to describe how the intrinsic RGB locus was derived from the PHATTER photometry (including selection criteria and any radial binning), how local adjustments were applied to mitigate the known ~0.03–0.05 dex kpc⁻¹ gradient, and the tests performed against independent radial metallicity measurements and model isochrones. We will also discuss the expected residual impact of age-metallicity degeneracies on the derived A_V values. revision: yes

  2. Referee: No synthetic-data tests or error-propagation analysis are presented to quantify how uncertainties in the intrinsic-color model, photometric errors, and population variations propagate into the final A_V map. Without these, the claimed “strong spatial correspondence” with gas tracers cannot be distinguished from possible correlated biases arising from the same underlying stellar-density field.

    Authors: We acknowledge that the lack of quantitative synthetic tests and formal error propagation leaves the robustness of the gas-tracer correlations less certain than we claimed. We will add a new subsection (and supporting appendix) that presents Monte Carlo simulations using synthetic RGB populations with realistic photometric errors, metallicity spreads, and age variations drawn from the PHATTER catalog. These tests will quantify the contribution of each uncertainty source to the final A_V map and will include a direct check for spurious correlations between derived A_V and stellar-density or star-formation tracers that are independent of dust. revision: yes

  3. Referee: The resolution and pixel-by-pixel A_V statistics (maximum 2.5 mag, mean 1.05 mag) are stated without an accompanying assessment of how the method behaves in low-density inter-arm regions versus dense arms, where the RGB sampling density and metallicity spread differ; this directly affects the reliability of the heterogeneous-dust claim.

    Authors: We agree that an explicit regional reliability assessment is needed to support the claim of heterogeneous dust structure. In the revised manuscript we will add a dedicated analysis that compares RGB sampling density, photometric uncertainty distributions, and A_V statistics between spiral-arm and inter-arm regions (using the same 6-arcsec pixels). This will include maps and histograms demonstrating that the method remains stable in lower-density areas and that the reported maximum and mean A_V values are not driven solely by high-density arm regions. revision: yes

Circularity Check

0 steps flagged

No circularity: extinction map derived from external photometry fitting to assumed stellar locus

full rationale

The derivation constructs the extinction map by fitting multiband color indices of resolved RGB stars from the independent PHATTER survey photometry to an assumed intrinsic color locus, yielding A_V values per pixel. This is a standard forward-modeling procedure that does not reduce to self-definition, fitted inputs renamed as predictions, or load-bearing self-citations. The reported spatial correspondence with H, HI, and CO is presented as post-derivation validation, not an input to the map itself. No equations or steps in the provided text exhibit the enumerated circular patterns; the central result rests on external data and modeling assumptions rather than tautological reduction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain assumptions in stellar photometry and the availability of the PHATTER survey data; no new entities are introduced.

free parameters (1)
  • Extinction curve shape or zero-point offsets
    Color-index fitting typically requires an assumed or fitted extinction law or calibration offsets to convert color excess to A_V.
axioms (1)
  • domain assumption RGB stars possess a sufficiently narrow and predictable intrinsic color locus that can be modeled from isochrones or empirical templates
    This assumption underpins the separation of observed color excess into extinction.
