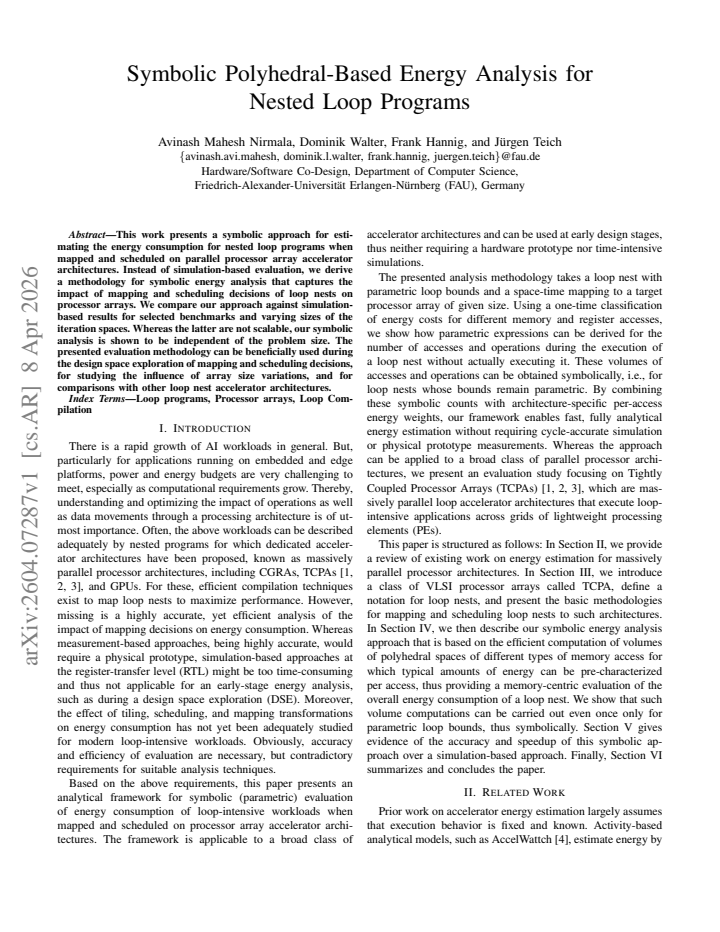

Symbolic Polyhedral-Based Energy Analysis for Nested Loop Programs

Avinash Mahesh Nirmala , Dominik Walter , Frank Hannig , J\"urgen Teich This is my paper

Pith reviewed 2026-05-10 17:50 UTC · model grok-4.3

classification 💻 cs.AR
keywords energy estimationsymbolic analysispolyhedral modelnested loopsprocessor arraysmapping and schedulingdesign space explorationaccelerator architectures
0
0 comments X

The pith

A symbolic polyhedral method estimates energy consumption for nested loop programs on processor arrays independently of problem size.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a symbolic method to estimate energy use when nested loop programs are mapped and scheduled onto arrays of parallel processors. It derives expressions based on the polyhedral structure of the loops that capture how mapping and scheduling choices affect total energy. This replaces simulation, which grows impractical as the number of iterations increases. A reader would care because the estimates stay valid for any problem size, letting designers quickly test many mapping options and array configurations. The authors show the method matches simulation results on smaller cases across selected benchmarks.

Core claim

This work presents a symbolic approach for estimating the energy consumption for nested loop programs when mapped and scheduled on parallel processor array accelerator architectures. Instead of simulation-based evaluation, we derive a methodology for symbolic energy analysis that captures the impact of mapping and scheduling decisions of loop nests on processor arrays. Our symbolic analysis is shown to be independent of the problem size.

What carries the argument

Symbolic polyhedral-based energy analysis that derives closed-form expressions for energy from loop mapping and scheduling decisions.

If this is right

  • The methodology supports design space exploration of mapping and scheduling decisions without repeated simulations.
  • It enables direct study of how processor array size variations change energy consumption.
  • It permits consistent comparisons between alternative loop nest accelerator architectures.
  • The estimates remain usable for arbitrarily large iteration spaces in the nested loops.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The symbolic expressions could be embedded in design tools to automatically rank mapping choices by predicted energy.
  • The same polyhedral setup might be reused to derive symbolic models for other quantities such as latency or memory traffic.
  • Direct validation against fabricated silicon would test whether the cost model holds beyond simulation.

Load-bearing premise

The polyhedral representation together with the chosen energy cost model accounts for all dominant energy-consuming behaviors in the processor arrays.

What would settle it

Detailed cycle-accurate simulation or direct hardware power measurement on large iteration spaces that produces energy values differing substantially from the symbolic predictions.

Figures

Figures reproduced from arXiv: 2604.07287 by Avinash Mahesh Nirmala, Dominik Walter, Frank Hannig, J\"urgen Teich.

Figure 1
Figure 1. Figure 1: Example of a tightly coupled processor array (TCPA) architecture [1]. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

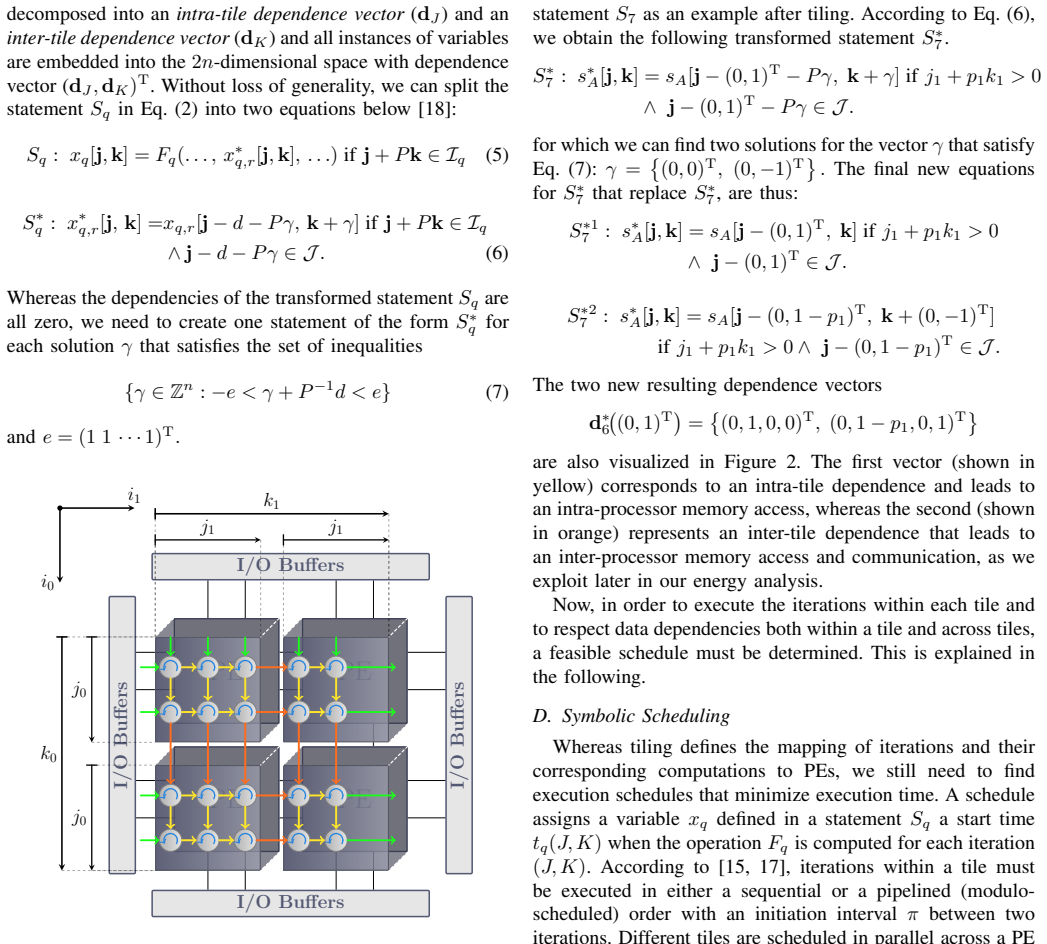

Figure 2
Figure 2. Figure 2: Visualization of the tiled iteration space of the GESUMMV benchmark [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

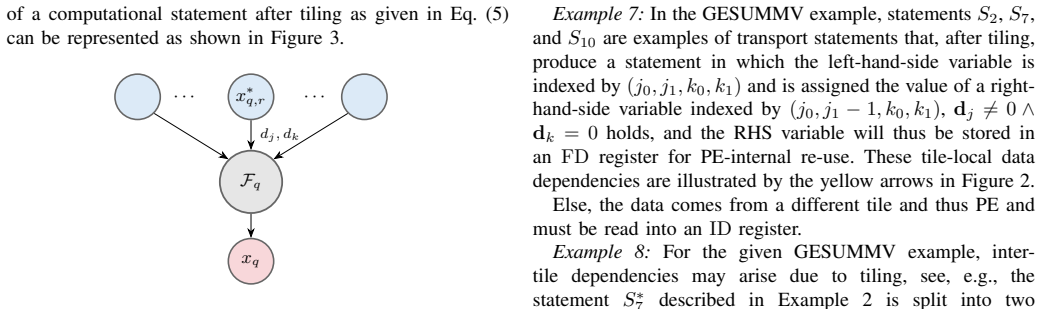

Figure 3
Figure 3. Figure 3: RDG of a computational statement Sq as given in Eq. (5) 2) Energy Memory-Related Statements: For a statement S ∗ q ∈ M, we estimate the energy by statement similarly: E M q = E(L(xq,r)) + E(L(x ∗ q,r)) (10) Explanation: The first term calculates the energy needed to read the right-hand-side variable xq,r of statement S ∗ q , and the second term denotes the energy needed to copy its value to location L(x ∗ … view at source ↗

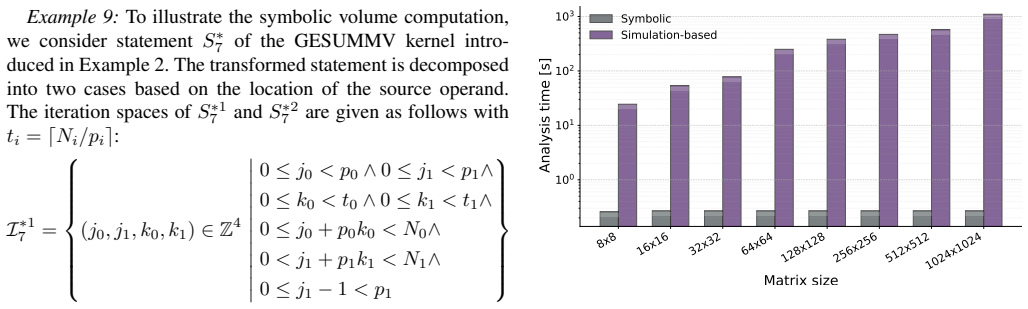

Figure 4
Figure 4. Figure 4: Comparison of symbolic and simulation-based analysis times for the [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

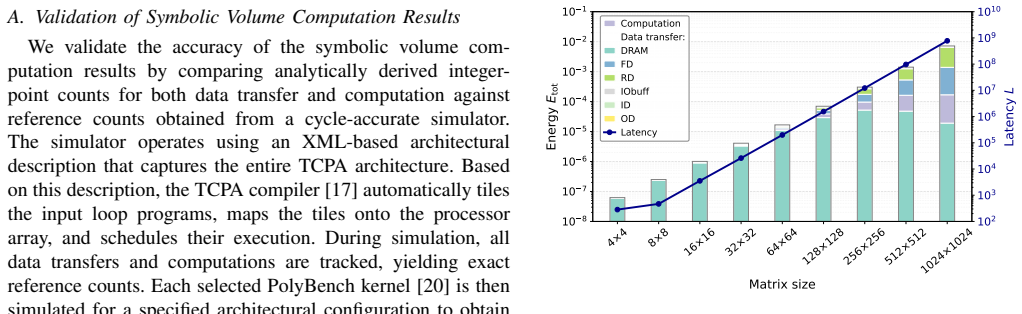

Figure 5
Figure 5. Figure 5: Energy Etot and latency L vs. matrix size for GEMM on an 8×8 PE grid TCPA, showing a shift from DRAM-dominated energy to increasing on-chip communication (FD/RD) at larger scales due to growing tile sizes. rapidly [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

This work presents a symbolic approach for estimating the energy consumption for nested loop programs when mapped and scheduled on parallel processor array accelerator architectures. Instead of simulation-based evaluation, we derive a methodology for symbolic energy analysis that captures the impact of mapping and scheduling decisions of loop nests on processor arrays. We compare our approach against simulation-based results for selected benchmarks and varying sizes of the iteration spaces. Whereas the latter are not scalable, our symbolic analysis is shown to be independent of the problem size. The presented evaluation methodology can be beneficially used during the design space exploration of mapping and scheduling decisions, for studying the influence of array size variations, and for comparisons with other loop nest accelerator architectures.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents a symbolic polyhedral-based methodology for estimating the energy consumption of nested loop programs when mapped and scheduled on parallel processor array accelerators. It derives symbolic expressions that capture the impact of mapping and scheduling decisions, demonstrates that these expressions are independent of iteration-space size, and validates the approach by comparing the symbolic estimates against simulation results on selected benchmarks for varying problem sizes. The work positions the method as a scalable alternative to simulation for design-space exploration of accelerator mappings.

Significance. If the central claims hold, the work is significant for energy-aware design of loop-nest accelerators: it supplies a size-independent, symbolic alternative to simulation that directly incorporates mapping and scheduling effects via polyhedral representations. This enables efficient exploration of array-size variations and architecture comparisons without the scalability limits of simulation. The reported agreement with simulation on varying sizes constitutes positive evidence for practical utility and reproducibility.

major comments (1)
  1. Evaluation section: The central claim of agreement with simulation and size independence is supported only by the reported comparisons. The manuscript must include quantitative error metrics (e.g., mean relative error or R² values) for the symbolic versus simulation results across all tested problem sizes and benchmarks; qualitative statements alone leave the accuracy claim under-supported.
minor comments (2)
  1. Abstract: The claim that the symbolic analysis is independent of problem size is central but would be clearer if the abstract briefly indicated the key simplification steps that remove size-dependent terms.
  2. Introduction or related-work section: The motivation for choosing a polyhedral energy model over other symbolic or analytical approaches should be strengthened with explicit references to prior energy-modeling work in the polyhedral compiler literature.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. The suggestion to strengthen the evaluation with quantitative metrics is constructive, and we will incorporate it to better support our claims.

read point-by-point responses

  1. Referee: Evaluation section: The central claim of agreement with simulation and size independence is supported only by the reported comparisons. The manuscript must include quantitative error metrics (e.g., mean relative error or R² values) for the symbolic versus simulation results across all tested problem sizes and benchmarks; qualitative statements alone leave the accuracy claim under-supported.

    Authors: We agree that quantitative error metrics would provide stronger, more rigorous support for the accuracy and size-independence claims. In the revised manuscript, we will add mean relative error and R² values (or equivalent) computed across all benchmarks and problem sizes in the evaluation section, alongside the existing comparisons. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives a symbolic polyhedral methodology for energy estimation of mapped/scheduled loop nests on processor arrays, claiming size-independent expressions validated against simulation on benchmarks. No equations, parameter fits, self-citations, or ansatzes are described that would reduce the central claim (symbolic independence from iteration-space size) to a tautology or input by construction. The approach is presented as derived from polyhedral representations rather than fitted or renamed from prior results, rendering the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; the polyhedral model and energy cost functions are referenced only at the level of methodology.
