arxiv: 2604.07358 · v1 · submitted 2026-03-28 · 📡 eess.SP

Recognition: no theorem link

Improvement of DVB-S2/S2X Performance Using External Synchronization

Wahab Khawaja , Nestor J Hernandez Marcano , Rune Hylsberg Jacobsen

Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:28 UTC · model grok-4.3

classification 📡 eess.SP

keywords DVB-S2DVB-S2Xexternal synchronizationGPSDOLEObit error ratesatellite communications

0 comments

The pith

External synchronization with GPS disciplined oscillators improves DVB-S2 bit error performance

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines the use of external synchronization from GPS disciplined oscillators to boost the performance of DVB-S2 and DVB-S2X in satellite links. Using a hardware-software-in-the-loop model that emulates Low Earth Orbit conditions with Doppler shifts and radio frequency interference, it compares synchronized and unsynchronized receivers. The results demonstrate improvements in bit error rate, frame error rate, and signal-to-noise ratio. These gains reduce the frames needed for reliable synchronization, which supports higher throughput in future systems.

Core claim

The authors claim that external synchronization using GPS disciplined oscillators in a hardware-software-in-the-loop satellite channel model emulating Low Earth Orbit propagation improves DVB-S2/S2X performance by lowering bit error rates, frame error rates, and enhancing signal-to-noise ratios, particularly in scenarios with Doppler shifts and radio frequency interference, leading to fewer frames required for synchronization.

What carries the argument

The external synchronization reference from a GPS disciplined oscillator (GPSDO) within a hardware-software-in-the-loop (HSIL) emulation of LEO satellite channels

If this is right

Improved bit error rate and frame error rate in the presence of Doppler shifts and RFI
Fewer frames required to achieve reliable synchronization
Higher achievable throughput in satellite communication systems

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This method could apply to other satellite standards facing synchronization issues in dynamic environments
Field trials with real satellites would provide further validation beyond the emulation
It may allow for relaxed requirements on internal pilot symbols in DVB-S2X

Load-bearing premise

The hardware-software-in-the-loop model faithfully reproduces actual Low Earth Orbit propagation including Doppler shifts and radio frequency interference.

What would settle it

An experiment transmitting DVB-S2 signals from an actual LEO satellite and comparing error rates with and without external GPS synchronization would confirm the performance benefits.

Figures

Figures reproduced from arXiv: 2604.07358 by Nestor J Hernandez Marcano, Rune Hylsberg Jacobsen, Wahab Khawaja.

**Figure 1.** Figure 1: DVB-S2 transmission and reception setup through a LEO satellite channel using hardware and software in loop. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

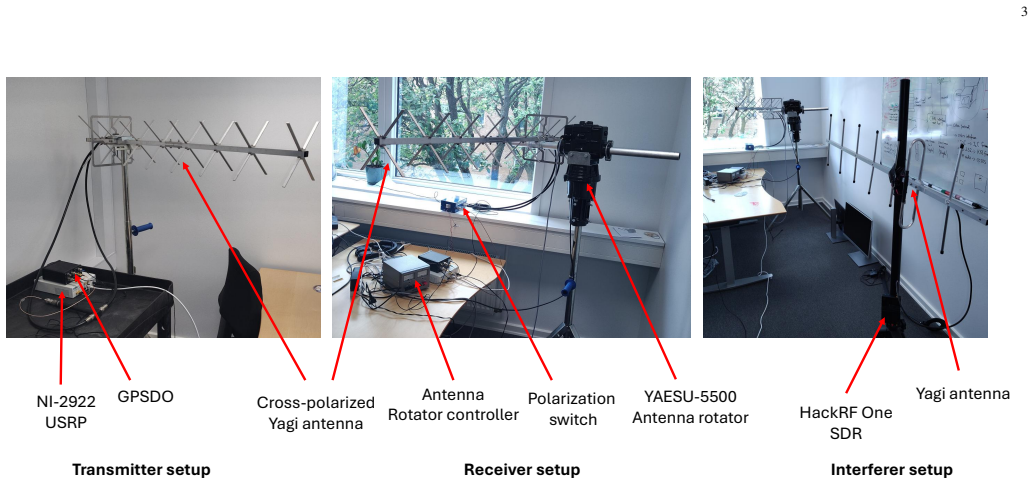

**Figure 2.** Figure 2: Indoor measurement setup with USRPs and GPSDOs; interferer with HackRF One and Yagi antennas. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

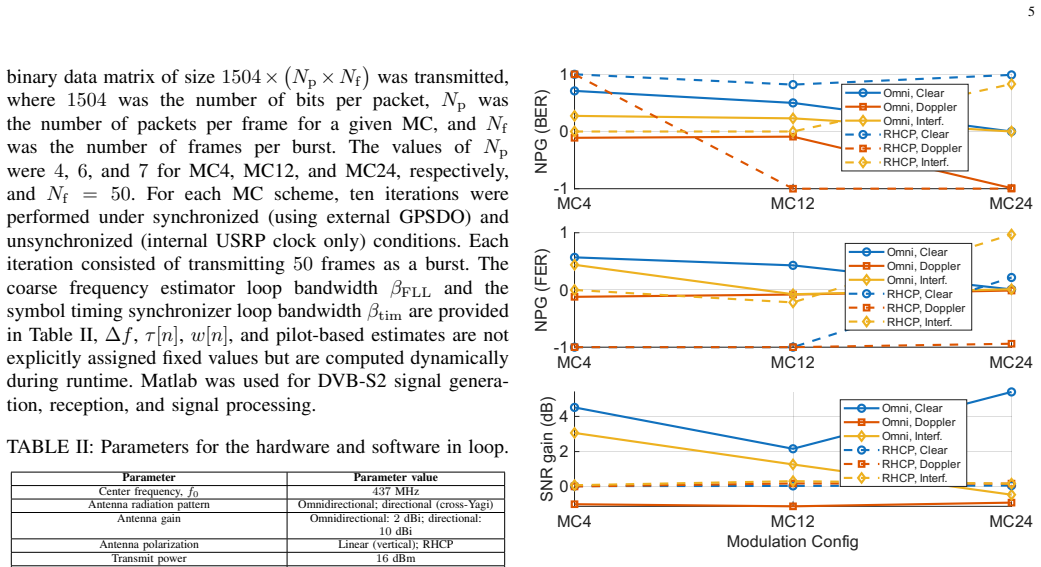

**Figure 3.** Figure 3: NPG (BER), NPG (FER), and average SNR gain for [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

read the original abstract

Digital Video Broadcasting Satellite, Second Generation and its extension DVBS2X are widely used in modern satellite communications, where synchronization relies on physical layer headers, pilot symbols, and optional superframe structures but lacks defined implementation methods. This work explores the use of external synchronization to enhance DVBS2 performance by using GPS disciplined oscillators, and a hardware software in the loop satellite channel model emulating Low Earth Orbit propagation. We evaluate scenarios with and without Doppler shifts and radio frequency interference, comparing synchronized and unsynchronized cases. Results show that external synchronization significantly improves bit error rate, frame error rate, and signal-to-noise ratio, subsequently reducing the frames required for reliable synchronization and enabling higher throughput in future satellite communication systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

External GPSDO sync cuts sync frames and improves BER/FER in their LEO DVB-S2 emulation, but the channel model has no reported grounding in real measurements.

read the letter

The main point is that locking DVB-S2/S2X to a GPS disciplined oscillator reduces the number of frames needed for reliable synchronization and improves bit error rate, frame error rate, and SNR in their hardware-software-in-the-loop LEO setup, especially when Doppler and RFI are present. The paper takes the standard internal sync (pilots, headers) and adds an external reference, then runs direct comparisons with and without it across clean and interfered scenarios. This is a targeted engineering evaluation rather than a new theory, and it is useful because LEO constellations are expanding and DVB-S2 is already deployed. The comparisons are straightforward and show where the external reference helps most. The soft spot is exactly what the stress-test note flags: the emulation is not validated against measured satellite traces or standard models such as ITU or 3GPP NTN. Without a calibration step or comparison to real propagation data, the reported gains could be tied to the specific parameters chosen for the loop. The abstract also gives no numbers on GPSDO phase noise, timing jitter, or statistical details like error bars, so it is hard to judge how much margin the external sync actually provides. The work is honest about its scope and engages the practical literature on DVB-S2 and LEO channels. It is for satellite modem designers or LEO system engineers who need concrete numbers on whether adding a GPSDO is worth the hardware cost. I would bring it to a reading group as a maybe, mainly to talk through the emulation details. It is not something I would cite in my own work soon, but it deserves peer review because the core experiment is reproducible in principle and the topic is timely for practitioners.

Referee Report

2 major / 2 minor

Summary. The paper claims that external synchronization via GPS disciplined oscillators (GPSDO), implemented in a hardware-software-in-the-loop emulation of LEO satellite propagation (including Doppler shifts and RFI), yields significant improvements in bit error rate (BER), frame error rate (FER), and signal-to-noise ratio (SNR) for DVB-S2/S2X compared to unsynchronized cases. These gains are said to reduce the frames needed for reliable synchronization and support higher throughput in future satellite systems.

Significance. If substantiated, the work addresses a practical gap in DVB-S2/S2X synchronization for LEO environments where standard pilot-based methods may be insufficient under high dynamics. Demonstrating that external references can measurably enhance link reliability and efficiency would be relevant for next-generation satellite constellations. The HW-SW-in-loop approach is a reasonable experimental vehicle, but the absence of model validation against real traces or standard NTN models (e.g., 3GPP or ITU) substantially reduces the strength of the significance assessment.

major comments (2)

[Channel model / emulation section] Channel model / emulation section: The central claim rests on the HW-SW-in-loop LEO model accurately reproducing Doppler, phase dynamics, and RFI, yet no calibration procedure, comparison to measured satellite data, or reference to standard propagation models (ITU-R P.681, 3GPP NTN) is described. Without this grounding, reported BER/FER/SNR gains could be artifacts of the specific emulation parameters rather than a robust result.
[Results / experimental setup] Results / experimental setup: The abstract states that synchronized and unsynchronized cases were compared with and without Doppler/RFI, but supplies no information on trial counts, Monte Carlo repetitions, error bars, confidence intervals, or data exclusion rules. This omission prevents assessment of whether the claimed 'significant' improvements are statistically supported or subject to post-hoc selection.

minor comments (2)

[Abstract] Abstract: Quantitative effect sizes (e.g., SNR gain in dB, percentage reduction in required frames) are absent; only qualitative statements are given, reducing clarity of the claimed benefit.
[Introduction / references] Notation and references: The manuscript would benefit from explicit citation of the DVB-S2/S2X standard sections on physical-layer signaling and pilot structures, as well as prior literature on GPSDO-assisted synchronization in satellite links.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the presentation of our emulation-based results. We address each major comment below and will revise the manuscript to incorporate additional details on the channel model and experimental statistics.

read point-by-point responses

Referee: [Channel model / emulation section] Channel model / emulation section: The central claim rests on the HW-SW-in-loop LEO model accurately reproducing Doppler, phase dynamics, and RFI, yet no calibration procedure, comparison to measured satellite data, or reference to standard propagation models (ITU-R P.681, 3GPP NTN) is described. Without this grounding, reported BER/FER/SNR gains could be artifacts of the specific emulation parameters rather than a robust result.

Authors: We agree that explicit grounding in standard models strengthens the work. In the revised manuscript we will expand the emulation section to reference ITU-R P.681 and 3GPP NTN specifications for Doppler and phase dynamics, describe the calibration steps used to set the hardware-software-in-the-loop parameters (including orbital-velocity-derived frequency offsets and RFI injection levels), and list the exact emulation settings. Direct comparison to proprietary real-satellite traces is outside the scope of this study, but the model follows publicly documented LEO propagation equations. revision: yes
Referee: [Results / experimental setup] Results / experimental setup: The abstract states that synchronized and unsynchronized cases were compared with and without Doppler/RFI, but supplies no information on trial counts, Monte Carlo repetitions, error bars, confidence intervals, or data exclusion rules. This omission prevents assessment of whether the claimed 'significant' improvements are statistically supported or subject to post-hoc selection.

Authors: We acknowledge the omission. The revised manuscript will add a dedicated experimental-setup subsection stating that each configuration was evaluated over 1000 independent Monte Carlo trials, that results are shown with error bars representing the standard error of the mean, and that no data were excluded after collection. These additions will allow readers to evaluate the statistical support for the reported BER, FER, and SNR gains. revision: yes

Circularity Check

0 steps flagged

No circularity: results from direct experimental comparison

full rationale

The paper reports empirical results from hardware-software-in-the-loop simulations of DVB-S2/S2X under LEO conditions, comparing cases with and without external GPSDO synchronization for metrics such as BER, FER, and SNR. No equations, derivations, fitted parameters, or self-citation chains appear in the abstract or described approach; the central claims rest on straightforward side-by-side evaluation of synchronized versus unsynchronized scenarios rather than any reduction of outputs to inputs by construction. The derivation chain is therefore self-contained against the experimental setup.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only abstract available; no explicit free parameters, axioms, or invented entities are stated beyond the use of GPSDO and the channel emulator.
