arxiv: 2604.07462 · v1 · submitted 2026-04-08 · ⚛️ physics.optics

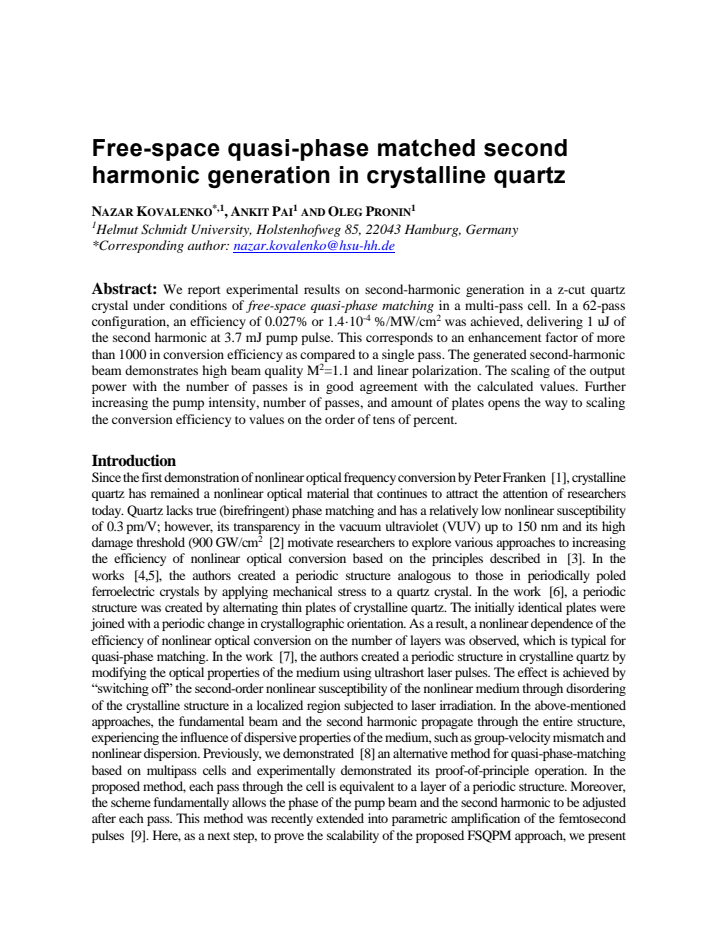

Free-space quasi-phase matched second harmonic generation in crystalline quartz

Nazar Kovalenko , Ankit Pai , Oleg Pronin This is my paper

Pith reviewed 2026-05-10 17:53 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords second harmonic generationquasi-phase matchingmulti-pass cellcrystalline quartzfree-space nonlinear opticsconversion efficiencybeam quality
0
0 comments X

The pith

A 62-pass free-space cell in quartz boosts second-harmonic conversion efficiency by more than 1000 times over a single pass.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that repeated free-space passes through a z-cut quartz crystal under quasi-phase-matching conditions produce usable second-harmonic light at low single-pass efficiency. With 62 passes the setup reaches 0.027 percent conversion, yielding 1 microjoule of second-harmonic output from a 3.7 millijoule pump pulse. Measured power scales linearly with pass count and matches calculation, while the output beam keeps M squared of 1.1 and linear polarization. The authors note that raising pump intensity, pass number, and plate count can push efficiency toward tens of percent without waveguides or resonant cavities.

Core claim

In a 62-pass free-space multi-pass cell, quasi-phase-matched second-harmonic generation in crystalline quartz yields an efficiency of 0.027 percent or 1.4 times 10 to the minus 4 percent per megawatt per square centimeter, delivering 1 microjoule of second-harmonic light from a 3.7 millijoule pump pulse, representing an enhancement factor exceeding 1000 relative to single-pass operation.

What carries the argument

The free-space multi-pass cell that routes the beam through the z-cut quartz crystal many times while preserving the quasi-phase-matching condition on each pass.

Load-bearing premise

The geometry keeps the relative phase between pump and harmonic aligned and losses low across all 62 passes without accumulating misalignment or phase drift.

What would settle it

A measurement showing that second-harmonic power stops rising linearly once the pass count exceeds roughly 20 or that M squared rises above 1.5 would indicate that phase matching or low loss is not maintained.

read the original abstract

We report experimental results on second-harmonic generation in a z-cut quartz crystal under conditions of free-space quasi-phase matching in a multi-pass cell. In a 62-pass configuration, an efficiency of 0.027% or 1.4x10-4 %/MW/cm2 was achieved, delivering 1 uJ of the second harmonic at 3.7 mJ pump pulse. This corresponds to an enhancement factor of more than 1000 in conversion efficiency as compared to a single pass. The generated second-harmonic beam demonstrates high beam quality M2=1.1 and linear polarization. The scaling of the output power with the number of passes is in good agreement with the calculated values. Further increasing the pump intensity, number of passes, and amount of plates opens the way to scaling the conversion efficiency to values on the order of tens of percent.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports experimental results on free-space quasi-phase-matched second-harmonic generation (SHG) in a z-cut quartz crystal within a multi-pass cell. In a 62-pass configuration, an efficiency of 0.027% (normalized 1.4×10^{-4} %/MW/cm²) is achieved, yielding 1 μJ of SH output from a 3.7 mJ pump pulse. This is claimed to represent >1000× enhancement over single-pass operation, with the SH beam exhibiting M²=1.1 and linear polarization. The scaling of output with pass number agrees with calculated values, and the authors indicate potential to reach tens of percent efficiency by increasing passes, intensity, and plates.

Significance. If the coherent QPM accumulation holds, the free-space multi-pass approach offers a fabrication-simple route to enhance SHG in standard birefringent crystals without poling or waveguides. The direct experimental comparison to single-pass, reported beam quality, and linear scaling provide supporting evidence for practical utility in compact sources. The absence of fitted parameters in the scaling comparison is a strength.

major comments (3)
  1. [Abstract] Abstract: The headline claim of coherent QPM enabling >1000× enhancement and linear scaling over 62 passes is load-bearing for the central result. No per-pass phase-error budget, measured beam-pointing stability data, or interferometric verification of relative phase between passes is provided to confirm that cumulative dephasing (Gouy, birefringent walk-off, or misalignment) remains <<π rather than permitting incoherent addition or effective interaction-length increase.
  2. [Abstract] Abstract (scaling statement): Agreement with 'calculated values' is asserted for the pass-number dependence, yet the manuscript provides no explicit model details, equations, or sensitivity analysis showing how losses, phase slips, and propagation effects are incorporated. This leaves open whether the calculation assumes ideal coherence or includes realistic tolerances.
  3. [Abstract] Abstract: The efficiency of 0.027% and normalized value 1.4×10^{-4} %/MW/cm² are stated without error bars, uncertainty propagation, or data-exclusion criteria. This directly affects confidence in the precise enhancement factor and is a load-bearing omission for an experimental claim.
minor comments (2)
  1. [Abstract] Abstract: Specify the pump intensity (or beam area) used to compute the normalized efficiency so that consistency with the 3.7 mJ pulse energy can be verified.
  2. [Abstract] Abstract: The phrase 'amount of plates' in the scalability statement is unclear in the context of a multi-pass cell; clarify whether this refers to additional crystals or reflective elements.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading and positive assessment of the significance of our work on free-space quasi-phase-matched second-harmonic generation. We address each major comment below and will revise the manuscript to incorporate the requested details and clarifications.

read point-by-point responses

  1. Referee: [Abstract] The headline claim of coherent QPM enabling >1000× enhancement and linear scaling over 62 passes is load-bearing for the central result. No per-pass phase-error budget, measured beam-pointing stability data, or interferometric verification of relative phase between passes is provided to confirm that cumulative dephasing (Gouy, birefringent walk-off, or misalignment) remains <<π rather than permitting incoherent addition or effective interaction-length increase.

    Authors: We agree that additional evidence for coherent accumulation would strengthen the central claim. The observed linear scaling of second-harmonic output with pass number, together with its agreement to calculations that assume coherent addition, already provides indirect support, since incoherent summation would produce a distinctly different (square-root) dependence. In the revised manuscript we will add a quantitative per-pass phase-error budget that estimates contributions from Gouy phase, birefringent walk-off, and residual misalignment in the 62-pass geometry. We will also report the measured beam-pointing stability of the multi-pass cell. Full interferometric verification of the relative phase for every pass is not feasible in the present free-space configuration, but the combination of scaling data and the error budget will allow readers to assess whether cumulative dephasing remains well below π. revision: yes

  2. Referee: [Abstract] Agreement with 'calculated values' is asserted for the pass-number dependence, yet the manuscript provides no explicit model details, equations, or sensitivity analysis showing how losses, phase slips, and propagation effects are incorporated. This leaves open whether the calculation assumes ideal coherence or includes realistic tolerances.

    Authors: We accept that the model was insufficiently documented. The revised manuscript will include the complete set of equations used to compute the expected second-harmonic scaling versus number of passes. These equations explicitly incorporate per-pass losses, phase-slip terms arising from the mechanisms listed above, and the relevant propagation effects. A sensitivity analysis will be added to demonstrate how the predicted scaling changes under realistic experimental tolerances, confirming that the observed agreement is not limited to the ideal-coherence case. revision: yes

  3. Referee: [Abstract] The efficiency of 0.027% and normalized value 1.4×10^{-4} %/MW/cm² are stated without error bars, uncertainty propagation, or data-exclusion criteria. This directly affects confidence in the precise enhancement factor and is a load-bearing omission for an experimental claim.

    Authors: We thank the referee for noting this omission. In the revised manuscript we will attach error bars to the reported efficiencies and normalized conversion coefficients. A brief section will describe the uncertainty propagation from the measured pump and second-harmonic pulse energies, and we will state the data-exclusion criteria applied during analysis. These additions will allow readers to evaluate the statistical reliability of the >1000× enhancement factor. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental comparison and independent scaling agreement are self-contained

full rationale

The paper presents direct experimental measurements of SHG efficiency in a 62-pass free-space multi-pass cell, with the reported 0.027% efficiency and >1000× enhancement obtained by explicit comparison of multi-pass versus single-pass output powers on the same apparatus. The observed linear scaling of output with pass number is stated to agree with separate calculated values (presumably from standard QPM theory and beam-propagation models), not from parameters fitted to the multi-pass dataset itself. No equations or claims reduce a prediction to a fit by construction, no load-bearing self-citations justify uniqueness, and the central result rests on measured data plus external theoretical benchmarks rather than any self-referential loop. This is the normal non-circular outcome for an experimental report whose key quantities are falsifiable against independent runs or calculations.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental measurement rather than derivation; it invokes standard nonlinear optics phase-matching principles and the assumption that the multi-pass cell preserves the required conditions.

axioms (1)
  • domain assumption Quasi-phase matching conditions can be maintained across multiple free-space passes in the z-cut quartz geometry without prohibitive phase accumulation.
    Invoked to explain the observed linear scaling of output with number of passes.

pith-pipeline@v0.9.0 · 5448 in / 1269 out tokens · 50122 ms · 2026-05-10T17:53:06.380568+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

10 extracted references · 10 canonical work pages

  1. [1]

    Generation of Optical Harmonics,

    P. A. Franken, A. E. Hill, C. W. Peters, and G. Weinreich, "Generation of Optical Harmonics," Phys. Rev. Lett. 7, 118 (1961)

    work page 1961

  2. [2]

    Laser Damage Threshold Evaluation of Nonlinear Crystal Quartz for Sub-Nanosecond Pulse Irradiation,

    H. Ishizuki and T. Taira, "Laser Damage Threshold Evaluation of Nonlinear Crystal Quartz for Sub-Nanosecond Pulse Irradiation," in Laser Congress 2017 (ASSL, LAC) (OSA, 2017), p. JTh2A.12

    work page 2017

  3. [3]

    Interactions between Light Waves in a Nonlinear Dielectric,

    J. A. Armstrong, N. Bloembergen, J. Ducuing, and P. S. Pershan, "Interactions between Light Waves in a Nonlinear Dielectric," Phys. Rev. 127, 1918–1939 (1962)

    work page 1918

  4. [4]

    Quasi-phase-matched second harmonic generation in crystal quartz,

    M. Harada, K. Muramatsu, and S. Kurimura, "Quasi-phase-matched second harmonic generation in crystal quartz," in A. Wang, Y. Zhang, and Y. Ishii, eds. (2005), p. 40

    work page 2005

  5. [5]

    Polarity inversion of crystal quartz using a quasi-phase matching stamp,

    H. Ishizuki and T. Taira, "Polarity inversion of crystal quartz using a quasi-phase matching stamp," Opt. Express 28, 6505–6510 (2020)

    work page 2020

  6. [6]

    Quasi phase-matched quartz for intense-laser pumped wavelength conversion,

    H. Ishizuki and T. Taira, "Quasi phase-matched quartz for intense-laser pumped wavelength conversion," Opt. Express 25, 2369–2376 (2017)

    work page 2017

  7. [7]

    Spatial Frequency Manipulation of a Quartz Crystal for Phase-Matched Second-Harmonic Vacuum Ultraviolet Generation,

    M. Shao, F. Liang, Z. Zhang, H. Yu, and H. Zhang, "Spatial Frequency Manipulation of a Quartz Crystal for Phase-Matched Second-Harmonic Vacuum Ultraviolet Generation," Laser Photonics Rev. 17, 2300244 (2023)

    work page 2023

  8. [8]

    Free-space quasi-phase matching,

    N. Kovalenko, V. Hariton, K. Fritsch, and O. Pronin, "Free-space quasi-phase matching," Opt. Lett. 48, 6220 (2023)

    work page 2023

  9. [9]

    Dispersion- engineered multipass optical parametric amplification,

    J. H. Nägele, T. Steinle, J. Thannheimer, P. Flad, and H. Giessen, "Dispersion- engineered multipass optical parametric amplification," Nature 647, 74–79 (2025)

    work page 2025

  10. [10]

    Generation of coherent radiation in the vacuum ultraviolet using randomly quasi-phase-matched strontium tetraborate,

    P. Trabs, F. Noack, A. S. Aleksandrovsky, A. I. Zaitsev, and V. Petrov, "Generation of coherent radiation in the vacuum ultraviolet using randomly quasi-phase-matched strontium tetraborate," Opt. Lett. 41, 618 (2016)

    work page 2016
