arxiv: 2604.07491 · v1 · submitted 2026-04-08 · ⚛️ physics.optics · physics.app-ph

Annular beams for reliable intersatellite optical communications

Mario Bad\'as Aldecocea , Edward Pauwels , Jasper Bouwmeester , Pierre Piron , J\'er\^ome Loicq This is my paper

Pith reviewed 2026-05-10 17:49 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords annular beamsintersatellite optical linkspointing jitterLaguerre-Gaussian beamsbeam shapingfree-space optical communicationsspiral phase platepower efficiency
0
0 comments X

The pith

Superpositions of Gaussian and annular Laguerre-Gaussian beams can deliver roughly 20 percent transmitter power savings in intersatellite links even after real beam-shaping losses and pointing jitter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors test whether a superposition of orthogonally polarized Gaussian and higher-order Laguerre-Gaussian beams can reduce the power needed to maintain reliable links when the transmitter has pointing jitter. They generate the higher-order component with a spiral phase plate, measure the actual beam profiles and losses that result, and fold those imperfections into a link budget model. The central finding is that the approach still yields power savings on the order of 20 percent relative to a pure Gaussian beam under the modeled conditions. A sympathetic reader cares because lower transmitter power directly extends satellite battery life, reduces thermal load, and allows smaller apertures or lower-cost lasers in future constellations.

Core claim

A superposition of an orthogonally polarized fundamental Gaussian beam and a higher-order Laguerre-Gaussian beam, generated via a spiral phase plate, produces an annular intensity profile whose outer ring reduces the fraction of power lost when the beam wanders off the receiver due to transmitter pointing jitter. Laboratory characterization shows that the generated beams contain quantifiable shaping errors and losses, yet the net link performance still improves by approximately 20 percent in power efficiency compared with a conventional Gaussian beam when the same pointing-error statistics are applied.

What carries the argument

superposition of orthogonally polarized Gaussian and higher-order Laguerre-Gaussian beams generated by a spiral phase plate, producing an annular profile that moves power away from the beam center

If this is right

  • The method remains effective even when the spiral phase plate introduces realistic beam-shaping errors and diffraction losses.
  • Power savings on the order of 20 percent are still obtained under the considered pointing-jitter statistics.
  • The superposition can be generated reliably enough in a compact optical bench to be considered for flight hardware.
  • Annular profiles reduce the sensitivity of received power to small angular misalignments without requiring active beam steering.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the same annular superposition works in vacuum and with the larger beam sizes typical of long-range links, it could be combined with existing pointing-acquisition-tracking systems to relax jitter specifications.
  • The 20 percent margin might allow designers to trade transmitter power for smaller solar arrays or longer mission life in low-Earth-orbit constellations.
  • Similar annular shaping could be tested for uplink scenarios where atmospheric turbulence adds another source of beam wander.

Load-bearing premise

The laboratory optical setup and modeled pointing jitter accurately represent the conditions and error sources encountered in actual intersatellite links.

What would settle it

A direct measurement on an actual intersatellite link that shows the required transmitter power for the annular superposition equal to or greater than that of a Gaussian beam under comparable jitter would falsify the 20 percent savings claim.

Figures

Figures reproduced from arXiv: 2604.07491 by Edward Pauwels, Jasper Bouwmeester, J\'er\^ome Loicq, Mario Bad\'as Aldecocea, Pierre Piron.

Figure 1
Figure 1. Figure 1: Experimental setup proposed for beam-shaping. The Gaussian beam cleaning stage and the beam-shaping stage are shown. A picture of the experimental setup in the laboratory can be found in the Supplemental Document. The vertical polarization component reflected by the PBS bypasses the SPP and is subsequently superposed with the hor￾izontally polarized annular beam using a polarization beam combiner (PBC). Th… view at source ↗
Figure 2

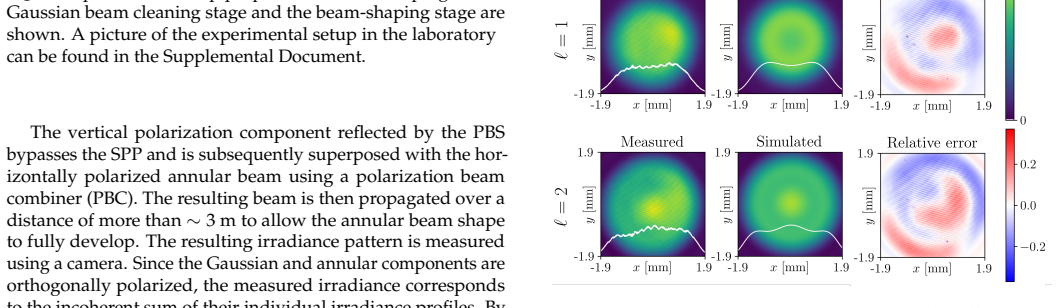

Figure 2. Figure 2: Measured and simulated beam shapes for different topological orders, with equal power contributions (RHWP angle 22.5◦ ) from each beam (Gaussian and annular). The white lines indicate the irradiance cross-section at y = 0. As discussed in Ref. [1], the optimal power distribution be￾tween the Gaussian and annular components depends on the chosen performance metric and the operating conditions (e.g., pointin… view at source ↗
Figure 3

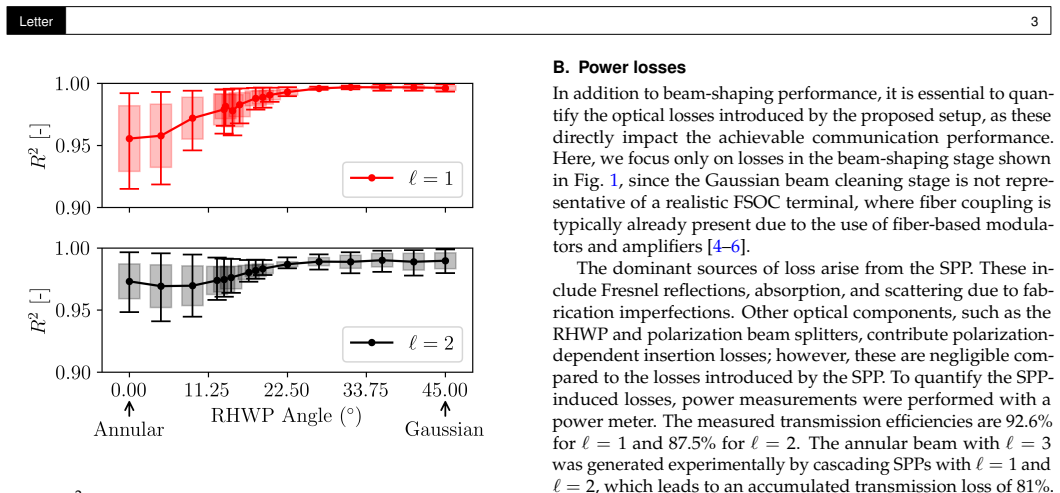

Figure 3. Figure 3: R 2 values obtained by comparing simulated and exper￾imental beam shapes for different RHWP angles, for ℓ = 1 and ℓ = 2 annular beams. Average (dots), standard deviation (boxes) and extremal values (whiskers) are shown. irradiance patterns. Specifically, for each RHWP angle, the slice￾wise coefficient R 2 slice = 1 − RR |Isim − Iexp| 2 dx dy is computed over multiple angular slices of the beam [PITH_FULL_… view at source ↗
Figure 4

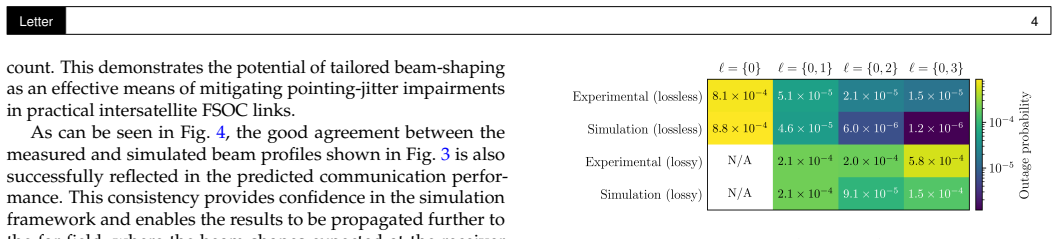

Figure 4. Figure 4: Outage probability performance for the measured and simulated beam shapes at the camera plane. The beam shapes are clipped by the camera size and are not fully developed yet [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

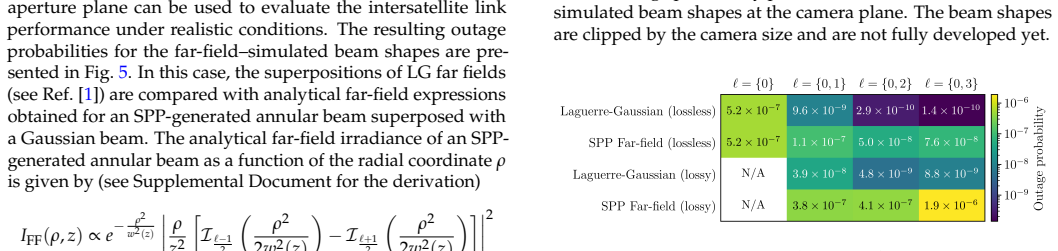

Figure 5. Figure 5: Outage probability performance for the analytical and simulated beam shapes at the far-field. The analytical and numerical far-field shapes obtained by the SPP, along with the optimal shapes obtained if LG beams were generated, are shown. Disclosures. The authors declare no conflicts of interest. Data availability. Data underlying the results presented in this paper are not publicly available at this time … view at source ↗
read the original abstract

Free-space optical communications (FSOC) are a key enabling technology for future high-capacity space-based networks. Particularly, the backbone of global communication relies on intersatellite optical links. In a previous study, the authors proposed a method to mitigate the impact of transmitter pointing jitter by using a superposition of orthogonally polarized Gaussian and higher-order Laguerre-Gaussian (LG) beams. In this study, we experimentally characterize the proposed system using a spiral phase plate (SPP) to generate higher-order annular beams. We demonstrate that such superpositions can be reliably generated in a realistic optical setup, quantify the associated beam-shaping errors and losses, and assess their impact on intersatellite optical communication performance. It is found that the proposed beam-shaping approach can still yield power savings on the order of 20% compared to a conventional Gaussian beam under the considered conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript experimentally characterizes the generation of annular beams via superposition of orthogonally polarized Gaussian and higher-order Laguerre-Gaussian modes using a spiral phase plate (SPP). It quantifies beam-shaping errors and losses in a laboratory optical setup and feeds these into a performance model driven by a chosen pointing-jitter distribution to assess impact on intersatellite free-space optical communication links, claiming that the approach can still deliver power savings on the order of 20% relative to a conventional Gaussian beam under the considered conditions.

Significance. If the laboratory beam-shaping penalties and the modeled jitter statistics prove representative of on-orbit conditions, the work would offer a practical, experimentally grounded route to lower transmit power in intersatellite optical links, which is valuable for power-limited spacecraft. The experimental quantification of modal content and losses provides concrete data that could inform system design, though the overall significance is limited by the absence of direct validation against real intersatellite telemetry or environmental test data.

major comments (2)
  1. Abstract and performance-modeling section: the headline claim of ~20% power savings is obtained by inserting experimentally measured beam-shaping errors and losses into a jitter-driven link model; however, the manuscript provides no cross-check of the adopted jitter distribution or the laboratory optical train against published intersatellite attitude-control telemetry or vacuum/thermal test results, which is load-bearing for whether the savings survive under actual flight conditions.
  2. Experimental results section: the abstract states that beam-shaping errors and losses are quantified, yet the available text does not display error bars on the reported measurements, full raw data, or a complete methods description sufficient to reproduce the modal decomposition and power-penalty figures; this directly affects in the input values fed to the 20% savings calculation.
minor comments (2)
  1. The manuscript would benefit from an explicit statement of the exact jitter probability density function and its parameters in the performance-modeling section so that readers can test sensitivity.
  2. Figure captions and text should clarify whether the reported losses include only the SPP insertion loss or also the polarization-combining and detection efficiencies.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and valuable comments on our manuscript. We address each of the major comments below and have updated the manuscript to improve clarity and reproducibility where feasible.

read point-by-point responses

  1. Referee: Abstract and performance-modeling section: the headline claim of ~20% power savings is obtained by inserting experimentally measured beam-shaping errors and losses into a jitter-driven link model; however, the manuscript provides no cross-check of the adopted jitter distribution or the laboratory optical train against published intersatellite attitude-control telemetry or vacuum/thermal test results, which is load-bearing for whether the savings survive under actual flight conditions.

    Authors: We agree that validating the jitter model against real flight data would strengthen the conclusions. The jitter distribution in our model is drawn from standard values reported in the literature for intersatellite links (e.g., from attitude control systems in LEO constellations). In the revised manuscript, we have expanded the performance-modeling section to include additional references to published telemetry studies and clarified that the ~20% savings are estimated under the modeled conditions. A full cross-check with proprietary on-orbit data or environmental testing is beyond the scope of this laboratory-based study, but we have added a discussion of potential differences due to vacuum and thermal effects. revision: partial

  2. Referee: Experimental results section: the abstract states that beam-shaping errors and losses are quantified, yet the available text does not display error bars on the reported measurements, full raw data, or a complete methods description sufficient to reproduce the modal decomposition and power-penalty figures; this directly affects in the input values fed to the 20% savings calculation.

    Authors: We acknowledge the need for greater transparency in the experimental data. In the revised manuscript, we have included error bars on all key measurements, derived from repeated experiments, provided a more detailed methods section describing the modal decomposition technique and power measurements, and uploaded the raw data files as supplementary material to enable reproduction of the results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental characterization stands independently.

full rationale

The paper's core contribution is laboratory generation of annular beams via SPP, direct measurement of shaping errors/losses, and empirical assessment of communication performance impact under stated jitter conditions. The 20% power savings figure arises from comparing these measured quantities against a conventional Gaussian baseline, not from any fitted parameter renamed as prediction or from a derivation that reduces to its own inputs. The reference to the authors' prior proposal is contextual background only and does not supply the load-bearing quantitative result; the present claims rest on new experimental data that can be reproduced or falsified independently of that citation. No self-definitional, ansatz-smuggling, or uniqueness-import steps appear in the reported chain.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions of linear optics and beam propagation in free space plus the premise that lab jitter simulation matches orbital conditions; no free parameters or invented entities are introduced in the abstract.

axioms (2)
  • standard math Linear superposition of orthogonally polarized beams preserves independent propagation and detection properties
    Invoked implicitly when claiming the superposition mitigates jitter without interference.
  • domain assumption Spiral phase plate generates the desired higher-order Laguerre-Gaussian annular mode with quantifiable losses
    Central to the experimental method described.
