Differences in Small-Signal Stability Boundaries Between Aggregated and Granular DFIG Models

Leyou Zhou , Mucheng Li , Xiaojie Shi , Meng Zhan , Juanjuan Wang , Dan Wu This is my paper

Pith reviewed 2026-05-10 18:03 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords DFIGsmall-signal stabilityaggregated modelsgranular modelsstability boundarieswind farmsD-decomposition
0
0 comments X

The pith

Aggregated models of wind turbine generators produce stability regions that differ in shape and critical modes from detailed multi-unit models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates the impact of model aggregation on small-signal stability analysis for doubly-fed induction generator wind farms. It constructs detailed models with one, two, or three units and compares them to their aggregated single-unit equivalents. Using a D-decomposition-based ray-extrapolation technique, the authors map out stability boundaries across planes of control parameters and operating conditions. They find that aggregation alters the basic shape of these regions, the associated critical modes, and how the regions evolve, which can lead to incorrect judgments about stability margins. This matters because many existing studies of wind farm oscillations rely on aggregated models, and discrepancies could affect the reliability of stability predictions as wind power penetration grows.

Core claim

Aggregated models of DFIGs yield stability regions within parameter planes of control settings and operating conditions that differ from granular models in terms of basic shape, critical modes, and evolution patterns, which poses a risk of misjudging stability margins.

What carries the argument

The D-decomposition-related ray-extrapolation method for characterizing the small-signal stability region of nonlinear DFIG models by delineating boundaries under numerous parameter combinations.

If this is right

  • Aggregated models may identify different critical modes than granular models for the same conditions.
  • The shape of stability boundaries changes with the level of aggregation.
  • Stability margins could be misjudged, leading to either overly conservative or insufficiently cautious operating points.
  • Evolution patterns of stability regions under varying parameters diverge between model types.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Past analyses of broadband oscillations in wind farms that used aggregated models may require re-examination for accuracy.
  • Wind farm operators might need to incorporate more detailed modeling when assessing stability under specific control settings.
  • Extending the comparison to larger numbers of units could show whether the discrepancies increase or saturate with farm size.

Load-bearing premise

The D-decomposition-related ray-extrapolation method accurately delineates the small-signal stability boundaries of the nonlinear DFIG models without introducing artifacts or missing critical behaviors under the tested parameter combinations.

What would settle it

Time-domain simulations or full eigenvalue analysis of both aggregated and granular DFIG models at boundary points in the parameter space that show identical stability status and modes would indicate the differences are not present.

Figures

Figures reproduced from arXiv: 2604.07777 by Dan Wu, Juanjuan Wang, Leyou Zhou, Meng Zhan, Mucheng Li, Xiaojie Shi.

Figure 1
Figure 1. Figure 1: Schematic diagram of DFIGs systems into the validity of small-signal stability assessment for DFIG wind farm models. II. DYNAMIC MODEL OF DFIG SYSTEM A. Wind System Configuration We consider the tree structure network which is shown in Fig.1. The turbine circuit and control diagrams of the DFIG unit are shown in Fig.2. Each unit comprises a wind turbine, drive-train, induction generator, rotor-side convert… view at source ↗
Figure 3
Figure 3. Figure 3: Validation of EMT and state-space model responses. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Morphological evolution of the stability boundary in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 6

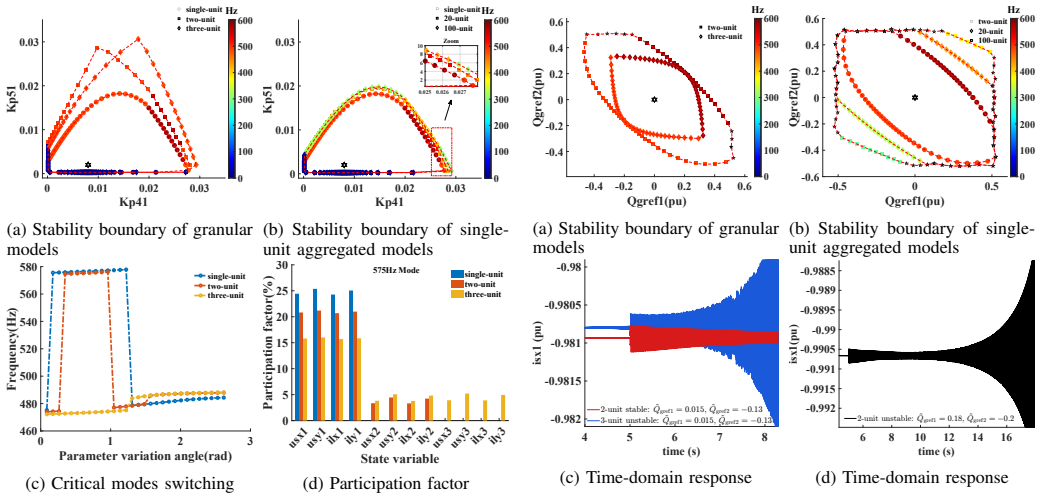

Figure 6. Figure 6: Coupling characteristics at the stability boundary in [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
