arxiv: 2604.08472 · v1 · submitted 2026-04-09 · ⚛️ physics.optics

High-efficiency graphene-silicon slot-waveguide microring modulator at 1.5 {μ}m and 2 {μ}m wavelength bands

Chao Luan , Deming Kong , Yong Liu , Yunhong Ding , Hao Hu This is my paper

Pith reviewed 2026-05-10 17:14 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords graphene modulatorsilicon slot waveguidemicroring resonatorelectro-optic modulationphase modulation efficiencyhigh bandwidth1.55 micrometer2 micrometer
0
0 comments X

The pith

Integrating partially overlapped double-layer graphene onto a compact silicon slot-waveguide microring resonator produces an electro-optic modulator with 220 V-μm phase efficiency and over 70 GHz bandwidth in a 10-μm active length.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that a silicon slot waveguide microring can host partially overlapped double-layer graphene to deliver both high modulation efficiency and wide bandwidth at once. At 1550 nm the design reaches a phase modulation efficiency of VπL = 220 V μm, a bandwidth exceeding 70 GHz, and clear 50 Gbit/s operation under 2 V drive in an active section only 10 μm long. The same device also functions at 2 μm wavelengths, although measured bandwidth there is limited by the test setup rather than the modulator itself. This combination directly addresses the usual size-versus-efficiency trade-off in electro-optic modulators for optical communication and computing.

Core claim

The central claim is that embedding a partially overlapped double-layer graphene structure on a silicon slot-waveguide microring resonator yields an electro-optic modulator that simultaneously achieves high phase modulation efficiency of VπL = 220 V μm and bandwidth above 70 GHz at 1550 nm in a compact 10 μm active length, while also operating at the 2 μm band with over 20 GHz bandwidth and supporting 50 Gbit/s and 20 Gbit/s data rates respectively under low-voltage drive.

What carries the argument

The partially overlapped double-layer graphene placed on the silicon slot waveguide inside the microring resonator, which strengthens the electro-optic interaction by concentrating the optical field in the slot region.

If this is right

  • The modulator delivers an optical modulation amplitude of -1.97 dBm with a 3 V voltage swing at 1550 nm.
  • It supports 50 Gbit/s data transmission with open eye diagrams using only a 2 V peak-to-peak RF drive.
  • The device maintains functionality at 2 μm wavelengths with over 20 GHz bandwidth and 20 Gbit/s operation under 2 V drive.
  • The small 10 μm footprint lowers device capacitance while preserving high modulation efficiency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The slot-waveguide plus graphene overlap geometry could be scaled to sub-10 μm rings for still higher integration density in photonic circuits.
  • The same overlap approach might be tested with other two-dimensional materials or at additional wavelength bands to improve energy efficiency further.
  • Direct incorporation into silicon photonic platforms could reduce power use in large-scale optical interconnects and neural network accelerators.

Load-bearing premise

The reported efficiency and bandwidth depend on the partial graphene overlap being realized without significant unaccounted optical losses or fabrication variations that would change the measured VπL and eye diagrams.

What would settle it

A repeated measurement of the phase shift per applied volt that yields a VπL value well above 220 V μm, or an electrical 3 dB bandwidth clearly below 70 GHz at 1550 nm under identical bias and drive conditions, would disprove the central performance result.

Figures

Figures reproduced from arXiv: 2604.08472 by Chao Luan, Deming Kong, Hao Hu, Yong Liu, Yunhong Ding.

Figure 1
Figure 1. Figure 1: Device concept. (a-c) Schematic and cross section of the graphene-silicon slot-waveguide microring E/O modulator. (d) [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Double-layer-graphene slot-waveguide E/O modulator optimization. (a) Calculated and normalized refractive index [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Static Characterization of the double-layer-graphene slot-waveguide micro-ring modulator at 1.5 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: High-speed characterization of the double-layer-graphene slot-waveguide microring modulator at 1.5 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Statistic of the performance of 10 graphene-silicon slot-waveguide modulators in terms of extinction ratio and insertion [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

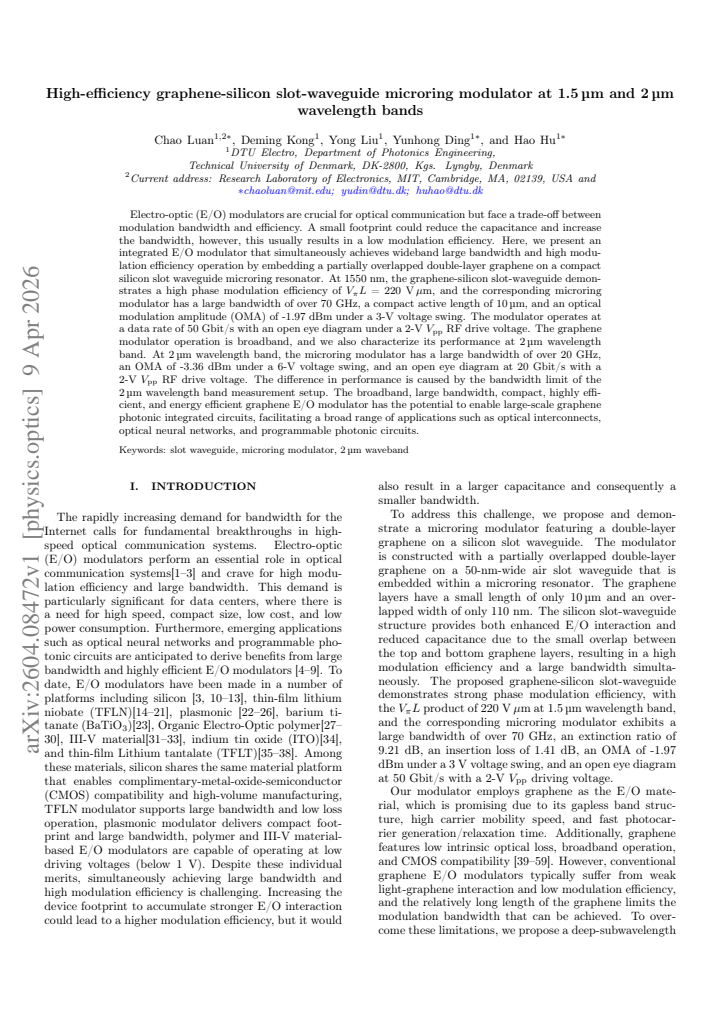

read the original abstract

Electro-optic (E/O) modulators are crucial for optical communication but face a trade-off between modulation bandwidth and efficiency. A small footprint could reduce the capacitance and increase the bandwidth, however, this usually results in a low modulation efficiency. Here, we present an integrated E/O modulator that simultaneously achieves wideband large bandwidth and high modu- lation efficiency operation by embedding a partially overlapped double-layer graphene on a compact silicon slot waveguide microring resonator. At 1550 nm, the graphene-silicon slot-waveguide demon- strates a high phase modulation efficiency of V{\pi} L = 220 V {\mu}m, and the corresponding microring modulator has a large bandwidth of over 70 GHz, a compact active length of 10 {\mu}m, and an optical modulation amplitude (OMA) of -1.97 dBm under a 3-V voltage swing. The modulator operates at a data rate of 50 Gbit/s with an open eye diagram under a 2-V Vpp RF drive voltage. The graphene modulator operation is broadband, and we also characterize its performance at 2 {\mu}m wavelength band. At 2 {\mu}m wavelength band, the microring modulator has a large bandwidth of over 20 GHz, an OMA of -3.36 dBm under a 6-V voltage swing, and an open eye diagram at 20 Gbit/s with a 2-V Vpp RF drive voltage. The difference in performance is caused by the bandwidth limit of the 2 {\mu}m wavelength band measurement setup. The broadband, large bandwidth, compact, highly effi- cient, and energy efficient graphene E/O modulator has the potential to enable large-scale graphene photonic integrated circuits, facilitating a broad range of applications such as optical interconnects, optical neural networks, and programmable photonic circuits.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports an integrated electro-optic modulator fabricated by embedding partially overlapped double-layer graphene on a compact silicon slot-waveguide microring resonator. It claims a phase modulation efficiency of VπL = 220 V·μm at 1550 nm, electro-optic bandwidth >70 GHz, active length of 10 μm, OMA of -1.97 dBm under 3 V swing, and open eye diagrams at 50 Gbit/s with 2 V Vpp drive; analogous but lower-performance results (bandwidth >20 GHz, 20 Gbit/s) are shown at 2 μm, with the difference attributed to measurement setup limits.

Significance. If the reported metrics hold after verification of constant-loss assumptions, the result would be significant for silicon photonics: it demonstrates a compact, broadband graphene modulator that simultaneously achieves high efficiency and high speed, potentially enabling dense photonic integrated circuits for interconnects, neural networks, and programmable optics.

major comments (3)
  1. [Abstract / resonance-shift extraction] The headline VπL = 220 V·μm at 1550 nm is extracted from resonance shift under bias in the microring (as stated in the abstract and device characterization). No voltage-dependent loss or Q-factor data are supplied to confirm that graphene-induced absorption remains constant and does not contribute to the observed shift or degrade the ring Q; this assumption is load-bearing for the efficiency claim and must be addressed with explicit loss-vs-voltage measurements or control devices.
  2. [Abstract / performance metrics] The >70 GHz bandwidth and OMA values lack error bars, raw S21 traces, or statistical analysis of multiple devices. Fabrication process details (graphene transfer, slot-waveguide dimensions, contact resistance) and full measurement setups are not provided, preventing assessment of reproducibility or possible post-selection artifacts.
  3. [Abstract / bandwidth and eye-diagram results] The 50 Gbit/s eye diagrams at 1550 nm are shown under 2 V Vpp, yet the bandwidth claim exceeds this rate; the manuscript must clarify whether bandwidth was obtained from small-signal S21 measurements or extrapolated from eye diagrams, and quantify any setup limitations at 1.5 μm (analogous to the explicit note given for the 2 μm band).
minor comments (2)
  1. [Abstract] Abstract contains typographical artifacts (e.g., 'modu- lation', LaTeX remnants 'V{π} L' and 'V {μ}m') that should be corrected for publication.
  2. [Abstract] The repeated claim of 'energy efficient' operation is not supported by any numerical energy-per-bit or capacitance values in the provided text.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each of the major comments point by point below. We agree that additional clarifications and data will strengthen the paper and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract / resonance-shift extraction] The headline VπL = 220 V·μm at 1550 nm is extracted from resonance shift under bias in the microring (as stated in the abstract and device characterization). No voltage-dependent loss or Q-factor data are supplied to confirm that graphene-induced absorption remains constant and does not contribute to the observed shift or degrade the ring Q; this assumption is load-bearing for the efficiency claim and must be addressed with explicit loss-vs-voltage measurements or control devices.

    Authors: We agree that confirming the resonance shift arises primarily from phase modulation (rather than voltage-dependent absorption) is important for the VπL claim. In the revised manuscript we will add explicit measurements of on-resonance transmission loss versus applied bias for the microring device, together with a brief discussion of the operating regime in which graphene absorption remains approximately constant. This will directly address the load-bearing assumption. revision: yes

  2. Referee: [Abstract / performance metrics] The >70 GHz bandwidth and OMA values lack error bars, raw S21 traces, or statistical analysis of multiple devices. Fabrication process details (graphene transfer, slot-waveguide dimensions, contact resistance) and full measurement setups are not provided, preventing assessment of reproducibility or possible post-selection artifacts.

    Authors: We acknowledge that reproducibility details and statistical context are currently insufficient. In the revision we will (i) add error bars derived from repeated measurements to the bandwidth and OMA values, (ii) include representative raw S21 traces in the supplementary information, (iii) expand the methods section with graphene transfer procedure, exact slot-waveguide dimensions, measured contact resistance, and a complete description of the 1.5 μm and 2 μm measurement setups. revision: yes

  3. Referee: [Abstract / bandwidth and eye-diagram results] The 50 Gbit/s eye diagrams at 1550 nm are shown under 2 V Vpp, yet the bandwidth claim exceeds this rate; the manuscript must clarify whether bandwidth was obtained from small-signal S21 measurements or extrapolated from eye diagrams, and quantify any setup limitations at 1.5 μm (analogous to the explicit note given for the 2 μm band).

    Authors: The >70 GHz bandwidth was obtained directly from small-signal S21 electro-optic measurements performed with a vector network analyzer; the 50 Gbit/s eye diagrams are separate large-signal demonstrations and were not used to extrapolate the bandwidth figure. We will explicitly state this distinction in the revised text. We will also add a short paragraph quantifying the 1.5 μm setup limitations (instrument bandwidth, cable losses, etc.), mirroring the existing note for the 2 μm band. revision: yes

Circularity Check

0 steps flagged

Pure experimental report with no derivation chain

full rationale

The paper reports measured device performance (VπL = 220 V·μm, >70 GHz bandwidth, OMA values, eye diagrams) obtained from fabricated graphene-silicon slot-waveguide microring resonators. No equations, first-principles derivations, fitted parameters renamed as predictions, or self-citation chains are present that reduce any claimed result to its own inputs. All key figures are direct experimental outputs (resonance shifts under bias, S21 bandwidth, eye diagrams), making the report self-contained against external benchmarks with no circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests entirely on experimental fabrication and optical/electrical testing of a physical device; no free parameters are fitted to produce the result, and no new entities are postulated.

axioms (1)
  • domain assumption Graphene exhibits electro-optic response when integrated with silicon waveguides under standard cleanroom processing conditions.
    The performance numbers assume known material electro-optic behavior holds after the described partial-overlap integration.

pith-pipeline@v0.9.0 · 5657 in / 1358 out tokens · 43316 ms · 2026-05-10T17:14:12.241802+00:00 · methodology
