The pith

An asynchronous delta modulator converts analog neural signals into ON and OFF spikes using 60.73 nJ per spike in 65nm CMOS.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

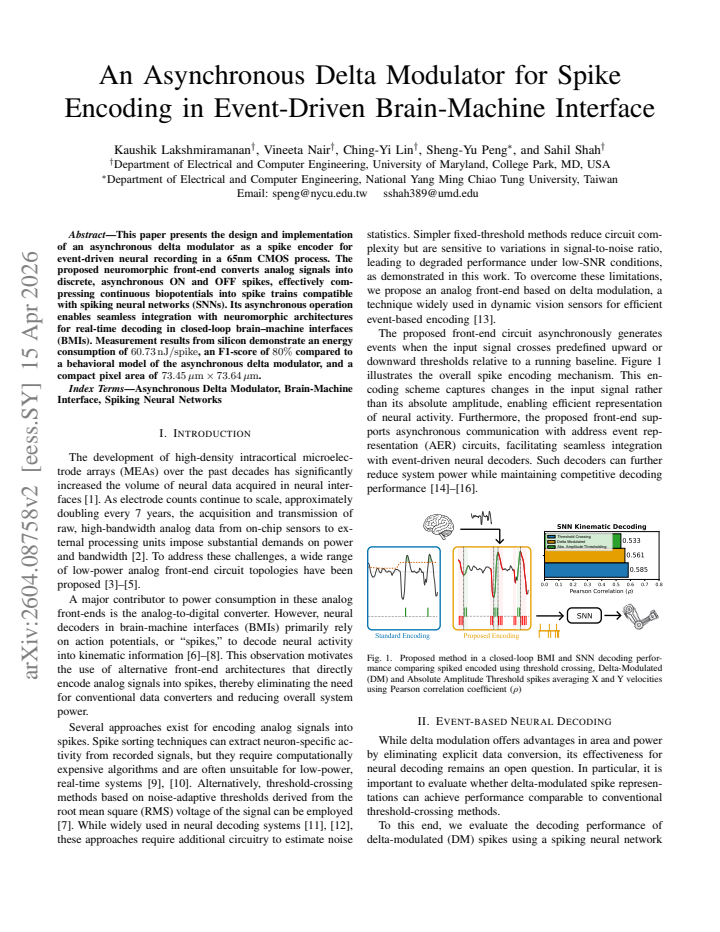

The paper presents the design and silicon implementation of an asynchronous delta modulator as a neuromorphic front-end for event-driven neural recording. It converts continuous analog biopotential signals into discrete asynchronous ON and OFF spikes that compress the data into spike trains compatible with spiking neural networks. This asynchronous approach is positioned to support real-time decoding in closed-loop brain-machine interfaces through direct integration with neuromorphic hardware. Measurements from the fabricated 65nm CMOS chip report an energy consumption of 60.73 nJ per spike, an F1-score of 80 percent relative to a behavioral model, and a compact pixel area of 73.45 by 73.64 micrometers. A sympathetic reader would care because the encoding promises lower power and event-driven operation suitable for implantable neural interfaces.

Core claim

The asynchronous delta modulator converts analog signals into discrete, asynchronous ON and OFF spikes, effectively compressing continuous biopotentials into spike trains compatible with spiking neural networks. Its asynchronous operation enables seamless integration with neuromorphic architectures for real-time decoding in closed-loop brain-machine interfaces. Fabricated in 65nm CMOS, the circuit consumes 60.73 nJ/spike with an F1-score of 80% compared to its behavioral model and occupies a compact area of 73.45 μm × 73.64 μm.

What carries the argument

The asynchronous delta modulator, a circuit that detects changes in analog input beyond a threshold to produce discrete ON and OFF spikes, carrying the argument by turning continuous signals into event-driven spike trains.

If this is right

  • The spike trains compress neural data for more efficient transmission and processing in neural interfaces.
  • Energy use of 60.73 nJ per spike supports extended battery life in implantable brain-machine interface devices.
  • Direct compatibility with spiking neural networks allows the encoded signals to be used without intermediate conversion steps.
  • The compact pixel size of 73.45 by 73.64 micrometers enables high-density arrays for multi-channel neural recording.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the spikes integrate directly with SNNs, overall system power could drop by eliminating continuous analog-to-digital sampling.
  • Testing the modulator outputs with actual in-vivo neural recordings in a full closed-loop setup would provide concrete evidence of real-time decoding performance.
  • The asynchronous design may reduce feedback latency in brain-machine interface applications compared to clocked sampling methods.

Load-bearing premise

The ON and OFF spikes will enable seamless integration with neuromorphic architectures for real-time decoding in closed-loop brain-machine interfaces without further validation shown in the results.

What would settle it

Feeding the modulator's spike trains into an SNN decoder and measuring decoding accuracy below the reported 80% F1-score on the original biopotential signals would falsify the claim of effective compatibility.

Figures

Figures reproduced from arXiv: 2604.08758 by Ching-Yi Lin, Kaushik Lakshmiramanan, Sahil Shah, Sheng-Yu Peng, Vineeta Nair.

Figure 1

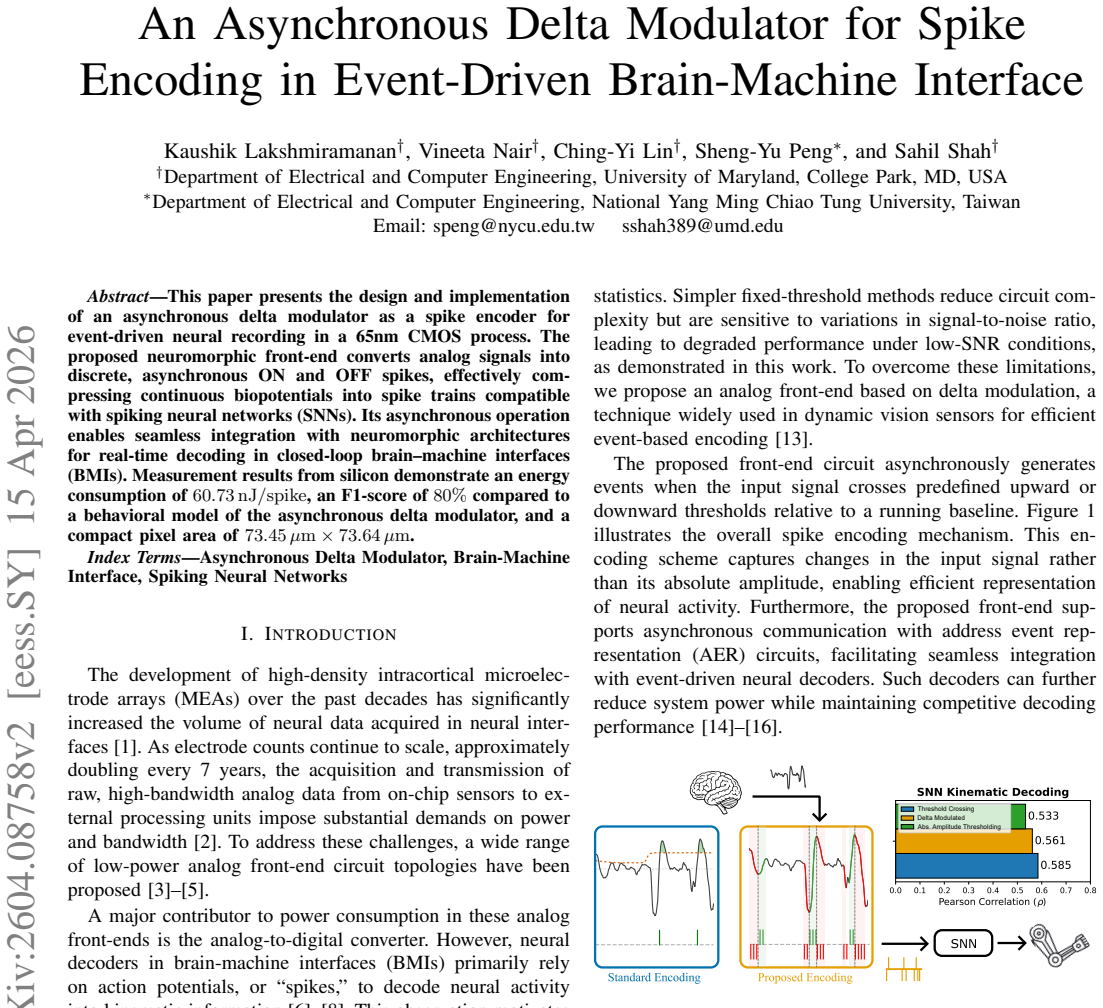

Figure 1. Figure 1: Proposed method in a closed-loop BMI and SNN decoding perfor [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

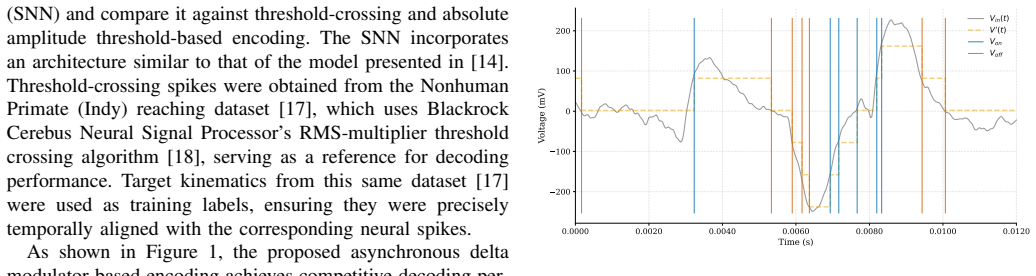

Figure 2. Figure 2: Single action potential encoded using the asynchronous delta modu [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

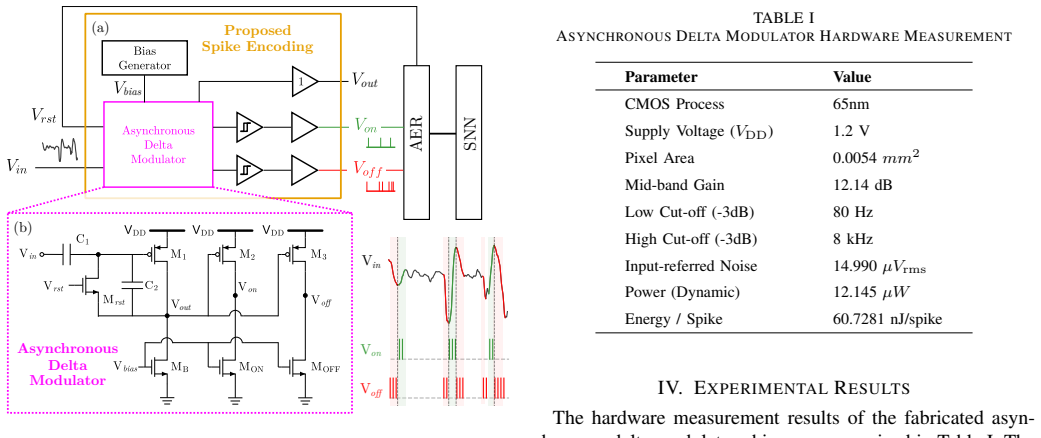

Figure 3. Figure 3: (a) System-level block diagram of the asynchronous delta modulator [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

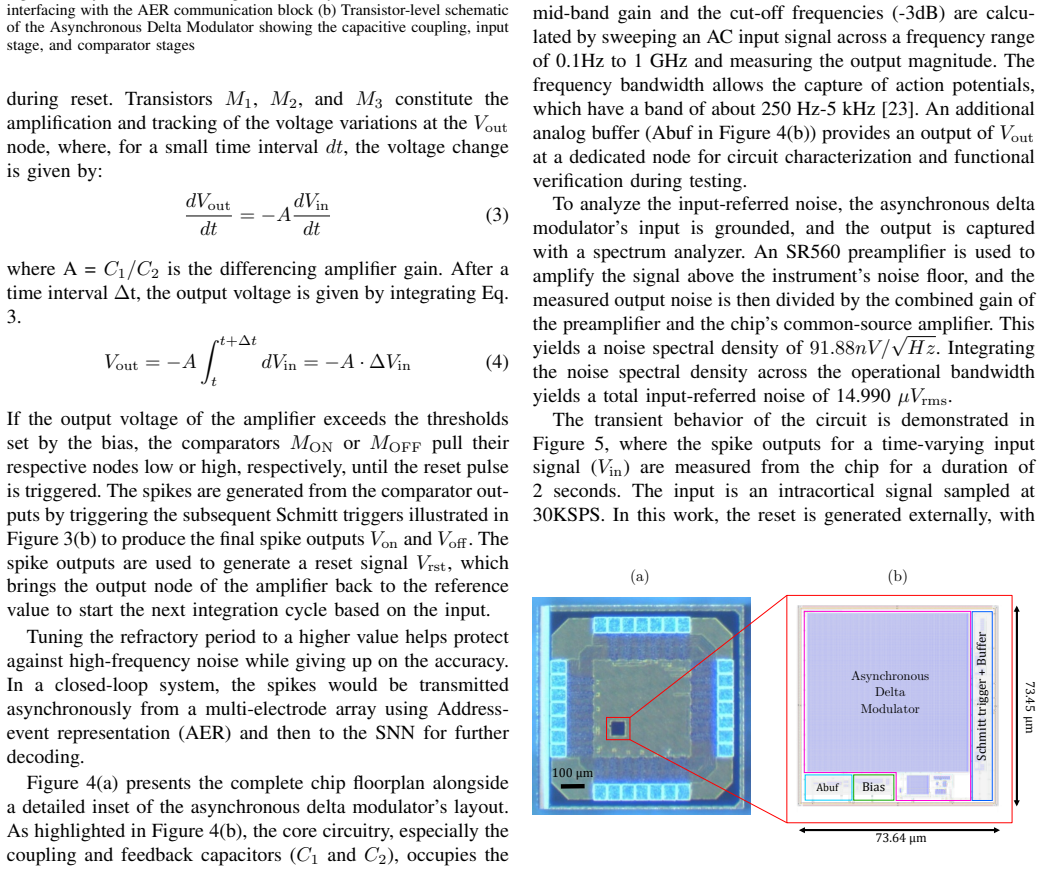

Figure 4. Figure 4: (a) Taped-out chip (b) Enlarged view of the asynchronous delta [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
