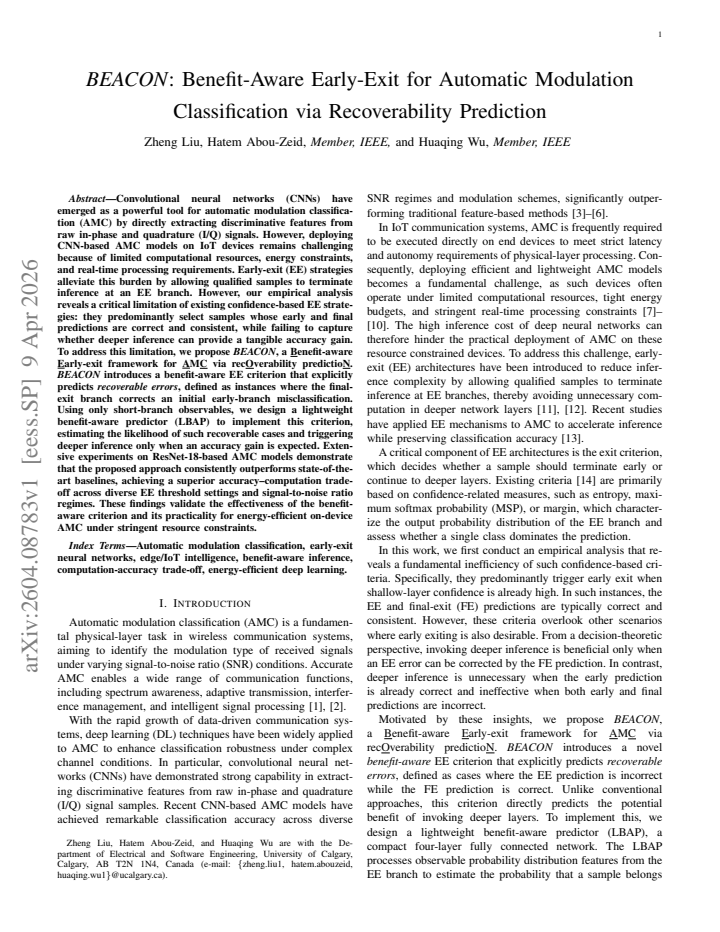

BEACON: Benefit-Aware Early-Exit for Automatic Modulation Classification via Recoverability Prediction

Zheng Liu , Hatem Abou-Zeid , Huaqing Wu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:42 UTC · model grok-4.3

classification 📡 eess.SP
keywords automatic modulation classificationearly-exit networksrecoverability predictionconvolutional neural networksedge inferencesignal classificationbenefit-aware computation
0
0 comments X

The pith

Predicting whether early errors in signal classification can be fixed by deeper layers enables better accuracy-computation tradeoffs in CNN-based automatic modulation classification.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an early-exit strategy for convolutional networks that classify radio signal modulations by deciding to continue inference only when an early mistake is likely to be corrected later. Standard confidence thresholds often exit on samples that would gain nothing from deeper processing or stay on samples that would benefit. The new approach trains a small predictor on features from the early branch to forecast the chance that the final branch will recover the error. Deeper computation is then triggered selectively based on expected accuracy gain rather than confidence alone. This produces a stronger accuracy versus speed balance for running these models on energy-limited IoT hardware.

Core claim

The paper claims that a benefit-aware early-exit criterion, realized through a lightweight predictor estimating the probability of recoverable errors from short-branch observables, allows ResNet-18-based automatic modulation classification models to achieve a superior accuracy-computation tradeoff compared with confidence-based early-exit baselines across varied thresholds and signal-to-noise ratios.

What carries the argument

The lightweight benefit-aware predictor that estimates the likelihood an early misclassification will be corrected by the final exit, using only observables available at the short branch.

If this is right

  • Samples with low predicted recoverability can exit early without accuracy loss, directly reducing average computation.
  • Samples with high predicted recoverability continue to the final branch, preserving overall classification accuracy.
  • The resulting tradeoff holds across multiple early-exit thresholds and across low to high signal-to-noise ratios.
  • The framework becomes practical for real-time modulation classification on devices with tight energy and latency budgets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same recoverability idea could be tested in other layered classification pipelines where early layers capture most but not all discriminative information.
  • Pairing the predictor with existing model compression methods might produce further efficiency gains for edge signal processing.
  • The distinction between confident but unrecoverable errors and recoverable ones points to a general way to design early-exit rules beyond simple confidence.

Load-bearing premise

A small predictor can reliably forecast recoverable errors from early features alone without seeing the final network output or the true label.

What would settle it

If the predictor's output shows no statistical correlation with the actual frequency that the final branch corrects early-branch mistakes on held-out data, the central claim would be falsified.

Figures

Figures reproduced from arXiv: 2604.08783 by Hatem Abou-Zeid, Huaqing Wu, Zheng Liu.

Figure 1
Figure 1. Figure 1: ResNet-18 backbone architecture with AMC-oriented modifications. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

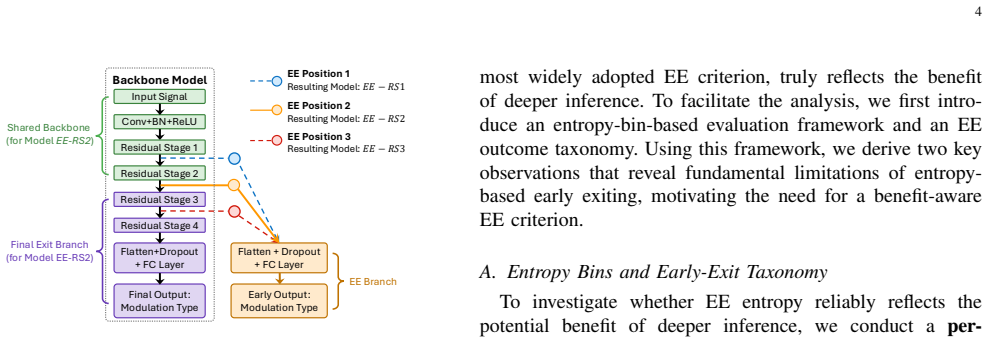

Figure 2. Figure 2: Early-exit configurations in the AMC-oriented ResNet [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

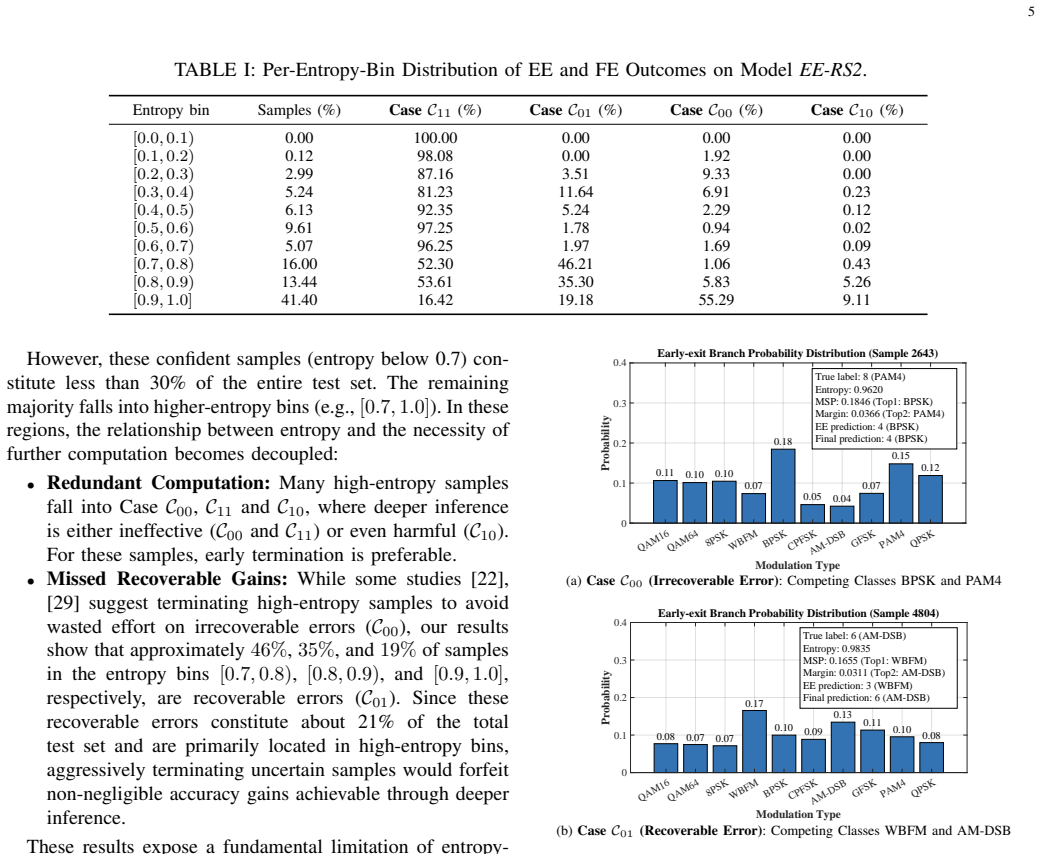

Figure 3. Figure 3: Two EE output probability distributions with similar [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

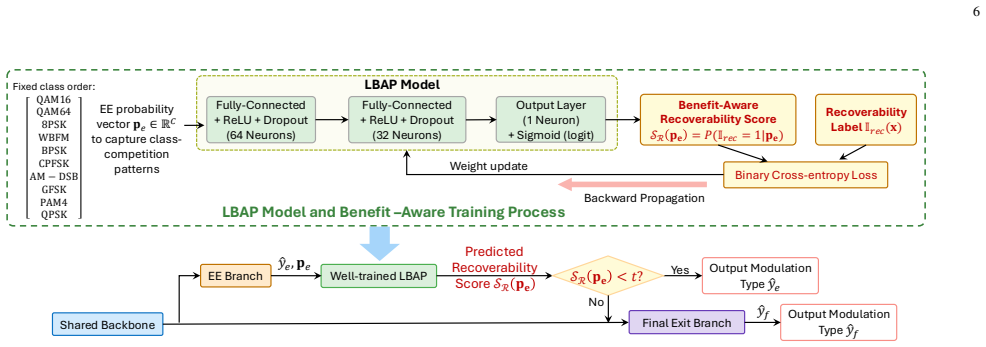

Figure 4. Figure 4: Proposed BEACON-based EE framework for AMC. V. PROPOSED BEACON FRAMEWORK To address the limitations of confidence-based criteria dis￾cussed in Section IV, we propose BEACON, a unified benefit￾aware early-exit framework. Instead of relying on confidence measures, BEACON directly models the expected accuracy gain from deeper inference. BEACON consists of two core components: a formal benefit-aware recoverabi… view at source ↗
Figure 5

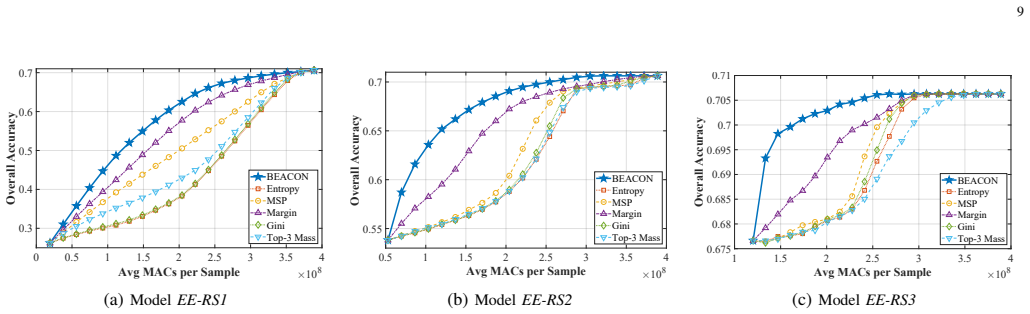

Figure 5. Figure 5: Accuracy-computation trade-offs under varying thresholds for three AMC EE models. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

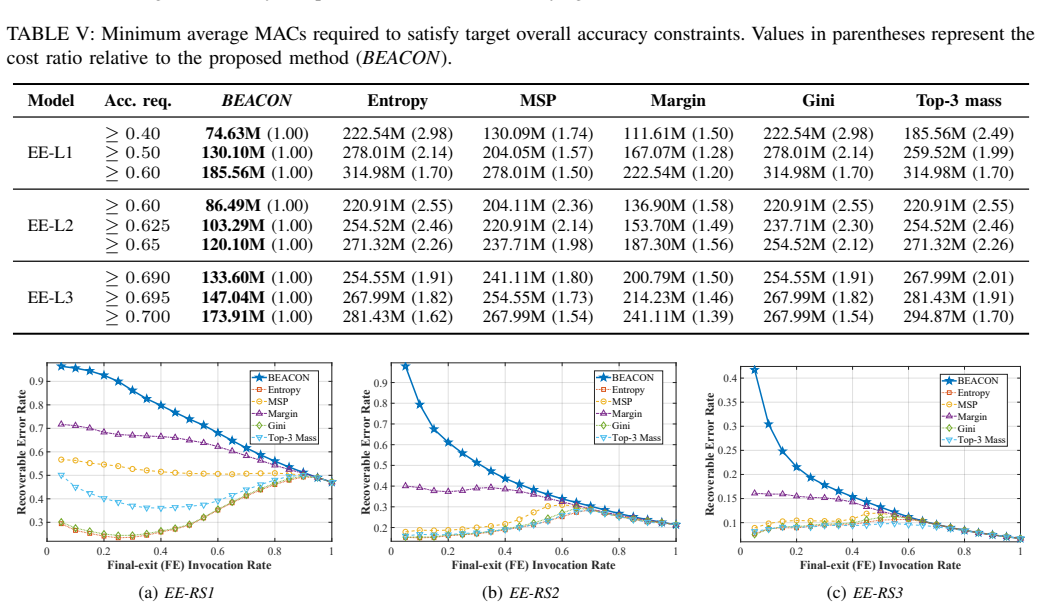

Figure 6. Figure 6: FE invocation rate versus recoverable-error rate among forwarded samples for three EE configurations. [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

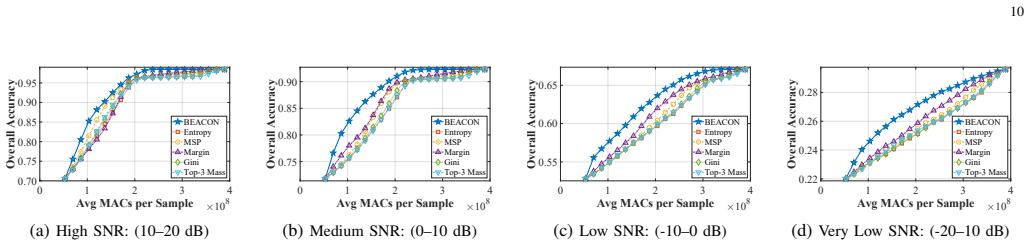

Figure 7. Figure 7: SNR-dependent computation–accuracy trade-offs for the [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
read the original abstract

Convolutional neural networks (CNNs) have emerged as a powerful tool for automatic modulation classification (AMC) by directly extracting discriminative features from raw in-phase and quadrature (I/Q) signals. However, deploying CNN-based AMC models on IoT devices remains challenging because of limited computational resources, energy constraints, and real-time processing requirements. Early-exit (EE) strategies alleviate this burden by allowing qualified samples to terminate inference at an EE branch. However, our empirical analysis reveals a critical limitation of existing confidence-based EE strategies: they predominantly select samples whose early and final predictions are correct and consistent, while failing to capture whether deeper inference can provide a tangible accuracy gain. To address this limitation, we propose BEACON, a Benefit-Aware Early-Exit framework for AMC via recoverability prediction. BEACON introduces a benefit-aware EE criterion that explicitly predicts recoverable errors, defined as instances where the final-exit branch corrects an initial early-branch misclassification. Using only short-branch observables, we design a lightweight benefit-aware predictor (LBAP) to implement this criterion, estimating the likelihood of such recoverable cases and triggering deeper inference only when an accuracy gain is expected. Extensive experiments on ResNet-18-based AMC models demonstrate that the proposed approach consistently outperforms state-of-the-art baselines, achieving a superior accuracy-computation tradeoff across diverse EE threshold settings and signal-to-noise ratio regimes. These findings validate the effectiveness of the benefit-aware criterion and its practicality for energy-efficient on-device AMC under stringent resource constraints.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes BEACON, a benefit-aware early-exit (EE) framework for CNN-based automatic modulation classification (AMC) on resource-constrained devices. It identifies that standard confidence-based EE criteria miss cases where deeper layers correct early misclassifications, and introduces a lightweight benefit-aware predictor (LBAP) trained on short-branch observables to estimate the probability of such 'recoverable errors' and decide whether to exit early or continue. The central empirical claim is that this yields a superior accuracy-computation tradeoff compared to baselines on ResNet-18 AMC models across EE thresholds and SNR regimes.

Significance. If the empirical results hold, BEACON offers a targeted improvement for on-device AMC by explicitly modeling expected accuracy gains rather than relying solely on confidence, which could reduce energy use in IoT settings without sacrificing classification performance. The approach builds on standard early-exit training practices and provides falsifiable predictions via the recoverability criterion; the focus on practical SNR variation and ResNet-18 models strengthens applicability.

major comments (2)
  1. [§4] §4 (Experiments): The abstract and results claim consistent outperformance and superior accuracy-computation tradeoffs, yet no quantitative metrics (e.g., accuracy deltas, FLOPs savings, or tables with specific values), error bars, number of runs, or dataset details (e.g., modulation types, sample counts) are provided in the summary sections; this makes verification of the central claim dependent on unstated choices and weakens assessment of robustness across SNR regimes.
  2. [§3.2] §3.2 (LBAP design): The recoverability predictor is supervised using full-model labels during training but must operate without them at inference; the paper should explicitly state the feature set extracted from short-branch observables and any regularization to prevent overfitting to training-time final predictions, as this is load-bearing for the claimed generalization of the benefit-aware criterion.
minor comments (2)
  1. Notation for the benefit-aware threshold and LBAP output probability should be unified across equations and figures to avoid ambiguity in how the EE decision is computed.
  2. Figure captions for tradeoff curves should include the exact baseline methods compared and the SNR values tested for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive review. We address each major comment below, indicating the specific revisions we will incorporate to strengthen the manuscript.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): The abstract and results claim consistent outperformance and superior accuracy-computation tradeoffs, yet no quantitative metrics (e.g., accuracy deltas, FLOPs savings, or tables with specific values), error bars, number of runs, or dataset details (e.g., modulation types, sample counts) are provided in the summary sections; this makes verification of the central claim dependent on unstated choices and weakens assessment of robustness across SNR regimes.

    Authors: We agree that the abstract and high-level result summaries would benefit from explicit quantitative anchors to facilitate immediate verification. While Section 4 already contains the full tables, figures, and per-SNR breakdowns (including accuracy deltas, FLOPs, and tradeoff curves), we will revise the abstract and add a compact key-results paragraph in the introduction that reports representative metrics (e.g., average accuracy gain and FLOPs reduction across thresholds), states the number of independent runs with error bars, and specifies the dataset (modulation types and sample counts). These additions will make the central claims self-contained without altering the experimental content. revision: yes

  2. Referee: [§3.2] §3.2 (LBAP design): The recoverability predictor is supervised using full-model labels during training but must operate without them at inference; the paper should explicitly state the feature set extracted from short-branch observables and any regularization to prevent overfitting to training-time final predictions, as this is load-bearing for the claimed generalization of the benefit-aware criterion.

    Authors: We concur that an explicit enumeration of the LBAP input features and regularization is necessary for reproducibility and to substantiate generalization claims. In the revised Section 3.2 we will list the precise short-branch observables used as features (softmax probabilities, entropy, and selected intermediate activations) and describe the regularization strategy (dropout layers plus L2 weight decay) applied during LBAP training to avoid overfitting to the full-model supervision that is unavailable at inference. This clarification will directly address the load-bearing aspect of the benefit-aware criterion. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central contribution is an empirical early-exit framework for AMC that trains a lightweight auxiliary predictor (LBAP) on short-branch features to estimate recoverable errors, then evaluates the resulting accuracy-computation tradeoff on ResNet-18 models against confidence-based baselines. No load-bearing derivation reduces to a self-referential equation, fitted parameter renamed as prediction, or self-citation chain; the recoverability definition is supervised during training using full-model labels and evaluated externally via experiments across thresholds and SNR regimes. The approach is self-contained against standard early-exit training practices and does not invoke uniqueness theorems or smuggle ansatzes from prior author work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Review performed on abstract only; full details on training procedure, loss functions, and data splits unavailable. Assumes standard supervised learning setup for AMC and that short-branch features contain sufficient signal for recoverability prediction.

axioms (1)
  • domain assumption Samples are drawn i.i.d. from the same distribution at train and test time
    Standard assumption for supervised classification; invoked implicitly when claiming generalization of the LBAP.
invented entities (1)
  • Lightweight Benefit-Aware Predictor (LBAP) no independent evidence
    purpose: Estimates probability that deeper inference will correct an early-exit misclassification using only short-branch observables
    New auxiliary network introduced to implement the benefit-aware criterion; no independent evidence provided beyond the abstract claim of effectiveness.

pith-pipeline@v0.9.0 · 5572 in / 1316 out tokens · 52968 ms · 2026-05-10T16:42:27.190233+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

29 extracted references · 1 canonical work pages

  1. [1]

    Survey of automatic modulation classification techniques: Classical approaches and new trends,

    O. A. Dobre, A. Abdi, Y . Bar-Ness, and W. Su, “Survey of automatic modulation classification techniques: Classical approaches and new trends,”IET Communications, vol. 1, no. 2, pp. 137–156, Apr. 2007

    2007

  2. [2]

    Recent advances in automatic modulation classification technology: Methods, results, and prospects,

    Q. Zheng, X. Tian, L. Yu, A. Elhanashi, and S. Saponara, “Recent advances in automatic modulation classification technology: Methods, results, and prospects,”International Journal of Intelligent Systems, vol. 2025, no. 1, p. 4067323, 2025. 11

    2025

  3. [3]

    Automatic modulation classi- fication using convolutional neural networks,

    Z. Zhang, W. Xie, Y . Li, and L. Zhang, “Automatic modulation classi- fication using convolutional neural networks,”IEEE Access, vol. 8, pp. 156 850–156 860, 2020

    2020

  4. [4]

    Robust automatic modulation classi- fication based on deep convolutional neural networks,

    Y . Wang, Y . Zhao, and J. Zhang, “Robust automatic modulation classi- fication based on deep convolutional neural networks,”IEEE Wireless Communications Letters, vol. 10, no. 4, pp. 789–793, 2021

    2021

  5. [5]

    Deep learning-based automatic modula- tion classification with improved generalization,

    X. Liu, H. Zhang, and Y . Chen, “Deep learning-based automatic modula- tion classification with improved generalization,”IEEE Access, vol. 10, pp. 32 145–32 155, 2022

    2022

  6. [6]

    Attention-based convolutional neural network for automatic modulation classification,

    J. Chen, Z. Wang, and Q. Liu, “Attention-based convolutional neural network for automatic modulation classification,”IEEE Communications Letters, vol. 27, no. 3, pp. 812–816, 2023

    2023

  7. [7]

    Dis- tributed artificial intelligence empowered by end-edge-cloud computing: A survey,

    S. Duan, D. Wang, J. Ren, F. Lyu, Y . Zhang, H. Wu, and X. Shen, “Dis- tributed artificial intelligence empowered by end-edge-cloud computing: A survey,”IEEE Communications Surveys & Tutorials, vol. 25, no. 1, pp. 591–624, 2022

    2022

  8. [8]

    Integration of generative ai and mobile networking: A comprehensive survey,

    J. Li, M. He, C. Zhou, X. Huang, Z. Liu, L. Zhao, C.-X. Wang, and H. Wu, “Integration of generative ai and mobile networking: A comprehensive survey,”IEEE Transactions on Network Science and Engineering, vol. 13, pp. 4369–4405, 2025

    2025

  9. [9]

    Tiny federated wireless foundation models for resource constrained devices,

    M. Hallaq, F. M. A. Khan, A. Aboulfotouh, S. A. Hassan, K. Dev, M. T. Quasim, and H. Abou-Zeid, “Tiny federated wireless foundation models for resource constrained devices,”IEEE Internet of Things Journal, 2025

    2025

  10. [10]

    User satisfaction-oriented video streaming in satellite terrestrial integrated networks,

    Z. Liu and H. Wu, “User satisfaction-oriented video streaming in satellite terrestrial integrated networks,” inGLOBECOM 2024-2024 IEEE Global Communications Conference. IEEE, 2024, pp. 5150–5155

    2024

  11. [11]

    Branchynet: Fast inference via early exiting from deep neural networks,

    S. Teerapittayanon, B. McDanel, and H. T. Kung, “Branchynet: Fast inference via early exiting from deep neural networks,” inInternational Conference on Pattern Recognition (ICPR), 2016, pp. 2464–2469

    2016

  12. [12]

    Shallow-deep networks: Understanding and mitigating network overthinking,

    Y . Kaya and T. Dumitras, “Shallow-deep networks: Understanding and mitigating network overthinking,” inInternational Conference on Machine Learning (ICML), 2019, pp. 3301–3310

    2019

  13. [13]

    Using early exits for fast inference in automatic modulation classification,

    E. Mohammed, O. Mashaal, and H. Abou-Zeid, “Using early exits for fast inference in automatic modulation classification,” inIEEE Global Communications Conference (GLOBECOM), 2023

    2023

  14. [14]

    Early-exit deep neural network: A comprehensive survey,

    P. Rahmath and M. Haseena, “Early-exit deep neural network: A comprehensive survey,”ACM Computing Surveys, vol. 57, no. 3, pp. 1–37, 2024

    2024

  15. [15]

    Likelihood-ratio approaches to automatic modulation classification,

    J. L. Xu, W. Su, and M. Zhou, “Likelihood-ratio approaches to automatic modulation classification,”IEEE Transactions on Systems, Man, and Cybernetics, Part C, vol. 41, no. 4, pp. 455–469, 2010

    2010

  16. [16]

    Recent advances in data-driven wireless communication using gaussian processes: A comprehensive survey,

    K. Chen, “Recent advances in data-driven wireless communication using gaussian processes: A comprehensive survey,”China Communications, vol. 19, no. 1, pp. 218–237, 2022

    2022

  17. [17]

    Entropy-based early-exit in a fpga- based low-precision neural network,

    M. Kong and J. L. Nunez-Yanez, “Entropy-based early-exit in a fpga- based low-precision neural network,” inApplied Reconfigurable Com- puting (ARC), 2022, pp. 72–86

    2022

  18. [18]

    Joint early exit and structured pruning for automatic modulation classification in vehicular networks,

    Z. Liu, H. Abou-Zeid, and H. Wu, “Joint early exit and structured pruning for automatic modulation classification in vehicular networks,” inIEEE Vehicular Technology Conference (VTC-Fall), 2025

    2025

  19. [19]

    Learning to stop while learning to predict,

    X. Chen, H. Dai, Y . Li, X. Gao, and L. Song, “Learning to stop while learning to predict,” inInternational conference on machine learning. PMLR, 2020, pp. 1520–1530

    2020

  20. [20]

    Epnet: Learning to exit with flexible multi-branch network,

    X. Dai, X. Kong, and T. Guo, “Epnet: Learning to exit with flexible multi-branch network,” inProceedings of the 29th ACM International Conference on Information & Knowledge Management, 2020, pp. 235– 244

    2020

  21. [21]

    Adaptive neural networks for efficient inference,

    T. Bolukbasi, J. Wang, O. Dekel, and V . Saligrama, “Adaptive neural networks for efficient inference,” inInternational conference on machine learning. PMLR, 2017, pp. 527–536

    2017

  22. [22]

    Deep learning with width- wise early exiting and rejection for computational efficient and trustwor- thy modulation classification,

    D. Verbruggen, H. Sallouha, and S. Pollin, “Deep learning with width- wise early exiting and rejection for computational efficient and trustwor- thy modulation classification,”IEEE Transactions on Machine Learning in Communications and Networking, 2025

    2025

  23. [23]

    Rml22: Realistic dataset generation for wireless modulation classification,

    V . Sathyanarayanan, P. Gerstoft, and A. E. Gamalk, “Rml22: Realistic dataset generation for wireless modulation classification,”IEEE Trans- actions on Wireless Communications, 2023

    2023

  24. [24]

    Radio modulation classification using deep residual neural networks,

    A. Abbas, V . Pano, G. Mainland, and K. Dandekar, “Radio modulation classification using deep residual neural networks,” inMILCOM 2022- 2022 IEEE Military Communications Conference (MILCOM). IEEE, 2022, pp. 311–317

    2022

  25. [25]

    Automatic modulation classification using a deep learning model based on resnet,

    M. F. Khan, I. Shafique, S. U. Rahman, I. D. Teledjieu, and M. Hussain, “Automatic modulation classification using a deep learning model based on resnet,” 2025

    2025

  26. [26]

    A complex-valued hybrid deep learning model for automatic modulation recognition,

    W. Wang, Z. Zhang, Y . Li, and S. Wang, “A complex-valued hybrid deep learning model for automatic modulation recognition,”EURASIP Journal on Advances in Signal Processing, vol. 2025, no. 1, p. 46, 2025

    2025

  27. [27]

    Berxit: Early exiting for bert with better fine-tuning and extension to regression,

    J. Xin, R. Tang, Y . Yu, and J. Lin, “Berxit: Early exiting for bert with better fine-tuning and extension to regression,” inProceedings of the 16th conference of the European chapter of the association for computational linguistics: Main Volume, 2021, pp. 91–104

    2021

  28. [28]

    Training strategies for early exiting in deep neural networks: A survey,

    X. Gong, Y . Wang, Z. Li, and J. Zhao, “Training strategies for early exiting in deep neural networks: A survey,”arXiv preprint arXiv:2306.08912, 2023

    work page arXiv 2023

  29. [29]

    Deep learning with width- wise early exiting and rejection for computationally efficient and trustworthy modulation classification,

    D. Verbruggen, H. Sallouha, and S. Pollin, “Deep learning with width- wise early exiting and rejection for computationally efficient and trustworthy modulation classification,”IEEE Transactions on Machine Learning in Communications and Networking, 2025

    2025
