arxiv: 2604.09293 · v1 · submitted 2026-04-10 · ⚛️ physics.optics

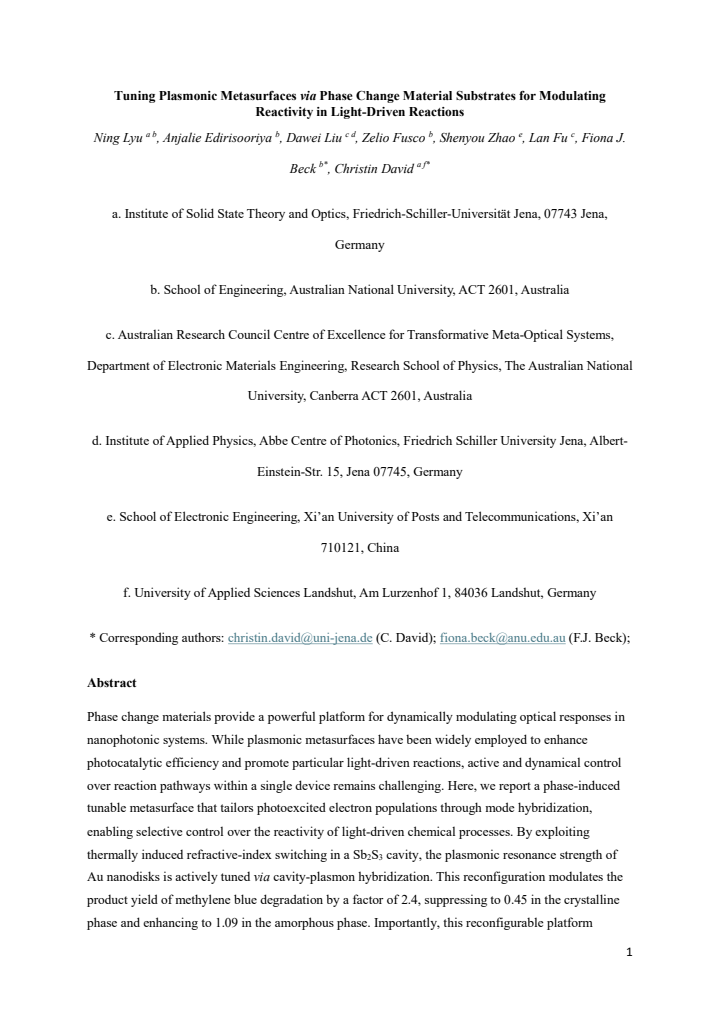

Tuning Plasmonic Metasurfaces via Phase Change Material Substrates for Modulating Reactivity in Light-Driven Reactions

Ning Lyu , Anjalie Edirisooriya , Dawei Liu , Zelio Fusco , Shenyou Zhao , Lan Fu , Fiona J. Beck , Christin David This is my paper

Pith reviewed 2026-05-10 17:28 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords phase change materialsplasmonic metasurfacesphotocatalysismethylene blue degradationcavity-plasmon hybridizationdynamic tuninglight-driven reactionsSb2S3
0
0 comments X

The pith

Switching a phase-change material substrate reconfigures a plasmonic metasurface to control methylene blue degradation yield by a factor of 2.4 under identical illumination.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that placing gold nanodisks on an Sb2S3 phase-change layer creates a tunable plasmonic metasurface whose resonance can be switched by thermally driving the substrate through its crystalline-to-amorphous transition. This switch alters the strength of cavity-plasmon hybridization, which changes the population of photoexcited electrons available to drive surface reactions. For the specific case of methylene blue degradation, the normalized product yield falls to 0.45 in the crystalline phase and rises to 1.09 in the amorphous phase. A reader would care because the same physical device and the same light source can now be used to raise or lower reaction output on demand, removing the need to redesign the metasurface or change the illumination for each desired reactivity level.

Core claim

By exploiting thermally induced refractive-index switching in a Sb2S3 cavity, the plasmonic resonance strength of Au nanodisks is actively tuned via cavity-plasmon hybridization. This reconfiguration modulates the product yield of methylene blue degradation by a factor of 2.4, suppressing to 0.45 in the crystalline phase and enhancing to 1.09 in the amorphous phase. The reconfigurable platform enables dynamic control of the reaction yield using a single metasurface architecture under identical illumination conditions.

What carries the argument

Cavity-plasmon hybridization between the Sb2S3 phase-change cavity and the Au nanodisks, which tunes plasmonic resonance strength to adjust the population of photoexcited electrons available for driving chemical reactions.

If this is right

  • A single metasurface device can now produce both suppressed and enhanced reaction outputs simply by changing the substrate phase.
  • Reaction selectivity in multibranch light-driven systems can be adjusted without redesigning the nanostructure or altering the incident light.
  • Dynamic programming of photocatalytic reactivity becomes possible by cycling the phase-change substrate between its two states.
  • The platform opens routes to on-chip control of complex chemical networks where different branches must be favored at different times.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybridization-tuning approach could be applied to other plasmon-driven reactions where electron population controls branching ratios.
  • If non-thermal phase switching is demonstrated, the platform could move from thermal cycling to all-optical control of reactivity.
  • Extending the method to different phase-change materials might allow operation at lower temperatures or faster switching speeds for practical devices.

Load-bearing premise

The observed change in reaction yield is caused only by the optically tuned photoexcited electron population from cavity-plasmon hybridization and not by direct thermal effects on kinetics, surface chemistry, or material stability during the phase transition.

What would settle it

Perform the methylene blue degradation experiment while holding the metasurface at constant temperature and switching the Sb2S3 phase by a non-thermal method, or measure local electron temperature independently of the yield to check whether yield tracks electron population rather than thermal energy.

Figures

Figures reproduced from arXiv: 2604.09293 by Anjalie Edirisooriya, Christin David, Dawei Liu, Fiona J. Beck, Lan Fu, Ning Lyu, Shenyou Zhao, Zelio Fusco.

Figure 1
Figure 1. Figure 1: Tunable plasmonic resonance-driven reaction and phase transition of Sb [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Simulated absorption of Sb2S3 cavity and plasmonic metasurface configuration. A) Simulated absorption spectra of an amorphous Sb2S3 cavity on an Au mirror substrate with film thickness varying from 40 to 300 nm. B) Simulated absorption spectra of a crystalline Sb2S3 cavity on an Au mirror substrate with thickness ranging from 40 to 300 nm, showing constructive interference peak shifts arising from refracti… view at source ↗
Figure 3
Figure 3. Figure 3: Simulated total absorption spectra of the Au ND-Sb [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematic of the Au ND-Sb2S3 cavity metasurface and SEM images of the Au ND arrays for the A) amorphous and B) crystalline phases. Experimentally measured absorption spectra of Au ND-Sb2S3 cavity samples with Sb2S3 thicknesses of hSb2S3 = 40, 140, and 160 nm in the C) amorphous and D) crystalline phases. E) Comparison between measured and simulated absorption spectra of the 40 nm thick Au ND-Sb2S3 cavity i… view at source ↗
Figure 5
Figure 5. Figure 5: A) SERS spectra of amorphous (top) and crystalline (bottom) Au ND-Sb [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
read the original abstract

Phase change materials provide a powerful platform for dynamically modulating optical responses in nanophotonic systems. While plasmonic metasurfaces have been widely employed to enhance photocatalytic efficiency and promote particular light-driven reactions, active and dynamical control over reaction pathways within a single device remains challenging. Here, we report a phase-induced tunable metasurface that tailors photoexcited electron populations through mode hybridization, enabling selective control over the reactivity of light-driven chemical processes. By exploiting thermally induced refractive-index switching in a Sb2S3 cavity, the plasmonic resonance strength of Au nanodisks is actively tuned via cavity-plasmon hybridization. This reconfiguration modulates the product yield of methylene blue degradation by a factor of 2.4, suppressing to 0.45 in the crystalline phase and enhancing to 1.09 in the amorphous phase. Importantly, this reconfigurable platform enables dynamic control of the reaction yield using a single metasurface architecture under identical illumination conditions. Our approach establishes a dynamically programmable light-driven reaction platform capable of precisely manipulating reaction reactivity, offering new opportunities for selective photocatalysis in complex multibranch reaction systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents a plasmonic metasurface architecture in which Au nanodisks are placed on an Sb2S3 phase-change-material cavity. Thermally driven switching of the Sb2S3 refractive index between crystalline and amorphous phases is used to tune the strength of cavity-plasmon hybridization, thereby modulating the population of photoexcited electrons available for the light-driven degradation of methylene blue. The central experimental result is a 2.4-fold change in normalized product yield (0.45 in the crystalline phase, 1.09 in the amorphous phase) under identical illumination conditions, achieved with a single device geometry.

Significance. If the observed yield modulation can be unambiguously attributed to optically tuned photoexcited-electron density rather than thermal or surface-chemistry artifacts, the work would provide a compact, reconfigurable platform for dynamic control of photocatalytic reactivity. The use of a single metasurface that switches between suppression and enhancement without changing illumination or geometry is a notable conceptual advance for selective photocatalysis in multibranch reaction networks.

major comments (1)
  1. [Abstract and Results] The central claim (abstract and results) that the factor-of-2.4 yield change arises exclusively from cavity-plasmon hybridization and the resulting modulation of photoexcited electron population is load-bearing for the paper's novelty. However, the phase transition is thermally driven; no local thermometry, fixed-temperature control experiments, or dark thermal baselines are described that would isolate optical effects from possible temperature-dependent changes in MB adsorption, reaction rate constants, or catalyst stability.
minor comments (2)
  1. [Abstract] The normalized yields 0.45 and 1.09 are reported without error bars, number of replicates, or a clear description of how the product yield was quantified (e.g., absorbance calibration, HPLC, or mass spectrometry).
  2. Clarify the normalization procedure for the reported yields and state whether the illumination intensity, wavelength, and exposure time were held strictly constant across the two phases.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful and constructive report. The major comment raises a valid point about the need to more rigorously separate optical modulation from possible thermal or chemical artifacts. We address this directly below and commit to revisions that will strengthen the attribution of the observed yield change.

read point-by-point responses

  1. Referee: [Abstract and Results] The central claim (abstract and results) that the factor-of-2.4 yield change arises exclusively from cavity-plasmon hybridization and the resulting modulation of photoexcited electron population is load-bearing for the paper's novelty. However, the phase transition is thermally driven; no local thermometry, fixed-temperature control experiments, or dark thermal baselines are described that would isolate optical effects from possible temperature-dependent changes in MB adsorption, reaction rate constants, or catalyst stability.

    Authors: We agree that unambiguous attribution requires additional controls, and the manuscript as submitted does not include local thermometry, fixed-temperature illumination experiments, or explicit dark thermal baselines. The phase transition is thermally driven, and while all reactivity data were acquired under identical illumination conditions after the Sb2S3 phase had been set, temperature-dependent changes in adsorption or kinetics cannot be ruled out from the existing data alone. In the revised manuscript we will (i) add a dedicated control-experiments subsection reporting dark thermal reaction rates measured at the same temperatures used for the optical measurements, (ii) include fixed-temperature illumination runs to isolate optical from thermal contributions, and (iii) temper the abstract and results language to state that the 2.4-fold modulation is consistent with cavity-plasmon hybridization while acknowledging residual thermal effects. These additions will be supported by new data or, where new experiments are not feasible within the revision timeline, by quantitative estimates from literature values for MB adsorption and rate constants on Au surfaces. We believe these changes will allow the central claim to be presented with appropriate qualification. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental yield measurements with no derivation chain

full rationale

The paper reports experimental modulation of methylene blue degradation yield (factor of 2.4) via thermally switched Sb2S3 phase affecting Au nanodisk plasmon resonance. No equations, fitted parameters renamed as predictions, self-citation load-bearing premises, or ansatz smuggling appear in the provided abstract or claims. The result is a direct measurement under identical illumination, not a constructed equivalence to inputs. This is the expected non-finding for an experimental optics/chemistry study.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Experimental demonstration with no mathematical derivation; no free parameters, axioms, or invented entities are invoked in the central claim.

pith-pipeline@v0.9.0 · 5525 in / 1166 out tokens · 68503 ms · 2026-05-10T17:28:48.085514+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

51 extracted references · 51 canonical work pages

  1. [2]

    Cortés, E. et al. Optical Metasurfaces for Energy Conversion. Chem. Rev. 122, 15082–15176 (2022)

    work page 2022

  2. [3]

    & Zou, Z

    Tu, W., Zhou, Y. & Zou, Z. Photocatalytic Conversion of CO 2 into Renewable Hydrocarbon Fuels: State‐of‐the‐Art Accomplishment, Challenges, and Prospects. Advanced Materials 26, 4607– 4626 (2014)

    work page 2014

  3. [4]

    N., Schmidt‐Mende, L

    Habisreutinger, S. N., Schmidt‐Mende, L. & Stolarczyk, J. K. Photocatalytic Reduction of CO 2 on TiO 2 and Other Semiconductors. Angew Chem Int Ed 52, 7372–7408 (2013)

    work page 2013

  4. [5]

    & Jain, P

    Kumari, G., Zhang, X., Devasia, D., Heo, J. & Jain, P. K. Watching Visible Light‐Driven CO2 Reduction on a Plasmonic Nanoparticle Catalyst. ACS Nano 12, 8330–8340 (2018)

    work page 2018

  5. [6]

    Yu, L. et al. In Situ Construction of Near‐Infrared Response Hybrid Up‐Conversion Photocatalyst for Degrading Organic Dyes and Antibiotics. Molecules 28, 6674 (2023)

    work page 2023

  6. [7]

    & Yuan, Z

    Li, J., Zhang, D., Hu, Z. & Yuan, Z. Illuminating the transformation of photocatalysts in light‐ driven organic synthesis. Nat Catal 8, 1268–1280 (2025)

    work page 2025

  7. [8]

    A., Szymanski, W

    Fu, Y., Simeth, N. A., Szymanski, W. & Feringa, B. L. Visible and near‐infrared light‐induced photoclick reactions. Nat Rev Chem 8, 665–685 (2024)

    work page 2024

  8. [9]

    Wang, J.‐P., Zong, M.‐H. & Li, N. Photobiocatalysis: A promising tool for sustainable synthesis. Chem Catalysis 4, 100933 (2024)

    work page 2024

  9. [10]

    Goh, X. M. et al. Three‐dimensional plasmonic stereoscopic prints in full colour. Nat Commun 5, 5361 (2014)

    work page 2014

  10. [11]

    & Beck, F

    Fusco, Z., Riaz, A., David, C. & Beck, F. J. Cathodoluminescence Spectroscopy of Complex Dendritic Au Architectures for Application in Plasmon‐Mediated Photocatalysis and as SERS Substrates. Adv Materials Inter 10, 2202236 (2023). 19

    work page 2023

  11. [12]

    & Beck, F

    Fusco, Z., Edirisooriya, A., Lyu, N., David, C. & Beck, F. J. Chapter Five ‐ Metasurfaces for photochemistry. in Semiconductor Metasurfaces - Part 1 (eds Walden, S. & Hafermann, M.) vol. 115 149–179 (Elsevier, 2024)

    work page 2024

  12. [13]

    & Beck, F

    Fusco, Z. & Beck, F. J. Advances in fundamentals and application of plasmon‐assisted CO2 photoreduction. Nanophotonics 13, 387–417 (2024)

    work page 2024

  13. [14]

    & Liu, M

    Fu, J., Jiang, K., Qiu, X., Yu, J. & Liu, M. Product selectivity of photocatalytic CO2 reduction reactions. Materials Today 32, 222–243 (2020)

    work page 2020

  14. [15]

    Zhang, X. et al. Product selectivity in plasmonic photocatalysis for carbon dioxide hydrogenation. Nat Commun 8, 14542 (2017)

    work page 2017

  15. [16]

    & Morabito, M

    Linic, S., Aslam, U., Boerigter, C. & Morabito, M. Photochemical transformations on plasmonic metal nanoparticles. Nature Mater 14, 567–576 (2015)

    work page 2015

  16. [17]

    & Beck, F

    Fusco, Z., Catchpole, K. & Beck, F. J. Investigation of the mechanisms of plasmon‐mediated photocatalysis: synergistic contribution of near‐field and charge transfer effects. J. Mater. Chem. C 10, 7511–7524 (2022)

    work page 2022

  17. [18]

    Herran, M. et al. Plasmonic bimetallic two‐dimensional supercrystals for H2 generation. Nat Catal 6, 1205–1214 (2023)

    work page 2023

  18. [19]

    Camargo, P. H. C. & Cortés, E. Plasmonic Catalysis: From Fundamentals to Applications. (Wiley, 2021). doi:10.1002/9783527826971

    work page doi:10.1002/9783527826971 2021

  19. [20]

    & Naldoni, A

    Mascaretti, L. & Naldoni, A. Hot electron and thermal effects in plasmonic photocatalysis. Journal of Applied Physics 128, 041101 (2020)

    work page 2020

  20. [21]

    E., Annesley, C

    Tesema, T. E., Annesley, C. & Habteyes, T. G. Plasmon‐Enhanced Autocatalytic N‐Demethylation. J. Phys. Chem. C 122, 19831–19841 (2018)

    work page 2018

  21. [22]

    Shi, X. et al. Enhanced water splitting under modal strong coupling conditions. Nature Nanotech 13, 953–958 (2018)

    work page 2018

  22. [23]

    Wang, Y. et al. Hot Electron‐Driven Photocatalysis Using Sub‐5 nm Gap Plasmonic Nanofinger Arrays. Nanomaterials 12, 3730 (2022). 20

    work page 2022

  23. [24]

    Dutta, A. et al. Gap‐plasmon enhanced water splitting with ultrathin hematite films: the role of plasmonic‐based light trapping and hot electrons. Faraday Discuss. 214, 283–295 (2019)

    work page 2019

  24. [25]

    Lyu, N. et al. Coupled Au Nanoparticle‐Cavity Nanostructures for Precise Control in Resonance‐ Driven Photocatalytic Reactions. ACS Nano 19, 25821–25829 (2025)

    work page 2025

  25. [26]

    Yuan, L. et al. A Quasi‐Bound States in the Continuum Dielectric Metasurface‐Based Antenna– Reactor Photocatalyst. Nano Lett. 24, 172–179 (2024)

    work page 2024

  26. [27]

    Lyu, N. et al. Polarization‐Sensitive Au‐TiO2 Nanopillars for Tailored Plasmonic Enhanced Light‐ Driven Reaction Activity. Advanced Optical Materials 14, e03650 (2026)

    work page 2026

  27. [28]

    Hosseini, P., Wright, C. D. & Bhaskaran, H. An optoelectronic framework enabled by low‐ dimensional phase‐change films. Nature 511, 206–211 (2014)

    work page 2014

  28. [29]

    & Taubner, T

    Wuttig, M., Bhaskaran, H. & Taubner, T. Phase‐change materials for non‐volatile photonic applications. Nature Photon 11, 465–476 (2017)

    work page 2017

  29. [30]

    & Siegel, J

    David, C., Kühler, P., Javier García De Abajo, F. & Siegel, J. Near‐field nanoimprinting using colloidal monolayers. Opt. Express 22, 8226 (2014)

    work page 2014

  30. [31]

    Kim, H.‐T. et al. Electrical oscillations induced by the metal‐insulator transition in VO2. Journal of Applied Physics 107, (2010)

    work page 2010

  31. [32]

    Han, Z. et al. Electrically Reconfigurable Plasmonic Metasurfaces Based on Phase‐Change Materials Sb2 S3. Nano Lett. 25, 7435–7441 (2025)

    work page 2025

  32. [33]

    Qazilbash, M. M. et al. Mott Transition in VO2 Revealed by Infrared Spectroscopy and Nano‐ Imaging. Science 318, 1750–1753 (2007)

    work page 2007

  33. [34]

    Delaney, M. et al. Nonvolatile programmable silicon photonics using an ultralow‐loss Sb2Se3 phase change material. Sci. Adv. 7, (2021)

    work page 2021

  34. [35]

    P., Wang, R., Yang, Z

    Osorio Mayon, Y., White, T. P., Wang, R., Yang, Z. & Catchpole, K. R. Evaporated and solution deposited planar Sb 2 S 3 solar cells: A comparison and its significance. Physica Status Solidi (a) 213, 108–113 (2016). 21

    work page 2016

  35. [36]

    Wang, Q. et al. Optically reconfigurable metasurfaces and photonic devices based on phase change materials. Nature Photon 10, 60–65 (2016)

    work page 2016

  36. [37]

    Laprais, C. et al. Reversible Single‐Pulse Laser‐Induced Phase Change of Sb2 S3 Thin Films: Multi‐ Physics Modeling and Experimental Demonstrations. Advanced Optical Materials 12, 2401214 (2024)

    work page 2024

  37. [38]

    Dong, W. et al. Wide Bandgap Phase Change Material Tuned Visible Photonics. Adv Funct Materials 29, 1806181 (2019)

    work page 2019

  38. [39]

    Wedemeyer, H. et al. Nanocrystalline solar cells with an antimony sulfide solid absorber by atomic layer deposition. Energy Environ. Sci. 6, 67–71 (2013)

    work page 2013

  39. [40]

    Delaney, M., Zeimpekis, I., Lawson, D., Hewak, D. W. & Muskens, O. L. A New Family of Ultralow Loss Reversible Phase‐Change Materials for Photonic Integrated Circuits: Sb2S3 and Sb2Se3. Adv Funct Materials 30, (2020)

    work page 2020

  40. [41]

    Parize, R. et al. In situ analysis of the crystallization process of Sb 2 S 3 thin films by Raman scattering and X‐ray diffraction. Materials & Design 121, 1–10 (2017)

    work page 2017

  41. [42]

    K., Verma, G., Singh, S

    Chamoli, S. K., Verma, G., Singh, S. C. & Guo, C. Phase change material based hot electron photodetection. Nanoscale 13, 1311–1317 (2021)

    work page 2021

  42. [43]

    & Beck, F

    Zhao, S., Fusco, Z. & Beck, F. J. Strong and tunable absorption in coupled nanoparticle–cavity systems for plasmonically enhanced hot electron devices. Optica 9, 1084 (2022)

    work page 2022

  43. [44]

    Liu, Y.‐E. et al. Quantum‐Coherence‐Enhanced Hot‐Electron Injection under Modal Strong Coupling. ACS Nano 17, 8315–8323 (2023)

    work page 2023

  44. [45]

    Li, J. et al. Plasmon‐induced photonic and energy‐transfer enhancement of solar water splitting by a hematite nanorod array. Nat Commun 4, 2651 (2013)

    work page 2013

  45. [46]

    E., Kafle, B., Tadesse, M

    Tesema, T. E., Kafle, B., Tadesse, M. G. & Habteyes, T. G. Plasmon‐Enhanced Resonant Excitation and Demethylation of Methylene Blue. J. Phys. Chem. C 121, 7421–7428 (2017)

    work page 2017

  46. [47]

    Wang, W. et al. Generation of Hot Electrons with Chiral Metamaterial Perfect Absorbers: Giant Optical Chirality for Polarization‐Sensitive Photochemistry. ACS Photonics 6, 3241–3252 (2019). 22

    work page 2019

  47. [48]

    Launay, V. et al. NIR Organic Dyes as Innovative Tools for Reprocessing/Recycling of Plastics: Benefits of the Photothermal Activation in the Near‐Infrared Range. Adv Funct Materials 31, 2006324 (2021)

    work page 2021

  48. [49]

    A., Matlou, G

    Moreki, M. A., Matlou, G. G. & Rapulenyane, N. Photo‐Catalytic Degradation of Rhodamine 6g Under Visible Lamp Using Citrate Stabilized Zno Nanoparticles. Preprint at https://doi.org/10.2139/ssrn.5179095 (2025)

    work page doi:10.2139/ssrn.5179095 2025

  49. [50]

    in Studies in Physical and Theoretical Chemistry vol

    Chapter 4 The influence of temperature on reaction rate. in Studies in Physical and Theoretical Chemistry vol. 86 117–138 (Elsevier, 1999)

    work page 1999

  50. [51]

    Zhou, B. et al. Light‐driven synthesis of C2H6 from CO2 and H2O on a bimetallic AuIr composite supported on InGaN nanowires. Nat Catal 6, 987–995 (2023)

    work page 2023

  51. [52]

    & Xie, Y

    Li, X., Wang, S., Li, L., Sun, Y. & Xie, Y. Progress and Perspective for In Situ Studies of CO2 Reduction. J. Am. Chem. Soc. 142, 9567–9581 (2020)

    work page 2020
