3D-Printing Water-Soluble Channels Filled with Liquid Metal for Recyclable and Cuttable Wireless Power Sheet

Eiji Iwase; Junya Kurumida; Kento Yamagishi; Michinao Hashimoto; Ryo Takahashi; Takao Someya; Takashi Sato; Wataru Iwasaki; Yoshihiro Kawahara

arxiv: 2604.09299 · v1 · submitted 2026-04-10 · 💻 cs.HC

3D-Printing Water-Soluble Channels Filled with Liquid Metal for Recyclable and Cuttable Wireless Power Sheet

Takashi Sato , Ryo Takahashi , Kento Yamagishi , Takao Someya , Michinao Hashimoto , Eiji Iwase , Yoshihiro Kawahara , Junya Kurumida

show 1 more author

Wataru Iwasaki

This is my paper

Pith reviewed 2026-05-10 17:25 UTC · model grok-4.3

classification 💻 cs.HC

keywords wireless power transferliquid metal3D printingrecyclable electronicscuttable devicesH-tree wiringPVA channelsflexible electronics

0 comments

The pith

H-tree wiring and liquid metal in water-soluble channels make wireless power sheets both cuttable and recyclable.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how a wireless power transfer sheet can keep working after physical cuts by using an H-tree wiring layout that isolates functional coil sections from removed outer areas. It fabricates the conductors as liquid metal inside 3D-printed polyvinyl alcohol channels that dissolve in water, allowing the metal to be recovered and refilled for reuse. Experiments confirm that the sheet holds its bending stiffness and resistance through 100 flex cycles and that 98 percent of the liquid metal can be reclaimed after four full dissolution and refabrication cycles with no loss in electrical performance. This combination supports embedding the sheet into ordinary objects for ongoing power delivery to nearby devices.

Core claim

A wireless power transfer sheet remains operational after arbitrary cuts and supports repeated material recovery because an H-tree wiring pattern keeps inner coils functional while 3D-printed water-soluble channels allow the liquid metal to be dissolved and reused without degrading the sheet's electrical or mechanical properties.

What carries the argument

The H-tree wiring pattern that connects coils so that severed outer sections leave inner coils still powered, paired with 3D-printed polyvinyl alcohol channels that dissolve in water to release and recover the liquid metal conductor.

If this is right

Sheets can be trimmed on-site to match the shape of everyday objects without losing wireless power capability in the kept sections.
The same physical sheet can be reused multiple times by dissolving and refilling the channels, supporting longer deployment in IoT environments.
Bending durability over 100 cycles allows the sheet to conform to curved or flexible surfaces while maintaining consistent electrical resistance.
Integration into ambient computing setups becomes practical because the sheet can be customized and repaired without replacing the entire unit.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar channel-and-liquid-metal methods could be applied to other flexible circuits that need both damage tolerance and material recovery.
Large-area versions might be manufactured in rolls and cut to size at installation, reducing the need for custom pre-fabrication.
If the recovery process scales, it could lower the environmental cost of discarded flexible electronics by reclaiming the conductor material.

Load-bearing premise

The H-tree wiring will preserve coil function after any possible cut pattern and the liquid metal will retain stable properties through more than the four dissolution cycles that were tested.

What would settle it

A test in which an outer region is cut away and the remaining inner coils show zero or sharply reduced power transfer at 6.78 MHz, or a fifth dissolution cycle in which recovered liquid metal produces measurable increase in resistance or drop in Q-factor.

read the original abstract

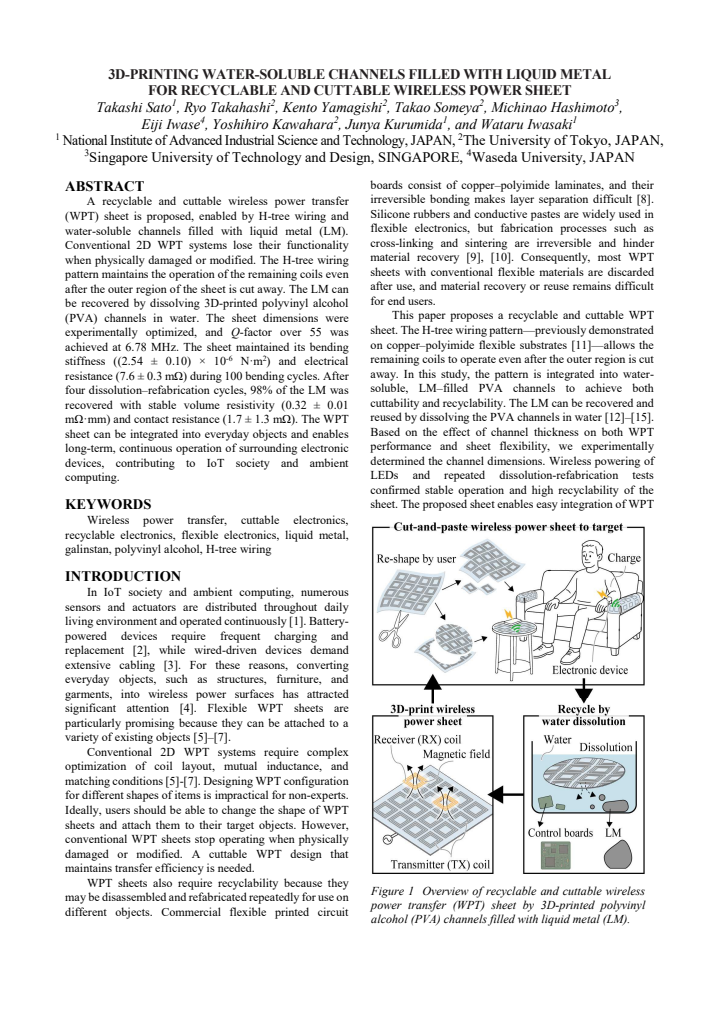

A recyclable and cuttable wireless power transfer (WPT) sheet is proposed, enabled by H-tree wiring and water-soluble channels filled with liquid metal (LM). Conventional 2D WPT systems lose their functionality when physically damaged or modified. The H-tree wiring pattern maintains the operation of the remaining coils even after the outer region of the sheet is cut away. The LM can be recovered by dissolving 3D-printed polyvinyl alcohol (PVA) channels in water. The sheet dimensions were experimentally optimized, and a Q-factor over 55 was achieved at 6.78 MHz. The sheet maintained its bending stiffness and electrical resistance during 100 bending cycles. After four dissolution-refabrication cycles, 98 percent of the LM was recovered with stable electrical properties. The WPT sheet can be integrated into everyday objects and enables long-term, continuous operation of surrounding electronic devices, contributing to IoT applications and ambient computing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A workable prototype for cuttable and recyclable wireless power sheets using liquid metal in soluble channels, but the supporting data stay thin.

read the letter

This paper shows a prototype WPT sheet that keeps working after outer sections are cut away and lets you recover most of the liquid metal by dissolving the channels in water. The H-tree layout is the key that preserves the inner coils, and the 3D-printed PVA channels make the recovery step straightforward. They optimized the sheet dimensions to hit a Q-factor over 55 at 6.78 MHz, ran 100 bending cycles with no measurable change in stiffness or resistance, and recovered 98 percent of the metal after four dissolve-and-refill cycles while keeping electrical properties stable. Those numbers are the concrete part that stands out for an applied electronics demo. The combination of the topology and the soluble-channel approach is not just a restatement of earlier liquid-metal or flexible WPT work, so there is a modest increment in novelty here. The main limitation is that the reported results are still at the level of a single prototype. The abstract gives no error bars, no full data tables, and only high-level fabrication notes, which makes it hard to judge repeatability or how sensitive the outcomes are to small changes in printing or filling. The cuts tested are limited to outer regions, so it is unclear whether the same guarantee holds for arbitrary cuts through active areas. Four cycles is a reasonable start but does not yet address longer-term degradation or repeated use in real objects. This is the sort of paper that matters to groups working on customizable IoT power delivery or ambient electronics who need something that can be trimmed to fit and later recycled. It is not foundational, but the prototype functions as described and the fabrication route is practical. I would send it to peer review so the authors can supply the missing datasets, clarify the cuttability limits, and show whether the recovery process scales beyond four cycles.

Referee Report

2 major / 2 minor

Summary. The paper proposes a recyclable and cuttable wireless power transfer (WPT) sheet fabricated via 3D-printed water-soluble polyvinyl alcohol (PVA) channels filled with liquid metal (LM) and incorporating an H-tree wiring pattern. This topology is claimed to preserve operation of remaining coils after outer regions are cut away. Experimental optimization of sheet dimensions yields a Q-factor >55 at 6.78 MHz; the sheet maintains bending stiffness and electrical resistance over 100 cycles; and 98% of the LM is recovered with stable electrical properties after four dissolution-refabrication cycles. The work targets integration into everyday objects for IoT and ambient computing applications.

Significance. If the experimental outcomes are reproducible, the combination of H-tree topology for damage tolerance and water-soluble channels for LM recovery represents a practical step toward sustainable, physically modifiable WPT systems. The prototype-level demonstration of stable performance after cutting and repeated recycling cycles could inform design of adaptable power-delivery surfaces, though broader impact depends on scaling and integration details not addressed here.

major comments (2)

[Experimental Results] The central experimental claims (Q-factor >55, stable resistance and stiffness after 100 bending cycles, and 98% LM recovery with stable properties after four cycles) are presented without error bars, standard deviations, number of replicates, or raw datasets. This omission makes it impossible to assess variability or statistical reliability of the reported metrics and directly affects confidence in the prototype performance assertions.
[Fabrication and Optimization] Detailed fabrication parameters are insufficiently specified, including exact channel cross-sections, 3D-printing resolution and speed, LM volume per channel, and the precise dissolution/refilling protocol. These details are load-bearing for reproducing the Q-factor optimization and the reported recovery percentage.

minor comments (2)

[Abstract and Results] The cutting demonstration is limited to removal of outer regions; the manuscript should explicitly note that performance after arbitrary internal cuts or more complex geometries remains untested.
[Figures] Figure captions and axis labels should include units, measurement conditions (e.g., frequency for Q-factor), and sample size to improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback on our manuscript. We have addressed each major comment below and will revise the manuscript to enhance reproducibility and statistical reporting of the results.

read point-by-point responses

Referee: [Experimental Results] The central experimental claims (Q-factor >55, stable resistance and stiffness after 100 bending cycles, and 98% LM recovery with stable properties after four cycles) are presented without error bars, standard deviations, number of replicates, or raw datasets. This omission makes it impossible to assess variability or statistical reliability of the reported metrics and directly affects confidence in the prototype performance assertions.

Authors: We agree that the current presentation of results lacks error bars, standard deviations, and explicit replicate counts, which reduces the ability to evaluate variability. In the revised manuscript, we will add error bars (representing one standard deviation) to all relevant figures and tables. We will also report the number of replicates performed (n=5 for Q-factor measurements across different sheet dimensions, n=3 for bending cycle tests, and n=4 for the recycling cycles) and indicate that raw datasets will be provided as supplementary material or deposited in a public repository. revision: yes
Referee: [Fabrication and Optimization] Detailed fabrication parameters are insufficiently specified, including exact channel cross-sections, 3D-printing resolution and speed, LM volume per channel, and the precise dissolution/refilling protocol. These details are load-bearing for reproducing the Q-factor optimization and the reported recovery percentage.

Authors: We concur that additional fabrication details are required to support reproducibility of the Q-factor optimization and recovery results. In the revised manuscript, we will expand the fabrication section with a new table and accompanying text specifying the exact channel cross-sectional dimensions, 3D-printing resolution, print speed, layer height, LM volume per channel, and a complete step-by-step dissolution/refilling protocol (including water temperature, immersion time, agitation method, drying procedure, and refilling technique). revision: yes

Circularity Check

0 steps flagged

No significant circularity in experimental prototype

full rationale

The paper describes an experimental fabrication and testing process for a recyclable WPT sheet using H-tree wiring and liquid metal in 3D-printed PVA channels. All central claims (Q-factor >55 at 6.78 MHz, preserved coil function after cuts, stability over 100 bending cycles, 98% LM recovery after four dissolution cycles) are supported by direct measurements and prototype demonstrations rather than any mathematical derivations, predictions, or equations. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the reported work. The derivation chain is absent; results are empirically grounded and self-contained.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental validation of a design using established materials (PVA, liquid metal) and a known wiring topology (H-tree), with the main free parameter being the experimentally tuned sheet dimensions.

free parameters (1)

sheet dimensions = optimized experimentally
Dimensions were experimentally optimized to achieve the reported Q-factor and mechanical stability.

axioms (1)

domain assumption H-tree wiring pattern preserves coil operation after outer-region cuts
Invoked as the enabling design principle for cuttability.

pith-pipeline@v0.9.0 · 5500 in / 1182 out tokens · 73166 ms · 2026-05-10T17:25:21.949669+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

[1]

Gomez et al., J

C. Gomez et al., J. Ambient Intell. Smart Environ. , vol. 11, no. 1, pp. 23–43, 2019

work page 2019
[2]

Ali et al., Results Eng ., vol

A. Ali et al., Results Eng ., vol. 26, 104820, 2025

work page 2025
[3]

Utami et al., Int

S. Utami et al., Int. J. Appl. Technol. Res. , vol. 5, no. 2, pp. 120–131, 2024

work page 2024
[4]

Song et al., Phys

M. Song et al., Phys. Rev. Appl ., vol. 11, no. 5, 054046, 2019

work page 2019
[5]

Lin et al., Nat

R. Lin et al., Nat. Commun., vol. 13, no. 1, 2190, 2022

work page 2022
[6]

Micus et al., Appl

S. Micus et al., Appl. Sci ., vol. 11, no. 9, 4309, 2021

work page 2021
[7]

Takahashi et al., Proc

R. Takahashi et al., Proc. CHI Conf. Hum. Factors Comput. Syst., New York, NY, USA: ACM, 2022

work page 2022
[8]

Tian et al., ACS Sustain

Z. Tian et al., ACS Sustain. Chem. Eng ., vol. 11, no. 31, pp. 11590–11600, 2023

work page 2023
[9]

Wang et al., Molecules , vol

P. Wang et al., Molecules , vol. 28, no. 16, 6049, 2023

work page 2023
[10]

D. J. Kang et al., Small , vol. 16, no. 25, 2000928, 2020

work page 2020
[11]

Takahashi et al., Proc

R. Takahashi et al., Proc. ACM Interact. Mob. Wearable Ubiquitous Technol., vol. 2, no. 4, pp. 1– 25, 2018

work page 2018
[12]

Brasse et al., RSC Sustain ., vol

Y. Brasse et al., RSC Sustain ., vol. 2, no. 6, pp. 1883– 1894, 2024

work page 2024
[13]

Bokka et al., J

N. Bokka et al., J. Mater. Chem. C Mater. Opt. Electron. Devices , vol. 13, no. 21, pp. 10804–10816, 2025

work page 2025
[14]

Sato et al., ACS Appl

T. Sato et al., ACS Appl. Mater. Interfaces , vol. 13, no. 15, pp. 18247–18254, 2021

work page 2021
[15]

Sato et al., ACS Appl

T. Sato et al., ACS Appl. Mater. Interfaces , vol. 15, no. 37, pp. 44404–44412, 2023. CONTACT T. Sato tel: +81-80-2185-3561 e-mail: machotakashi-satou@aist.go.jp Figure 8 Demonstration of the cuttable and recycla ble WPT sheet, including fabrication, reshaping, wirele ss powering, dissolution, and refabrication

work page 2023

[1] [1]

Gomez et al., J

C. Gomez et al., J. Ambient Intell. Smart Environ. , vol. 11, no. 1, pp. 23–43, 2019

work page 2019

[2] [2]

Ali et al., Results Eng ., vol

A. Ali et al., Results Eng ., vol. 26, 104820, 2025

work page 2025

[3] [3]

Utami et al., Int

S. Utami et al., Int. J. Appl. Technol. Res. , vol. 5, no. 2, pp. 120–131, 2024

work page 2024

[4] [4]

Song et al., Phys

M. Song et al., Phys. Rev. Appl ., vol. 11, no. 5, 054046, 2019

work page 2019

[5] [5]

Lin et al., Nat

R. Lin et al., Nat. Commun., vol. 13, no. 1, 2190, 2022

work page 2022

[6] [6]

Micus et al., Appl

S. Micus et al., Appl. Sci ., vol. 11, no. 9, 4309, 2021

work page 2021

[7] [7]

Takahashi et al., Proc

R. Takahashi et al., Proc. CHI Conf. Hum. Factors Comput. Syst., New York, NY, USA: ACM, 2022

work page 2022

[8] [8]

Tian et al., ACS Sustain

Z. Tian et al., ACS Sustain. Chem. Eng ., vol. 11, no. 31, pp. 11590–11600, 2023

work page 2023

[9] [9]

Wang et al., Molecules , vol

P. Wang et al., Molecules , vol. 28, no. 16, 6049, 2023

work page 2023

[10] [10]

D. J. Kang et al., Small , vol. 16, no. 25, 2000928, 2020

work page 2020

[11] [11]

Takahashi et al., Proc

R. Takahashi et al., Proc. ACM Interact. Mob. Wearable Ubiquitous Technol., vol. 2, no. 4, pp. 1– 25, 2018

work page 2018

[12] [12]

Brasse et al., RSC Sustain ., vol

Y. Brasse et al., RSC Sustain ., vol. 2, no. 6, pp. 1883– 1894, 2024

work page 2024

[13] [13]

Bokka et al., J

N. Bokka et al., J. Mater. Chem. C Mater. Opt. Electron. Devices , vol. 13, no. 21, pp. 10804–10816, 2025

work page 2025

[14] [14]

Sato et al., ACS Appl

T. Sato et al., ACS Appl. Mater. Interfaces , vol. 13, no. 15, pp. 18247–18254, 2021

work page 2021

[15] [15]

Sato et al., ACS Appl

T. Sato et al., ACS Appl. Mater. Interfaces , vol. 15, no. 37, pp. 44404–44412, 2023. CONTACT T. Sato tel: +81-80-2185-3561 e-mail: machotakashi-satou@aist.go.jp Figure 8 Demonstration of the cuttable and recycla ble WPT sheet, including fabrication, reshaping, wirele ss powering, dissolution, and refabrication

work page 2023
