arxiv: 2604.09930 · v1 · submitted 2026-04-10 · 🌌 astro-ph.SR · astro-ph.GA

Spectroscopic Survey of Faint Planetary-Nebula Nuclei. VIII. The Dwarf Barium Central Star of Kohoutek 1-9

Howard E. Bond (1 , 2) , Peter Goodhew (3) , Daniel Stern (4) , Jonathan Talbot (5) , Gregory R. Zeimann (6) ((1) Penn State , (2) STScI , (3) Deep Space Imaging Network
show 3 more authors
(4) MEA Observatory (5) Stark Bayou Observatory (6) Hobby-Eberly Telescope)
This is my paper

Pith reviewed 2026-05-10 16:24 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.GA
keywords planetary nebulaebarium starscentral starsspectroscopybinary systemsstellar evolutionasymptotic giant branch
0
0 comments X

The pith

The central star of planetary nebula Kohoutek 1-9 is a G-type dwarf barium star.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports optical spectroscopy of the central star in the little-studied planetary nebula Kohoutek 1-9. The spectrum matches a G-type dwarf with strong absorption bands from carbon molecules and s-process elements including strontium and barium. This places K 1-9 in a small group of planetary nebulae whose nuclei are dwarf barium stars, objects whose surface layers have been enriched by material transferred from a former asymptotic giant branch companion in a wide binary. Deep narrow-band images reveal a thin ring morphology with the central star slightly offset from center, matching patterns seen in other members of the class and consistent with preferential ejection into the binary orbital plane.

Core claim

Spectroscopy shows the central star of Kohoutek 1-9 to be a G-type dwarf displaying prominent absorption features of carbon molecules and s-process elements such as Sr and Ba. The object therefore belongs to the rare class of planetary nebulae with barium-star nuclei. These systems are interpreted as wide binaries in which the primary reached the thermally pulsing AGB phase, dredged up carbon and s-process material, and transferred it via a dense wind to the companion; the remnant core has since become a hot pre-white dwarf that ionizes the ejected envelope while the cool barium star dominates the optical light. Narrow-band imaging further reveals a thin-ring morphology with the nucleus meas

What carries the argument

The optical spectrum of the central star, which reveals a cool G-dwarf continuum crossed by strong molecular carbon bands and s-process absorption lines rather than the expected hot stellar continuum of a typical planetary-nebula nucleus.

Load-bearing premise

The observed absorption lines are correctly identified as arising from s-process elements and the system formed through wind-driven mass transfer in a wide binary during the primary's AGB phase.

What would settle it

High-resolution spectroscopy that measures solar or subsolar abundances of barium, strontium, and carbon in the star's atmosphere would falsify the dwarf barium-star classification.

Figures

Figures reproduced from arXiv: 2604.09930 by 2), (2) STScI, (3) Deep Space Imaging Network, (4) MEA Observatory, (5) Stark Bayou Observatory, (6) Hobby-Eberly Telescope), Daniel Stern (4), Gregory R. Zeimann (6) ((1) Penn State, Howard E. Bond (1, Jonathan Talbot (5), Peter Goodhew (3).

Figure 1
Figure 1. Figure 1: Hobby-Eberly Telescope LRS2-B spectrum of the central star of K 1-9 (top spectrum, shifted upward by 10−15 ergcm−2 s −1 Å −1 ), and a scaled spectrum of the G5 V standard star κ 1 Ceti (bottom spectrum). Several atomic lines common to both spectra are labeled in the bottom spectrum, and atomic and molecular features enhanced in K 1-9, due to carbon and s-process elements, are marked in the top spectrum. ti… view at source ↗
Figure 2

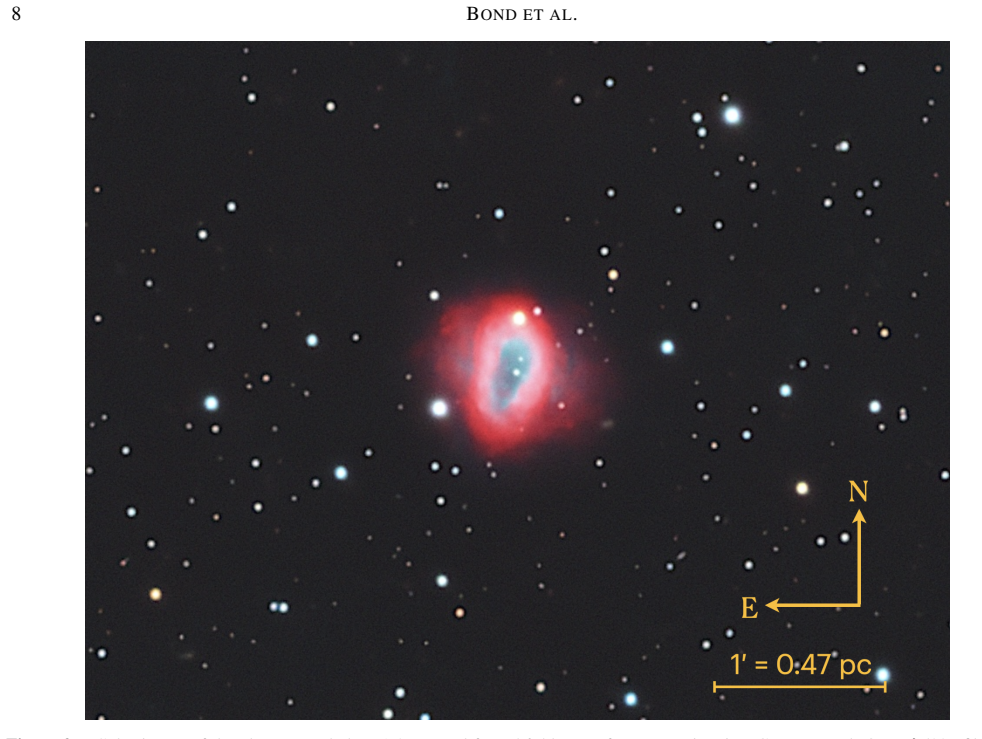

Figure 2. Figure 2: Color image of the planetary nebula K 1-9, created from 86.5 hours of exposure time in RGB, Hα, and [O III] λ5007 filters, as described in the text. Hα+[N II] is assigned to the red channel, and [O III] λ5007 to the green and blue channels. Orientation and scale of the image (including a conversion to linear size at the distance of K 1-9) are indicated at the lower right. The carbon- and barium-enriched nu… view at source ↗
Figure 3

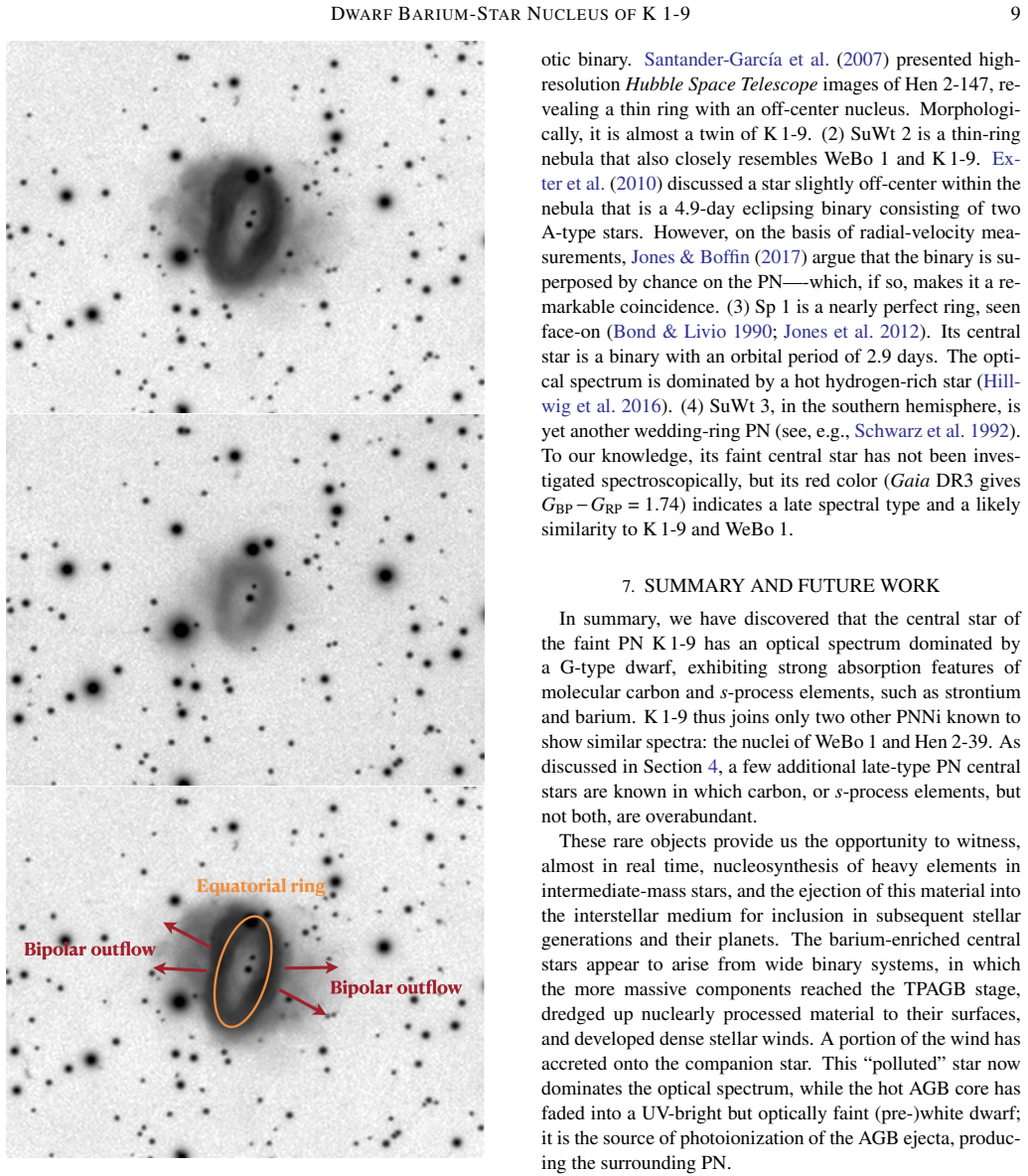

Figure 3. Figure 3: Narrow-band images of K 1-9 in Hα+[N II] (top) and [O III] λ5007 (middle). In the bottom frame, the equatorial ring and perpendicular bipolar outflows, which are discussed in the text, are labeled on top of the Hα+[N II] image. otic binary. Santander-García et al. (2007) presented high￾resolution Hubble Space Telescope images of Hen 2-147, re￾vealing a thin ring with an off-center nucleus. Morphologi￾cally… view at source ↗
read the original abstract

In the course of our ongoing survey of faint planetary-nebula nuclei (PNNi), we obtained optical spectroscopy of the central star of the little-studied PN Kohoutek~1-9 (K 1-9). Its spectrum is found to be that of a G-type dwarf with strong absorption features of carbon molecules and s-process elements such as Sr and Ba--a dwarf barium star. K 1-9 thus joins a very small group of PNe with barium-star nuclei. Their likely progenitors are wide binaries in which the primary star reached the thermally pulsing asymptotic-giant-branch (AGB) phase, dredged up C and s-process elements from its interior, and transferred enriched material to the companion through a dense stellar wind. The remnant core is now a hot, optically inconspicuous (pre-)white dwarf, responsible for ionizing the AGB ejecta, and leaving the optical spectrum dominated by the cool barium star. We present deep narrow-band images of K 1-9, obtained by accumulating long exposure times using amateur telescopes. The PN shows a thin-ring morphology, remarkably similar to the "wedding-ring" shapes seen around other members of this class of binary PNNi. The thin ring probably represents material preferentially ejected into the orbital plane of the binary; we note that the PNN is slightly off-center within the ring, as has been predicted theoretically. We suggest several follow-up studies, including precision photometry to search for periodic variations due to starspots on the rotating barium star, and high-resolution spectroscopy to determine atmospheric parameters of the star, chemical abundances, and its rotation velocity.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper reports optical spectroscopy of the central star of planetary nebula Kohoutek 1-9, classifying its spectrum as that of a G-type dwarf barium star with prominent absorption features from carbon molecules and s-process elements (Sr, Ba). It also presents deep narrow-band images obtained via long amateur-telescope exposures, revealing a thin-ring morphology similar to other known binary PNNi, and interprets the system as the product of wind-driven mass transfer in a wide binary, with the current hot pre-white dwarf ionizing the AGB ejecta while the cool barium star dominates the optical light. Follow-up suggestions include photometry for starspot-induced variability and high-resolution spectroscopy for abundances and rotation.

Significance. This work adds a new member to the very small group of planetary nebulae with barium-star nuclei, reinforcing the binary-evolution channel for such objects through direct observational classification and morphological comparison. The successful use of accumulated amateur-telescope exposures for deep imaging is a practical strength that broadens access to detailed PN morphology studies. The paper is a straightforward observational contribution within an ongoing survey series, with clear suggestions for future work that could test the binary scenario.

major comments (1)
  1. [results section] The spectroscopic classification in the results section is presented qualitatively as a match to G-type dwarf features with carbon and s-process lines; without a table of identified features, approximate equivalent widths, or an overlaid comparison spectrum, the strength of the identification (particularly for Sr and Ba) is difficult to assess independently and remains the load-bearing step for the central claim.
minor comments (2)
  1. [discussion] The discussion of the thin-ring morphology and slight off-center position of the PNN would benefit from a brief reference to the specific theoretical prediction cited, to clarify the expected displacement.
  2. A short table summarizing the observational setup (telescope, instrument, exposure times, wavelength coverage) would improve reproducibility of the spectroscopy and imaging data.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript, its significance, and the recommendation for minor revision. We address the major comment below.

read point-by-point responses

  1. Referee: [results section] The spectroscopic classification in the results section is presented qualitatively as a match to G-type dwarf features with carbon and s-process lines; without a table of identified features, approximate equivalent widths, or an overlaid comparison spectrum, the strength of the identification (particularly for Sr and Ba) is difficult to assess independently and remains the load-bearing step for the central claim.

    Authors: We agree that a more quantitative presentation of the spectroscopic data would strengthen the central claim and facilitate independent verification. The spectrum is displayed in the results section (Figure 2) with the principal absorption features from carbon molecules and s-process elements labeled, but we acknowledge that this alone does not provide the level of detail requested. In the revised manuscript we will add a table listing the identified lines (including those of Sr and Ba) together with their approximate equivalent widths. We will also overlay a comparison spectrum of a standard G-type dwarf barium star to allow direct visual assessment of the match. These changes will be incorporated without altering the overall length or scope of the paper. revision: yes

Circularity Check

0 steps flagged

Pure observational report with no derivations or self-referential claims

full rationale

The paper is a direct spectroscopic classification of the central star of K 1-9 as a G-type dwarf barium star, based on observed absorption features of carbon molecules and s-process elements (Sr, Ba) matched to known spectra. No equations, fitted parameters, predictions, or mathematical derivations appear anywhere in the text. The binary-evolution interpretation is offered as a likely scenario drawn from external literature on similar objects, without any load-bearing step that reduces to the paper's own inputs or prior self-citations. Narrow-band imaging is presented as raw morphological description (thin-ring shape, slight off-center position) compared to other PNe, again without quantitative modeling or circular reduction. The work is self-contained as an observational report.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on established spectroscopic classification techniques and prior binary evolution models rather than new free parameters or invented entities.

axioms (2)
  • standard math Standard interpretation of optical spectra for G-type dwarf classification and identification of carbon molecular bands plus s-process element lines (Sr, Ba).
    Invoked in the description of the spectrum matching known barium-star features.
  • domain assumption Binary progenitor model in which an AGB primary transfers C and s-process material to a companion via dense stellar wind, leaving a hot pre-white dwarf core.
    Used to explain the observed spectrum and the inconspicuous hot component.

pith-pipeline@v0.9.0 · 5682 in / 1397 out tokens · 39267 ms · 2026-05-10T16:24:14.977259+00:00 · methodology
