Firewall effect on electron acceleration by R-waves and parallel electric fields

Gunsu Yun; Hye Lin Kang; Myung-Hoon Cho; Young Dae Yoon

arxiv: 2604.10033 · v2 · submitted 2026-04-11 · ⚛️ physics.plasm-ph

Firewall effect on electron acceleration by R-waves and parallel electric fields

Hye Lin Kang , Young Dae Yoon , Myung-Hoon Cho , Gunsu Yun This is my paper

Pith reviewed 2026-05-12 04:39 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph

keywords electron accelerationR-waveparallel electric fieldrunaway electronscyclotron resonanceparticle trappingfusion plasmaswave-particle interaction

0 comments

The pith

R-wave traps electrons in resonance, reversing their parallel acceleration despite constant electric field

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes electron motion in a uniform magnetic field together with a parallel electric field and a right-handed circularly polarized wave. An electron accelerated by the electric field naturally reaches a Doppler-shifted cyclotron resonance and becomes trapped in resonance space. Once trapped, the electron reverses its parallel acceleration while gaining perpendicular energy, even though the electric field stays constant. Particle-in-cell simulations apply this to fusion devices and show that an injected R-wave can suppress further runaway-electron acceleration.

Core claim

In the presence of a uniform magnetic field, a parallel electric field, and a right-handed circularly polarized wave, an electron following its natural trajectory reaches a Doppler-shifted cyclotron resonance and becomes trapped in the resonance space. Once trapped, the electron undergoes reversal of parallel acceleration together with perpendicular energization, despite the parallel electric field remaining constant. This counterintuitive behavior has important implications for particle scattering in various laboratory and space plasmas. Applied to fusion devices, particle-in-cell simulations show that an externally injected R-wave can act as a firewall suppressing further runaway-electron,

What carries the argument

Resonant trapping at the Doppler-shifted cyclotron resonance, which reverses parallel acceleration and adds perpendicular energization

Load-bearing premise

The electron's natural trajectory under the combined fields reaches the Doppler-shifted cyclotron resonance and becomes trapped in a way that produces the reversal of parallel acceleration.

What would settle it

A simulation or experiment in which electrons continue accelerating parallel to the field without reversal after reaching the expected resonance condition would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.10033 by Gunsu Yun, Hye Lin Kang, Myung-Hoon Cho, Young Dae Yoon.

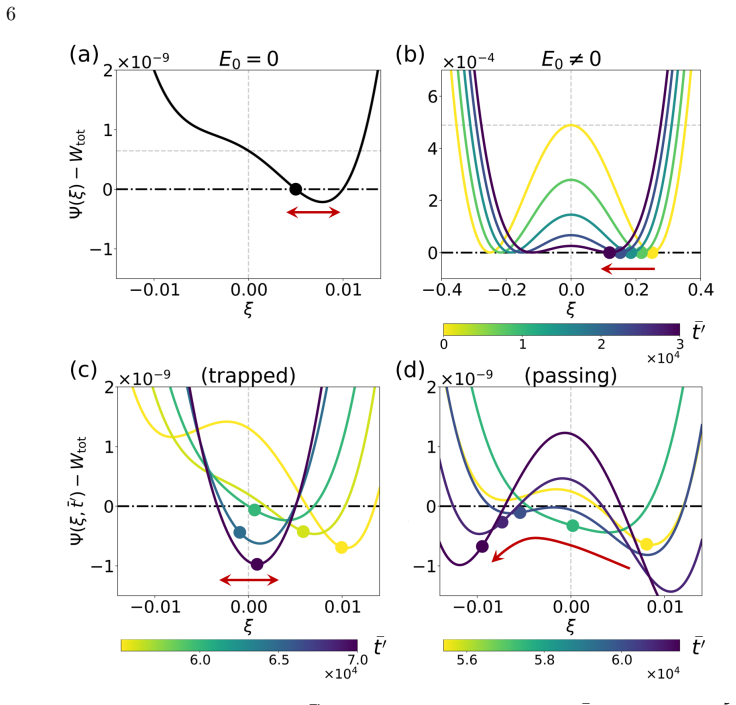

**Figure 2.** Figure 2: Time evolution of Ψ (ξ, t¯′ ) − Wtot for (a) E0 = 0, (b) E¯ 0 = 3.55 × 10−5 and b = 5.0×10−4 , (c) same as (b), and (d) E¯ 0 = 3.55×10−5 and b = 3.5×10−4 . The dots are particle positions at each time, and the red arrows qualitatively describe particle motion. this ψ [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

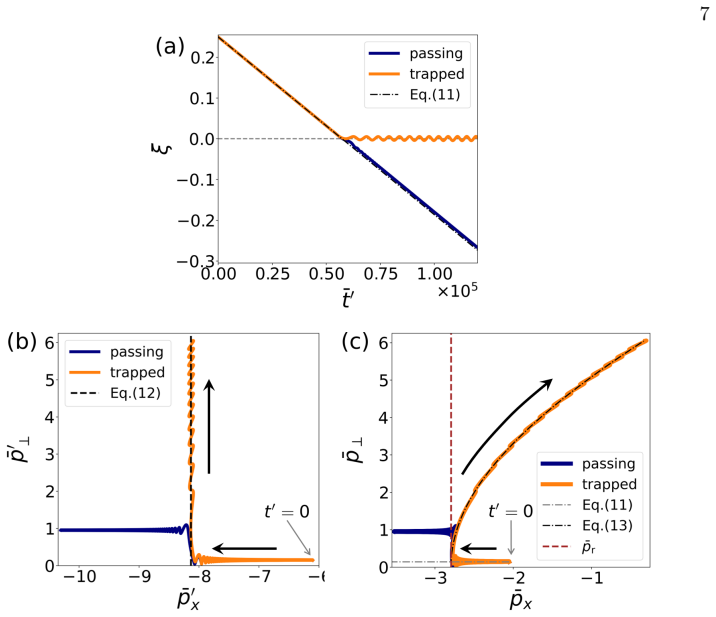

**Figure 3.** Figure 3: (a) Time evolution of ξ, (b) particle trajectory in p¯ ′ ⊥ − p¯ ′ x space, and (c) particle motion in p¯⊥ −p¯x space. The red vertical dashed line in (c) indicates the resonant momentum p¯r with α = 0. The black arrows indicate the direction of particle trajectory. Note that px changes opposite to the electrostatic force in the lab frame. 5. Particle-in-cell Simulation Let us now check whether the single p… view at source ↗

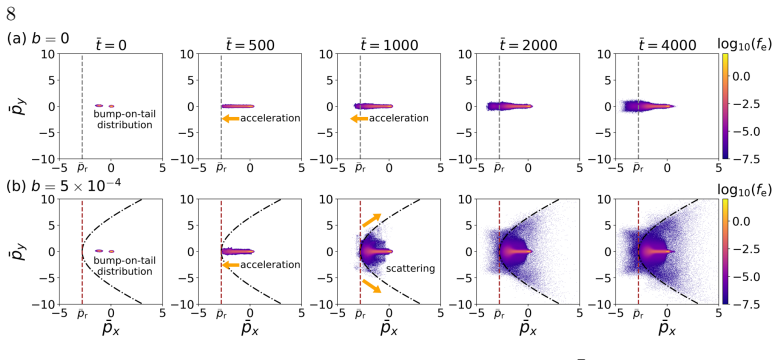

**Figure 4.** Figure 4: Snapshots of electron momentum distribution [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

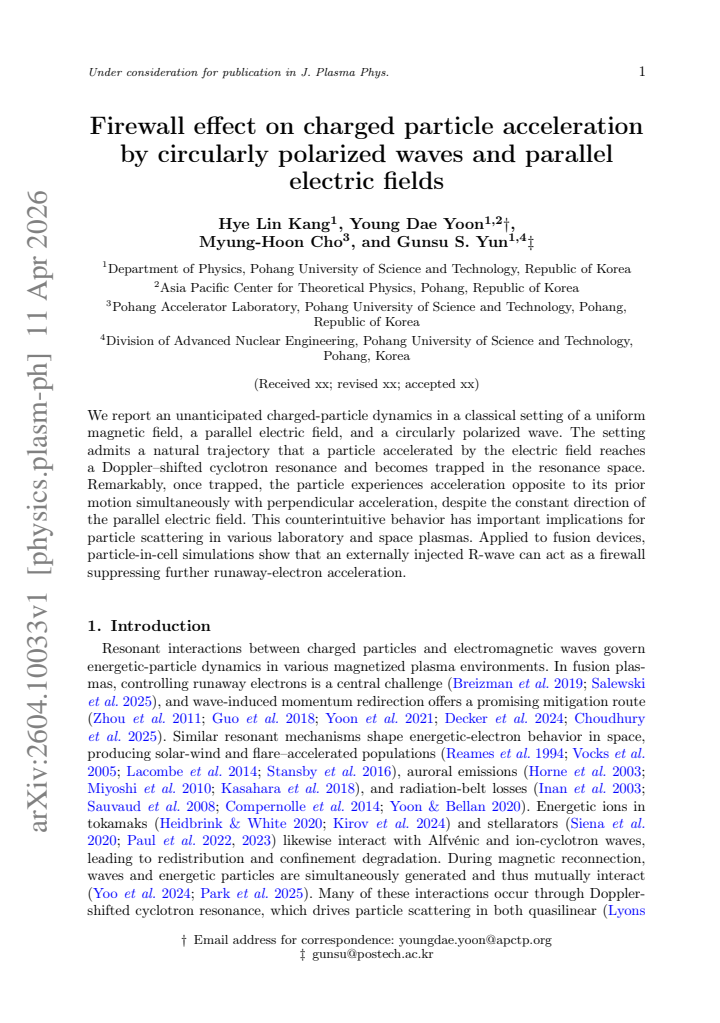

read the original abstract

We report an unanticipated electron dynamics in a classical setting of a uniform magnetic field, a parallel electric field, and a right-handed circularly polarized wave (R-wave). The setting admits a natural trajectory that a particle accelerated by the electric field reaches a Doppler-shifted cyclotron resonance and becomes trapped in the resonance space. Remarkably, once it becomes resonantly trapped, the electron undergoes reversal of parallel acceleration together with perpendicular energization, despite the parallel electric field remaining constant. This counterintuitive behavior has important implications for particle scattering in various laboratory and space plasmas. Applied to fusion devices, particle-in-cell simulations show that an externally injected R-wave can act as a firewall suppressing further runaway-electron acceleration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Electrons reverse parallel acceleration after resonant trapping by an R-wave despite constant E_parallel, with a suggested firewall effect against runaways, but the trapping step needs explicit single-particle confirmation.

read the letter

The key observation is that electrons following a natural trajectory under constant parallel E and uniform B reach Doppler-shifted cyclotron resonance with an R-wave, get trapped, and then reverse their parallel acceleration while energizing perpendicularly. The paper uses this to propose that an injected R-wave can serve as a firewall against runaway electron acceleration in fusion devices, supported by PIC simulations. This reversal is the new element. Standard wave-particle resonance theory predicts trapping and energy exchange, but the specific outcome of parallel deceleration against an unchanging E-field is presented as unanticipated. Framing it around the natural trajectory that leads into resonance without initial wave effects is a useful way to set up the problem. The application to suppressing runaways gives it a practical angle that connects to real engineering concerns in tokamaks. The analytical plus simulation approach works well for illustrating the mechanism. It avoids over-reliance on numerics alone by starting from the single-particle picture. The soft spots center on the trapping condition. The stress-test concern is valid until shown otherwise: the paper needs to demonstrate that the wave amplitude required for trapping is reachable during the E-driven acceleration phase, and that the trapped orbit remains stable with the constant E-field pushing against it. If the full text includes explicit trajectory calculations or plots confirming the reversal without numerical artifacts or special parameter choices, that would resolve it. The PIC firewall claim then follows more convincingly, but one would still look for checks on how sensitive the suppression is to wave strength or plasma parameters. Readers working on plasma wave interactions or runaway mitigation in fusion and space plasmas would find this relevant. It offers a concrete mechanism that could be tested further in models or experiments. The work shows clear thinking on the dynamics and engages with the literature on resonances, so it merits a serious referee. A reviewer could probe the single-particle verification and simulation robustness. I recommend putting it through peer review.

Referee Report

2 major / 2 minor

Summary. The manuscript analyzes electron dynamics under a uniform magnetic field, constant parallel electric field, and right-handed circularly polarized R-wave. It identifies a natural trajectory in which an electron accelerated by E_parallel reaches Doppler-shifted cyclotron resonance, becomes trapped, and then reverses parallel acceleration while gaining perpendicular energy despite constant E_parallel. This is derived analytically and demonstrated via PIC simulations, with the R-wave proposed as a 'firewall' to suppress runaway-electron acceleration in fusion devices.

Significance. If the trapping-induced reversal holds, the result supplies a concrete mechanism for controlling runaway electrons in magnetic confinement devices, with direct relevance to fusion safety. The combination of an analytical trajectory description and supporting PIC runs is a strength, as is the identification of a counterintuitive behavior in a classical plasma setting that may extend to space and laboratory plasmas more broadly.

major comments (2)

[§2] §2 (Analytical trajectory description): the central claim that a particle on the natural trajectory reaches the Doppler-shifted resonance v_|| = (ω − Ω_c)/k_||, enters a trapped orbit, and experiences a wave-induced parallel force that overcomes the constant E_parallel to reverse dv_||/dt requires explicit single-particle orbit integration or phase-space analysis showing that the wave amplitude permits trapping after the pre-resonance acceleration phase and that the trapped orbit remains stable against the constant E_parallel. Without this, reversal cannot be distinguished from a transient or from subsequent PIC artifacts.
[§4] §4 (PIC simulations of the firewall): the suppression of runaway electrons is load-bearing for the applied claim, yet the manuscript does not report convergence tests with respect to grid resolution, particle number, or time step, nor does it show sensitivity of the firewall threshold to wave amplitude and k_||. These omissions leave open whether the reported suppression is robust or numerically influenced.

minor comments (2)

The term 'firewall effect' is introduced without a clear definition or comparison to existing runaway-electron mitigation concepts; a brief literature placement would improve context.
Figure captions for the PIC runs should explicitly state the wave amplitude, frequency, and plasma parameters used so that the firewall threshold can be reproduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which have helped us identify areas where additional detail will strengthen the presentation. We respond to each major comment below.

read point-by-point responses

Referee: §2 (Analytical trajectory description): the central claim that a particle on the natural trajectory reaches the Doppler-shifted resonance v_|| = (ω − Ω_c)/k_||, enters a trapped orbit, and experiences a wave-induced parallel force that overcomes the constant E_parallel to reverse dv_||/dt requires explicit single-particle orbit integration or phase-space analysis showing that the wave amplitude permits trapping after the pre-resonance acceleration phase and that the trapped orbit remains stable against the constant E_parallel. Without this, reversal cannot be distinguished from a transient or from subsequent PIC artifacts.

Authors: We agree that an explicit demonstration of the trapping process strengthens the analytical section. The derivation in §2 follows directly from the Lorentz force equations under the combined fields and identifies the natural trajectory that reaches the Doppler-shifted resonance condition. To address the request, the revised manuscript will incorporate numerical single-particle orbit integrations. These will show particles accelerating under constant E_parallel, reaching resonance, entering a trapped orbit, and exhibiting sustained reversal of dv_||/dt together with perpendicular energization. Phase-space trajectories will be included to confirm that the trapped state remains stable for the wave amplitudes used in the study. revision: yes
Referee: §4 (PIC simulations of the firewall): the suppression of runaway electrons is load-bearing for the applied claim, yet the manuscript does not report convergence tests with respect to grid resolution, particle number, or time step, nor does it show sensitivity of the firewall threshold to wave amplitude and k_||. These omissions leave open whether the reported suppression is robust or numerically influenced.

Authors: We concur that convergence and parameter-sensitivity information is necessary to establish the robustness of the reported suppression. The original simulations were performed with standard resolutions, but these details were not reported. The revised manuscript will add convergence tests with respect to grid resolution, particle number per cell, and time step, confirming that the firewall effect is insensitive to these choices within the explored range. We will also include sensitivity scans versus R-wave amplitude and k_||, demonstrating the threshold behavior and its physical origin. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation follows from equations of motion and PIC dynamics without self-definition or fitted-input reduction

full rationale

The paper presents the reversal of parallel acceleration upon resonant trapping as an outcome of solving the Lorentz force equations for an electron in constant E_parallel, B_0, and R-wave fields, where the particle naturally reaches the Doppler-shifted cyclotron resonance condition v_parallel = (omega - Omega_c)/k_parallel and enters a trapped orbit. This is not constructed by defining the reversal in terms of itself or by fitting a parameter to a subset of data and relabeling the output as a prediction. PIC simulations are invoked only to illustrate the firewall application in fusion-relevant parameters; they do not serve as the source of the single-particle reversal claim. No self-citation chain, uniqueness theorem, or ansatz smuggling is used to justify the central trajectory behavior. The result is therefore independent of its inputs and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The claim rests on standard classical plasma assumptions (uniform B, constant E_parallel, R-wave propagation) and the validity of PIC numerics; no new free parameters or invented entities are introduced beyond the descriptive term 'firewall effect'.

axioms (2)

domain assumption Classical trajectory analysis and wave-particle resonance conditions hold in the uniform-field setup
Invoked to describe the natural trajectory reaching Doppler-shifted resonance
domain assumption PIC simulations faithfully reproduce the single-particle dynamics without dominant numerical artifacts
Required for the firewall claim in fusion devices

invented entities (1)

Firewall effect no independent evidence
purpose: Descriptive label for the reversal and suppression of runaway acceleration
Metaphorical name for the observed trapping behavior; no independent physical entity

pith-pipeline@v0.9.0 · 5417 in / 1489 out tokens · 50680 ms · 2026-05-12T04:39:04.542511+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

the setting admits a natural trajectory that a particle accelerated by the electric field reaches a Doppler-shifted cyclotron resonance and becomes trapped... once trapped, the particle experiences acceleration opposite to its prior motion simultaneously with perpendicular acceleration, despite the constant direction of the parallel electric field
IndisputableMonolith/Foundation/AbsoluteFloorClosure.lean reality_from_one_distinction unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

1/2 (γ' dξ/dt')² + Ψ(ξ,t') = const.

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
