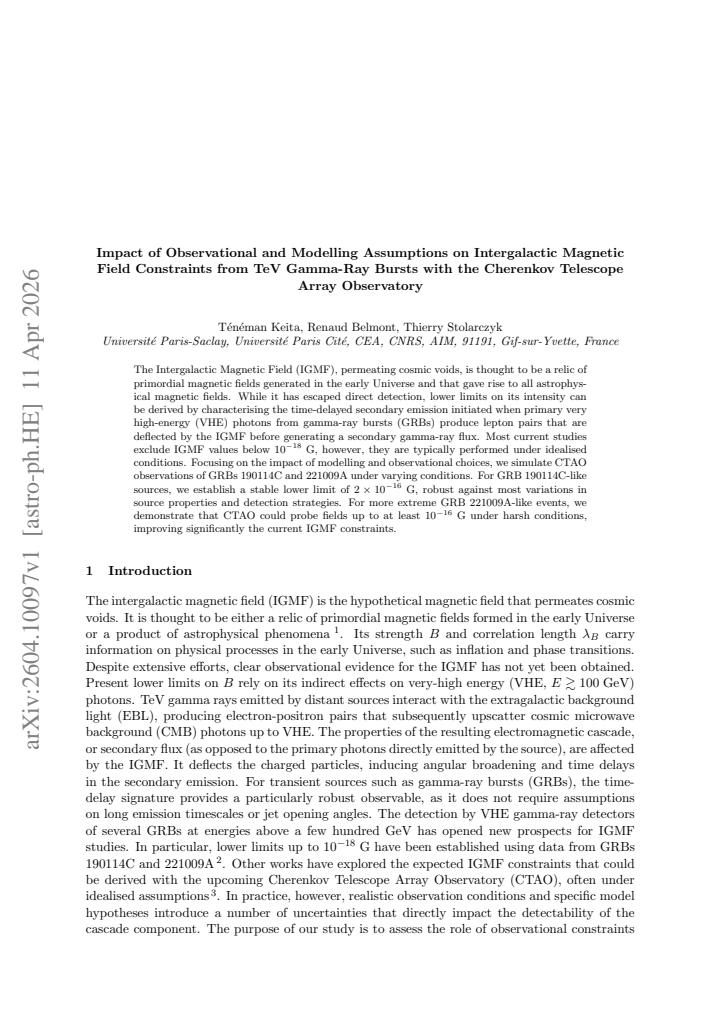

Impact of Observational and Modelling Assumptions on Intergalactic Magnetic Field Constraints from TeV Gamma-Ray Bursts with the Cherenkov Telescope Array Observatory
Pith reviewed 2026-05-10 16:15 UTC · model grok-4.3
The pith
Simulations of CTAO GRB observations establish a robust lower limit of 2×10^{-16} G on the intergalactic magnetic field.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By simulating CTAO observations of GRB 190114C-like and GRB 221009A-like events under varying conditions, the authors show that a lower limit of 2×10^{-16} G on the IGMF is stable for typical sources, while extreme events allow probing up to at least 10^{-16} G, thereby improving current constraints.
What carries the argument
Monte Carlo simulations of primary VHE photon pair production, IGMF-induced lepton deflection, and subsequent secondary gamma-ray emission, applied to CTAO detection of specific GRBs.
If this is right
- A stable 2×10^{-16} G lower limit applies to GRB 190114C-like events regardless of most source or detection variations.
- CTAO can reach constraints as tight as 10^{-16} G for GRB 221009A-like events even under harsh conditions.
- These bounds improve significantly on current IGMF limits from other studies.
- The secondary-emission method remains effective when source redshift, spectrum, or CTAO exposure time are altered within tested ranges.
Where Pith is reading between the lines
- Confirmation would tighten links between IGMF measurements and early-universe magnetic-seed mechanisms.
- The same simulation framework could be applied to other high-energy transients to test consistency across source classes.
- Non-detection of the expected secondary flux in real CTAO data would directly falsify the lower limit for the assumed deflection physics.
Load-bearing premise
The assumptions in modeling pair production, magnetic deflection of leptons, and the resulting secondary gamma-ray emission hold true for the simulated range of GRB properties and CTAO observation conditions.
What would settle it
Detection of secondary gamma-ray signals from a GRB with time delays or spectra inconsistent with predictions for IGMF strengths below 2×10^{-16} G would challenge the lower limit.
read the original abstract
The Intergalactic Magnetic Field (IGMF), permeating cosmic voids, is thought to be a relic of primordial magnetic fields generated in the early Universe and that gave rise to all astrophysical magnetic fields. While it has escaped direct detection, lower limits on its intensity can be derived by characterising the time-delayed secondary emission initiated when primary very high-energy (VHE) photons from gamma-ray bursts (GRBs) produce lepton pairs that are deflected by the IGMF before generating a secondary gamma-ray flux. Most current studies exclude IGMF values below $10^{-18}\;\mathrm{G}$, however, they are typically performed under idealised conditions. Focusing on the impact of modelling and observational choices, we simulate CTAO observations of GRBs 190114C and 221009A under varying conditions. For GRB 190114C-like sources, we establish a stable lower limit of $2\times10^{-16}\;\mathrm{G}$, robust against most variations in source properties and detection strategies. For more extreme GRB 221009A-like events, we demonstrate that CTAO could probe fields up to at least $10^{-16}\;\mathrm{G}$ under harsh conditions, improving significantly the current IGMF constraints.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript uses Monte Carlo simulations of CTAO observations of GRB 190114C-like and GRB 221009A-like events to quantify how variations in source properties, detection strategies, and modeling parameters for pair production, IGMF deflection, and secondary gamma-ray emission affect derived lower limits on the intergalactic magnetic field (IGMF). It reports a stable lower limit of 2×10^{-16} G for GRB 190114C-like sources across most variations and shows that CTAO could reach 10^{-16} G for the more extreme GRB 221009A-like case even under harsh conditions, improving on existing ~10^{-18} G bounds.
Significance. If the simulation results hold, the work advances IGMF studies by demonstrating robustness beyond idealized assumptions, which is a clear methodological improvement. The specific, stable limits for realistic GRB scenarios would tighten constraints on primordial magnetic fields and provide a template for future CTAO analyses. The forward-simulation approach avoids circularity and directly tests sensitivity to key assumptions.
major comments (2)
- [§4] The central robustness claim (abstract and §4) rests on the statement that limits remain stable under varied conditions, yet the manuscript provides neither an exhaustive table of all varied parameters with their ranges nor quantitative error budgets or sensitivity plots for each variation. Without these, it is not possible to verify that the 2×10^{-16} G floor is truly insensitive to the full set of modeling choices.
- [§3.2] §3.2 (modeling assumptions): the validity of the pair-production, deflection, and secondary-emission prescriptions is asserted to hold across the explored source-property range, but no dedicated test or literature justification is given for the most extreme GRB 221009A-like parameters (e.g., highest energies or lowest redshifts). This is load-bearing for the claim that CTAO can probe up to 10^{-16} G under harsh conditions.
minor comments (2)
- [§2] Notation for the IGMF strength (B_IGMF) is introduced without an explicit definition of the coherence length assumed in the deflection calculation; a short clarifying sentence would remove ambiguity.
- [Figure 3] Figure captions should state the exact number of simulated realizations and the statistical uncertainty on the reported limits to allow readers to assess precision directly.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed comments, which have helped us identify areas where the presentation of our robustness analysis and modeling justifications can be strengthened. We address each major comment below and outline the revisions we will make to the manuscript.
read point-by-point responses
-
Referee: [§4] The central robustness claim (abstract and §4) rests on the statement that limits remain stable under varied conditions, yet the manuscript provides neither an exhaustive table of all varied parameters with their ranges nor quantitative error budgets or sensitivity plots for each variation. Without these, it is not possible to verify that the 2×10^{-16} G floor is truly insensitive to the full set of modeling choices.
Authors: We agree that a more structured presentation would improve verifiability. While §4 and the associated figures already describe the parameter variations explored (source redshift, spectral index, fluence, CTAO observation strategy, EBL model, and IGMF deflection prescriptions) and report that the 2×10^{-16} G lower limit holds across the majority of cases, we did not include a single consolidated table or dedicated sensitivity plots. In the revised manuscript we will add (i) a summary table listing every varied parameter, its explored range, and the resulting IGMF limit for each configuration, and (ii) supplementary sensitivity plots showing the dependence of the derived limit on the most influential parameters. These additions will provide the quantitative error budget requested and allow direct inspection of the claimed stability. revision: yes
-
Referee: [§3.2] §3.2 (modeling assumptions): the validity of the pair-production, deflection, and secondary-emission prescriptions is asserted to hold across the explored source-property range, but no dedicated test or literature justification is given for the most extreme GRB 221009A-like parameters (e.g., highest energies or lowest redshifts). This is load-bearing for the claim that CTAO can probe up to 10^{-16} G under harsh conditions.
Authors: The prescriptions implemented in our Monte Carlo framework are the standard ones used in the IGMF literature (pair-production optical depth from Domínguez et al. 2011 EBL model, deflection angles following Neronov & Vovk 2010, and secondary cascade emission via the same Monte Carlo code validated against blazar and GRB observations). GRB 221009A itself has been analyzed with comparable codes in the recent literature, and the extreme parameter combinations we adopt remain inside the regimes where these approximations have been cross-checked. Nevertheless, we acknowledge that an explicit statement for the highest-energy and lowest-redshift tails is missing. In the revision we will expand §3.2 with (i) additional literature citations confirming the validity range of the codes at E > 10 TeV and z < 0.2, and (ii) a short dedicated test run at the extreme end of the GRB 221009A-like parameter space demonstrating that the secondary-emission modeling remains stable. This will directly support the 10^{-16} G claim under harsh conditions. revision: partial
Circularity Check
No significant circularity identified
full rationale
The paper derives IGMF lower limits through forward simulations of CTAO observations for GRB 190114C-like and 221009A-like sources, explicitly varying source properties, detection strategies, and modeling parameters for pair production, magnetic deflection, and secondary emission. The reported stable limit of 2×10^{-16} G and reach to 10^{-16} G follow directly from checking robustness across these variations in simulated signals. No equations, fits, or derivations reduce by construction to inputs; there are no self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations. The methodology is self-contained against external simulation benchmarks and does not invoke uniqueness theorems or ansatzes from prior author work.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Ruth Durrer and Andrii Neronov. Cosmological magnetic fields: their generation, evolu- tion and observation.The Astronomy and Astrophysics Review, 21(1), jun 2013
work page 2013
-
[2]
T. A. Dzhatdoev et al. First constraints on the strength of the extragalactic magnetic field from gamma-ray observations of grb 221009a.Monthly Notices of the Royal Astronomical Society: Letters, 527:L95–L102, October 2023
work page 2023
- [3]
-
[4]
A. Donath et al. Gammapy: A python package for gamma-ray astronomy.Astronomy & Astrophysics, 678:A157, October 2023
work page 2023
-
[5]
T. Keita et al. Expected constraints on the intergalactic magnetic field using gamma-ray bursts with the cherenkov telescope array observatory. page 710, 2025
work page 2025
-
[6]
V. A. Acciari et al. Teraelectronvolt emission from the gamma-ray burst grb 190114c. Nature, 575(7783):455–458, November 2019
work page 2019
- [7]
