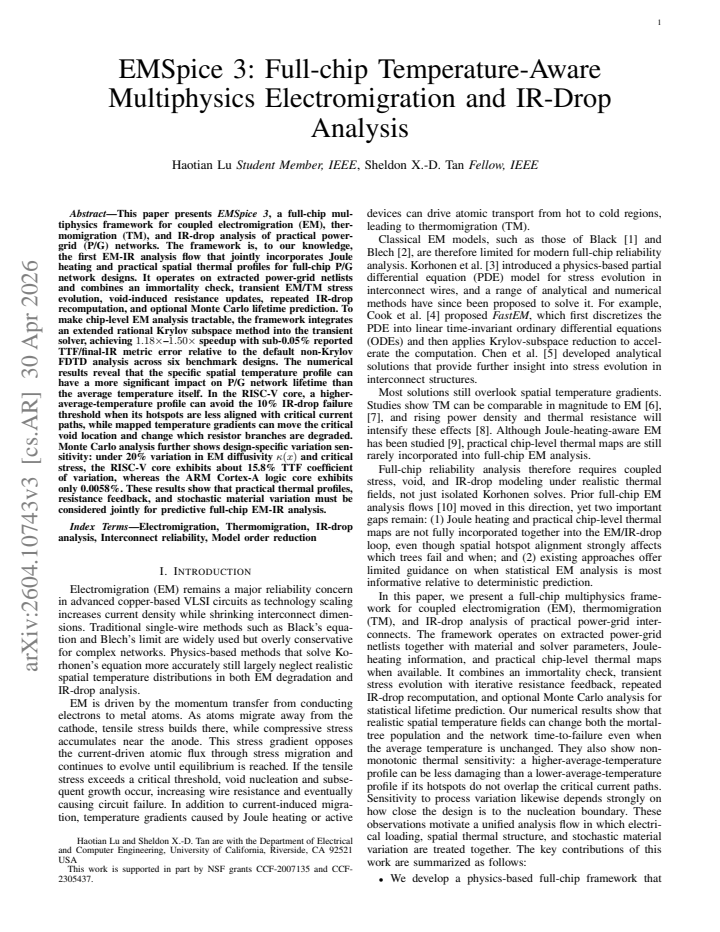

The paper presents EMSpice 3, a framework that runs coupled electromigration, thermomigration, and IR-drop simulations on entire power-grid networks while including Joule heating and actual chip-wide temperature maps. It shows that the exact placement of hot spots can shift when and where voids form and whether the network hits failure thresholds, more than a single average temperature value would predict. This matters for processor reliability because power networks degrade under combined current, stress, and heat, and current design checks often rely on simplified thermal assumptions. The tool adds an immortality check, transient stress solving, resistance updates from voids, repeated IR-drop solves, and Monte Carlo runs for variation, plus a Krylov method that speeds up the math without much accuracy loss.

Core claim

EMSpice 3 performs full-chip multiphysics EM-IR analysis by jointly solving for Joule heating and practical spatial thermal profiles on extracted P/G netlists. It combines an immortality check, transient EM/TM stress evolution, void-induced resistance updates, repeated IR-drop recomputation, and optional Monte Carlo lifetime prediction. Results across benchmarks reveal that specific spatial temperature profiles impact P/G network lifetime more than average temperature alone, as higher-average-temperature maps can avoid 10% IR-drop failure if hotspots avoid critical paths in a RISC-V core, while gradients alter void locations and degraded branches; Monte Carlo further shows design-dependent T

What carries the argument

The iterative multiphysics loop that couples transient EM/TM stress evolution with void-induced resistance updates and repeated IR-drop recomputation, accelerated by an extended rational Krylov subspace solver.

If this is right

  • Higher average temperatures can still meet IR-drop limits if thermal hotspots are misaligned with high-current paths in designs like RISC-V cores.
  • Temperature gradients can relocate the site of the first critical void and change which wire branches experience the largest resistance increase.
  • Lifetime variation under 20% changes in diffusivity and critical stress differs sharply by design, reaching 15.8% coefficient of variation in RISC-V versus 0.0058% in ARM Cortex-A.
  • The extended rational Krylov method delivers 1.18x to 1.50x speedup on transient solves with sub-0.05% error in TTF and final-IR metrics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Early-stage chip floorplanning could incorporate spatial thermal maps directly into EM checks rather than relying on uniform-temperature assumptions.
  • Similar location-specific thermal effects may apply to other interconnect degradation mechanisms such as stress migration in advanced nodes.
  • Design teams might need new thermal-aware reliability sign-off flows that iterate between power-grid layout and detailed temperature simulation.

Load-bearing premise

The underlying models for stress evolution and void growth remain accurate when scaled to full chips under the chosen immortality checks, resistance-update rules, and supplied spatial temperature maps.

What would settle it

Direct comparison of the framework's predicted time-to-failure and final IR-drop values against electrical and thermal measurements on fabricated test chips run under controlled non-uniform temperature gradients.

Figures

Figures reproduced from arXiv: 2604.10743 by Haotian Lu, Sheldon X.-D. Tan.

Figure 1
Figure 1. Figure 1: Stress distribution with void thickness of the copper-void boundary, δ, as infinitesimally small. We then establish the stress gradient between the zero￾stress void surface and the adjacent metal as indicated in [3], [19]: ∂σ ∂x [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

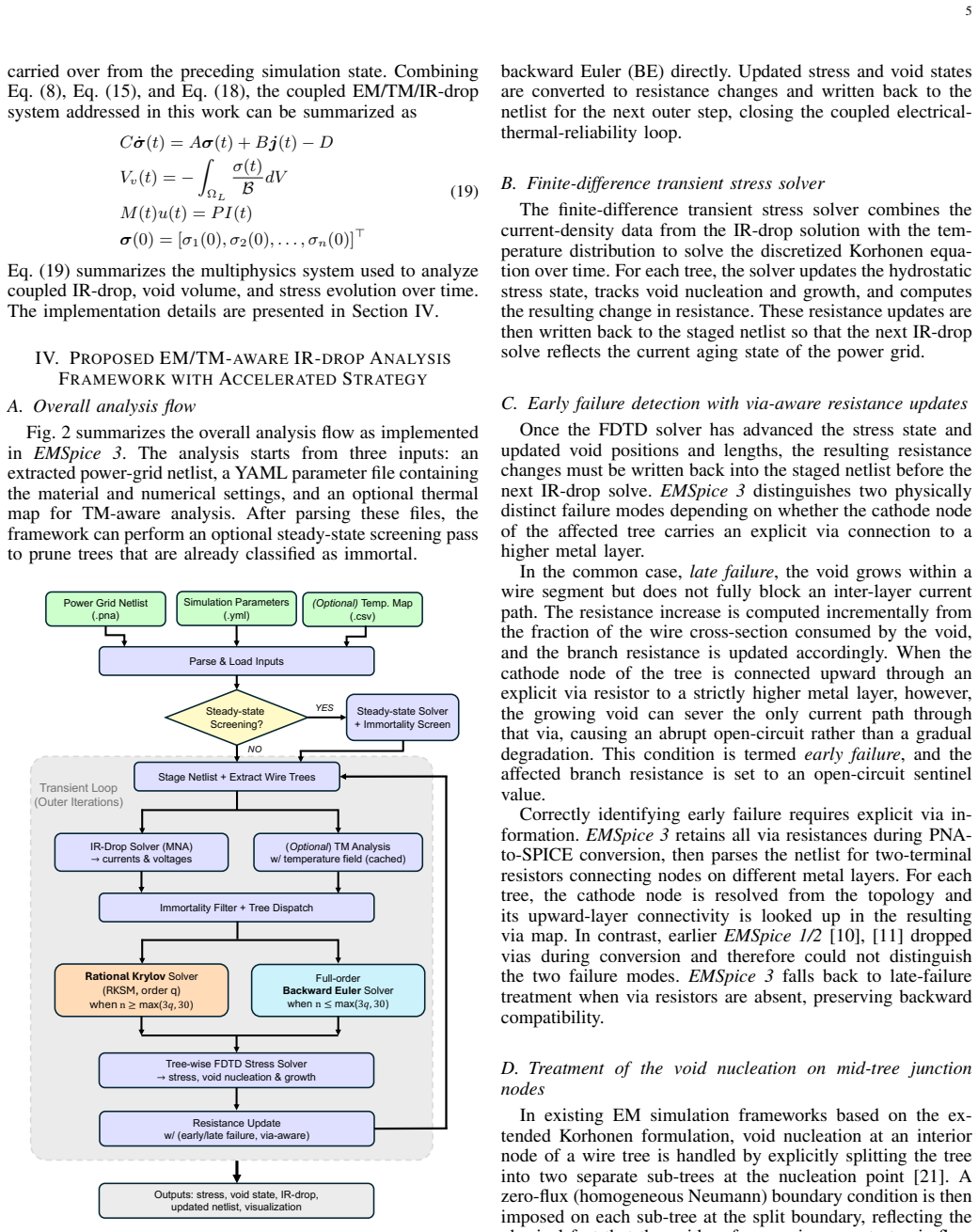

Figure 2. Figure 2: summarizes the overall analysis flow as implemented in EMSpice 3. The analysis starts from three inputs: an extracted power-grid netlist, a YAML parameter file containing the material and numerical settings, and an optional thermal map for TM-aware analysis. After parsing these files, the framework can perform an optional steady-state screening pass to prune trees that are already classified as immortal. P… view at source ↗
Figure 3

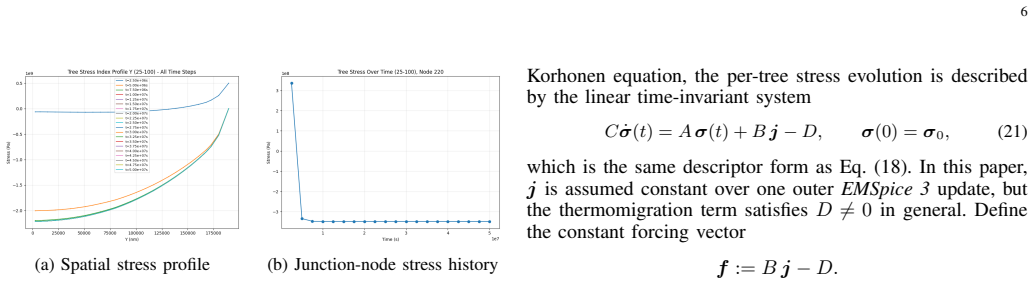

Figure 3. Figure 3: Mid-tree void nucleation in the Dual-Port RAM design. Left: stress profile along tree (25-100) over outer timesteps from 2.5×106 s to 5.0 × 107 s, showing the evolution from a near-zero state to a strong compressive gradient as degradation accumulates. Right: stress history at junction node 220, where the abrupt transition from about 3.3×108 Pa tensile stress to about −3.4×108 Pa compressive stress marks v… view at source ↗
Figure 5
Figure 5. Figure 5: shows the steady-state stress distribution for Case 1 computed without void nucleation. Without the saturation mechanism, stress accumulates continuously and peak tensile values in the lower-left hotspot far exceed those in Fig. 8a, where void nucleation clamps stress near the saturation thresh￾old once flux is interrupted. This comparison highlights the importance of accurately modeling nucleation in coup… view at source ↗
Figure 4
Figure 4. Figure 4: RISC-V core: finished physical layout (left) and extracted power grid structure showing four metal layers (M1, M2, M7, M8) with VIA connections (right). We run two scenarios that differ only in their spatial temperature distribution, both with the same 353 K average temperature. Case 1 — Baseline external temperature map. The first scenario uses a baseline spatial temperature distribution provided external… view at source ↗
Figure 6

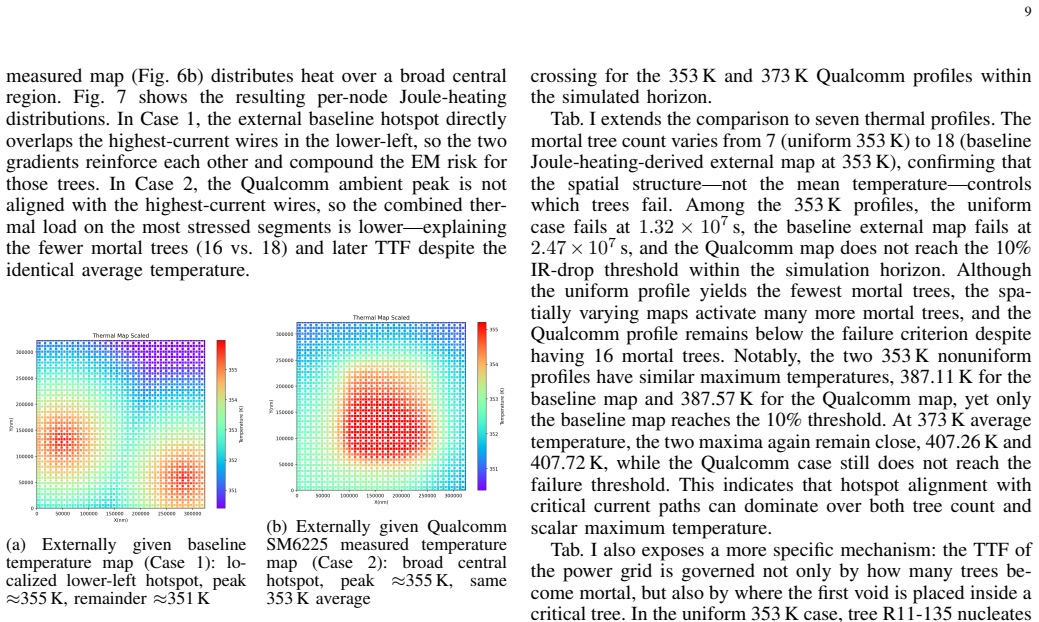

Figure 6. Figure 6: Externally given spatial temperature maps provided as inputs to EMSpice 3 for the two RISC-V core scenarios. Both maps share a 353 K die-average temperature but differ in spatial structure: the baseline map has a compact lower-left hotspot; the Qualcomm measured map spreads heat broadly across the central die area. (a) Per-node Joule-heating tem￾perature distribution (Case 1): in￾tense heating along high-c… view at source ↗
Figure 7

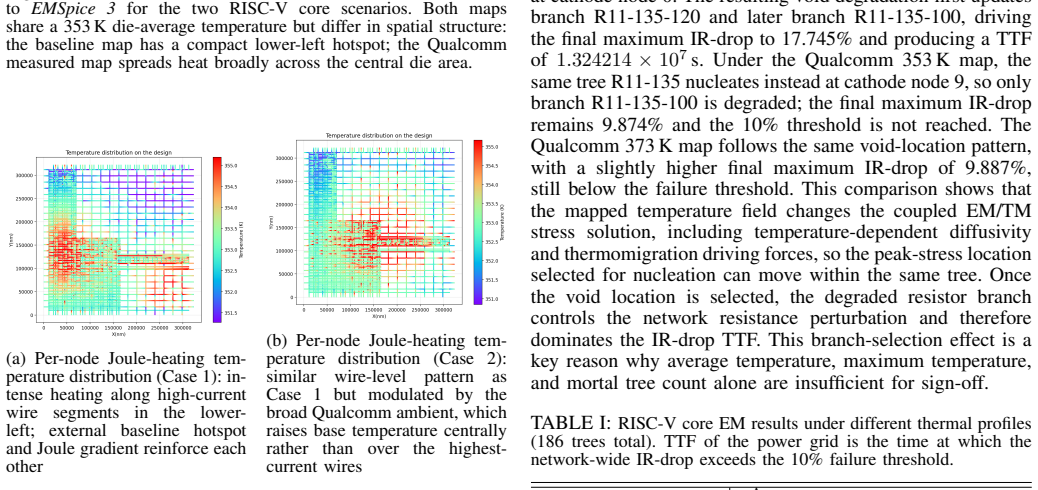

Figure 7. Figure 7: Per-node Joule-heating temperature distributions on the RISC-V power grid computed by EMSpice 3 for the two thermal scenarios. Individual wire segments are resolved, showing the spatial correlation between current density and local temperature. In Case 1 the external baseline hotspot directly overlaps the most current￾stressed region; in Case 2 the Qualcomm ambient heat does not preferentially load the hig… view at source ↗
