Twist-Controlled Symmetry Breaking in Surface Phonon Polariton Moir\'e Metasurfaces

R. B. Iyer , S. H. Park , N. R. Sahoo , T. Low , T. G. Folland This is my paper

Pith reviewed 2026-05-10 16:30 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords moiré metasurfacessurface phonon polaritonstwist anglesymmetry breakingpolarization conversioninfrared radiative heat transfermid-infrared photonicsmetasurfaces
0
0 comments X

The pith

Twisting overlapping grating metasurfaces on a polar dielectric breaks symmetry to produce asymmetric polarization conversion between p and s states in surface phonon polaritons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The work shows that rotating one periodic grating relative to another generates emergent moiré periodicities that alter how light couples to surface phonon polariton modes and waveguide-like modes on the substrate. Measurements reveal that this rotation creates a clear difference in the efficiency of converting p-polarized light into s-polarized light versus the reverse, an effect absent or symmetric in untwisted structures. Because the asymmetry depends on the twist angle and the resulting momentum-space couplings, the system can preferentially direct infrared energy flow in one direction over the other. A reader would care if this geometric control proves reliable, since it offers a way to shape thermal radiation and mid-infrared light using only the relative orientation of fixed patterns.

Core claim

Twist-induced moiré periodicities in dual-grating metasurfaces on a polar dielectric break the symmetry of surface phonon polariton resonances, producing unequal p-to-s and s-to-p polarization conversion. Full-wave simulations and momentum-space analysis tie this asymmetry to interactions between resonances from the individual gratings and the emergent moiré lattice. The resulting directional preference in polarization conversion allows the structure to bias the direction of infrared radiative heat transfer.

What carries the argument

The relative twist angle between two overlaid grating metasurfaces, which generates emergent moiré periodicities that couple the individual grating resonances asymmetrically in momentum space and thereby produce unequal polarization conversion.

If this is right

  • Directional biasing of infrared radiative heat transfer is possible through geometry alone.
  • Twist angle can be used to engineer specific interactions between surface phonon polariton and waveguide modes at chosen wavelengths.
  • Reconfigurable mid-infrared devices become feasible by changing only the relative rotation between layers.
  • Polarization-selective detection and directional thermal emission can be realized in polaritonic metasurfaces without external fields.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same twist-control approach may extend to plasmon-polariton or exciton-polariton systems in other layered materials.
  • Integration with thermal management could produce passive devices that preferentially emit or absorb heat in one direction.
  • The momentum-space symmetry breaking supplies a general template that could be tested in acoustic or mechanical wave systems with twisted periodic structures.

Load-bearing premise

The observed difference between p-to-s and s-to-p polarization conversion is produced by the twist-induced moiré symmetry breaking rather than by fabrication imperfections or measurement artifacts.

What would settle it

Measure polarization conversion on samples fabricated with identical twist angles but different grating alignments or on untwisted reference samples and check whether the asymmetry disappears when the moiré periodicity is absent or restored to higher symmetry.

Figures

Figures reproduced from arXiv: 2604.10915 by N. R. Sahoo, R. B. Iyer, S. H. Park, T. G. Folland, T. Low.

Figure 1
Figure 1. Figure 1: Conceptual overview of the moiré metasurface design and optical characterization. (a) Geometric construction of the twisted double-grating system, highlighting the formation of the Moiré grating vector (b) Illustration of key optical modes—SPhP and WG modes—excited under mid-IR illumination, (c) Angular peak map showing Fourier power shift with twist angle, (d) Radial peak map illustrating evolution of spa… view at source ↗
Figure 2

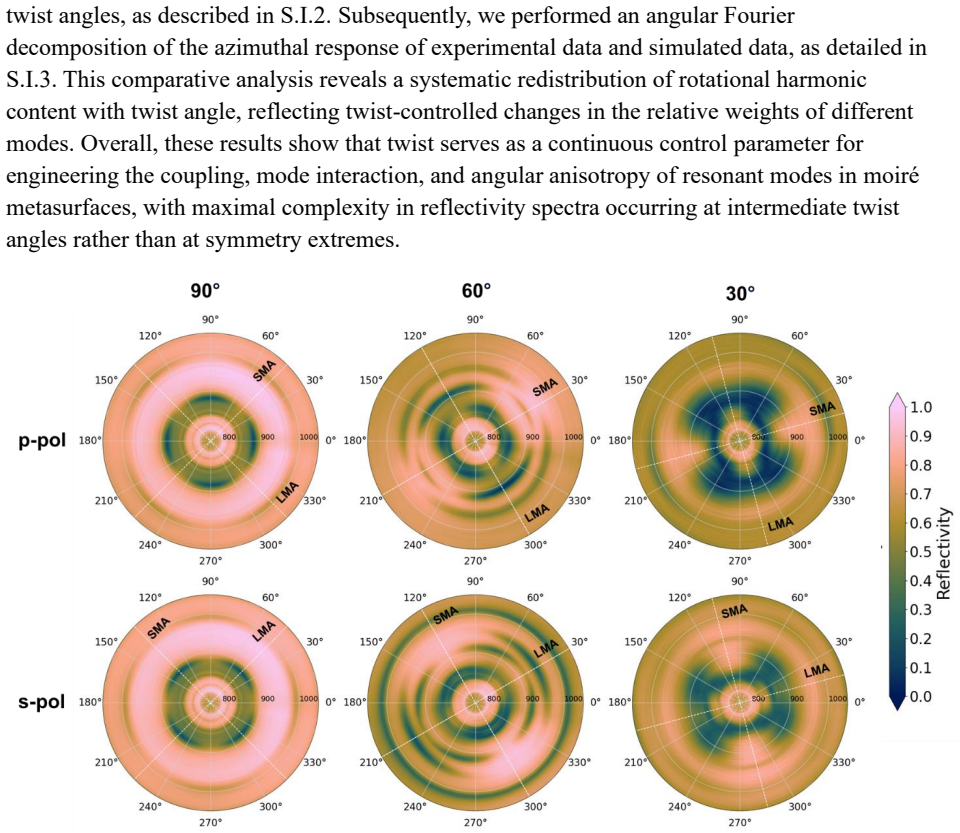

Figure 2. Figure 2: Polar color maps of co‑polarized reflectivity for [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

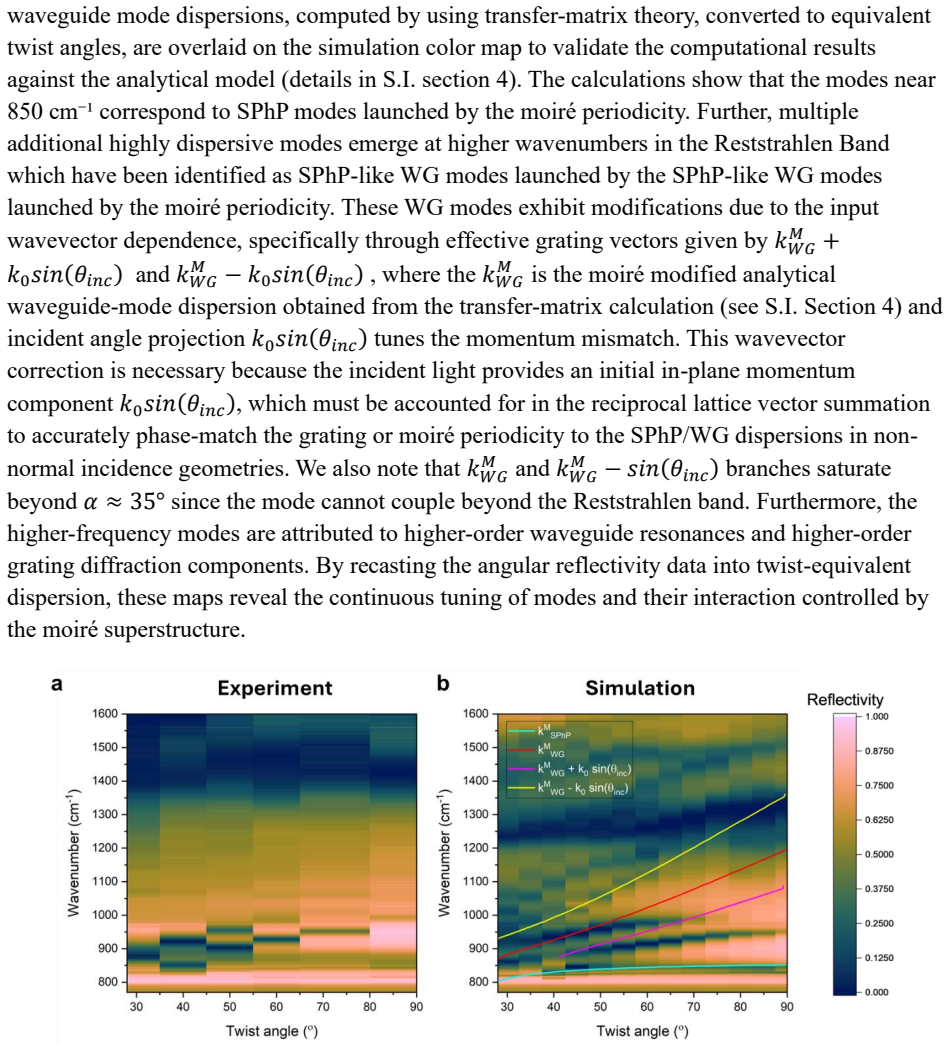

Figure 3. Figure 3: Experimental and simulated reflectivity color maps vs. twist angle equivalent (azimuthal incidence along [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Proof‑of‑concept model for twist‑induced asymmetric radiative heat exchange. (a) Schematic for [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

Moire lattices provide a powerful route for engineering emergent symmetries and length scales through the relative rotation of periodic structures. However, their implementation in polaritonic systems remains relatively unexplored, and a general framework describing how twist modifies the interaction of optical modes in momentum space is still lacking. Here, we investigate how twist-induced moire periodicities can control symmetry and momentum-space coupling in surface phonon polariton (SPhP) metasurfaces. We fabricate twisted overlapping dual-grating metasurfaces on a polar dielectric substrate with dielectric overlayer and characterize their optical response using polarization-resolved Fourier-transform infrared microscopy. Experimental measurements are combined with full-wave simulations and momentum-space analysis to identify the resonant SPhP and SPhP-like waveguide (WG) modes arising from both individual grating periodicities and emergent moire periodicities. The results reveal twist-controlled symmetry breaking manifested as asymmetry between p to s and s to p polarization conversion, along with twist-dependent interactions between SPhP and SPhP-like WG modes. Our analysis reveals that the twist-engineered polarization-conversion asymmetry enables directional biasing of infrared radiative heat transfer. These findings establish twisted phonon-polaritonic metasurfaces as a versatile platform for geometry-controlled symmetry engineering in the mid-infrared. Future work may leverage such twist-programmable polaritonic interactions to enable directional thermal emission, polarization-selective detection, and reconfigurable infrared photonic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript investigates twist-induced moiré periodicities in surface phonon polariton (SPhP) metasurfaces fabricated as overlapping dual-grating structures on a polar dielectric substrate with a dielectric overlayer. Polarization-resolved FTIR microscopy, full-wave simulations, and momentum-space analysis are used to identify resonant SPhP and SPhP-like waveguide modes arising from both individual grating periodicities and emergent moiré periodicities. The central results show twist-controlled symmetry breaking as an asymmetry between p-to-s and s-to-p polarization conversion, along with twist-dependent mode interactions, leading to the claim that this asymmetry enables directional biasing of infrared radiative heat transfer and establishes twisted phonon-polaritonic metasurfaces as a platform for geometry-controlled symmetry engineering in the mid-IR.

Significance. If the polarization asymmetry is confirmed to originate from twist-engineered moiré symmetry breaking, the work provides a versatile geometric route to control polaritonic mode coupling and symmetry in the mid-infrared without additional material parameters. The combination of experimental fabrication/characterization, independent full-wave simulations, and momentum-space analysis is a clear strength, as is the demonstration of emergent length scales and the potential for applications in directional thermal emission and reconfigurable IR devices.

major comments (1)
  1. The central claim that the observed p-to-s versus s-to-p polarization-conversion asymmetry arises from twist-induced moiré symmetry breaking (and thereby enables directional biasing of radiative heat transfer) is load-bearing but rests on the weakest assumption in the argument. The abstract and results sections present polarization-resolved FTIR data and simulations supporting the asymmetry, yet no explicit controls (zero-twist bilayer references, statistical measurements across multiple devices, or quantitative bounds on fabrication tolerances such as grating depth variation or alignment error) are described that would exclude independent production of similar asymmetry by fabrication variations or measurement artifacts. This causal attribution requires additional data or analysis to be secure.
minor comments (2)
  1. Figure captions and the methods section should explicitly state which data are experimental versus simulated and include error bars or uncertainty estimates where quantitative comparisons are made.
  2. The momentum-space analysis would benefit from a clearer statement of the reciprocal-lattice vectors used for the moiré periodicity to allow direct reproduction of the mode identifications.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We address the single major comment below in a point-by-point manner, providing the strongest honest defense supported by the existing analysis while acknowledging where additional material will strengthen the claims.

read point-by-point responses

  1. Referee: The central claim that the observed p-to-s versus s-to-p polarization-conversion asymmetry arises from twist-induced moiré symmetry breaking (and thereby enables directional biasing of radiative heat transfer) is load-bearing but rests on the weakest assumption in the argument. The abstract and results sections present polarization-resolved FTIR data and simulations supporting the asymmetry, yet no explicit controls (zero-twist bilayer references, statistical measurements across multiple devices, or quantitative bounds on fabrication tolerances such as grating depth variation or alignment error) are described that would exclude independent production of similar asymmetry by fabrication variations or measurement artifacts. This causal attribution requires additional data or analysis to be secure.

    Authors: We agree that the causal link would be more secure with explicit controls, and we will incorporate them in the revision. The momentum-space analysis in the manuscript demonstrates that the polarization asymmetry originates from the emergent moiré reciprocal lattice vectors, which appear only for nonzero twist and are absent in aligned configurations. Full-wave simulations of the twisted dual-grating structure quantitatively reproduce the measured p-to-s versus s-to-p asymmetry, while the same simulations performed on zero-twist bilayers yield symmetric conversion. Measurements were performed across devices with several distinct twist angles, and the asymmetry tracks the twist angle in a manner inconsistent with random fabrication variations. In the revised manuscript we will add: (i) explicit zero-twist reference simulations in the main text or SI, (ii) quantitative bounds on grating depth variation and alignment error derived from our fabrication metrology, and (iii) a brief statement clarifying the multi-device dataset. These additions will directly address the concern without changing the core conclusions or requiring new experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental and simulation results are independent of fitted predictions or self-referential derivations

full rationale

The manuscript presents an experimental study of twisted dual-grating metasurfaces using fabrication, polarization-resolved FTIR microscopy, full-wave electromagnetic simulations, and momentum-space analysis. No load-bearing derivations, first-principles predictions, or parameter fits are described that reduce by construction to the inputs (e.g., no fitted scale parameters renamed as predictions, no self-citation chains invoked as uniqueness theorems, and no ansatzes smuggled via prior work). The central observations of twist-controlled polarization asymmetry and mode interactions are directly measured and cross-validated against independent simulations rather than tautologically derived from the same data or self-citations. The paper is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The study relies on established electromagnetic theory and standard material models for polar dielectrics; no new free parameters, ad-hoc axioms, or invented entities are introduced beyond conventional simulation assumptions.

axioms (1)
  • standard math Maxwell's equations and linear dielectric response govern the optical modes in the metasurface
    Full-wave simulations and momentum-space analysis presuppose these standard electromagnetic relations.
