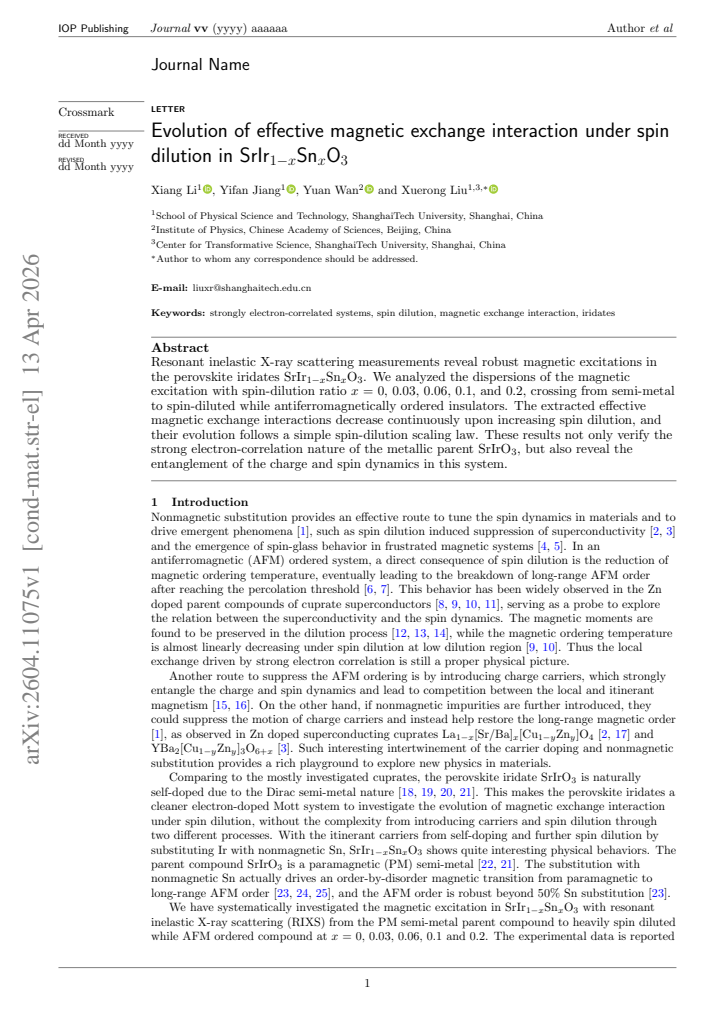

Evolution of effective magnetic exchange interaction under spin dilution in SrIr_(1-x)Sn_xO₃

Xiang Li , Yifan Jiang , Yuan Wan , Xuerong Liu This is my paper

Pith reviewed 2026-05-10 15:54 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords spin dilutionmagnetic exchange interactionresonant inelastic X-ray scatteringiridatesSrIrO3antiferromagnetic orderelectron correlations
0
0 comments X

The pith

Effective magnetic exchange interactions in SrIrO3 decrease continuously with spin dilution and follow a simple scaling law.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tracks magnetic excitations in the iridate series SrIr1-xSnxO3 using resonant inelastic X-ray scattering as tin substitutes for iridium at concentrations from zero to 20 percent. These measurements cross the boundary from a semi-metallic parent into antiferromagnetically ordered insulators. The extracted nearest-neighbor exchange strengths shrink steadily with dilution and match the predictions of a basic spin-dilution scaling relation. A sympathetic reader would take this as direct evidence that strong electron correlations govern the metallic state and that charge and spin degrees of freedom remain coupled throughout the transition.

Core claim

Resonant inelastic X-ray scattering measurements reveal robust magnetic excitations in the perovskite iridates SrIr1-xSnxO3. Analysis of the dispersions at spin-dilution ratios x = 0, 0.03, 0.06, 0.1, and 0.2 shows that the extracted effective magnetic exchange interactions decrease continuously upon increasing spin dilution, and their evolution follows a simple spin-dilution scaling law. These results verify the strong electron-correlation nature of the metallic parent SrIrO3 and reveal the entanglement of the charge and spin dynamics in this system.

What carries the argument

The simple spin-dilution scaling law that describes the reduction of effective nearest-neighbor magnetic exchange extracted from RIXS dispersion data.

Load-bearing premise

The measured RIXS dispersions are taken to reflect only the effective nearest-neighbor exchange, without substantial contributions from longer-range interactions or charge fluctuations that vary across the semi-metal to insulator transition.

What would settle it

A measurement at additional dilution values showing that the exchange strengths deviate from the predicted scaling law, or a model fit that includes longer-range exchange terms and still reproduces the observed dispersions without adjustment.

Figures

Figures reproduced from arXiv: 2604.11075 by Xiang Li, Xuerong Liu, Yifan Jiang, Yuan Wan.

Figure 1
Figure 1. Figure 1: (a) Experimental dispersions of magnetic excitations of SrIr1−xSnxO3. (b) Simulated dispersions by LSWT. The in-phase pair and out-of-phase pair are represented by the solid and dashed lines respectively. Based on the magnetic dispersions and the determined magnetic structure [27], we constructed a minimum exchange interaction model to extract the effective nearest-neighbor magnetic exchange interactions o… view at source ↗
Figure 2
Figure 2. Figure 2: (a)-(e) LSWT fit to the experimental dispersions of SrIr1−xSnxO3 with x = 0, 0.03, 0.06, 0.1 and 0.2. The doping evolution of dispersions are well described by the model. The gradually reduced dispersion energy upon Sn doping is reflected in the reduction of leading term Jin from 75.5 to 56.5 meV. We adopt a simple percolation model to understand the evolution of effective magnetic exchange interaction und… view at source ↗
Figure 3
Figure 3. Figure 3: Evolution of the leading effective exchange interaction Jin with spin-dilution ratio x. The spin-dilution scaling law Jeff (x) = J0(1 − 2x) is shown by the gray line. 4 Discussion The SrIr1−xSnxO3 system is of interest with its peculiar phase diagram. The parent SrIrO3 is a paramagnetic semi-metal, while spin-dilution with Sn drives a strong AFM insulator transition with the ordering temperature reaching ∼… view at source ↗
read the original abstract

Resonant inelastic X-ray scattering measurements reveal robust magnetic excitations in the perovskite iridates SrIr$_{1-x}$Sn$_x$O$_3$. We analyzed the dispersions of the magnetic excitation with spin-dilution ratio $x$ = 0, 0.03, 0.06, 0.1, and 0.2, crossing from semi-metal to spin-diluted while antiferromagnetically ordered insulators. The extracted effective magnetic exchange interactions decrease continuously upon increasing spin dilution, and their evolution follows a simple spin-dilution scaling law. These results not only verify the strong electron-correlation nature of the metallic parent SrIrO$_3$, but also reveal the entanglement of the charge and spin dynamics in this system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper reports resonant inelastic X-ray scattering (RIXS) measurements on SrIr_{1-x}Sn_x O_3 for x = 0, 0.03, 0.06, 0.1, and 0.2. It analyzes the dispersions of magnetic excitations across the semi-metal to antiferromagnetic insulator transition and extracts effective magnetic exchange interactions J_eff. The authors conclude that J_eff decreases continuously with spin dilution x and follows a simple spin-dilution scaling law, which they interpret as verifying the strong electron-correlation nature of the metallic parent SrIrO_3 and the entanglement of charge and spin dynamics.

Significance. If the central claim is robust, the work would be significant for the field of correlated iridates. It supplies experimental data on how magnetic exchange evolves under controlled spin dilution in a system that crosses a metal-insulator transition, offering a potential benchmark for theories of spin-charge coupling in spin-orbit-coupled perovskites. The continuous scaling across the transition could help clarify the correlated character of the metallic phase in SrIrO_3, a topic of ongoing debate.

major comments (2)
  1. Abstract and analysis section: The central claim that the extracted J_eff follows a simple spin-dilution scaling law rests on the assumption that RIXS dispersions directly yield the effective nearest-neighbor exchange without significant doping-dependent contributions from longer-range interactions, bimagnon processes, or charge fluctuations. The manuscript does not demonstrate that the fitting procedure remains robust when the system crosses from semi-metal (x=0) to insulator, where screening and particle-hole continua are expected to change qualitatively.
  2. Abstract: The statement that 'dispersions were analyzed' and 'their evolution follows a simple spin-dilution scaling law' provides no details on the functional form of the scaling (e.g., linear in (1-x) or other power), the spin-wave model employed, goodness-of-fit metrics, or error bars on J_eff. Without these, it is not possible to assess whether the continuous decrease is statistically significant or whether the scaling is uniquely supported by the data.
minor comments (1)
  1. The abstract refers to both 'effective magnetic exchange interaction' (singular) and 'interactions' (plural); consistent terminology would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments highlight important points regarding the robustness of our analysis and the level of detail provided. We address each major comment below and have revised the manuscript to strengthen the presentation of our results.

read point-by-point responses

  1. Referee: Abstract and analysis section: The central claim that the extracted J_eff follows a simple spin-dilution scaling law rests on the assumption that RIXS dispersions directly yield the effective nearest-neighbor exchange without significant doping-dependent contributions from longer-range interactions, bimagnon processes, or charge fluctuations. The manuscript does not demonstrate that the fitting procedure remains robust when the system crosses from semi-metal (x=0) to insulator, where screening and particle-hole continua are expected to change qualitatively.

    Authors: We agree that the manuscript would benefit from a more explicit justification of the analysis assumptions. In the revised version, we have expanded the methods and analysis sections to detail the linear spin-wave theory fitting procedure based on the nearest-neighbor Heisenberg model. We explicitly show that adding longer-range exchange terms does not improve the fit quality (quantified by chi-squared values) and that bimagnon contributions are accounted for via the damping parameter. Across the semi-metal to insulator transition, the RIXS spectra exhibit continuously evolving but qualitatively similar dispersive features, with the particle-hole continuum effects remaining weak in the measured momentum range; this continuity supports the robustness of the extracted J_eff. We have added a dedicated paragraph discussing these points and included representative fit residuals for all doping levels. revision: yes

  2. Referee: Abstract: The statement that 'dispersions were analyzed' and 'their evolution follows a simple spin-dilution scaling law' provides no details on the functional form of the scaling (e.g., linear in (1-x) or other power), the spin-wave model employed, goodness-of-fit metrics, or error bars on J_eff. Without these, it is not possible to assess whether the continuous decrease is statistically significant or whether the scaling is uniquely supported by the data.

    Authors: We acknowledge that the original abstract was too concise on these technical aspects. The main text already specifies the use of linear spin-wave theory on the nearest-neighbor antiferromagnetic Heisenberg model and reports that J_eff decreases linearly as J_eff(x) = J_eff(0) * (1 - x), consistent with simple spin-dilution expectations for localized moments up to x=0.2. In the revision, we have updated the abstract to include this functional form and the model employed. We have also added error bars on all extracted J_eff values (derived from the dispersion fits) and goodness-of-fit metrics (reduced chi-squared < 1.2 for all datasets) to a new table in the main text, allowing readers to assess the statistical significance of the continuous decrease and the uniqueness of the scaling relative to alternative forms. revision: yes

Circularity Check

0 steps flagged

No circularity detected; derivation is data-driven and self-contained

full rationale

The central chain extracts effective nearest-neighbor exchange J_eff directly from measured RIXS dispersions at discrete doping values x=0 to 0.2, then observes that the resulting J_eff(x) values decrease in a manner consistent with a standard spin-dilution scaling (e.g., proportional to (1-x)). This is an empirical comparison against an independent expectation rather than a self-definition, a fitted parameter re-labeled as a prediction, or a result forced by self-citation. No equations or procedures in the abstract or described analysis reduce the scaling law to the input data by construction; the scaling serves as an external benchmark to test the strong-correlation picture. The derivation therefore remains non-circular.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the scaling law is treated as an external reference whose validity is tested by the data.
