Block Diagram Analysis of a Design Principle for Amplitude-Frequency Profiles in Biological Oscillations

Sidhanta Mohanty , Shaunak Sen This is my paper

Pith reviewed 2026-05-10 15:12 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords biological oscillatorsblock diagram analysisamplitude-frequency profilespositive feedbacknegative feedbackdesign principlesystems biologycontrol theory
0
0 comments X

The pith

Block diagram models reproduce amplitude-frequency profiles of biological oscillators and constrain their feedback strengths.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper adapts block diagram modeling to examine a key design principle in biological oscillators, separating them into classes where either frequency varies while amplitude stays fixed, or amplitude varies while frequency stays fixed. It demonstrates that these profiles arise directly from the models of positive and negative feedback interactions. This approach provides analytical constraints on feedback strengths required for oscillations to occur, moving past reliance on numerical simulations of differential equations toward a more systematic control perspective.

Core claim

We adapted and developed a block diagram modeling framework for biological oscillators. We showed how the observed amplitude-frequency characteristics could be obtained from the block diagram models. We obtained constraints on the positive feedback and negative feedback strengths for the oscillations to exist.

What carries the argument

Block diagram representations of nonlinear positive and negative feedback loops, used to derive amplitude-frequency relations and existence conditions for oscillations.

If this is right

  • Amplitude-frequency profiles of oscillators follow from the structure of their feedback loops.
  • Constraints on feedback strengths are necessary for sustained oscillations.
  • The classification into fixed-frequency or fixed-amplitude types depends on the relative strengths of positive and negative feedback.
  • This modeling offers a qualitative and quantitative alternative to ODE simulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could guide the design of synthetic oscillators with specific amplitude or frequency tuning.
  • Experimental validation might involve measuring feedback gains in known oscillator circuits and checking against the derived constraints.
  • Similar block diagram techniques may apply to analyzing oscillations in other domains like engineering or chemistry.
  • This contributes to viewing biological systems through a systems and control lens.

Load-bearing premise

The block diagram abstraction accurately captures the essential nonlinear feedback dynamics of real biological oscillators.

What would settle it

Comparing the amplitude-frequency curves predicted by the block diagram model against measured data from a specific biological oscillator such as the repressilator or circadian rhythm to check for agreement.

Figures

Figures reproduced from arXiv: 2604.11108 by Shaunak Sen, Sidhanta Mohanty.

Figure 1

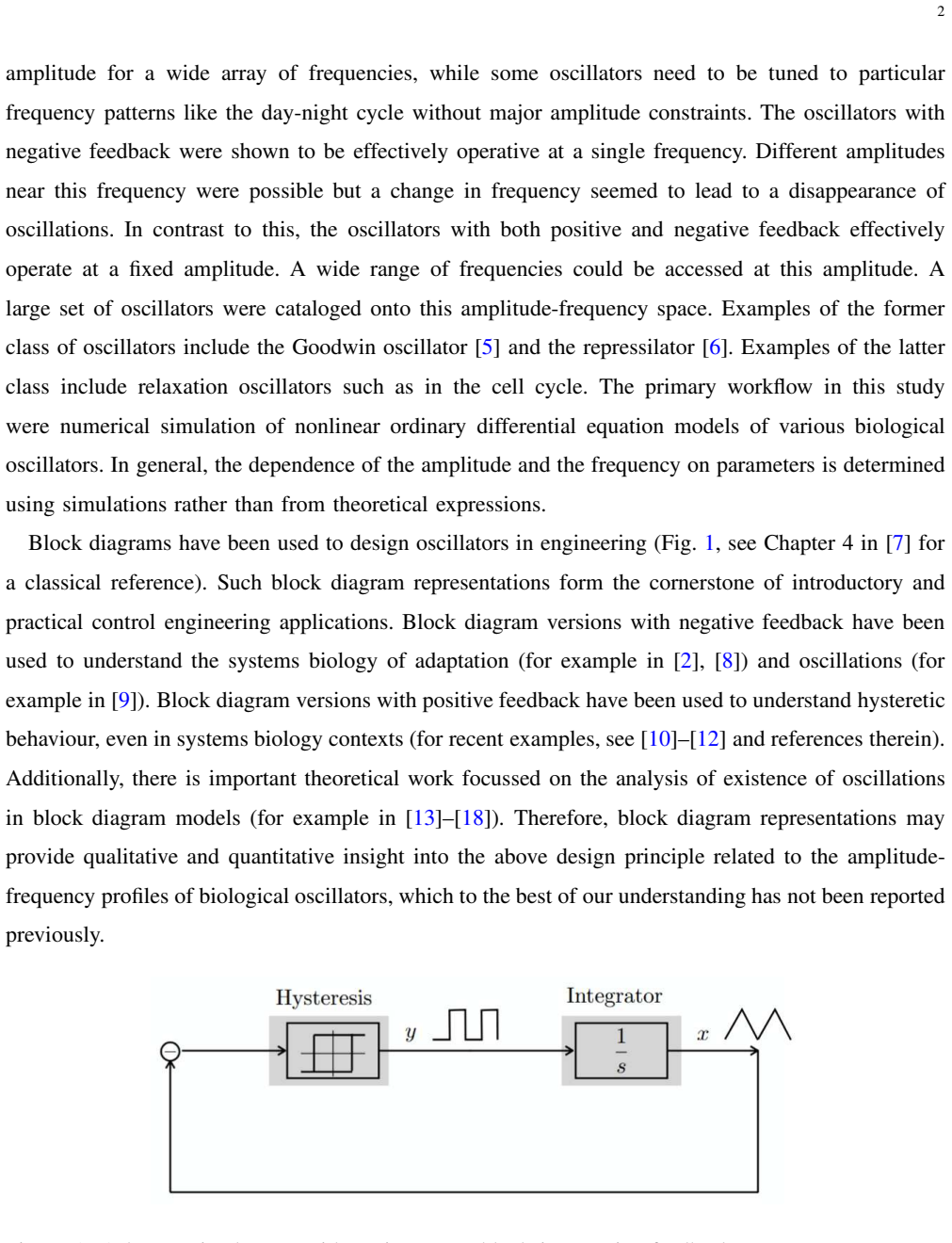

Figure 1. Figure 1: A hysteresis element with an integrator block in ne [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Block diagram representation of a fixed amplitude, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

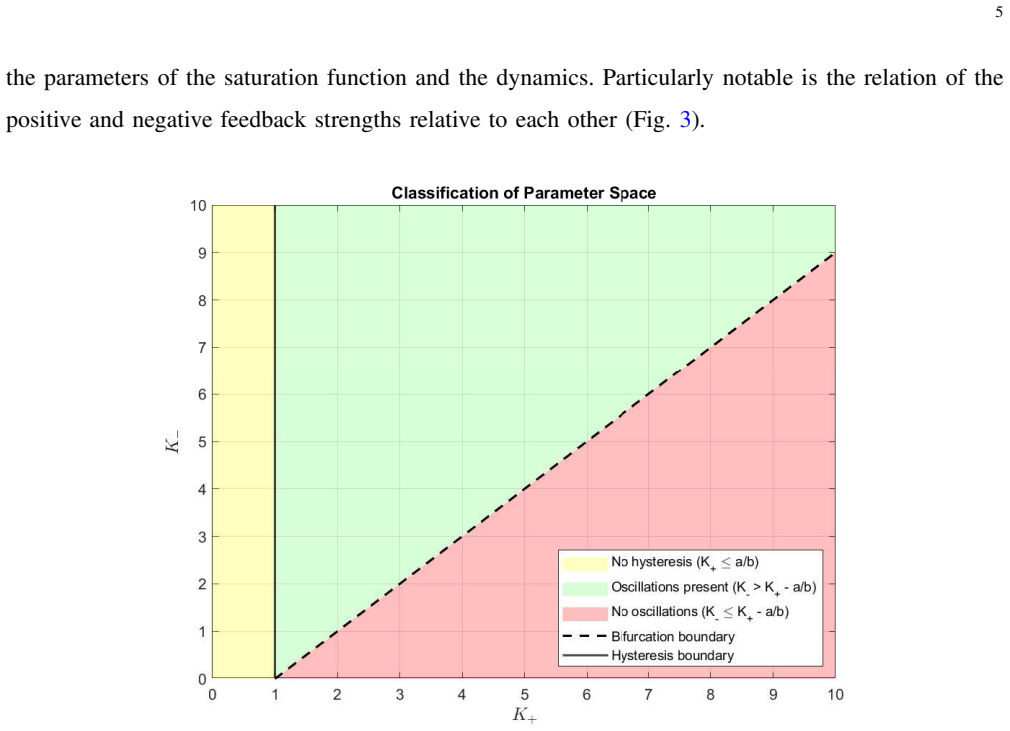

Figure 3. Figure 3: Relation between the positive and negative feedba [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Block diagram representation of a fixed frequency, [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Root locus of the block diagram showing the values o [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

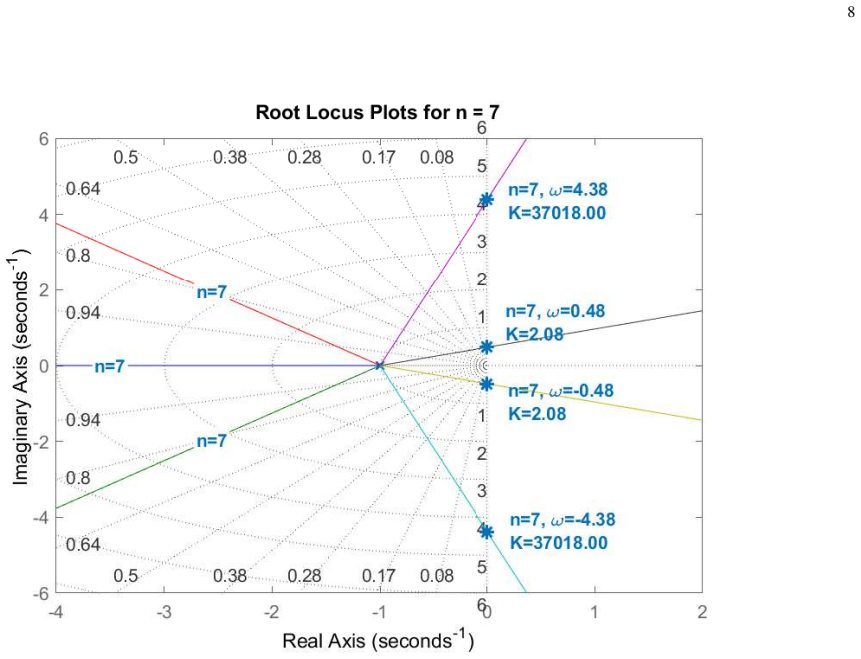

Figure 6. Figure 6: Root locus of the block diagram showing the values o [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

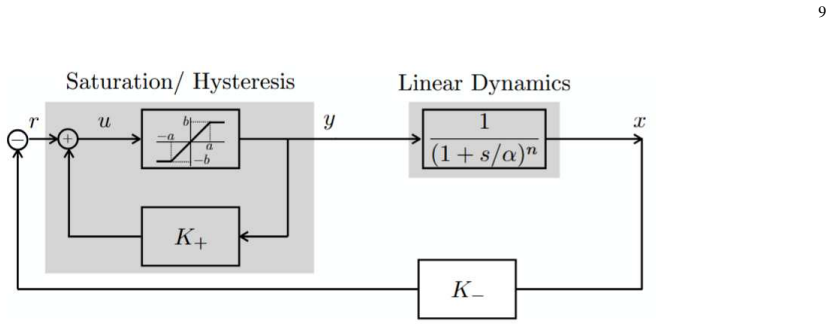

Figure 7. Figure 7: Unified block diagram representation of both oscil [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗

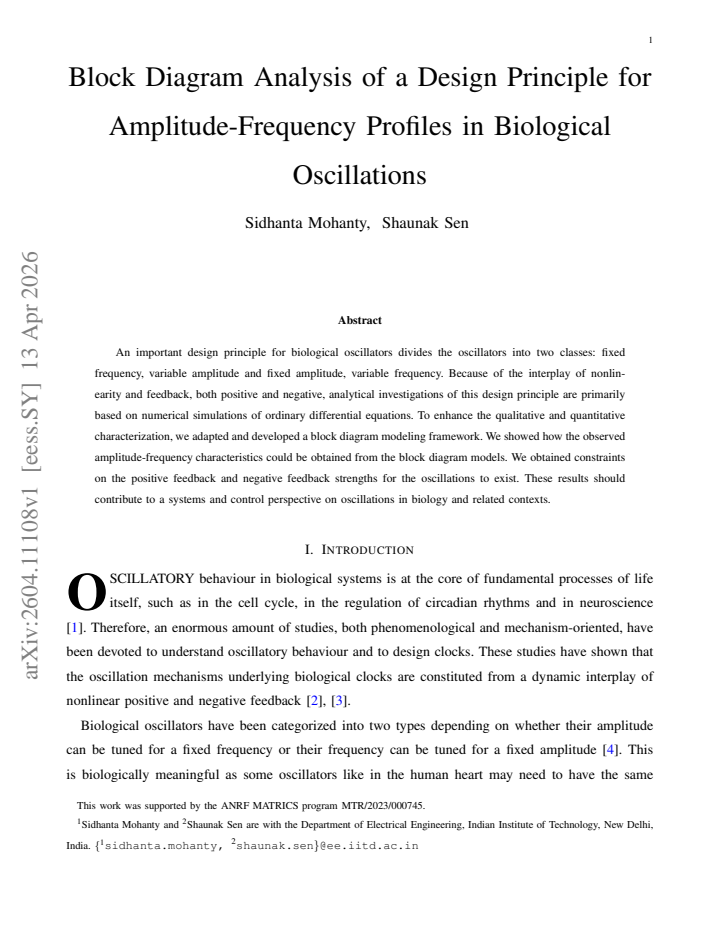

read the original abstract

An important design principle for biological oscillators divides the oscillators into two classes: fixed frequency, variable amplitude and fixed amplitude, variable frequency. Because of the interplay of nonlinearity and feedback, both positive and negative, analytical investigations of this design principle are primarily based on numerical simulations of ordinary differential equations. To enhance the qualitative and quantitative characterization, we adapted and developed a block diagram modeling framework. We showed how the observed amplitude-frequency characteristics could be obtained from the block diagram models. We obtained constraints on the positive feedback and negative feedback strengths for the oscillations to exist. These results should contribute to a systems and control perspective on oscillations in biology and related contexts.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript adapts and develops a block diagram modeling framework to analyze a design principle for biological oscillators, dividing them into fixed-frequency/variable-amplitude and fixed-amplitude/variable-frequency classes. It claims to obtain the observed amplitude-frequency characteristics directly from the block diagrams and to derive constraints on the strengths of positive and negative feedback loops required for oscillations to exist, offering a systems-and-control perspective that supplements numerical ODE simulations.

Significance. If the block-diagram derivations are shown to be rigorous and the structural assumptions validated, the work could supply analytical constraints and qualitative insights into biological oscillation design principles that are difficult to extract from pure simulation, strengthening the link between control theory and systems biology.

major comments (2)
  1. [Modeling Framework and Results] The central claim that amplitude-frequency profiles and feedback-strength constraints follow from the block diagrams rests on the unstated assumption that the chosen interconnection of linear blocks plus a small number of static nonlinearities reproduces the essential limit-cycle behavior. Without explicit derivation steps showing how the diagram yields the profiles (e.g., via describing functions, harmonic balance, or small-gain arguments), it is impossible to determine whether the results are general design principles or artifacts of the specific nonlinearity placement and type.
  2. [Discussion and Conclusions] No validation against concrete biological oscillator data, parameter regimes, or alternative models (e.g., those with distributed delays or additional loops) is reported. This is load-bearing: if real systems contain mechanisms omitted from the diagram, the derived inequalities on positive/negative feedback gains become model-specific rather than broadly applicable design principles.
minor comments (2)
  1. [Methods] Clarify the precise sector or oddness assumptions placed on the static nonlinearities and state whether the analysis assumes time-scale separation or other simplifications.
  2. [Results] Add a short comparison table or figure contrasting the block-diagram predictions with at least one published numerical or experimental amplitude-frequency profile from a biological oscillator.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below and outline the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Modeling Framework and Results] The central claim that amplitude-frequency profiles and feedback-strength constraints follow from the block diagrams rests on the unstated assumption that the chosen interconnection of linear blocks plus a small number of static nonlinearities reproduces the essential limit-cycle behavior. Without explicit derivation steps showing how the diagram yields the profiles (e.g., via describing functions, harmonic balance, or small-gain arguments), it is impossible to determine whether the results are general design principles or artifacts of the specific nonlinearity placement and type.

    Authors: We thank the referee for this important point on transparency. The derivations rely on the describing function method applied to the block diagrams: the linear blocks are represented in the frequency domain, the static nonlinearities are approximated by their describing functions, and the harmonic balance condition is imposed to obtain the amplitude-frequency relation for the limit cycle. The feedback strength constraints then follow from the conditions under which a nontrivial solution to the balance equations exists. While the key equations appear in Sections 3 and 4, we agree that the intermediate algebraic steps are not spelled out in sufficient detail. In the revision we will insert a dedicated subsection that walks through the derivation from the block diagram interconnection to the closed-form amplitude-frequency expressions and the resulting inequalities on positive and negative feedback gains, thereby clarifying that the results are tied to the assumed structure rather than claimed to be universal. revision: yes

  2. Referee: [Discussion and Conclusions] No validation against concrete biological oscillator data, parameter regimes, or alternative models (e.g., those with distributed delays or additional loops) is reported. This is load-bearing: if real systems contain mechanisms omitted from the diagram, the derived inequalities on positive/negative feedback gains become model-specific rather than broadly applicable design principles.

    Authors: The manuscript is a theoretical systems-and-control contribution whose primary aim is to derive analytical relations directly from block-diagram structure, thereby complementing the numerical ODE studies that dominate the literature. We do not present empirical fits or comparisons with specific biological datasets in the current version. We acknowledge that this limits the immediate claim to broad applicability. In the revised manuscript we will expand the Discussion to (i) explicitly list the structural assumptions (single static nonlinearities, lumped delays, absence of additional loops), (ii) illustrate how the derived constraints map onto two well-studied models (Goodwin oscillator and a minimal repressilator), and (iii) outline the conditions under which the inequalities would remain approximately valid when modest distributed delays or extra loops are present. Full quantitative validation against experimental time-series data is beyond the scope of this work and will be noted as a natural direction for follow-up studies. revision: partial

Circularity Check

0 steps flagged

No load-bearing circularity; block-diagram constraints derived from modeling structure rather than fitted inputs or self-referential definitions.

full rationale

The paper adapts a block-diagram framework to represent positive/negative feedback in biological oscillators, then derives amplitude-frequency relations and existence constraints directly from the interconnection of linear blocks and static nonlinearities. No evidence that any 'prediction' reduces to a parameter fit by construction, nor that central claims rest on self-citation chains whose validity is unverified outside the present work. The derivation chain is self-contained against the stated modeling assumptions; the reader's score of 2 reflects only routine self-citation of prior modeling frameworks that are not load-bearing for the new constraints.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides insufficient detail to identify free parameters, axioms, or invented entities; none are explicitly listed.
