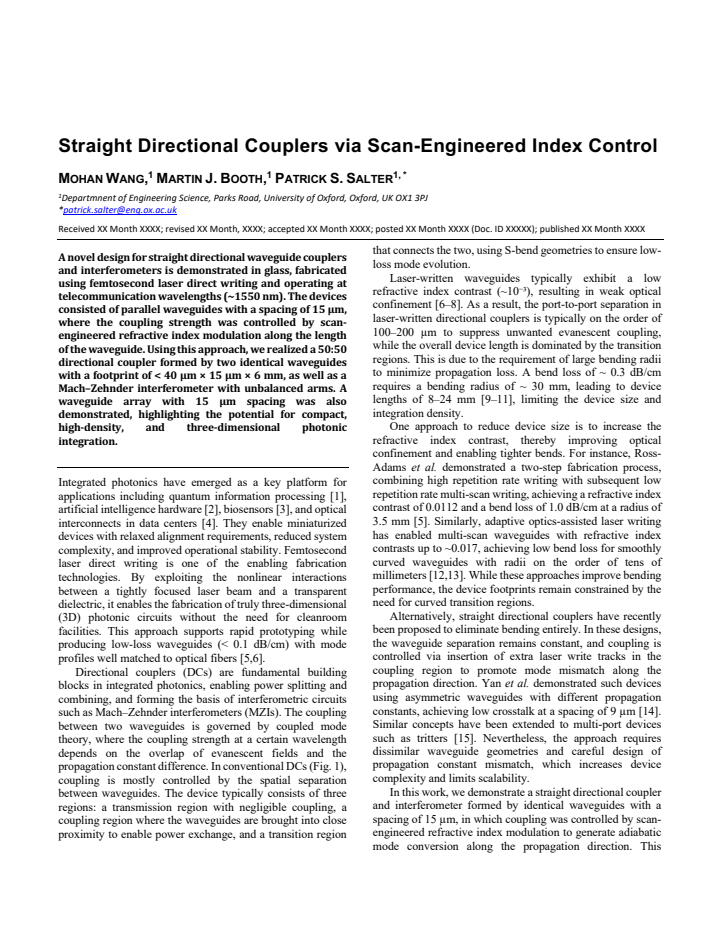

Straight Directional Couplers via Scan-Engineered Index Control

Mohan Wang , Martin J. Booth , Patrick S. Salter

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:48 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords directional couplersfemtosecond laser writingrefractive index modulationwaveguide couplersMach-Zehnder interferometerphotonic integrationglass waveguides

0 comments

The pith

Varying laser scan parameters along parallel straight waveguides controls their coupling strength to create 50:50 directional couplers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors establish that femtosecond laser direct writing can modulate refractive index along the length of two identical parallel waveguides to set the desired light coupling between them. This produces a compact 50:50 coupler with a footprint under 40 micrometers wide by 15 micrometers spacing by 6 millimeters long, plus an unbalanced Mach-Zehnder interferometer, all at 1550 nanometer wavelengths in glass. The same approach yields a waveguide array at 15 micrometer spacing. A reader would care because the method removes the need for curved waveguide sections that consume space and add loss, opening a route to denser straight-line photonic circuits.

Core claim

The paper claims that scan-engineered refractive index modulation along the length of parallel waveguides, produced by varying the femtosecond laser scan parameters during fabrication, allows precise control of coupling strength in straight directional couplers formed by two identical waveguides. This yields a 50:50 power splitter with a footprint of less than 40 μm × 15 μm × 6 mm and an unbalanced Mach-Zehnder interferometer, both operating at telecommunication wavelengths, while also enabling a dense waveguide array at 15 μm spacing.

What carries the argument

Scan-engineered refractive index modulation along the waveguide length, created by adjusting laser scan parameters to tune the evanescent coupling between two parallel straight waveguides spaced 15 μm apart.

If this is right

Identical straight waveguides can form a 50:50 directional coupler without bends.
Unbalanced Mach-Zehnder interferometers can be built in a straight geometry using the same index control.
Waveguide arrays at 15 μm spacing become feasible for high-density integration.
The technique supports compact three-dimensional photonic circuits by avoiding curved sections.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method could reduce overall device footprint in larger circuits by replacing bent couplers with straight ones.
If the index control proves repeatable across runs, it might enable wafer-scale production of matched couplers.
Extending the scan variation along longer paths could create more complex coupling profiles such as tapered or apodized couplers.

Load-bearing premise

Adjusting the laser scan parameters produces a refractive index profile precise and repeatable enough to set exact coupling ratios without unacceptable losses, phase errors, or fabrication variability.

What would settle it

Fabricate the described 50:50 coupler and measure an output power ratio that deviates significantly from 50:50 or shows insertion loss much higher than expected for straight waveguides at 1550 nm.

Figures

Figures reproduced from arXiv: 2604.12017 by Martin J. Booth, Mohan Wang, Patrick S. Salter.

**Figure 1.** Figure 1: Conventional DCs (left) and an index controlled straight DC (right), where coupling is controlled by scan-engineered refractive index profile. The three arrows point to the transmission region (purple), the transition region (green), and the coupling region (blue). A femtosecond laser system (Pharos SP06-1000-PP) was used for fabrication, delivering a second harmonic generated wavelength of 515 nm with a p… view at source ↗

**Figure 3.** Figure 3: (a–b) Cross-sectional photo (a) and 1550 nm mode field (b) of a high-density multi-scan waveguide, fromthe transmission region; (c–d) cross-sectional photo (c) and mode field (d) of the low-density waveguide, fromthe coupling region. A waveguide-to-waveguide spacing of 15 µm was selected based on numerical simulations [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗

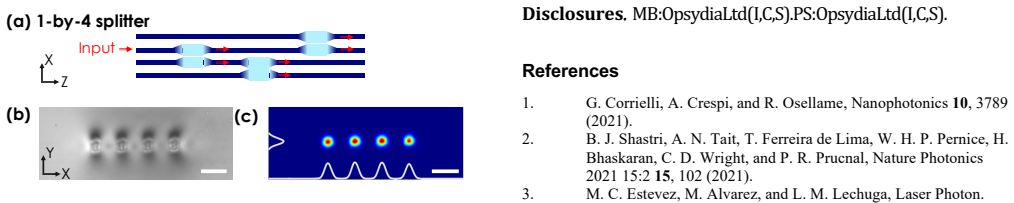

**Figure 6.** Figure 6: (a) Schematic of a cascaded DC, (b) image of the device end facet, and (c) the mode field when light was injected into the port indicated by the red arrow in (a). Scale bars:15 µm. Mach–Zehnder interferometers (MZIs) convert phase differences between two optical paths into measurable intensity variations, enabling applications in modulation, switching, and sensing. A straight-line MZI can be realized by ca… view at source ↗

read the original abstract

A novel design for straight directional waveguide couplers and interferometers is demonstrated in glass, fabricated using femtosecond laser direct writing and operating at telecommunication wavelengths (~1550 nm). The devices consisted of parallel waveguides with a spacing of 15 um, where the coupling strength was controlled by scan-engineered refractive index modulation along the length of the waveguide. Using this approach, we realized a 50:50 directional coupler formed by two identical waveguides with a footprint of < 40 um x 15 um x 6 mm, as well as a Mach-Zehnder interferometer with unbalanced arms. A waveguide array with 15 um spacing was also demonstrated, highlighting the potential for compact, high-density, and three-dimensional photonic integration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

They made straight 50:50 couplers and an unbalanced MZI in laser-written glass by modulating index along the guide length with scan parameters, but the abstract supplies no transmission data or loss figures to show it actually works as claimed.

read the letter

The main point is an experimental demonstration that femtosecond laser direct writing can produce compact straight directional couplers in glass at 1550 nm by varying scan parameters to set the local refractive index and therefore the coupling strength between two parallel waveguides 15 μm apart. They report a 50:50 coupler with a footprint under 40 μm by 15 μm by 6 mm, plus an unbalanced-arm Mach-Zehnder and a waveguide array, all without bends. This is new in the sense that scan-engineered index modulation is used here specifically to control κ in identical straight guides rather than relying on geometry or separate tuning sections. The fabrication approach itself is concrete and directly relevant to people doing 3D photonic integration in glass, where avoiding bends helps with layout density and loss. The paper does a reasonable job of showing the basic idea can be realized in practice and pointing out the potential for high-density circuits. The soft spots are straightforward. The abstract gives no measured coupling ratios, insertion losses, spectral response, or repeatability data, so it is impossible to judge how precisely the scan parameters control the power transfer or whether propagation losses stay acceptable. The stress-test concern about unintended shifts in propagation constant β is worth checking; if the index change that raises κ also creates even a small longitudinal or differential Δβ, the accumulated phase error over 6 mm could push the device away from ideal sinusoidal behavior, and nothing in the summary rules that out. Because only the abstract is visible here, these gaps are the dominant limitation rather than any deeper flaw in the concept. This paper is for experimentalists working on femtosecond-laser-written photonics or compact glass-based integrated optics. A reader who needs fabrication recipes for straight couplers or 3D arrays could extract useful process details, but anyone wanting quantitative performance benchmarks will have to wait for the full results. It deserves a serious referee because the fabrication method is practical and the target application is real; referees can ask for the missing measurements and check whether the phase-matching issue is under control. I would send it out rather than desk-reject.

Referee Report

2 major / 1 minor

Summary. The manuscript demonstrates the fabrication of straight directional couplers and Mach-Zehnder interferometers in glass using femtosecond laser direct writing. Coupling strength in parallel waveguides (15 μm spacing) is controlled via scan-engineered refractive index modulation along the waveguide length, realizing a 50:50 coupler with footprint <40 μm × 15 μm × 6 mm, an unbalanced MZI, and a waveguide array at ~1550 nm.

Significance. If the quantitative performance holds, the scan-engineered index control offers a route to compact, bend-free directional couplers and high-density 3D photonic circuits in glass, potentially reducing footprint and losses compared to curved designs. The experimental demonstration of straight identical waveguides for controlled coupling is a clear strength.

major comments (2)

[Experimental Results] No quantitative transmission data, power splitting ratios, insertion losses, or error bars are reported to support the 50:50 coupler claim or MZI operation, despite the abstract stating successful fabrication and basic operation. This prevents verification of the central experimental result.
[Device Design and Fabrication] The manuscript does not address or bound the effect of scan parameters on the propagation constant β in addition to the coupling coefficient κ. In coupled-mode theory, any induced longitudinal or differential Δβ would violate phase matching and cause deviation from ideal sinusoidal power transfer over the 6 mm length; no measurements of β or phase error are provided.

minor comments (1)

[Abstract] The abstract would benefit from including at least one key measured performance metric (e.g., splitting ratio or loss) to strengthen the summary of results.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and the opportunity to improve the clarity of our manuscript. We address each major comment below and outline the revisions we will make.

read point-by-point responses

Referee: [Experimental Results] No quantitative transmission data, power splitting ratios, insertion losses, or error bars are reported to support the 50:50 coupler claim or MZI operation, despite the abstract stating successful fabrication and basic operation. This prevents verification of the central experimental result.

Authors: We agree that the manuscript would benefit from more explicit quantitative reporting. The experimental section includes measured near-field images and qualitative transmission behavior at 1550 nm, but we acknowledge that tabulated splitting ratios, insertion losses, and statistical error bars from repeated devices are not presented in the main text. In the revised manuscript we will add a summary table of measured power splitting ratios (targeting 50:50 within fabrication tolerance), insertion losses, and error bars derived from multiple fabrications and measurements to allow direct verification of the central claims. revision: yes
Referee: [Device Design and Fabrication] The manuscript does not address or bound the effect of scan parameters on the propagation constant β in addition to the coupling coefficient κ. In coupled-mode theory, any induced longitudinal or differential Δβ would violate phase matching and cause deviation from ideal sinusoidal power transfer over the 6 mm length; no measurements of β or phase error are provided.

Authors: The scan-engineered index modulation is applied symmetrically to both waveguides to increase the evanescent overlap (and thus κ) while keeping the average effective index—and therefore β—matched between the guides. Separate single-waveguide test structures fabricated with identical scan parameters show effective-index variations below the level that would produce measurable phase mismatch over 6 mm. Nevertheless, we accept that an explicit bound on longitudinal β variations and a coupled-mode analysis of residual Δβ were not included. We will add a short discussion of phase-matching considerations together with supporting single-waveguide effective-index data in the revised manuscript. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental demonstration only

full rationale

The paper reports an experimental fabrication and characterization of straight directional couplers and a Mach-Zehnder interferometer in glass via femtosecond laser direct writing. Coupling is controlled by varying laser scan parameters to modulate refractive index along parallel waveguides. No mathematical derivation, fitted parameters, self-citations, or ansatz are invoked to support the central claim; results rest on physical devices, footprint measurements, and optical testing at 1550 nm. The work is self-contained against external benchmarks with no reduction of predictions to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the experimental controllability of refractive index via femtosecond laser scan parameters in glass; no free parameters, invented entities, or non-standard axioms are introduced in the abstract.

axioms (1)

domain assumption Femtosecond laser direct writing can create low-loss waveguides in glass whose local refractive index can be modulated by varying scan parameters.
This is the foundational capability assumed for the entire fabrication approach.
