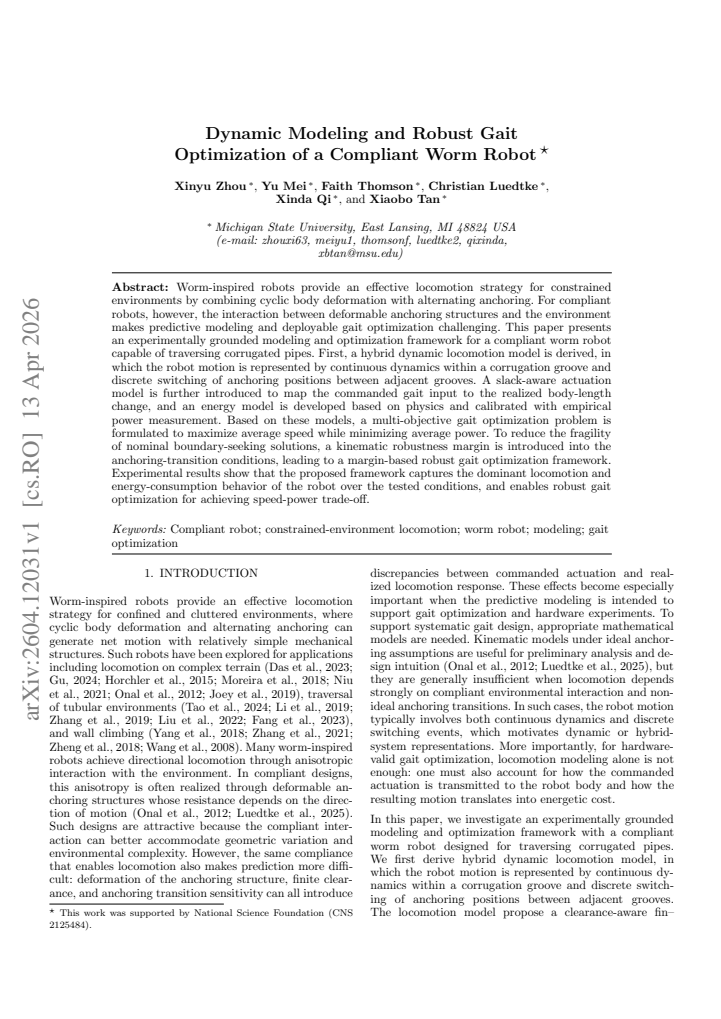

Dynamic Modeling and Robust Gait Optimization of a Compliant Worm Robot

Xinyu Zhou , Yu Mei , Faith Thomson , Christian Luedtke , Xinda Qi , Xiaobo Tan This is my paper

Pith reviewed 2026-05-10 15:21 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords worm robotcompliant locomotionhybrid dynamic modelgait optimizationrobust optimizationpipe traversalenergy consumptionanchoring transitions
0
0 comments X

The pith

A hybrid dynamic model with kinematic robustness margins enables reliable speed-power gait optimization for compliant worm robots in corrugated pipes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an experimentally grounded framework to model and optimize gaits for a flexible worm-like robot that must crawl through pipes with regular ridges. It represents motion as smooth continuous dynamics while the robot sits inside one groove and as sudden discrete jumps when the anchoring point shifts to the next groove, then maps actuator commands to actual length changes while accounting for slack and builds a power model from physics plus measurements. A multi-objective optimizer then pushes for higher average speed at lower average power, but adds explicit margins around the exact transition points so that small disturbances do not break the anchoring sequence. A sympathetic reader would care because such robots can reach places wheels and legs cannot, yet only become practical if their gaits can be designed ahead of time instead of tuned by endless trial and error.

Core claim

The authors claim that a hybrid dynamic locomotion model, in which robot motion consists of continuous dynamics within a corrugation groove and discrete switching of anchoring positions between adjacent grooves, together with a slack-aware actuation model and an empirically calibrated energy model, supports a multi-objective optimization problem whose solutions are made robust by the addition of a kinematic robustness margin to the anchoring-transition conditions, thereby achieving desired speed-power trade-offs.

What carries the argument

Hybrid dynamic locomotion model consisting of continuous intra-groove dynamics and discrete anchoring switches, combined with a slack-aware actuation model and a kinematic robustness margin inserted into the anchoring-transition conditions.

If this is right

  • The models accurately predict the dominant locomotion patterns and energy use of the robot under the tested pipe conditions.
  • Margin-based optimization produces gaits that trade off higher speed against lower power while remaining reliable.
  • The added robustness margins reduce the chance that small disturbances cause anchoring failures during transitions.
  • The overall approach allows gait parameters to be chosen systematically rather than through repeated physical experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hybrid-plus-margin structure could be adapted to other soft robots that rely on temporary anchoring inside irregular or textured tubes.
  • If the models can be evaluated fast enough, they open the possibility of onboard re-optimization when the robot encounters a change in pipe geometry.
  • The explicit treatment of transition margins points toward similar safety buffers in any locomotion planner that depends on precise contact timing.

Load-bearing premise

The hybrid dynamic model and slack-aware actuation model accurately capture the interaction between deformable anchoring structures and the corrugated pipe environment across the tested conditions.

What would settle it

A clear mismatch between the model's predicted speed or power consumption and direct measurements for an optimized gait tested in a pipe whose corrugation spacing or wall compliance differs from the calibration cases would refute the framework's predictive accuracy.

Figures

Figures reproduced from arXiv: 2604.12031 by Christian Luedtke, Faith Thomson, Xiaobo Tan, Xinda Qi, Xinyu Zhou, Yu Mei.

Figure 1

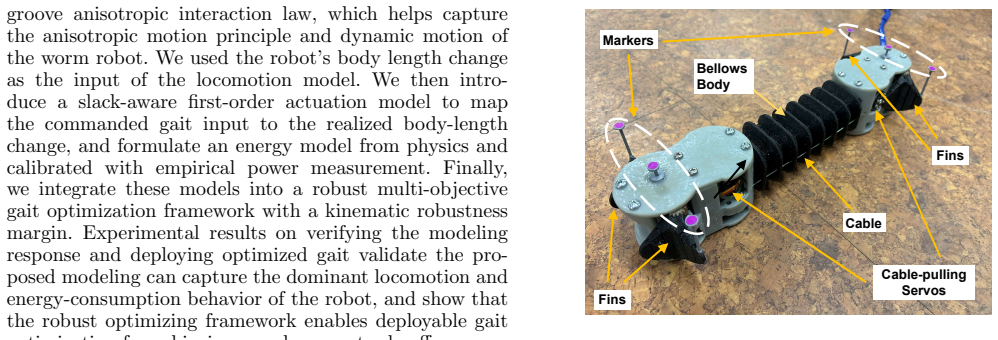

Figure 1. Figure 1: Prototype of the compliant worm robot. The robot [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

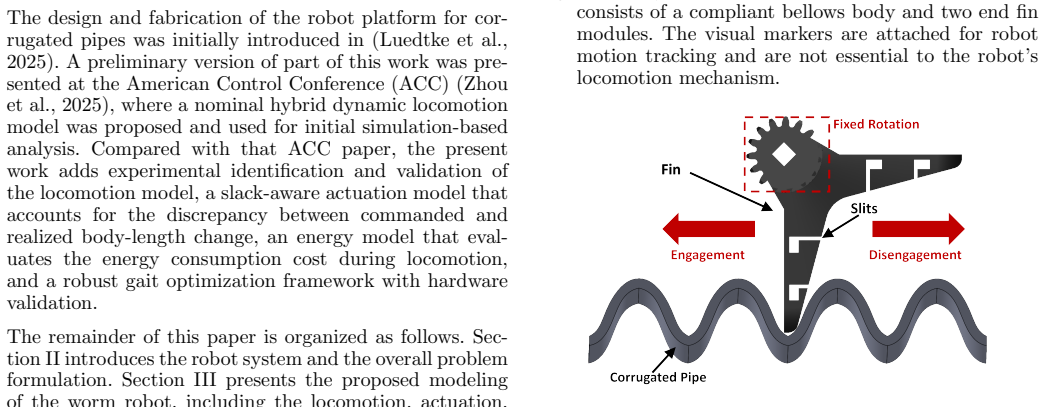

Figure 2. Figure 2: Illustration of the structure of a single fin and its in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3

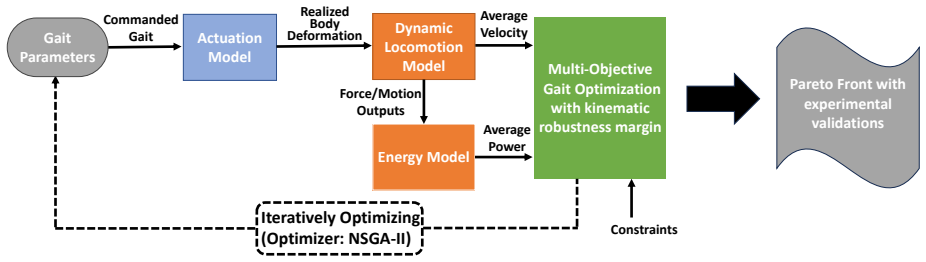

Figure 3. Figure 3: System-level view of the problem formulation considered in this paper. A commanded gait, parameterized by [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

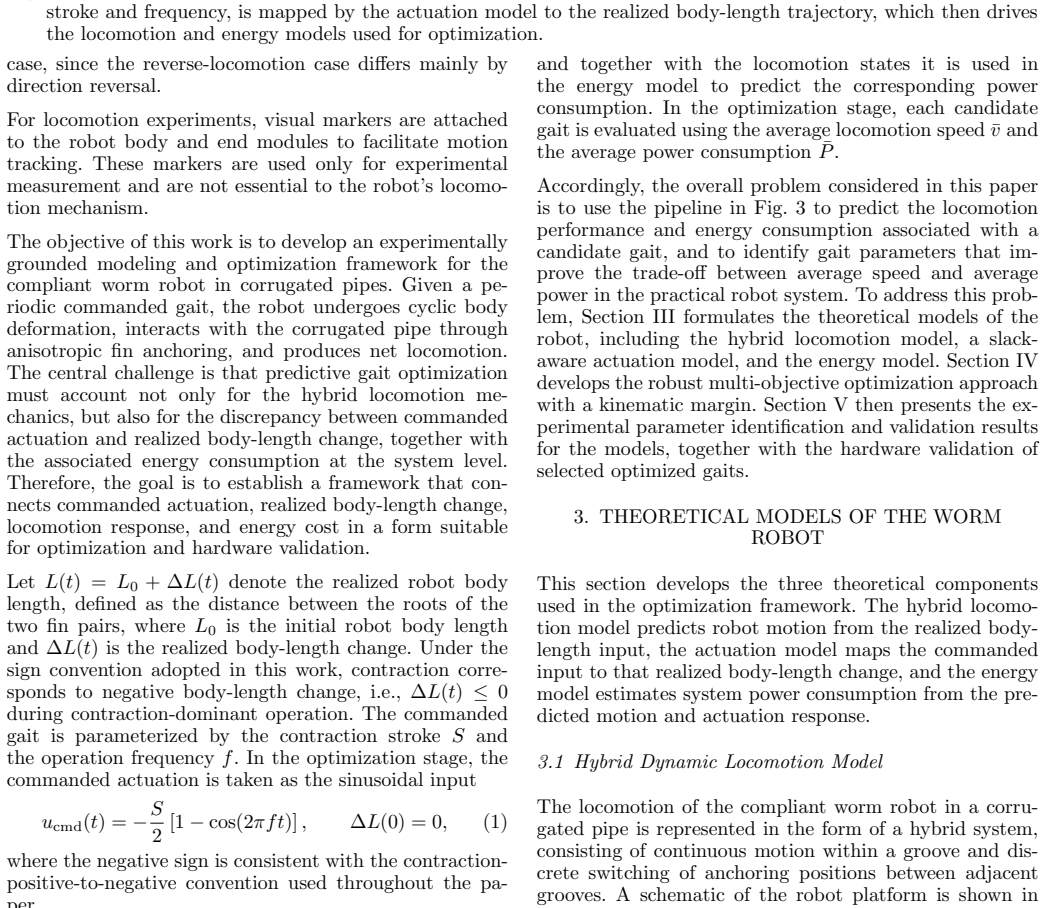

Figure 4. Figure 4: The two end modules of the robot are represented [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
Figure 4

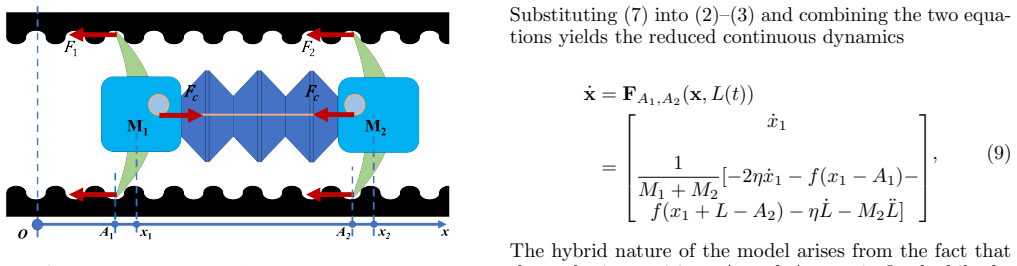

Figure 4. Figure 4: A schematic diagram of the worm robot moving in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

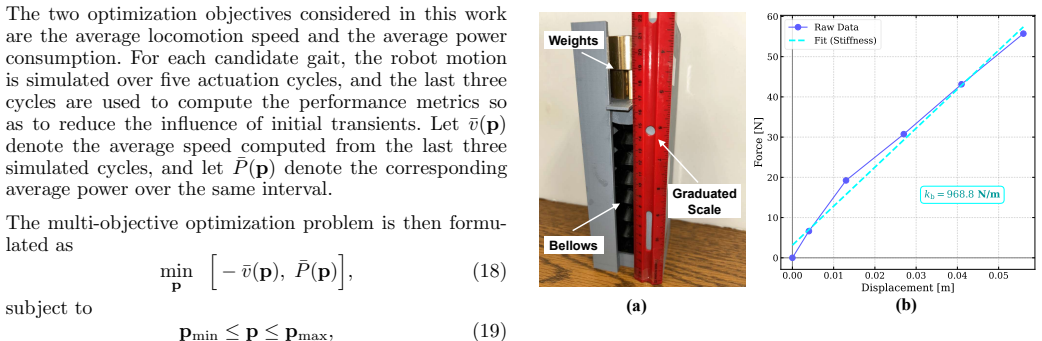

Figure 5. Figure 5: Bellows force–deformation test and linear fit used [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 7

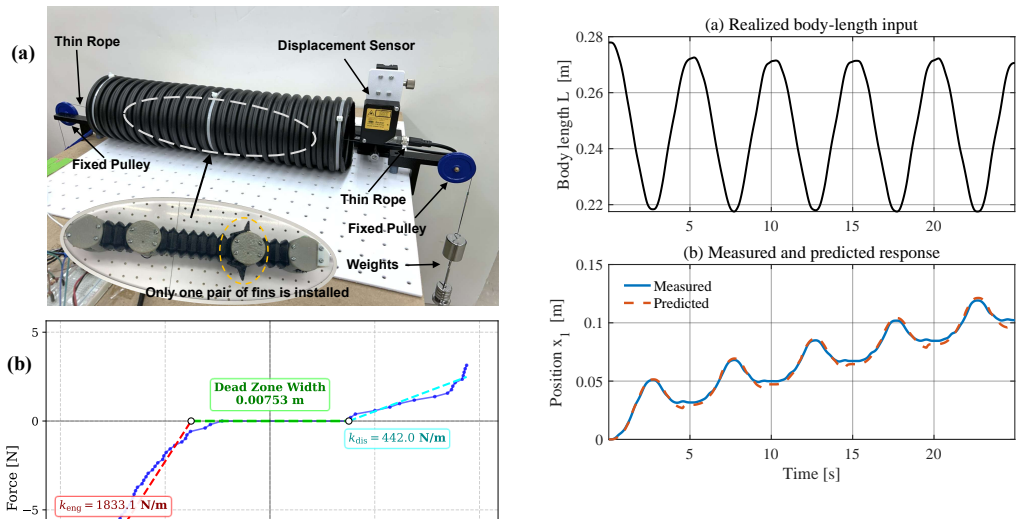

Figure 7. Figure 7: Representative locomotion-model result for the gait [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 6

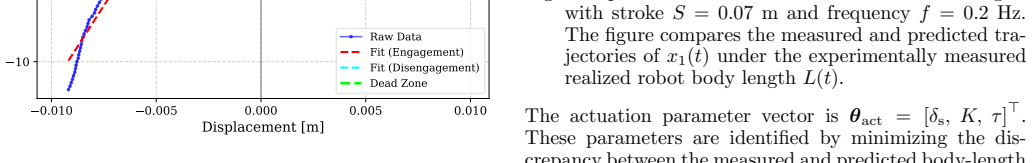

Figure 6. Figure 6: Identification of the clearance-aware fin–groove [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8

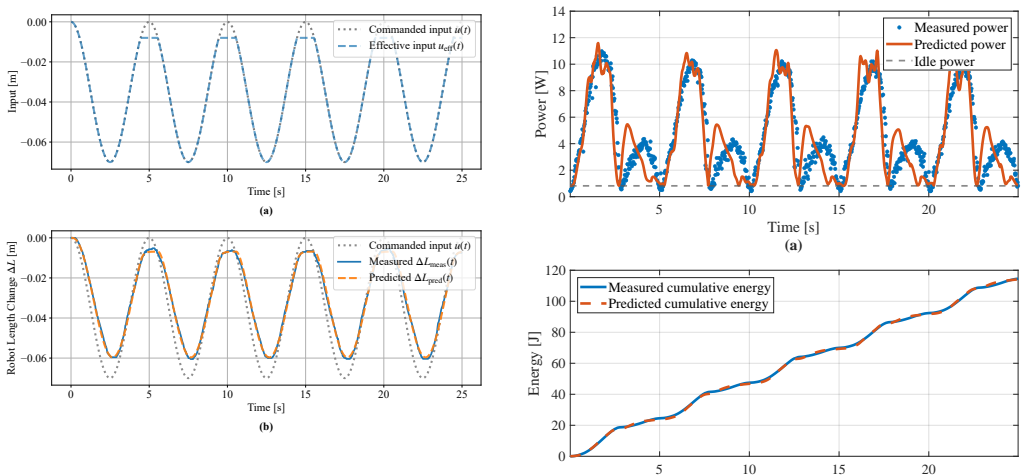

Figure 8. Figure 8: Representative actuation-model result for the gait [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 10

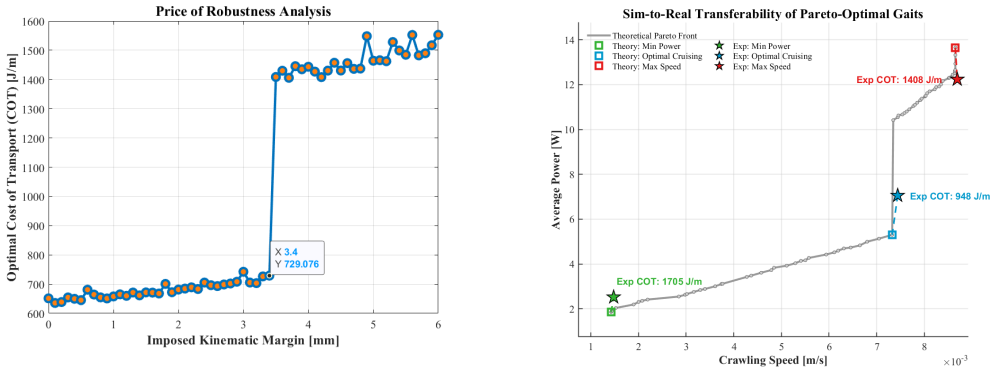

Figure 10. Figure 10: Price-of-robustness analysis used for selecting the [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
