Mapping the emission and spectral properties of the FRI radio galaxy 3C 449 with LOFAR and the VLA

Luca Ricci , Luisa Ostorero , Raffaella Morganti , Judith H. Croston , Martin J. Hardcastle , Timothy W. Shimwell

Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:00 UTC · model grok-4.3

classification 🌌 astro-ph.HE

keywords FRI radio galaxyspectral agingLOFAR observationsVLA radio datajet expansion speeds3C 449equipartition assumption

0 comments

The pith

Spectral ages reach about 150 million years at the outer edges of 3C 449, implying supersonic average jet expansion speeds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper combines LOFAR 145 MHz observations with archival VLA data at multiple higher frequencies to map the full radio structure and spectral properties of the nearby FRI galaxy 3C 449. The spectrum follows a single power law in the inner jets but steepens beyond about 50 arcseconds on both sides, with no clear sites of particle acceleration farther out. Modeling under equipartition and constant magnetic field assumptions produces maps showing maximum radiative ages of roughly 150 Myr at the extremities of the northern tail and southern lobe. If these ages equal the total source lifetime, the average expansion speeds correspond to Mach numbers of 4.1 and 2.8 for the northern and southern jets. The authors note that numerical simulations indicate subsonic current expansion, so the high Mach numbers may reflect either an early supersonic phase or underestimation from particle re-acceleration on large scales.

Core claim

By combining LOFAR 145 MHz and VLA data from 1.4 to 8.5 GHz, we map the spectral index distribution over the full extent of 3C 449. The spectrum stays approximately constant within the inner 50 arcseconds of both jets but steepens outward, indicating no significant downstream particle acceleration. Radiative age maps derived assuming equipartition and constant magnetic field strength reach approximately 150 Myr at the outer edges of the northern tail and southern lobe. If representative of the dynamical age, this implies average expansion speeds that are supersonic, with Mach numbers of about 4.1 for the northern jet and 2.8 for the southern jet.

What carries the argument

Multi-frequency spectral index maps converted to radiative particle ages under the assumptions of equipartition and spatially constant magnetic field strength.

If this is right

The inner jets show no significant spectral steepening, indicating particle acceleration is confined near the core.
Radiative ages increase toward the outer regions and reach their maximum at the lobe and tail ends.
Average jet expansion over the source lifetime is supersonic if spectral ages equal the dynamical age.
The mismatch with subsonic current expansion from simulations suggests either a short early supersonic phase or large-scale particle re-acceleration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Improved independent estimates of the magnetic field strength could lower the derived ages and reduce the implied Mach numbers.
Applying the same mapping approach to other nearby FRI sources would reveal whether early supersonic expansion is typical.
Searching for turbulence or weak shocks on hundreds of kpc scales could directly test the re-acceleration hypothesis.
Models of jet propagation may need to incorporate time-variable expansion speeds rather than assuming constant velocity.

Load-bearing premise

The modeling assumes equipartition between particle and magnetic field energies together with a constant magnetic field strength across the entire source, and that the derived spectral ages can be directly compared to the dynamical age without significant particle re-acceleration on scales of hundreds of kpc.

What would settle it

A direct measurement of the current lobe expansion speed showing it is subsonic, combined with the absence of spectral flattening or other re-acceleration signatures on scales of hundreds of kpc, would test whether the spectral ages are underestimated.

Figures

Figures reproduced from arXiv: 2604.12043 by Judith H. Croston, Luca Ricci, Luisa Ostorero, Martin J. Hardcastle, Raffaella Morganti, Timothy W. Shimwell.

**Figure 1.** Figure 1: Integrated radio spectrum of 3C 449 in the frequency range 86 − 8485 MHz. Symbols are as follows. Red square: 145 MHz flux density derived from the LOFAR map at 6.0 ′′ × 6.0 ′′; blue circle: 145 MHz flux density derived from the LOFAR map at 20.0 ′′ × 20.0 ′′; small green diamonds: flux densities at 1365 and 1485 MHz derived from the VLA maps at 20.0 ′′ ×20.0 ′′; large green diamonds: flux densities at 498… view at source ↗

**Figure 2.** Figure 2: LOFAR maps of 3C 449 at 145 MHz. Left panel: angular resolution of 6.0 ′′ × 6.0 ′′. The contour levels are 0.006 √ 2 × [-1.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0] × the flux peak of 0.09 Jy beam−1 . The rms noise of the map is 0.1 mJy beam−1 . Right panel: angular resolution of 20.0 ′′ × 20.0 ′′. The contour levels are 0.002 √ 2 × [-1.0, 1.0, 2.0, 3.0, 4.0, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0, 20.0, 40.0, 80.… view at source ↗

**Figure 3.** Figure 3: Spectral index maps at 6.0 ′′ ×6.0 ′′. Upper panels: maps of the radio spectral index of 3C 449 between the frequencies of 145 and 1365 MHz (left panel), 1365 and 4985 MHz (middle panel), and 4985 and 8485 MHz (right panel). Each map is overlaid with surface brightness contours of the lower frequency map used to compute the spectral index. Lower panels: maps of the 1σ uncertainties on the radio spectral in… view at source ↗

**Figure 4.** Figure 4: Radio spectral index of 3C 449 between 145 MHz and 1365 MHz, with the angular resolution of 20.0 ′′ × 20.0 ′′. Left panel: spectral index map overlaid with 145 MHz surface brightness contours. Right panel: map of the 1σ uncertainty. spatial limit of their spectral studies). The steepening of the spectrum with core distance on arcminute scales also confirms earlier results by Jaegers (1987) and Andernach e… view at source ↗

**Figure 5.** Figure 5: Radio spectral index, α, in different frequency ranges, as a function of the projected distance from the radio core, r (see text for details), for the northern and southern jets of the source. The position of the core corresponds to r = 0; positive distances are for the northern jet, and negative distances for the southern one. The spectral indices of the core are not included in the plot. The frequency … view at source ↗

**Figure 6.** Figure 6: Same as [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

**Figure 7.** Figure 7: Enlargement of the inner ≈ 5 ′ region of the 145 − 1365 MHz spectral index map at the angular resolution of 6.0 ′′ × 6.0 ′′ (upper, left panel of [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

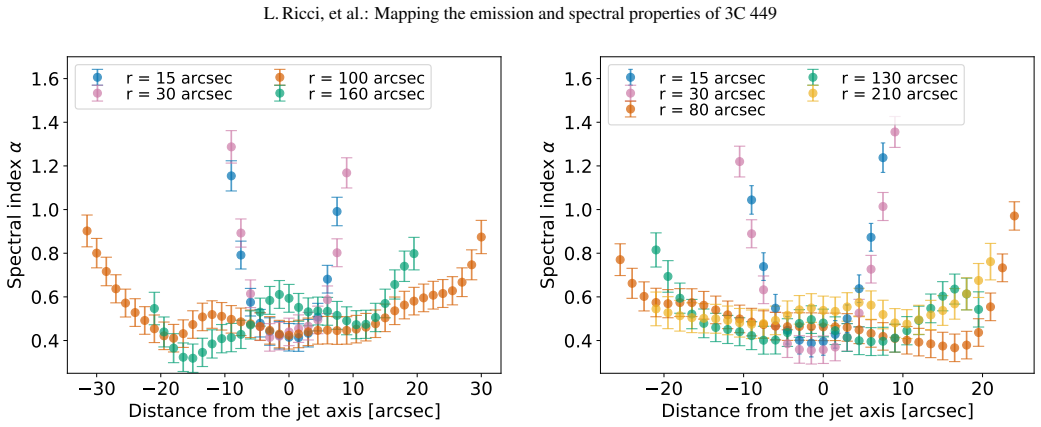

**Figure 8.** Figure 8: Transverse profiles of the spectral index between 145 and 1365 MHz, derived from the 6′′ ×6 ′′ spectral index map: each profile is evaluated over a slice arranged along the East-West direction, roughly perpendicular to the jet axis; the slice thickness is 1 pixel (i.e., 1.5 ′′). All the slices are shown in the upper, left panel of [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

**Figure 9.** Figure 9: Spectral ageing maps obtained by fitting JP’s model to the intensity maps, and corresponding maps of the uncertainty. Upper, left panel: map of the spectral age of 3C 449 between 145, 1365, and 1485 MHz, with the angular resolution of 20.0 ′′ × 20.0 ′′, by means of the BRATS software package. Upper, right panel: map of the upper error on the spectral age shown in the left panel. Lower, left panel: map of t… view at source ↗

read the original abstract

The jets and lobes of nearby radio galaxies are ideal laboratories to explore the spectral and dynamical evolution of the radio-emitting plasma that emanates from active galactic nuclei. Here, we present a high-resolution radio continuum study of the low-redshift (z=0.01713), Fanaroff-Riley I (FRI) radio galaxy 3C 449 performed by combining radio data at 145 MHz acquired with the LOw Frequency ARray (LOFAR) and archival Very Large Array (VLA) data at 1365, 1485, 4985, and 8485 MHz. Our LOFAR maps have angular resolutions of 20"x20" and 6.0"x6.0", and show the full extent of the known radio emission at the highest angular resolution to date. Our spectral index maps show the distribution of the spectrum in the 145-8485 MHz frequency range over a region that extends beyond 2.5'. The average 145-8485 MHz spectrum is consistent with a single power law and stays approximately constant over the inner ~50" of both jets. Beyond ~50", on both source sides, the higher-frequency spectrum steepens, indicating no significant downstream sites of particle acceleration. By modelling the spectrum under the assumption of equipartition and of a constant magnetic field across the source, we derive maps of the highest radiative age of the particles. At the outer edges of both the northern tail and southern lobe, the spectral age is ~150 Myr. If the latter age were representative of the dynamical source age, the average expansion speed of both jets during the source lifetime would be supersonic, with Mach numbers of M~4.1 and M~2.8 for the northern and southern jets, respectively. As numerical simulations of FRI jets suggest that the source's current expansion is subsonic, the high Mach numbers might arise either from the source being highly supersonic for a small fraction of its lifetime or from a severe underestimation of the spectral age due to particle acceleration on scales of hundreds of kpc.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Solid new spectral maps for 3C 449 with honest caveats on the age and speed implications.

read the letter

The main takeaway is that this paper combines new LOFAR 145 MHz data with VLA observations to produce the highest-resolution spectral index maps yet for the FRI galaxy 3C 449 across 145-8485 MHz, plus radiative age maps that reach about 150 Myr at the outer edges of the northern tail and southern lobe. The work shows the spectrum holding roughly constant in the inner jets before steepening outward, with no clear signs of downstream particle acceleration on large scales. The imaging at 6 arcsec resolution captures the full source extent cleanly, which is a step forward from earlier lower-resolution or narrower-band studies. The analysis follows standard radio interferometry reduction and spectral fitting under equipartition with constant magnetic field strength. The authors flag the key limitations themselves, noting that the implied supersonic Mach numbers of roughly 4 and 3 would only hold if the spectral age matches the dynamical age, and they list the two main ways to reconcile this with simulations that favor subsonic expansion now. That keeps the dynamical claim conditional rather than overstated. The soft spots are the usual ones for this field: equipartition and uniform B-field assumptions can shift the ages, and any distributed re-acceleration on hundreds-of-kpc scales would make the ages too young. These are acknowledged openly in the abstract and discussion, so they do not come as a surprise. The paper is aimed at radio astronomers who model jet plasma evolution and AGN feedback in nearby galaxies. It supplies concrete, high-resolution data for one well-known source that can be plugged into broader comparisons or simulations. The thinking is clear and the caveats are handled directly, which makes the work worth a serious referee's time even if the dynamical numbers stay tentative.

Referee Report

0 major / 3 minor

Summary. The manuscript combines new LOFAR 145 MHz observations with archival VLA data at 1365, 1485, 4985 and 8485 MHz to produce high-resolution (down to 6 arcsec) continuum maps of the nearby (z=0.01713) FRI radio galaxy 3C 449. Spectral-index maps across 145-8485 MHz are presented, showing a roughly constant spectrum in the inner ~50 arcsec of both jets and progressive steepening at larger distances. Under the assumptions of equipartition and spatially constant magnetic-field strength, maps of the maximum radiative age of the emitting particles are derived; these reach ~150 Myr at the outer edges of the northern tail and southern lobe. If these ages are taken as representative of the source dynamical lifetime, the implied average jet expansion speeds correspond to supersonic Mach numbers (M~4.1 north, M~2.8 south). The paper notes that current numerical simulations predict subsonic expansion and therefore offers two physical interpretations: either the source was highly supersonic for only a small fraction of its life, or the spectral ages are underestimated because of distributed particle re-acceleration on hundreds-of-kpc scales.

Significance. If the derived age maps and conditional dynamical comparison hold, the work supplies one of the highest-resolution, broadest-frequency spectral-aging studies of a nearby FRI source, directly linking observed spectral steepening to plasma evolution. The explicit use of LOFAR low-frequency data to anchor the spectrum and the clear statement of modeling assumptions and alternative interpretations constitute a useful contribution to the literature on radio-galaxy dynamics and particle acceleration.

minor comments (3)

[Methods / spectral modeling] The abstract states that the spectrum is modelled 'under the assumption of equipartition and of a constant magnetic field across the source' but does not quote the adopted B-field value or the precise aging model (e.g., Jaffe-Perola, Kardashev-Pacholczyk, or continuous-injection). This information should appear in the methods section together with a brief justification or reference for the choice of constant B.
[Results / dynamical implications] The Mach-number values (M~4.1 and M~2.8) are stated without an accompanying equation or numerical steps (projected distance to the outer edges, adopted source age, sound-speed assumption). Adding a short derivation or reference to the formula used would allow readers to verify the numbers directly.
[Figures and captions] Figure captions and the text should explicitly state the exact frequency pairs used for each spectral-index map and the beam sizes applied to the maps shown in the figures.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our manuscript, for highlighting its significance as a high-resolution spectral-aging study of a nearby FRI source, and for recommending minor revision. We appreciate the recognition of our use of LOFAR data, clear statement of assumptions, and discussion of alternative interpretations. No specific major comments were raised in the report, so we have no point-by-point rebuttals to provide at this stage. We will incorporate any minor editorial or presentational improvements suggested during the revision process.

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper computes spectral age maps directly from the observed spectral index distribution across the source by modeling the radio spectrum under explicitly stated equipartition and constant-B assumptions; this modeling step uses the measured fluxes at multiple frequencies as input and does not reduce by the paper's own equations to any fitted parameter or self-defined quantity. The supersonic Mach-number implication is presented only conditionally (with an explicit 'if' clause) and is accompanied by discussion of alternative physical interpretations, including possible re-acceleration on large scales. No load-bearing step relies on self-citation chains, uniqueness theorems imported from the authors' prior work, or ansatzes smuggled via citation. The central results remain independent of the paper's own outputs and rest on standard observational modeling applied to the LOFAR+VLA data.

Axiom & Free-Parameter Ledger

1 free parameters · 3 axioms · 0 invented entities

The radiative age maps rest on standard synchrotron aging theory plus the equipartition assumption and constant-B-field simplification; no new entities are introduced.

free parameters (1)

constant magnetic field strength
Assumed uniform across the source to convert observed spectral curvature into radiative ages under equipartition.

axioms (3)

standard math Radio emission is synchrotron radiation from relativistic electrons in a magnetic field
Core assumption enabling spectral index interpretation in radio galaxies.
domain assumption Equipartition between relativistic particle and magnetic field energy densities
Invoked to derive the magnetic field strength needed for age calculations.
domain assumption No significant particle acceleration beyond the inner ~50 arcsec
Inferred from the observed spectral steepening and used to treat the derived ages as pure radiative ages.
