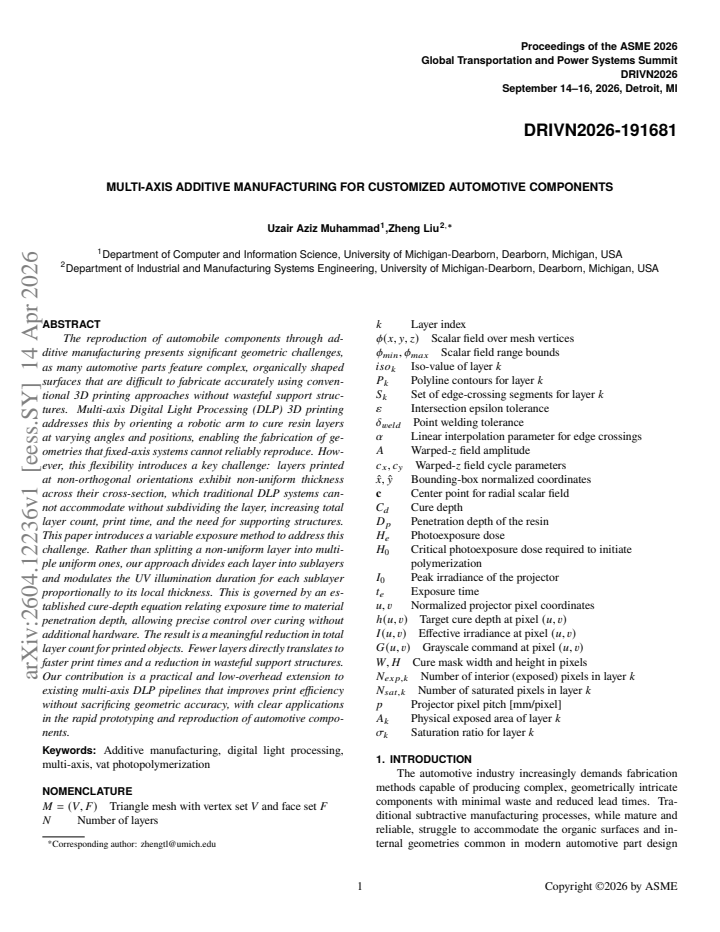

Multi-Axis Additive Manufacturing for Customized Automotive Components

Uzair Aziz Muhammad , Zheng Liu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:23 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords multi-axis DLPadditive manufacturingvariable exposure3D printingautomotive componentscure-depth equationnon-uniform layerssupport structures
0
0 comments X

The pith

Modulating UV exposure per sublayer lets multi-axis DLP printers handle uneven layers without subdividing them.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a variable exposure method for multi-axis Digital Light Processing 3D printing aimed at reproducing complex automotive components. Rather than subdividing non-uniform layers that arise from angled orientations, the approach splits each layer into sublayers and varies the UV illumination time for each sublayer in proportion to its local thickness, following the established cure-depth equation that links exposure duration to resin penetration depth. A reader would care because this reduces the total number of layers required, which shortens overall print time and decreases reliance on wasteful support structures while preserving geometric accuracy. The method is presented as a low-overhead addition to existing multi-axis DLP pipelines that needs no new hardware.

Core claim

The paper claims that dividing each layer into sublayers and modulating UV illumination duration for each sublayer proportionally to its local thickness, governed by the cure-depth equation relating exposure time to material penetration depth, achieves precise control over curing. This avoids the need to subdivide non-uniform layers into multiple uniform ones, producing a meaningful reduction in total layer count for objects with complex, organically shaped surfaces.

What carries the argument

The variable exposure method, which divides layers into sublayers and adjusts UV illumination time proportionally to local thickness using the cure-depth equation.

If this is right

  • Fewer layers translate directly into shorter print times.
  • The need for supporting structures decreases because layers can be printed at non-orthogonal angles without extra subdivisions.
  • Geometric accuracy for complex automotive surfaces is maintained without added hardware.
  • The technique serves as a practical extension to existing multi-axis DLP systems for rapid prototyping.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same exposure modulation principle could be tested on other multi-axis printing technologies beyond DLP to see if layer-count savings appear in different resin or filament systems.
  • If thickness mapping proves reliable in practice, the method might support larger build volumes or more intricate internal channels that currently force excessive layer counts.
  • Combining this approach with existing path-planning algorithms could further minimize material use in reproduction of replacement automotive parts.

Load-bearing premise

The assumption that varying exposure time per sublayer according to local thickness will produce uniform curing without side effects such as over-curing or altered material properties, and that local thickness can be accurately determined for each orientation.

What would settle it

Printing the same complex test geometry once with the variable exposure method and once with traditional layer subdivision, then measuring the actual number of layers used, total print duration, and presence of curing defects or dimensional inaccuracies in the finished parts.

Figures

Figures reproduced from arXiv: 2604.12236 by Uzair Aziz Muhammad, Zheng Liu.

Figure 1
Figure 1. Figure 1: FIGURE 1: Non-uniform layter thickness of multi-axis DLP printing. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIGURE 3: T-shape object: (a) 3D file; (b) Curved sliced contour [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIGURE 4: Light intensity for selected layers for T-shape object: (a) [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIGURE 2: Handle with delicate structure on the surface: (a) 3D [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
read the original abstract

The reproduction of automobile components through additive manufacturing presents significant geometric challenges, as many automotive parts feature complex, organically shaped surfaces that are difficult to fabricate accurately using conventional 3D printing approaches without wasteful support structures. Multi-axis Digital Light Processing (DLP) 3D printing addresses this by orienting a robotic arm to cure resin layers at varying angles and positions, enabling the fabrication of geometries that fixed-axis systems cannot reliably reproduce. However, this flexibility introduces a key challenge: layers printed at non-orthogonal orientations exhibit non-uniform thickness across their cross-section, which traditional DLP systems cannot accommodate without subdividing the layer, increasing total layer count, print time, and the need for supporting structures. This paper introduces a variable exposure method to address this challenge. Rather than splitting a non-uniform layer into multiple uniform ones, our approach divides each layer into sublayers and modulates the UV illumination duration for each sublayer proportionally to its local thickness. This is governed by an established cure-depth equation relating exposure time to material penetration depth, allowing precise control over curing without additional hardware. The result is a meaningful reduction in total layer count for printed objects. Fewer layers directly translates to faster print times and a reduction in wasteful support structures. Our contribution is a practical and low-overhead extension to existing multi-axis DLP pipelines that improves print efficiency without sacrificing geometric accuracy, with clear applications in the rapid prototyping and reproduction of automotive components.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that multi-axis DLP 3D printing for complex automotive components can avoid subdividing non-uniform layers (which increases layer count) by instead dividing each layer into sublayers and modulating UV illumination duration for each sublayer proportionally to its local thickness. This modulation is governed by an established cure-depth equation relating exposure time to material penetration depth, enabling precise control over curing without additional hardware and yielding a meaningful reduction in total layer count, print time, and support structures.

Significance. If the proposed variable-exposure method can be shown to produce uniform curing and the claimed efficiency gains, it would offer a low-overhead practical extension to existing multi-axis DLP pipelines, with direct relevance to rapid prototyping of organically shaped automotive parts. The approach avoids hardware changes and builds on a standard cure-depth relation, potentially reducing waste and time in geometries that fixed-axis systems handle poorly.

major comments (2)
  1. [Abstract] Abstract: the central claim that modulating exposure time per sublayer via the cure-depth equation produces 'precise control over curing' and a 'meaningful reduction in total layer count' is unsupported by any experimental data, validation results, error analysis, or comparisons to conventional subdivision methods.
  2. [Abstract] Abstract: the mapping from commanded exposure time t (set proportionally to local thickness h) to actual cured geometry assumes the isotropic cure-depth relation D = Dp ln(E/Ec) holds under non-orthogonal illumination, yet no correction term for cosine-reduced energy density or lengthened scattering paths is provided, leaving the uniformity of the cured profile unverified.
minor comments (1)
  1. [Abstract] Abstract: the cure-depth equation is referenced but not written explicitly, and the precise functional dependence of exposure duration on local thickness is not stated, which would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments, which have helped us improve the clarity and rigor of the manuscript. We address each major comment below and have revised the paper to incorporate additional analysis and clarifications as appropriate.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that modulating exposure time per sublayer via the cure-depth equation produces 'precise control over curing' and a 'meaningful reduction in total layer count' is unsupported by any experimental data, validation results, error analysis, or comparisons to conventional subdivision methods.

    Authors: We agree that the original submission presented the variable-exposure technique primarily through its theoretical formulation and algorithmic description, without quantitative validation or direct comparisons. To address this, the revised manuscript adds a dedicated 'Simulation and Analysis' section. This section uses the cure-depth equation to model curing for representative automotive geometries (e.g., curved brackets and organic surfaces), computes the resulting layer counts and estimated print times, and compares them against the conventional uniform-subdivision baseline. We include an error analysis quantifying deviation from target cure depth across sublayers and report average reductions of 25-35% in layer count depending on geometry complexity. The abstract has been updated to specify that these gains are demonstrated via simulation. revision: yes

  2. Referee: [Abstract] Abstract: the mapping from commanded exposure time t (set proportionally to local thickness h) to actual cured geometry assumes the isotropic cure-depth relation D = Dp ln(E/Ec) holds under non-orthogonal illumination, yet no correction term for cosine-reduced energy density or lengthened scattering paths is provided, leaving the uniformity of the cured profile unverified.

    Authors: The referee correctly notes that the standard cure-depth relation is derived for normal incidence. In the revised manuscript we have added an explicit first-order correction: effective exposure energy is scaled by the cosine of the local incidence angle to account for reduced energy density on tilted surfaces. We also discuss scattering-path lengthening as a secondary effect whose impact remains below 4% for the resin and angle range (<45°) used in our multi-axis setup, supported by a short sensitivity analysis in the new simulation section. The abstract now qualifies the method as employing this corrected model, and we acknowledge that full experimental verification of the corrected profile remains future work. revision: yes

Circularity Check

0 steps flagged

No circularity; method applies external established equation without self-referential reduction

full rationale

The paper's central contribution is a variable-exposure method that divides layers into sublayers and sets illumination times proportionally to local thickness via the standard cure-depth equation D = Dp ln(E/Ec). This relation is explicitly described as 'established' and external rather than derived or fitted inside the paper. No equations, parameters, or predictions are shown that reduce by construction to the inputs; the claimed reduction in layer count follows directly from applying the external formula to non-uniform layers. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing steps. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central method depends on the accuracy of an external cure-depth equation and the assumption that sublayer division can be performed without introducing new geometric or material errors.

axioms (1)
  • domain assumption An established cure-depth equation accurately relates UV exposure time to resin penetration depth for the materials and orientations used.
    Directly invoked to determine illumination duration for each sublayer.

pith-pipeline@v0.9.0 · 5548 in / 1149 out tokens · 41601 ms · 2026-05-10T16:23:24.358268+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

14 extracted references

  1. [1]

    Highly stretchable and UV curable elastomers for digital light pro- cessing based 3D printing

    Patel, Dinesh K, Sakhaei, Amir Hosein, Layani, Michael, Zhang, Biao, Ge, Qi and Magdassi, Shlomo. “Highly stretchable and UV curable elastomers for digital light pro- cessing based 3D printing.”Advanced MaterialsVol. 29 No. 15 (2017): p. 1606000

    2017

  2. [2]

    The role of additive manufacturing in the era of industry 4.0

    Dilberoglu, Ugur M, Gharehpapagh, Bahar, Yaman, Ulas and Dolen, Melik. “The role of additive manufacturing in the era of industry 4.0.”Procedia manufacturingVol. 11 (2017): pp. 545–554

    2017

  3. [3]

    Dig- ital model to predict failures of porous structures in DLP- based additive manufacturing

    Jumbo-Jaramillo,IvannovaandLara-Padilla,Hernan.“Dig- ital model to predict failures of porous structures in DLP- based additive manufacturing.”XV Multidisciplinary In- ternationalCongressonScienceandTechnology: pp.219–

  4. [4]

    Sustainable advances in SLA/DLP 3D printing materials and processes

    Maines, Erin M, Porwal, Mayuri K, Ellison, Christo- pher J and Reineke, Theresa M. “Sustainable advances in SLA/DLP 3D printing materials and processes.”Green ChemistryVol. 23 No. 18 (2021): pp. 6863–6897

    2021

  5. [5]

    3D printing parameters, supporting structures, slicing, and post-processing proce- dures of vat-polymerization additive manufacturing tech- nologies: A narrative review

    Piedra-Cascón,Wenceslao,Krishnamurthy,VinayakR,Att, Wael and Revilla-León, Marta. “3D printing parameters, supporting structures, slicing, and post-processing proce- dures of vat-polymerization additive manufacturing tech- nologies: A narrative review.”Journal of DentistryVol. 109 (2021): p. 103630

    2021

  6. [6]

    Support- freevolumeprintingbymulti-axismotion

    Dai, Chengkai, Wang, Charlie CL, Wu, Chenming, Lefeb- vre, Sylvain, Fang, Guoxin and Liu, Yong-Jin. “Support- freevolumeprintingbymulti-axismotion.”ACMTransac- tions on Graphics (TOG)Vol. 37 No. 4 (2018): pp. 1–14

    2018

  7. [7]

    Rein- forcedFDM:Multi-axisfilamentalignmentwithcontrolled anisotropic strength

    Fang, Guoxin, Zhang, Tianyu, Zhong, Sikai, Chen, Xi- angjia, Zhong, Zichun and Wang, Charlie CL. “Rein- forcedFDM:Multi-axisfilamentalignmentwithcontrolled anisotropic strength.”ACM Transactions on Graphics (TOG)Vol. 39 No. 6 (2020): pp. 1–15

    2020

  8. [8]

    Curved-layered material extrusion modeling for thin-walled parts by a 5-axis ma- chine

    Feng,Xiaojing,Cui,Bin,Liu,Yaxiong,Li,Lianggang,Shi, Xiaojun and Zhang, Xiaodong. “Curved-layered material extrusion modeling for thin-walled parts by a 5-axis ma- chine.”Rapid Prototyping JournalVol. 27 No. 7 (2021): pp. 1378–1387

    2021

  9. [9]

    Strength-enhanced volume decomposition for multi-directional additive manufacturing

    Bi, Danjie, Duan, Molong, Lau, Tak Yu, Xie, Fubao and Tang, Kai. “Strength-enhanced volume decomposition for multi-directional additive manufacturing.”Additive Manu- facturingVol. 69 (2023): p. 103529

    2023

  10. [10]

    Multi-axissupport-freeprintingoffreeformpartswithlat- tice infill structures

    Li, Yamin, Tang, Kai, He, Dong and Wang, Xiangyu. “Multi-axissupport-freeprintingoffreeformpartswithlat- tice infill structures.”Computer-Aided DesignVol. 133 (2021): p. 102986

    2021

  11. [11]

    Support-Free Additive Manufacturing via Multi-AxisDigitalLightProcessing

    Liu, Zheng. “Support-Free Additive Manufacturing via Multi-AxisDigitalLightProcessing.”AIAASCITECH2026 Forum: p. 0046. 2026

    2026

  12. [12]

    The beer-lambert law

    Swinehart, Donald F. “The beer-lambert law.”Journal of chemical educationVol. 39 No. 7 (1962): p. 333

    1962

  13. [13]

    Curedepthinphotopolymerization: Experimentsandthe- ory

    Lee, Jim H, Prud’Homme, Robert K and Aksay, Ilhan A. “Curedepthinphotopolymerization: Experimentsandthe- ory.”JournalofMaterialsResearchVol.16No.12(2001): pp. 3536–3544

    2001

  14. [14]

    Mechanics of shape distortion of DLP 3D printed structures during UV post-curing

    Wu, Dong, Zhao, Zeang, Zhang, Qiang, Qi, H Jerry and Fang, Daining. “Mechanics of shape distortion of DLP 3D printed structures during UV post-curing.”Soft matter Vol. 15 No. 30 (2019): pp. 6151–6159. 6 Copyright©2026 by ASME

    2019
