arxiv: 2604.12422 · v1 · submitted 2026-04-14 · 📡 eess.SY · cs.SY

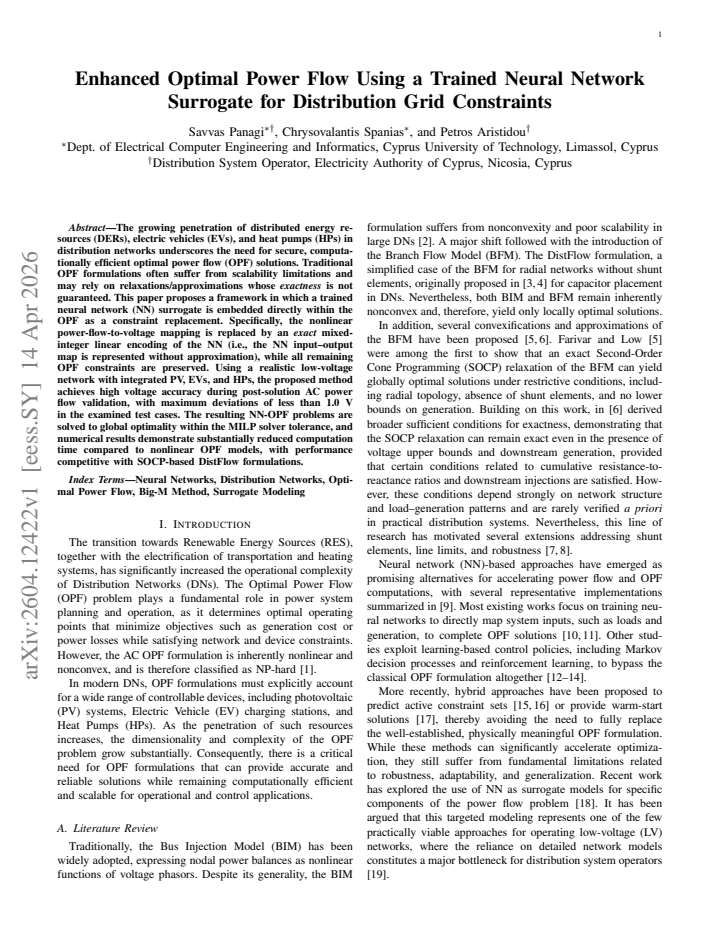

Enhanced Optimal Power Flow Using a Trained Neural Network Surrogate for Distribution Grid Constraints

Savvas Panagi , Chrysovalantis Spanias , Petros Aristidou This is my paper

Pith reviewed 2026-05-10 15:16 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords optimal power flowneural network surrogatemixed-integer linear programmingdistribution networksvoltage constraintsdistributed energy resources
0
0 comments X

The pith

A trained neural network surrogate can replace the nonlinear voltage mapping in distribution optimal power flow when encoded exactly as a mixed-integer linear program.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to embed a trained neural network directly into the optimal power flow problem by replacing the nonlinear power-flow-to-voltage equations with an exact mixed-integer linear encoding of the network. All other OPF constraints stay unchanged. On a realistic low-voltage distribution network that includes photovoltaics, electric vehicles, and heat pumps, the resulting problems reach global optimality inside standard MILP solver tolerances. Post-solution AC power flow checks confirm that predicted voltages stay within one volt of the true values across the tested cases, while run times drop compared with nonlinear solvers and match those of SOCP relaxations.

Core claim

The nonlinear power-flow-to-voltage mapping is replaced by an exact mixed-integer linear encoding of a trained neural network surrogate, allowing the full OPF problem to be solved as a mixed-integer linear program that reaches global optimality within solver tolerance while producing solutions whose voltages, when validated by AC power flow, deviate by less than 1 V.

What carries the argument

The exact mixed-integer linear encoding of the trained neural network that substitutes for the nonlinear power-flow-to-voltage mapping while leaving all remaining OPF constraints untouched.

If this is right

  • The resulting NN-OPF problems are solved to global optimality inside the MILP solver tolerance.
  • Computation time is substantially lower than that of nonlinear OPF models.
  • Voltage accuracy after AC power flow validation stays within a maximum deviation of 1 V in the tested cases.
  • Solution quality remains competitive with SOCP-based DistFlow formulations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same surrogate technique could be applied to other non-convex constraints in OPF if a suitable training data set is available.
  • Retraining the network on new load or generation patterns would be required before the method can be trusted on operating conditions outside the original training set.
  • The MILP encoding size grows with the number of neurons and layers, which may limit scalability before further compression or pruning is applied.

Load-bearing premise

The trained neural network surrogate, once turned into an exact mixed-integer linear program, continues to represent the true nonlinear power-flow-to-voltage mapping accurately enough for the tested network and operating conditions.

What would settle it

Running a full AC power flow calculation on any solution returned by the NN-OPF and finding a voltage deviation larger than 1 V at any bus in the examined low-voltage test cases.

Figures

Figures reproduced from arXiv: 2604.12422 by Chrysovalantis Spanias, Petros Aristidou, Savvas Panagi.

Figure 1

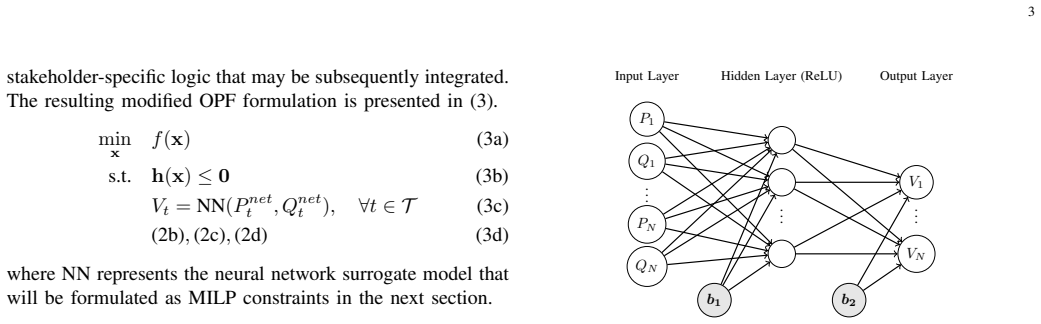

Figure 1. Figure 1: Neural network structure for voltage estimation. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

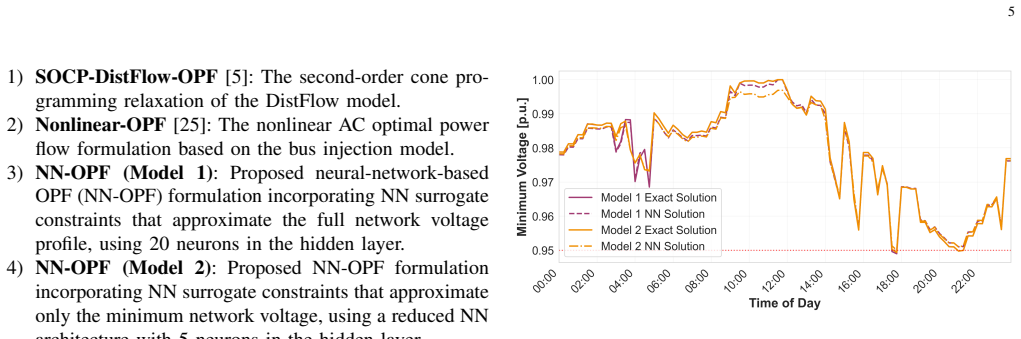

Figure 2. Figure 2: Comparison of minimum network voltage profiles for Model 1 and [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

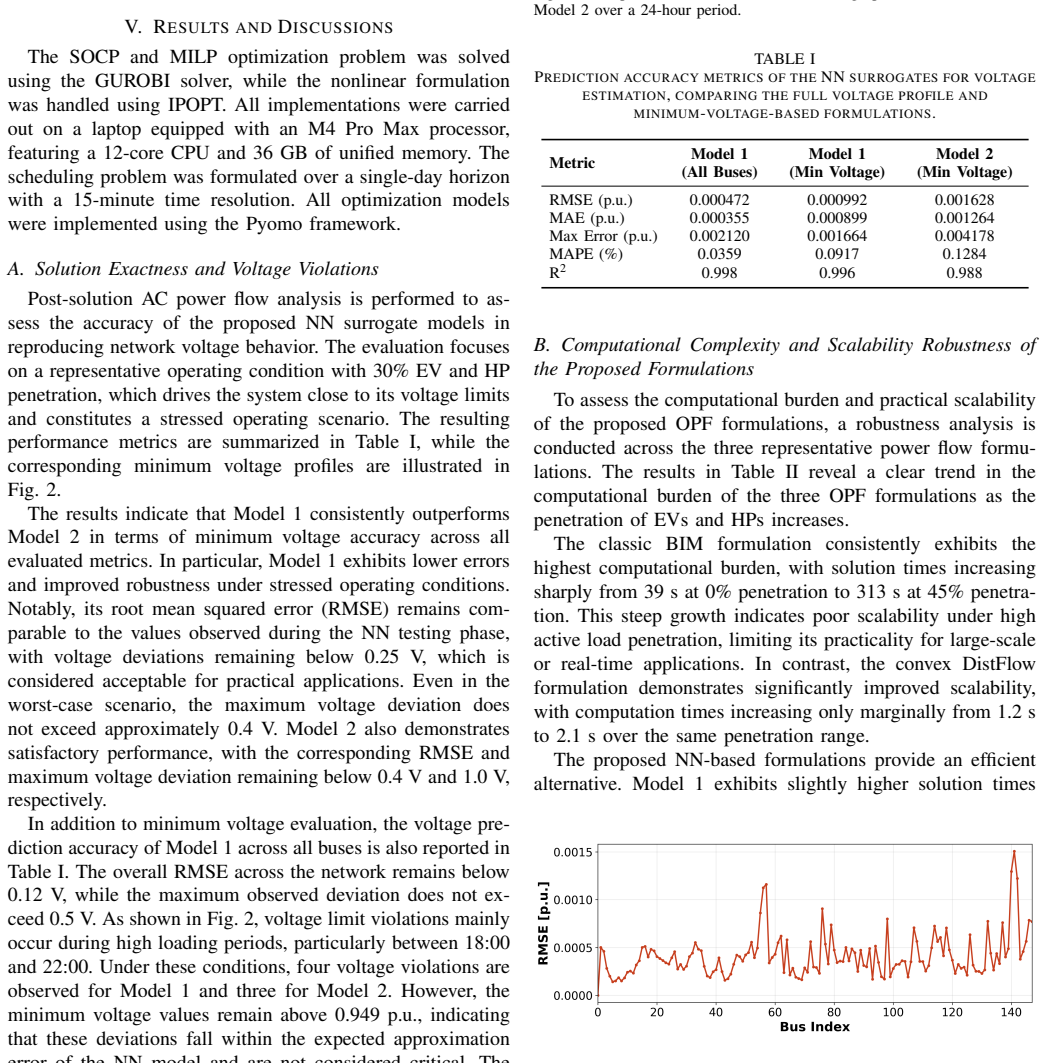

Figure 3. Figure 3: RMSE of the predicted bus voltages for NN-Model 1 across all [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

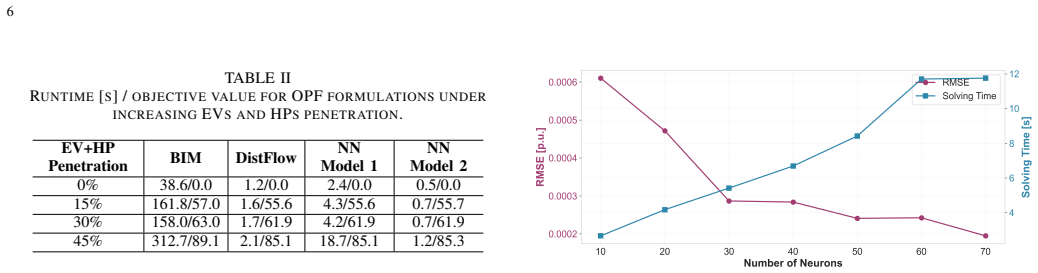

Figure 4. Figure 4: Trade-off between voltage prediction accuracy and computational time [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

The growing penetration of distributed energy resources (DERs), electric vehicles (EVs), and heat pumps (HPs) in distribution networks underscores the need for secure, computationally efficient optimal power flow (OPF) solutions. Traditional OPF formulations often suffer from scalability limitations and may rely on relaxations/approximations whose exactness is not guaranteed. This paper proposes a framework in which a trained neural network (NN) surrogate is embedded directly within the OPF as a constraint replacement. Specifically, the nonlinear power-flow-to-voltage mapping is replaced by an exact mixed-integer linear encoding of the NN (i.e., the NN input-output map is represented without approximation), while all remaining OPF constraints are preserved. Using a realistic low-voltage network with integrated PV, EVs, and HPs, the proposed method achieves high voltage accuracy during post-solution AC power flow validation, with maximum deviations of less than 1.0 V in the examined test cases. The resulting NN-OPF problems are solved to global optimality within the MILP solver tolerance, and numerical results demonstrate substantially reduced computation time compared to nonlinear OPF models, with performance competitive with SOCP-based DistFlow formulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes replacing the nonlinear power-flow-to-voltage mapping in distribution-grid OPF with an exact MILP encoding of a trained NN surrogate while retaining all other OPF constraints. On a realistic low-voltage network with PV, EVs and HPs, it reports post-solution AC power-flow validation errors below 1 V, global optimality within MILP solver tolerance, and substantially reduced run times relative to nonlinear OPF (competitive with SOCP DistFlow).

Significance. If the surrogate remains faithful over the dispatch region explored by the optimizer, the method would offer a scalable route to globally optimal OPF that incorporates complex nonlinear physics via exact NN encodings rather than relaxations. The exact MILP encoding of the NN itself is a clear technical strength, eliminating surrogate-internal approximation error.

major comments (1)
  1. [Abstract] Abstract: the central accuracy claim rests on AC power-flow validation performed only at the single post-solution point returned by the NN-OPF. Because the MILP solver searches the entire surrogate feasible set, any region of poor NN fidelity can produce a dispatch that is suboptimal or infeasible under the true AC equations, even if the final point validates well. No training-data coverage statistics, out-of-sample error bounds, or surrogate-error metrics over the operating range are reported.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed review and valuable suggestions. Below we provide a point-by-point response to the major comment and indicate the revisions we will make to address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central accuracy claim rests on AC power-flow validation performed only at the single post-solution point returned by the NN-OPF. Because the MILP solver searches the entire surrogate feasible set, any region of poor NN fidelity can produce a dispatch that is suboptimal or infeasible under the true AC equations, even if the final point validates well. No training-data coverage statistics, out-of-sample error bounds, or surrogate-error metrics over the operating range are reported.

    Authors: We agree that validation solely at the post-solution point does not fully address potential surrogate inaccuracies across the region explored by the MILP solver. The manuscript focuses on post-solution AC power-flow validation because that is the dispatch point ultimately applied to the physical network. The NN surrogate was trained on a dataset of operating points sampled across the expected ranges of loads, PV generation, EV charging, and HP demand for the test network. To strengthen the presentation, we will revise the abstract to clarify the validation scope and add explicit training-data coverage statistics, out-of-sample error bounds, and surrogate-error metrics (including maximum and average voltage prediction errors) evaluated over a representative grid of points in the operating range. These changes will be incorporated in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity; external AC power flow validation is independent of the NN surrogate

full rationale

The derivation replaces the nonlinear power-flow-to-voltage map with an exactly encoded MILP representation of a separately trained NN, solves the resulting OPF to global optimality, and then validates the obtained point with an independent AC power flow solver. Accuracy is measured by voltage deviations on this external solver, not by any quantity internal to the NN or defined by the MILP encoding itself. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the chain. The method is self-contained against the external benchmark.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that the NN surrogate can be trained to sufficient accuracy on representative data and that its exact MILP encoding preserves that accuracy for the tested operating points. No new physical entities are introduced.

free parameters (1)
  • NN weights and biases
    Fitted during training on power-flow data; the accuracy claim depends on how well these parameters generalize.
axioms (1)
  • domain assumption The power-flow-to-voltage mapping can be approximated by a feed-forward neural network with sufficient fidelity for the target network.
    Invoked when the NN is trained and then used as a surrogate constraint.
