arxiv: 2604.12602 · v1 · submitted 2026-04-14 · ⚛️ physics.optics · physics.plasm-ph

High intensity attosecond beamline for XUV pump XUV probe measurements with photon energies up to 150 eV

Sajjad Vardast , Alexander Muschet , N. Smijesh , Mohammad Rezaei-Pandari , Fritz Schnur , Robin Weissenbilder , Elisa Appi , Jan Lahl
show 4 more authors
Sylvain Maclot Per Eng-Johnsson Anne L'Huillier Laszlo Veisz
This is my paper

Pith reviewed 2026-05-10 15:07 UTC · model grok-4.3

classification ⚛️ physics.optics physics.plasm-ph
keywords attosecond pulseshigh-harmonic generationXUV beamlinepump-probe spectroscopynonlinear XUV physicsisolated attosecond pulsessoft X-ray
0
0 comments X

The pith

A new beamline produces up to 55 nJ of attosecond XUV pulses in the 65-150 eV range for pump-probe experiments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the design and characterization of a beamline that upscales high-harmonic generation in a gas medium to create energetic isolated attosecond pulses. It reports measurements of pulse energy, beam profile, spectrum, and divergence, then adds a split-and-delay stage and tight focusing to enable XUV pump XUV probe spectroscopy. A sympathetic reader would care because most attosecond facilities lack the intensity and isolation needed for nonlinear experiments at these photon energies.

Core claim

The source delivers up to 55 nJ of pulse energy within the Zr window (65-150 eV) with high stability and 0.1 mrad divergence. Temporal super-resolution of the driving laser broadens the spectral continuum. The beamline incorporates a split-and-delay stage before focusing the radiation to a spot smaller than 6 micrometers, with spatially resolved ion microscopy used to trace ions at the interaction region.

What carries the argument

The split-and-delay stage combined with dual focusing optics that routes the HHG output into two paths for pump-probe overlap at a sub-6 micrometer focal spot.

If this is right

  • The beamline supports nonlinear XUV studies using isolated attosecond pulses up to 150 eV.
  • Pump-probe delays can be scanned with two distinct XUV pulses focused to the same sub-6 micrometer spot.
  • Spatially resolved ion microscopy provides direct diagnostics of the interaction volume.
  • Numerical simulations of HHG conditions match the experimental output and can guide further optimization.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such a source could enable time-resolved measurements of inner-shell electron dynamics that were previously inaccessible with lower-energy attosecond pulses.
  • The reported focusing and stability open the possibility of combining the beamline with coincidence detection or photoelectron spectroscopy for more complex targets.
  • If the intensity scales further, the same architecture might support experiments that require multiple XUV photons per pulse.

Load-bearing premise

The measured pulse energy, stability, and divergence remain essentially unchanged after the split-and-delay stage and focusing optics, with no major unaccounted losses.

What would settle it

Direct measurement of pulse energy at the focus below 10 nJ or divergence exceeding 0.5 mrad after the full beamline would falsify the claimed performance for pump-probe use.

Figures

Figures reproduced from arXiv: 2604.12602 by Alexander Muschet, Anne L'Huillier, Elisa Appi, Fritz Schnur, Jan Lahl, Laszlo Veisz, Mohammad Rezaei-Pandari, N. Smijesh, Per Eng-Johnsson, Robin Weissenbilder, Sajjad Vardast, Sylvain Maclot.

Figure 1
Figure 1. Figure 1: XUV energy per pulse or train (multiple pulses) for high-order harmonic generation sources that use neon as a medium for HHG with a spectrum over 70 eV. The driving laser’s repetition rate varies from 10 Hz to 250 MHz, with a central wavelength in the 800-1040 nm range, except for two cases having around 1800 nm [17, 18]. Sources marked with ’o’ have reported isolated XUV pulses, while those marked with ’x… view at source ↗
Figure 2
Figure 2. Figure 2: Schematic of AS beamline in the REAL lab. Part of the LWS100 laser system is guided into the beamline. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

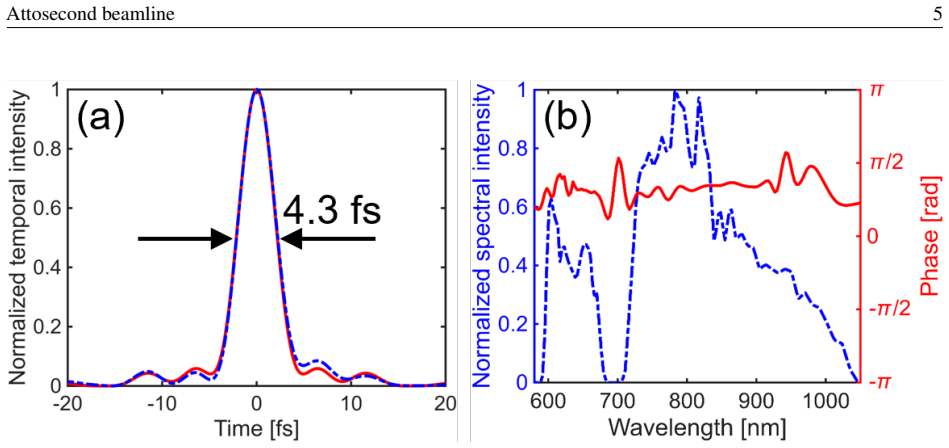

Figure 3. Figure 3: Temporal and spectral characterization of the fundamental laser pulses using the chirp-scan technique. (a) [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: (a) Laser focus at the gas target. The FWHM focus size is 425 [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a) Simulated (color 2D plot) and measured (3 white rectangles and a dot) HHG conversion efficiency in the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Temporal calibration of the split-and-delay stage and out-of-loop temporal delay jitter measurement. (a-c) [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

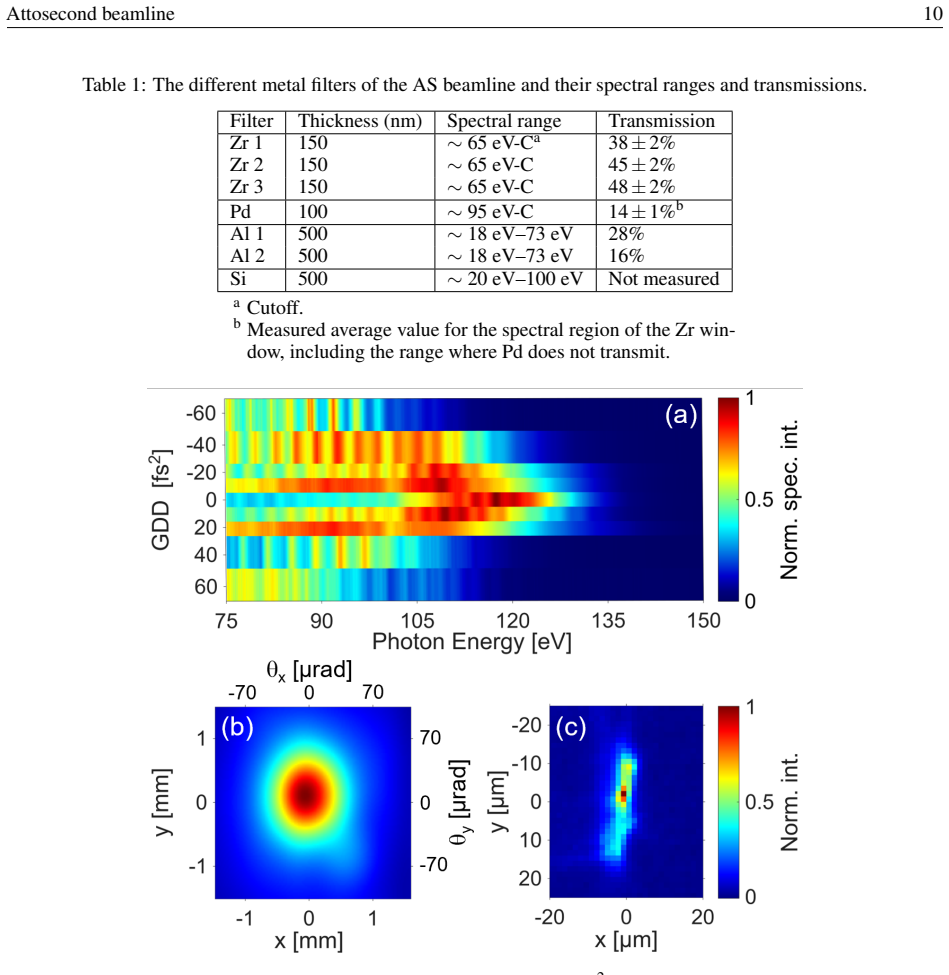

Figure 7. Figure 7: (a) HHG spectrum vs. GDD values of LWS100, where 0 fs [PITH_FULL_IMAGE:figures/full_fig_p010_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: (a) Single-shot 2D XUV spectrum. (b) Single-shot XUV spectrum for different CEP values. (c) XUV [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Spectral amplitude modulation for temporal super-resolution. (a) Spectrum of the laser before (red) and after [PITH_FULL_IMAGE:figures/full_fig_p013_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Ion distribution of linearly ionized Xe species measured with the ion microscope. (a) Focusing with [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: VMI design and simulations for electron energy resolution. (a) Design and simulated electron trajectories for [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
read the original abstract

The field of attosecond physics has expanded significantly in recent years, yet experimental facilities supporting attosecond pump attosecond probe spectroscopy remain rare. Here, we present a newly constructed beamline for the generation and application of energetic, isolated extreme ultraviolet (XUV) and soft X-ray attosecond pulses via upscaling of high-harmonic generation (HHG) in a gas medium. The fundamental properties of the HHG radiation energy, beam profile, spectrum, and divergence are characterized and optimized. The source delivers up to 55 nJ of pulse energy within the Zr window (65-150 eV) with high stability (~5-10) and a divergence of 0.1 mrad. Numerical simulations identify optimal operating conditions consistent with experimental results. Temporal super-resolution of the driving laser is applied, resulting in a broadened spectral continuum. Furthermore, the beamline includes a split-and-delay stage before focusing the HHG radiation to a <6 um spot for pump-probe experiments using two distinct focusing optics. Spatially resolved ion microscopy is employed to trace the generated ions at the focus. The presented beamline is designed for nonlinear XUV studies with attosecond isolated pulses.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents the design, construction, and initial characterization of a beamline for generating energetic isolated attosecond XUV pulses via high-harmonic generation (HHG) in a gas cell. Key claims include delivery of up to 55 nJ pulse energy in the 65-150 eV Zr window, ~5-10% stability, 0.1 mrad divergence, optimization via numerical simulations and temporal super-resolution of the driving laser, incorporation of a split-and-delay stage, and focusing to a <6 μm spot using two distinct optics for XUV pump-probe experiments, with spatially resolved ion microscopy for diagnostics. The setup targets nonlinear XUV studies.

Significance. If the reported source metrics are verified to hold at the interaction region after all downstream optics, the work would represent a useful addition to the limited number of high-intensity attosecond XUV facilities capable of pump-probe measurements at photon energies up to 150 eV. The practical integration of split-and-delay with tight focusing and ion imaging provides a concrete experimental platform that could enable new nonlinear XUV experiments, provided transmission losses and beam quality preservation are quantified.

major comments (2)
  1. [Abstract] Abstract: The central performance claims (55 nJ energy in the Zr window, ~5-10% stability, 0.1 mrad divergence, <6 μm focus) are stated without accompanying quantitative data, error bars, spectra, or references to specific figures/tables showing the measurements or optimization results. This leaves the characterization and simulation-matching assertions with limited verifiable support in the provided text.
  2. [Beamline description] Beamline description: The reported energy, stability, and divergence are characterized at the HHG source. No measurements or transmission estimates are provided after the split-and-delay stage and the two focusing optics, which are explicitly placed downstream before the interaction region. If cumulative losses exceed ~50% (typical for XUV optics), the delivered energy at the <6 μm spot would fall short of the threshold implied for nonlinear studies; the text does not clarify whether simulations include the full optical train.
minor comments (1)
  1. [Abstract] Abstract: The stability figure is given as '~5-10' without units (e.g., percent) or clarification on the measurement method or time scale.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript describing the new high-intensity attosecond XUV beamline. We address each major comment below and will revise the manuscript to strengthen the presentation of our results and clarify the optical chain.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central performance claims (55 nJ energy in the Zr window, ~5-10% stability, 0.1 mrad divergence, <6 μm focus) are stated without accompanying quantitative data, error bars, spectra, or references to specific figures/tables showing the measurements or optimization results. This leaves the characterization and simulation-matching assertions with limited verifiable support in the provided text.

    Authors: We agree that the abstract would be improved by explicit references to the supporting data and figures. In the revised manuscript we will insert citations to the relevant figures and tables (e.g., energy and stability in Fig. 3, divergence in Fig. 4, focus characterization in Fig. 7, and simulation comparisons in Sec. III) for each performance metric. The quantitative measurements, including spectra, error bars, and optimization results, are already presented in the main text; the abstract will now direct readers to these sections. revision: yes

  2. Referee: [Beamline description] Beamline description: The reported energy, stability, and divergence are characterized at the HHG source. No measurements or transmission estimates are provided after the split-and-delay stage and the two focusing optics, which are explicitly placed downstream before the interaction region. If cumulative losses exceed ~50% (typical for XUV optics), the delivered energy at the <6 μm spot would fall short of the threshold implied for nonlinear studies; the text does not clarify whether simulations include the full optical train.

    Authors: We acknowledge that the primary source characterization is performed before the downstream optics. In the revision we will add a dedicated paragraph with transmission estimates for the split-and-delay stage and the two focusing optics, based on the measured reflectivities of the XUV mirrors employed. We will explicitly state that the numerical simulations optimize only the HHG generation process and do not model the full optical train. We will also include a discussion of the expected intensity at the interaction region after accounting for these losses, thereby clarifying the conditions available for nonlinear XUV experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental instrumentation report with direct measurements

full rationale

The paper reports construction and characterization of an HHG-based attosecond beamline. All central claims (55 nJ in Zr window, ~5-10% stability, 0.1 mrad divergence, <6 µm focus) rest on direct experimental measurements of the generated radiation and standard HHG physics, with numerical simulations used only for consistency checks on operating conditions. No equations, fitted parameters, predictions, self-citations of uniqueness theorems, or ansatzes appear that reduce any result to its own inputs by construction. Downstream optics (split-and-delay, focusing) are described but do not create a circular derivation chain; performance metrics are presented as measured quantities rather than derived outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is purely experimental and reports measured performance of a constructed apparatus. No free parameters, axioms, or invented entities are introduced; the claims rely on standard high-harmonic generation physics and conventional beamline components.
