arxiv: 2604.12906 · v1 · submitted 2026-04-14 · ⚛️ physics.optics

Noise factor of Brillouin amplifiers

John H. Dallyn , Nils T. Otterstrom , Matt Eichenfield , Peter T. Rakich , Ryan O. Behunin This is my paper

Pith reviewed 2026-05-10 14:25 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords stimulated Brillouin scatteringnoise factorBrillouin amplifiersphonon propagationcoupled-mode theoryoptical signal processingthermal noiseintegrated photonics
0
0 comments X

The pith

The noise factor of Brillouin amplifiers deviates sharply from the simple thermal formula when phonon propagation affects the dynamics.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that the standard noise factor of approximately one plus the thermal phonon number arises only in the special case of large gain with no phonon propagation. A full spatio-temporal coupled-mode model reveals that phonon travel, forward or backward scattering, optical loss, and small gains produce large departures from this value. This matters for modern integrated devices because the simple formula has guided expectations for added noise in optical signal processing. A reader cares because accurate noise prediction determines whether these amplifiers can reach the low-noise performance needed for practical use.

Core claim

We show that this noise factor results naturally from a Hamiltonian-based spatio-temporal coupled mode treatment in the limit of large Brillouin amplification and when phonon propagation is neglected. Moreover, this theoretical framework allows us to extend our treatment to a much larger and more representative parameter space for emerging SBS systems; specifically, this analysis accounts for the forward or backward nature of the scattering process and the effects of phonon propagation, optical loss, and small Brillouin gains. Our results demonstrate that the noise factor can deviate radically from F≈1+n_th for a host of modern SBS devices, especially those in which phonon propagation signif

What carries the argument

Hamiltonian-based spatio-temporal coupled-mode treatment that incorporates phonon propagation, scattering direction, optical loss, and finite gain.

If this is right

  • Noise predictions for devices with propagating phonons must include changes to the coupled-mode dynamics rather than using the fixed thermal formula.
  • Forward-scattering and backward-scattering geometries produce different noise factors once propagation is accounted for.
  • Optical loss and small Brillouin gains each shift the noise factor away from the large-gain, no-propagation limit.
  • Modern integrated SBS systems require device-specific modeling to determine their actual noise performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers could reduce amplifier noise by engineering geometries that suppress unwanted phonon propagation effects.
  • The same modeling approach may apply to other photon-phonon systems where propagation and loss compete with gain.
  • Experimental tests in waveguide or resonator geometries with controlled phonon lifetime would directly test the predicted deviations.

Load-bearing premise

The Hamiltonian-based spatio-temporal coupled-mode treatment accurately captures the noise physics when phonon propagation, forward/backward scattering, optical loss, and small gains are included.

What would settle it

Direct measurement of the added noise factor in a Brillouin amplifier that has strong phonon propagation and operates at modest gain, compared against the value 1 plus the thermal phonon number.

Figures

Figures reproduced from arXiv: 2604.12906 by John H. Dallyn, Matt Eichenfield, Nils T. Otterstrom, Peter T. Rakich, Ryan O. Behunin.

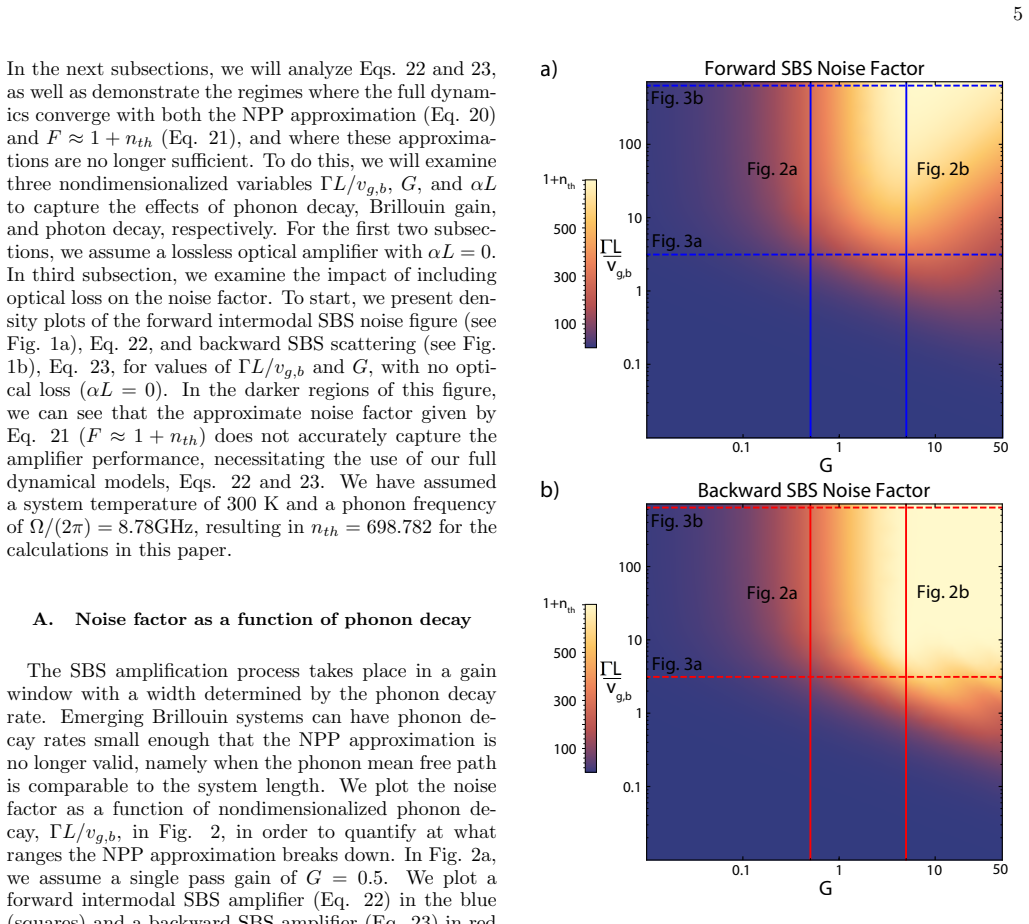

Figure 1
Figure 1. Figure 1: FIG. 1. The noise factor of a forward intermodal SBS optical [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

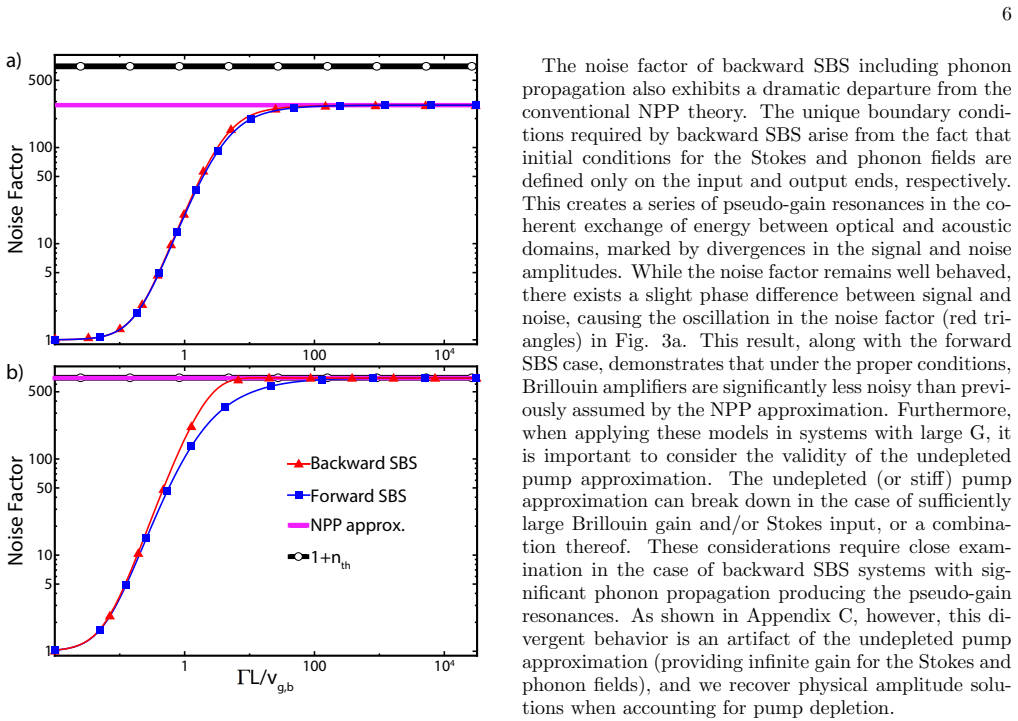

Figure 2
Figure 2. Figure 2: FIG. 2. Plot of a Brillouin optical amplifier’s noise factor [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

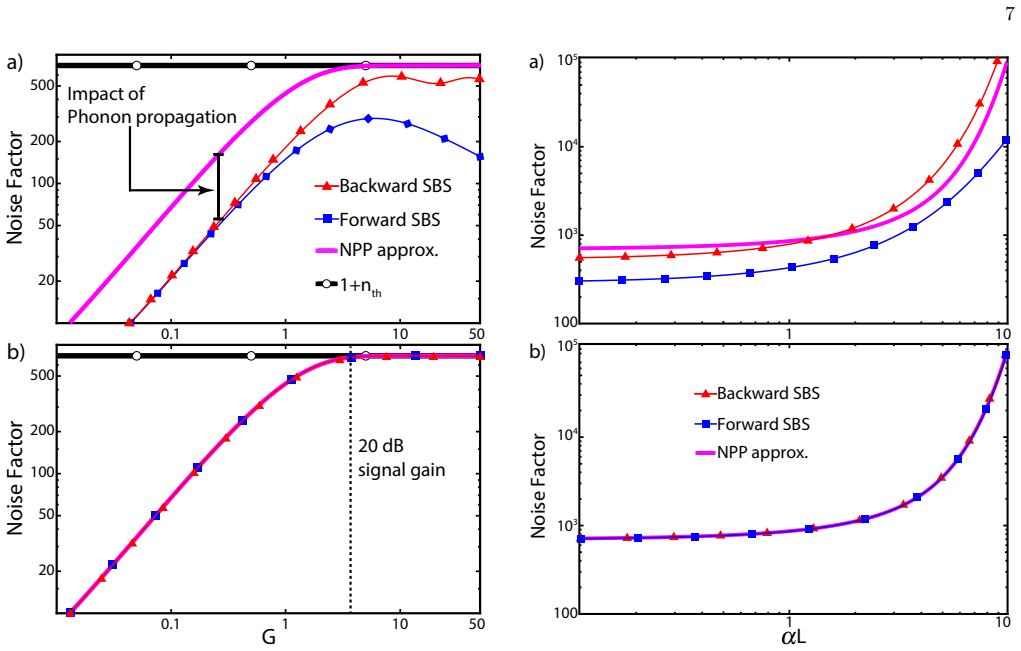

Figure 3
Figure 3. Figure 3: FIG. 3. Plot of a Brillouin optical amplifier’s noise factor a [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

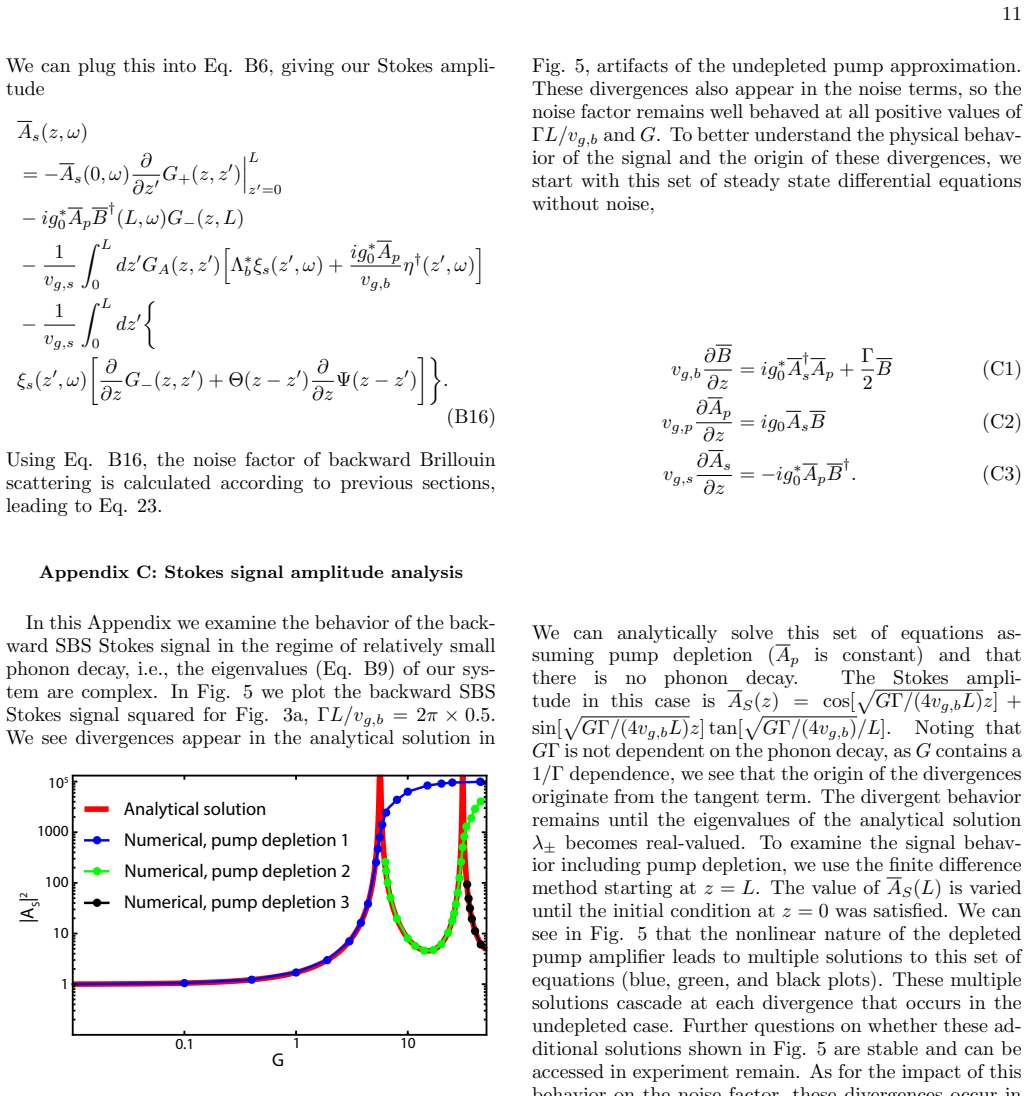

Figure 5
Figure 5. Figure 5: FIG. 5. Plot of a backward SBS amplifier’s Stokes amplitude [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

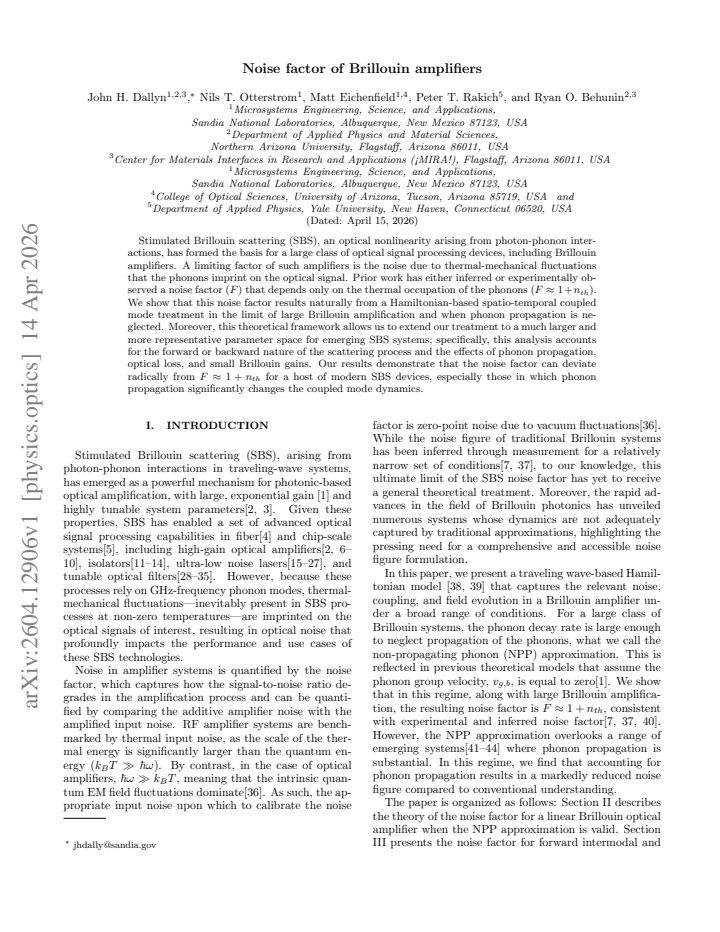

read the original abstract

Stimulated Brillouin scattering (SBS), an optical nonlinearity arising from photon-phonon interactions, has formed the basis for a large class of optical signal processing devices, including Brillouin amplifiers. A limiting factor of such amplifiers is the noise due to thermal-mechanical fluctuations that the phonons imprint on the optical signal. Prior work has either inferred or experimentally observed a noise factor ($F$) that depends only on the thermal occupation of the phonons ($F\approx 1+n_{th}$). We show that this noise factor results naturally from a Hamiltonian-based spatio-temporal coupled mode treatment in the limit of large Brillouin amplification and when phonon propagation is neglected. Moreover, this theoretical framework allows us to extend our treatment to a much larger and more representative parameter space for emerging SBS systems; specifically, this analysis accounts for the forward or backward nature of the scattering process and the effects of phonon propagation, optical loss, and small Brillouin gains. Our results demonstrate that the noise factor can deviate radically from $F\approx 1+n_{th}$ for a host of modern SBS devices, especially those in which phonon propagation significantly changes the coupled mode dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a Hamiltonian-based spatio-temporal coupled-mode model for noise in Brillouin amplifiers. It shows that the standard noise factor F ≈ 1 + n_th emerges naturally in the large-gain limit with phonon propagation neglected, and that substantial deviations arise once phonon propagation, forward/backward scattering direction, optical loss, and low gain are restored, with implications for modern SBS devices.

Significance. If the derivations are correct, the work is significant because it supplies a first-principles framework that recovers the known limit without fitting parameters and then extends it to regimes relevant to integrated and low-gain SBS systems. The explicit recovery of F ≈ 1 + n_th from the full model is a strength that supports the credibility of the reported deviations.

major comments (1)
  1. §3 (or equivalent derivation section): the reduction to F = 1 + n_th in the large-gain, zero-propagation limit must be shown explicitly, including confirmation that no residual commutator or Langevin noise terms from the phonon-propagation operators survive when the propagation velocity is set to zero.
minor comments (2)
  1. The abstract and introduction should state the specific range of gain values, propagation lengths, and loss rates over which the deviations are quantified.
  2. Figure captions should include the normalization convention used for the plotted noise factor and the exact parameter values corresponding to each curve.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the manuscript's significance. We address the single major comment below and will incorporate the requested clarification in the revised version.

read point-by-point responses

  1. Referee: §3 (or equivalent derivation section): the reduction to F = 1 + n_th in the large-gain, zero-propagation limit must be shown explicitly, including confirmation that no residual commutator or Langevin noise terms from the phonon-propagation operators survive when the propagation velocity is set to zero.

    Authors: We agree that an explicit derivation of this limit, with explicit verification that propagation-related terms vanish, will improve the clarity and rigor of the presentation. In the revised manuscript we will expand the relevant derivation section to include the full step-by-step reduction of the coupled-mode equations. We will set the phonon group velocity to zero, take the large-gain limit, and explicitly show that all commutator contributions and Langevin noise terms arising from the phonon-propagation operators cancel or become identically zero, recovering precisely F = 1 + n_th with no additional residuals. This will be presented both algebraically and with a brief numerical check confirming the absence of extraneous terms. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper derives the noise factor from a Hamiltonian-based spatio-temporal coupled-mode model. In the large-gain, zero-phonon-propagation limit the standard F≈1+n_th result emerges directly from the equations without parameter fitting or redefinition of inputs. Extensions to phonon propagation, forward/backward scattering, optical loss, and low gain are introduced as independent physical effects that alter the coupled-mode dynamics; these are not tautological with the target expression. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain. The model recovers the known limit and adds verifiable extensions, satisfying the criteria for a non-circular result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the Hamiltonian-based spatio-temporal coupled-mode equations for describing SBS noise; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Hamiltonian-based spatio-temporal coupled-mode treatment is valid for SBS systems
    Invoked to derive the noise factor in the large-gain limit and beyond

pith-pipeline@v0.9.0 · 5513 in / 1127 out tokens · 35857 ms · 2026-05-10T14:25:48.421641+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

51 extracted references · 51 canonical work pages

  1. [1]

    is consistent with the full dynamical model, as ex- pected. In Fig. 2b, we plot the same equations with a larger single pass gain ofG= 5. We see that in this case, the forward intermodal, backward, and NPP approxima- tion plots converge to the thermal result ofF≈1 +n th (black, open circles, Eq. 21), at large phonon decay rates, due to the large single pa...

    work page

  2. [2]

    Boundary conditions To properly quantify the boundary conditions of a backward SBS amplifier, we inject the seed Stokes light at z=0, so that As(0) is a specified quantity we control, and, at z=L, we use Eq. B2 to find the boundary condi- tion, ∂ ∂z As(z)−Λ sAs(z) z=L =− 1 vg,s ig∗ 0ApB † (L) + 1 vg,s ξs(L).(B4) We make the assumption B † (L) = 0, due to ...

    work page

  3. [3]

    Green’s function For our Stokes amplitude solution, we start with As(z, ω) = Z L 0 dz′δ(z−z ′)As(z′, ω).(B5) Using the definition for the Stokes amplitude Green functions h ∂2 ∂z 2 −(Λ S + Λ ∗ b) ∂ ∂z + ΛSΛ∗ b + |g0|2|Ap|2 vg,svg,b i GA(z, z′) =δ(z−z ′), two repetitions of inte- gration by parts, and the application of the boundary conditions, Eq. B5 beco...

    work page

  4. [4]

    R. W. Boyd, A. L. Gaeta, and E. Giese, Nonlinear optics, inSpringer Handbook of Atomic, Molecular, and Optical Physics(Springer, 2008) pp. 1097–1110. 12

    work page 2008

  5. [5]

    P. T. Rakich, C. Reinke, R. Camacho, P. Davids, and Z. Wang, Giant enhancement of stimulated brillouin scat- tering in the subwavelength limit, Physical Review X2, 011008 (2012)

    work page 2012

  6. [6]

    H. Shin, W. Qiu, R. Jarecki, J. A. Cox, R. H. Ols- son, A. Starbuck, Z. Wang, and P. T. Rakich, Tailorable stimulated brillouin scattering in nanoscale silicon waveg- uides, Nature communications4, 1 (2013)

    work page 2013

  7. [7]

    Merklein, I

    M. Merklein, I. V. Kabakova, A. Zarifi, and B. J. Eggle- ton, 100 years of brillouin scattering: Historical and fu- ture perspectives, Applied Physics Reviews9(2022)

    work page 2022

  8. [8]

    B. J. Eggleton, C. G. Poulton, P. T. Rakich, M. J. Steel, and G. Bahl, Brillouin integrated photonics, Nature Pho- tonics13, 664 (2019)

    work page 2019

  9. [9]

    Ippen and R

    E. Ippen and R. Stolen, Stimulated brillouin scattering in optical fibers, Applied Physics Letters21, 539 (1972)

    work page 1972

  10. [10]

    Olsson and J

    N. Olsson and J. Van Der Ziel, Characteristics of a semi- conductor laser pumped brillouin amplifier with electron- ically controlled bandwidth, Journal of Lightwave Tech- nology5, 147 (1987)

    work page 1987

  11. [11]

    R. Pant, C. G. Poulton, D.-Y. Choi, H. Mcfarlane, S. Hile, E. Li, L. Thevenaz, B. Luther-Davies, S. J. Mad- den, and B. J. Eggleton, On-chip stimulated brillouin scattering, Optics express19, 8285 (2011)

    work page 2011

  12. [12]

    E. A. Kittlaus, H. Shin, and P. T. Rakich, Large brillouin amplification in silicon, Nature Photonics10, 463 (2016)

    work page 2016

  13. [13]

    E. A. Kittlaus, N. T. Otterstrom, and P. T. Rakich, On- chip inter-modal brillouin scattering, Nature communi- cations8, 15819 (2017)

    work page 2017

  14. [14]

    Huang and S

    X. Huang and S. Fan, Complete all-optical silica fiber iso- lator via stimulated brillouin scattering, Journal of light- wave technology29, 2267 (2011)

    work page 2011

  15. [15]

    C. G. Poulton, R. Pant, A. Byrnes, S. Fan, M. Steel, and B. J. Eggleton, Design for broadband on-chip iso- lator using stimulated brillouin scattering in dispersion- engineered chalcogenide waveguides, Optics express20, 21235 (2012)

    work page 2012

  16. [16]

    J. Kim, M. C. Kuzyk, K. Han, H. Wang, and G. Bahl, Non-reciprocal brillouin scattering induced transparency, Nature Physics11, 275 (2015)

    work page 2015

  17. [17]

    E. A. Kittlaus, N. T. Otterstrom, P. Kharel, S. Gertler, and P. T. Rakich, Non-reciprocal interband brillouin modulation, Nature Photonics12, 613 (2018)

    work page 2018

  18. [18]

    Smith, F

    S. Smith, F. Zarinetchi, and S. Ezekiel, Narrow-linewidth stimulated brillouin fiber laser and applications, Optics letters16, 393 (1991)

    work page 1991

  19. [19]

    J. Geng, S. Staines, Z. Wang, J. Zong, M. Blake, and S. Jiang, Highly stable low-noise brillouin fiber laser with ultranarrow spectral linewidth, IEEE Photonics Technol- ogy Letters18, 1813 (2006)

    work page 2006

  20. [20]

    I. S. Grudinin, A. B. Matsko, and L. Maleki, Brillouin lasing with a caf 2 whispering gallery mode resonator, Physical review letters102, 043902 (2009)

    work page 2009

  21. [21]

    J. Li, H. Lee, T. Chen, and K. J. Vahala, Characteriza- tion of a high coherence, brillouin microcavity laser on silicon, Optics express20, 20170 (2012)

    work page 2012

  22. [22]

    J. Li, H. Lee, and K. J. Vahala, Microwave synthesizer using an on-chip brillouin oscillator, Nature communica- tions4, 2097 (2013)

    work page 2097

  23. [23]

    I. V. Kabakova, R. Pant, D.-Y. Choi, S. Debbarma, B. Luther-Davies, S. J. Madden, and B. J. Eggleton, Narrow linewidth brillouin laser based on chalcogenide photonic chip, Optics letters38, 3208 (2013)

    work page 2013

  24. [24]

    J. Li, H. Lee, and K. J. Vahala, Low-noise brillouin laser on a chip at 1064 nm, Optics letters39, 287 (2014)

    work page 2014

  25. [25]

    W. Loh, S. B. Papp, and S. A. Diddams, Noise and dy- namics of stimulated-brillouin-scattering microresonator lasers, Physical Review A91, 053843 (2015)

    work page 2015

  26. [26]

    Morrison, A

    B. Morrison, A. Casas-Bedoya, G. Ren, K. Vu, Y. Liu, A. Zarifi, T. G. Nguyen, D.-Y. Choi, D. Marpaung, S. J. Madden,et al., Compact brillouin devices through hybrid integration on silicon, Optica4, 847 (2017)

    work page 2017

  27. [27]

    R. O. Behunin, N. T. Otterstrom, P. T. Rakich, S. Gun- davarapu, and D. J. Blumenthal, Fundamental noise dy- namics in cascaded-order brillouin lasers, Physical Re- view A98, 023832 (2018)

    work page 2018

  28. [28]

    N. T. Otterstrom, R. O. Behunin, E. A. Kittlaus, Z. Wang, and P. T. Rakich, A silicon brillouin laser, Sci- ence360, 1113 (2018)

    work page 2018

  29. [29]

    Gundavarapu, G

    S. Gundavarapu, G. M. Brodnik, M. Puckett, T. Huff- man, D. Bose, R. Behunin, J. Wu, T. Qiu, C. Pinho, N. Chauhan,et al., Sub-hertz fundamental linewidth photonic integrated brillouin laser, Nature Photonics13, 60 (2019)

    work page 2019

  30. [30]

    J. H. Dallyn, K. Liu, M. W. Harrington, G. M. Brod- nik, P. T. Rakich, D. J. Blumenthal, and R. O. Behunin, Thermal and driven noise in brillouin lasers, Physical Re- view A105, 043506 (2022)

    work page 2022

  31. [31]

    Tanemura, Y

    T. Tanemura, Y. Takushima, and K. Kikuchi, Narrow- band optical filter, with a variable transmission spec- trum, using stimulated brillouin scattering in optical fiber, Optics letters27, 1552 (2002)

    work page 2002

  32. [32]

    Vidal, M

    B. Vidal, M. Piqueras, and J. Mart´ ı, Tunable and recon- figurable photonic microwave filter based on stimulated brillouin scattering, Optics letters32, 23 (2006)

    work page 2006

  33. [33]

    Zadok, A

    A. Zadok, A. Eyal, and M. Tur, Gigahertz-wide optically reconfigurable filters using stimulated brillouin scatter- ing, Journal of lightwave technology25, 2168 (2007)

    work page 2007

  34. [34]

    Braje, L

    D. Braje, L. Hollberg, and S. Diddams, Brillouin- enhanced hyperparametric generation of an optical fre- quency comb¡? format?¿ in a monolithic highly nonlin- ear fiber cavity pumped by a cw laser, Physical review letters102, 193902 (2009)

    work page 2009

  35. [35]

    A. Wise, M. Tur, and A. Zadok, Sharp tunable optical filters based on the polarization attributes of stimulated brillouin scattering, Optics Express19, 21945 (2011)

    work page 2011

  36. [36]

    Zhang and R

    W. Zhang and R. A. Minasian, Ultrawide tunable mi- crowave photonic notch filter based on stimulated bril- louin scattering, IEEE Photonics Technology Letters24, 1182 (2012)

    work page 2012

  37. [37]

    C.-H. Dong, Z. Shen, C.-L. Zou, Y.-L. Zhang, W. Fu, and G.-C. Guo, Brillouin-scattering-induced transparency and non-reciprocal light storage, Nature communications 6, 6193 (2015)

    work page 2015

  38. [38]

    Marpaung, B

    D. Marpaung, B. Morrison, M. Pagani, R. Pant, D.-Y. Choi, B. Luther-Davies, S. J. Madden, and B. J. Eggle- ton, Low-power, chip-based stimulated brillouin scatter- ing microwave photonic filter with ultrahigh selectivity, Optica2, 76 (2015)

    work page 2015

  39. [39]

    Haus, The noise figure of optical amplifiers, IEEE Pho- tonics Technology Letters10, 1602 (1998)

    H. Haus, The noise figure of optical amplifiers, IEEE Pho- tonics Technology Letters10, 1602 (1998)

    work page 1998

  40. [40]

    Desurvire, Erbium-doped fiber amplifiers: Device and system developments, (No Title) (2002)

    E. Desurvire, Erbium-doped fiber amplifiers: Device and system developments, (No Title) (2002)

    work page 2002

  41. [41]

    Sipe and M

    J. Sipe and M. Steel, A hamiltonian treatment of stimu- lated brillouin scattering in nanoscale integrated waveg- uides, New Journal of Physics18, 045004 (2016). 13

    work page 2016

  42. [42]

    Kharel, R

    P. Kharel, R. Behunin, W. Renninger, and P. Rakich, Noise and dynamics in forward brillouin interactions, Physical Review A93, 063806 (2016)

    work page 2016

  43. [43]

    N. T. Otterstrom,Shaping Brillouin Dynamics for Sili- con Photonic Device Physics, Ph.D. thesis, Yale Univer- sity (2020)

    work page 2020

  44. [44]

    Kharel, G

    P. Kharel, G. I. Harris, E. A. Kittlaus, W. H. Ren- ninger, N. T. Otterstrom, J. G. Harris, and P. T. Rakich, High-frequency cavity optomechanics using bulk acoustic phonons, Science advances5, eaav0582 (2019)

    work page 2019

  45. [45]

    Kharel, Y

    P. Kharel, Y. Chu, D. Mason, E. A. Kittlaus, N. T. Ot- terstrom, S. Gertler, and P. T. Rakich, Multimode strong coupling in cavity optomechanics, Physical Review Ap- plied18, 024054 (2022)

    work page 2022

  46. [46]

    T. Yoon, D. Mason, V. Jain, Y. Chu, P. Kharel, W. H. Renninger, L. Collins, L. Frunzio, R. J. Schoelkopf, and P. T. Rakich, Simultaneous brillouin and piezoelectric coupling to a high-frequency bulk acoustic resonator, Op- tica10, 110 (2023)

    work page 2023

  47. [47]

    N. T. Otterstrom, M. J. Storey, R. O. Behunin, L. Hack- ett, P. T. Rakich, and M. Eichenfield, Modulation of brillouin optomechanical interactions via acoustoelectric phonon-electron coupling, Physical Review Applied19, 014059 (2023)

    work page 2023

  48. [48]

    G. Bahl, M. Tomes, F. Marquardt, and T. Carmon, Observation of spontaneous brillouin cooling, Nature Physics8, 203 (2012)

    work page 2012

  49. [49]

    W. Xu, A. Iyer, L. Jin, S. Y. Set, and W. H. Renninger, Strong optomechanical interactions with long-lived fun- damental acoustic waves, Optica10, 206 (2023)

    work page 2023

  50. [50]

    Y. A. Espinel, F. G. Santos, G. O. Luiz, T. M. Alegre, and G. S. Wiederhecker, Brillouin optomechanics in coupled silicon microcavities, Scientific reports7, 43423 (2017)

    work page 2017

  51. [51]

    M. S. Kang, A. Brenn, and P. St. J. Russell, All-optical control of gigahertz acoustic resonances by forward stim- ulated interpolarization scattering in a photonic crystal fiber, Physical review letters105, 153901 (2010)

    work page 2010
