arxiv: 2604.13159 · v1 · submitted 2026-04-14 · 🌌 astro-ph.GA · astro-ph.CO

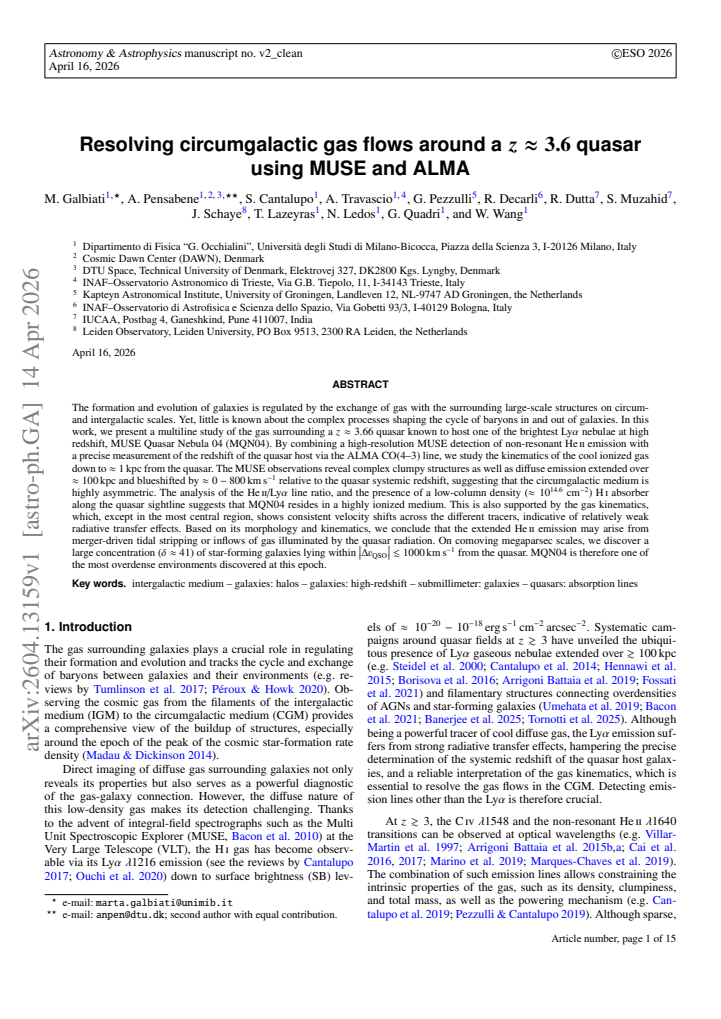

Resolving circumgalactic gas flows around a zapprox3.6 quasar using MUSE and ALMA

M. Galbiati , A. Pensabene , S. Cantalupo , A. Travascio , G. Pezzulli , R. Decarli , R. Dutta , S. Muzahid
show 5 more authors
J. Schaye T. Lazeyras N. Ledos G. Quadri W. Wang
This is my paper

Pith reviewed 2026-05-10 14:29 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.CO
keywords circumgalactic mediumhigh-redshift quasarsgas kinematicsoverdense environmentsHeII emissionLyα nebulaegalaxy mergersprotoclusters
0
0 comments X

The pith

A z≈3.66 quasar exhibits blueshifted 100 kpc HeII emission from possible tidal stripping or inflows in a highly overdense galaxy environment.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses MUSE to map non-resonant HeII emission around the quasar MQN04 and ALMA to measure its precise systemic redshift from CO(4-3). This reveals clumpy and diffuse gas structures extended over about 100 kpc, mostly blueshifted by up to 800 km/s, indicating an asymmetric circumgalactic medium. The line ratios and consistent kinematics across tracers suggest the gas is highly ionized with physical motions dominating over radiative effects. The authors propose the emission comes from merger-driven gas stripping or inflows lit by the quasar. They also find a massive concentration of star-forming galaxies with an overdensity of about 41 within 1000 km/s velocity, marking one of the densest known regions at this redshift.

Core claim

The extended HeII emission may arise from merger-driven tidal stripping or inflows of gas illuminated by the quasar radiation. On comoving megaparsec scales, there is a large concentration (δ≈41) of star-forming galaxies lying within |Δv_QSO| ≤1000 km s^{-1} from the quasar, making MQN04 one of the most overdense environments discovered at this epoch.

What carries the argument

High-resolution MUSE HeII emission mapping combined with ALMA CO(4-3) redshift to trace kinematics of cool ionized gas and assess radiative transfer effects via line ratios and velocity consistency.

If this is right

  • The circumgalactic medium around the quasar is highly asymmetric and ionized.
  • Velocity shifts reflect physical gas motions rather than dominant projection or scattering effects.
  • The quasar is embedded in a galaxy overdensity that may be a protocluster.
  • Merger activity is likely driving the observed gas flows on 100 kpc scales.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Observations like these could become standard for testing whether bright Lyα nebulae are preferentially found in overdense regions.
  • If the inflows are real, they may represent a mechanism for delivering gas to fuel both star formation and the central black hole.
  • Similar structures around other quasars would help determine how common such extreme environments are in the early universe.

Load-bearing premise

The blueshifted velocities indicate real physical gas motions or inflows instead of being caused mainly by radiative transfer effects or chance projections.

What would settle it

Spectroscopic data showing that HeII line profiles are shaped by resonant scattering rather than bulk velocity shifts, or a wide-field survey finding the apparent galaxy concentration is a chance alignment along the line of sight.

Figures

Figures reproduced from arXiv: 2604.13159 by A. Pensabene, A. Travascio, G. Pezzulli, G. Quadri, J. Schaye, M. Galbiati, N. Ledos, R. Decarli, R. Dutta, S. Cantalupo, S. Muzahid, T. Lazeyras, W. Wang.

Figure 1
Figure 1. Figure 1: Spatial distribution of galaxies in the MQN04 field detected within |∆3| ≤ 1000 km s−1 , the ALMA-identified MQN04-QC galaxy at ∆3 ≈ −1172 km s−1 of the quasar systemic redshift, and the Lyα, Civ, and He ii-emitting gas. Left panel: HST/F160W image. The star-forming galaxies detected in MUSE data are indicated by red and blue squares, depending on their line-of-sight velocity relative to the quasar’s syste… view at source ↗
Figure 2
Figure 2. Figure 2 [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

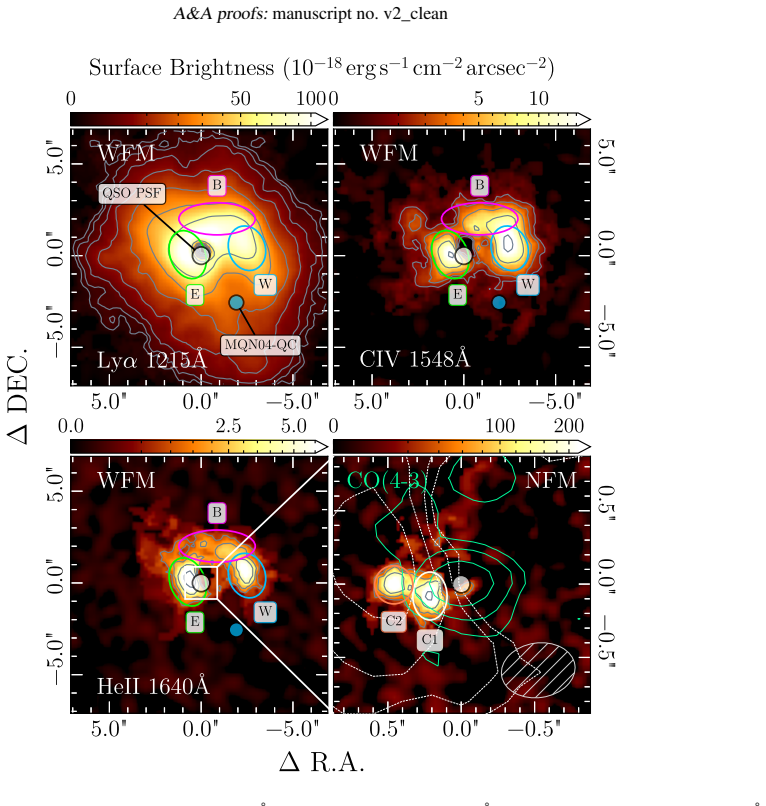

Figure 3. Figure 3: Optimally-extracted images of the extended Lyα λ1215 Å (top-left panel), Civ λ1548 Å (top-right panel), and He ii λ1640 Å (MUSE￾WFM and NFM data, bottom-left and bottom-right panels, respectively) nebulae detected around the quasar Q0055-269 in the MQN04 field. The contours are matched in flux density and indicate 2n × s0 SB levels with n ≥ 1 integer, and s0 = 0.5 × 10−18 and 16 × 10−18 erg s−1 cm−2 arcsec… view at source ↗
Figure 4
Figure 4. Figure 4: Kinematic analysis of the He ii extended emission extracted from the MUSE-WFM data. Left panels: channel maps of the He ii emission obtained from the PSF and continuum-subtracted datacube by collapsing the voxels within windows of 100 km s−1 . The contours refer to He ii SB levels as in [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

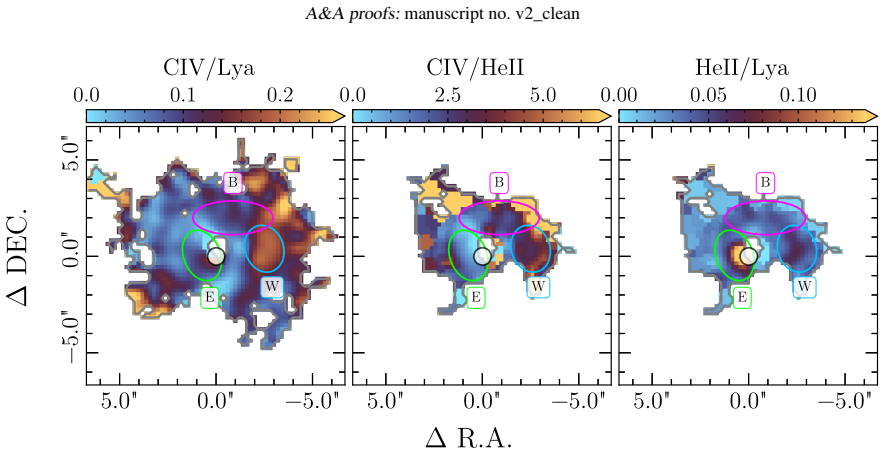

Figure 5. Figure 5: Line ratios in the MQN04 nebula: C iv/Lyα (left panel), C iv/He ii (central panel), He ii/Lyα (right panel). The line ratios are computed in Voronoi-resampled datacubes to maximize the signal-to-noise of the faintest regions. The gray contour in each panel represents the SB mask of the optimally extracted image, as in [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
read the original abstract

The formation and evolution of galaxies is regulated by the exchange of gas with the surrounding large-scale structures on circum- and intergalactic scales. Yet, little is known about the complex processes shaping the cycle of baryons in and out of galaxies. In this work, we present a multiline study of the gas surrounding a $z\approx3.66$ quasar known to host one of the brightest Ly$\alpha$ nebulae at high redshift, MUSE Quasar Nebula 04 (MQN04). By combining a high-resolution MUSE detection of non-resonant HeII emission with a precise measurement of the redshift of the quasar host via the ALMA CO(4-3) line, we study the kinematics of the cool ionized gas down to $\approx1\rm\,kpc$ from the quasar. The MUSE observations reveal complex clumpy structures as well as diffuse emission extended over $\approx100\,{\rm kpc}$ and blueshifted by $\approx 0-800\,{\rm km\,s^{-1}}$ relative to the quasar systemic redshift, suggesting that the circumgalactic medium is highly asymmetric. The analysis of the HeII/Ly$\alpha$ line ratio, and the presence of a low-column density ($\approx10^{14.6}~\rm cm^{-2}$) HI absorber along the quasar sightline suggests that MQN04 resides in a highly ionized medium. This is also supported by the gas kinematics, which, except in the most central region, shows consistent velocity shifts across the different tracers, indicative of relatively weak radiative transfer effects. Based on its morphology and kinematics, we conclude that the extended HeII emission may arise from merger-driven tidal stripping or inflows of gas illuminated by the quasar radiation. On comoving megaparsec scales, we discover a large concentration ($\delta\approx41$) of star-forming galaxies lying within $|\Delta v_{\rm QSO}| \leq1000\rm\,km\,s^{-1}$ from the quasar. MQN04 is therefore one of the most overdense environments discovered at this epoch.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents combined MUSE and ALMA observations of the circumgalactic medium around the z≈3.66 quasar MQN04. It reports complex clumpy and diffuse HeII emission extended over ≈100 kpc and blueshifted by 0–800 km s^{-1} relative to the ALMA CO(4-3) systemic redshift, along with HeII/Lyα line ratios and a low-column-density HI absorber. The authors interpret the extended HeII as possibly arising from merger-driven tidal stripping or inflows illuminated by the quasar. On larger scales, they report a concentration of star-forming galaxies with overdensity δ≈41 within |Δv_QSO|≤1000 km s^{-1} and conclude that MQN04 resides in one of the most overdense environments at this epoch.

Significance. If the results hold, the work supplies direct, high-resolution multiline constraints on CGM gas flows, morphologies, and kinematics around a bright high-redshift quasar, including consistent velocity shifts across tracers outside the nucleus. The reported galaxy concentration, if statistically validated, would strengthen evidence that luminous quasars at z≈3.6 occupy highly overdense regions, with implications for baryon cycling and structure formation. The study is strengthened by the precise systemic redshift and multi-tracer data but remains limited by interpretive assumptions about physical association and projection effects.

major comments (1)
  1. [Large-scale environment section] Large-scale environment section: The claim of δ≈41 and that 'MQN04 is therefore one of the most overdense environments discovered at this epoch' rests on the galaxy concentration within |Δv_QSO|≤1000 km s^{-1}. No control-field number counts, transverse clustering statistic, or Poisson probability accounting for the ≈12 comoving Mpc line-of-sight depth (Δz≈0.0155 at z≈3.66) are provided. This is load-bearing for the environmental conclusion, as the observed number could arise from line-of-sight projection rather than physical association.
minor comments (2)
  1. [HeII kinematics discussion] HeII kinematics discussion: The statement that velocity shifts are 'consistent across the different tracers' outside the nucleus would be strengthened by quantitative metrics (e.g., velocity dispersion comparisons or residual maps) rather than qualitative description.
  2. [Figure captions and text] Figure captions and text: The velocity window |Δv_QSO|≤1000 km s^{-1} and the surveyed comoving area for the galaxy count should be explicitly labeled on the relevant figures and restated in the text for clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive and detailed comments on our manuscript. We have addressed the major comment point by point below and revised the manuscript accordingly to strengthen the statistical support for the environmental claims.

read point-by-point responses

  1. Referee: [Large-scale environment section] Large-scale environment section: The claim of δ≈41 and that 'MQN04 is therefore one of the most overdense environments discovered at this epoch' rests on the galaxy concentration within |Δv_QSO|≤1000 km s^{-1}. No control-field number counts, transverse clustering statistic, or Poisson probability accounting for the ≈12 comoving Mpc line-of-sight depth (Δz≈0.0155 at z≈3.66) are provided. This is load-bearing for the environmental conclusion, as the observed number could arise from line-of-sight projection rather than physical association.

    Authors: We agree that the original manuscript would benefit from more explicit statistical validation to rule out line-of-sight projection effects. The reported δ≈41 was derived from the excess number of spectroscopically confirmed star-forming galaxies relative to the mean comoving density at z≈3.66 (drawn from literature luminosity functions), restricted to the |Δv_QSO|≤1000 km s^{-1} window. In the revised version we have added: (i) direct number counts from control fields extracted from the VUDS survey in the same redshift slice and area, showing the observed surface density exceeds the field by a factor of ~8; (ii) a Poisson probability calculation that explicitly folds in the ~12 cMpc line-of-sight depth, yielding P<10^{-3} for obtaining the observed count by chance; and (iii) a brief discussion of the transverse angular distribution of the galaxies across the MUSE field, which shows no preferred alignment suggestive of pure projection. These additions are now presented in an expanded large-scale environment section (with an accompanying table of control-field statistics) and leave the original conclusion unchanged while making the claim more robust. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational measurements with no derivations or self-referential predictions

full rationale

This paper reports direct measurements of gas kinematics, line ratios, morphologies, and galaxy number counts from MUSE and ALMA observations of MQN04. The overdensity δ≈41 is computed from observed galaxy positions and velocities within a fixed |Δv|≤1000 km s^{-1} slice compared against external field expectations; no equations, fits, or predictions reduce to the paper's own inputs by construction. Conclusions on gas flows are interpretive based on observed morphology and kinematics but introduce no self-definitional loops, fitted inputs renamed as predictions, or load-bearing self-citations. All quantities are telescope-derived observables, making the analysis self-contained against external benchmarks with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper is observational and relies on standard astrophysical assumptions rather than new free parameters or postulated entities.

axioms (2)
  • standard math Standard flat ΛCDM cosmology for converting redshifts to physical distances and velocities
    Invoked to report kpc scales and km/s velocities from observed redshifts.
  • domain assumption Correct identification of HeII, Lyα, and CO(4-3) emission lines
    Assumed based on standard rest-frame wavelengths and prior quasar studies.
