arxiv: 2604.13513 · v1 · submitted 2026-04-15 · 💻 cs.RO

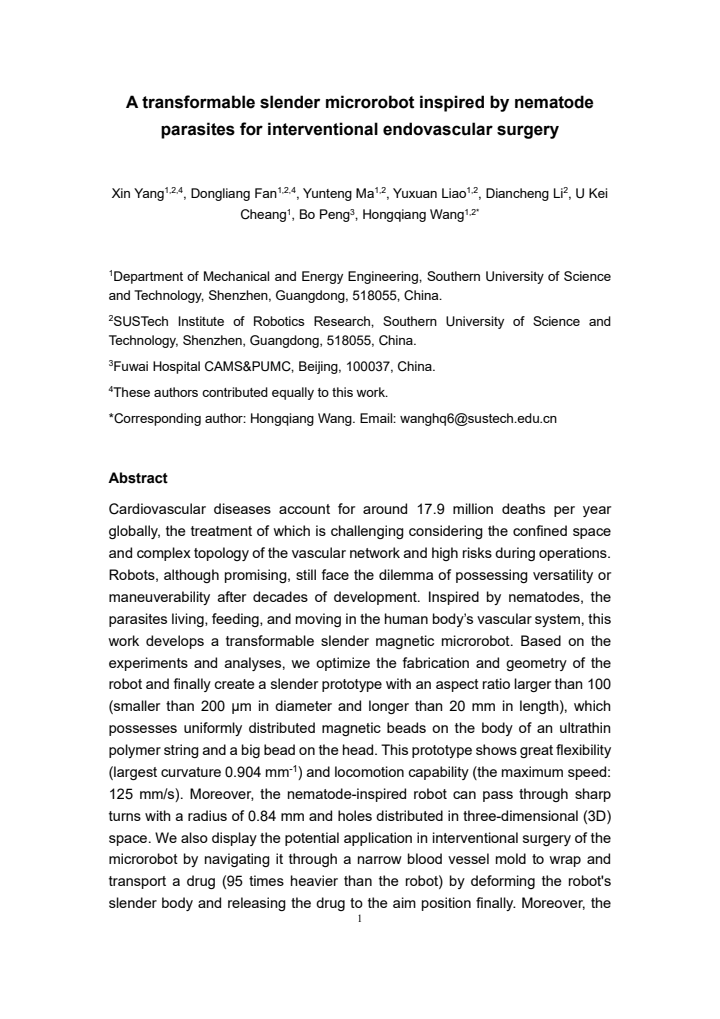

A transformable slender microrobot inspired by nematode parasites for interventional endovascular surgery

Xin Yang , Dongliang Fan , Yunteng Ma , Yuxuan Liao , Diancheng Li , U Kei Cheang , Bo Peng , Hongqiang Wang This is my paper

Pith reviewed 2026-05-10 13:09 UTC · model grok-4.3

classification 💻 cs.RO
keywords microrobotendovascular surgerymagnetic actuationnematode-inspireddrug deliverytransformable robotvascular navigationinterventional surgery
0
0 comments X

The pith

A nematode-inspired magnetic microrobot thinner than 200 microns navigates sharp vessel turns and wraps heavy drug loads for delivery.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a slender magnetic microrobot modeled after nematode parasites that live inside blood vessels. Experiments optimize the robot's geometry and magnetic bead placement on an ultrathin polymer string with a larger bead at the head to produce a prototype with an aspect ratio above 100. This design enables high flexibility and locomotion under external magnetic fields. The authors demonstrate the robot threading through 0.84 mm radius turns and 3D holes, then entering a narrow vessel model to wrap around a drug payload 95 times its own weight, carry it to a target, and release it. They also show the robot coiling inside an aneurysm phantom and passing intact through a standard 1.2 mm injection needle.

Core claim

By placing uniformly distributed magnetic beads along an ultrathin polymer string and adding a larger bead at the head, the authors create a transformable slender microrobot that bends to a maximum curvature of 0.904 mm^{-1}, moves at up to 125 mm/s, passes through 0.84 mm radius turns and 3D holes, wraps and transports objects much heavier than itself for targeted drug delivery inside vascular molds, winds into aneurysms, and can be injected and withdrawn through a medical needle.

What carries the argument

The transformable slender magnetic microrobot consisting of an ultrathin polymer string with uniform magnetic bead distribution along its length and a larger magnetic bead at the head, which enables external magnetic actuation for bending, locomotion, wrapping, and shape transformation.

Load-bearing premise

The geometry and uniform magnetic bead distribution optimized in static vessel molds will continue to provide reliable control and avoid tissue damage when the robot operates inside real blood vessels that have flowing blood and flexible walls.

What would settle it

Running the microrobot through a flowing, pulsatile blood vessel phantom and checking whether it still completes sharp turns, holds a wrapped payload, reaches the target, and releases the load without tearing the vessel model or losing magnetic response.

Figures

Figures reproduced from arXiv: 2604.13513 by Bo Peng, Diancheng Li, Dongliang Fan, Hongqiang Wang, U Kei Cheang, Xin Yang, Yunteng Ma, Yuxuan Liao.

Figure 1
Figure 1. Figure 1: Schematic illustration of the nematode-inspired soft, slender, wireless robot. (A) Imitating the structure and morphology of a nematode parasite, the slender, soft robot, actuated by external magnetic field, with multifaceted functionalities has immense potential in human vascular system. (B) Illustration of the potential applications of the nematode-inspired robot, including navigation, cargo delivery, an… view at source ↗
Figure 2
Figure 2. Figure 2: Fabrication of nematode-inspired robots. (A) Schematic of the four candidate designs. (B) The fabrication of BOAS robot. a needle is used to draw the polymer melt from the hot plate to generate the soft filament (scale bar, 100 µm). (C) The filament is dipped into the magnetic composite precursor. (D) After extracting the filament out of the precursor, a uniform magnetic layer is coated on the filament sur… view at source ↗
read the original abstract

Cardiovascular diseases account for around 17.9 million deaths per year globally, the treatment of which is challenging considering the confined space and complex topology of the vascular network and high risks during operations. Robots, although promising, still face the dilemma of possessing versatility or maneuverability after decades of development. Inspired by nematodes, the parasites living, feeding, and moving in the human body's vascular system, this work develops a transformable slender magnetic microrobot. Based on the experiments and analyses, we optimize the fabrication and geometry of the robot and finally create a slender prototype with an aspect ratio larger than 100 (smaller than 200 microns in diameter and longer than 20 mm in length), which possesses uniformly distributed magnetic beads on the body of an ultrathin polymer string and a big bead on the head. This prototype shows great flexibility (largest curvature 0.904 mm-1) and locomotion capability (the maximum speed: 125 mm/s). Moreover, the nematode-inspired robot can pass through sharp turns with a radius of 0.84 mm and holes distributed in three-dimensional (3D) space. We also display the potential application in interventional surgery of the microrobot by navigating it through a narrow blood vessel mold to wrap and transport a drug (95 times heavier than the robot) by deforming the robot's slender body and releasing the drug to the aim position finally. Moreover, the robot also demonstrates the possible applications in embolization by transforming and winding itself into an aneurysms phantom and exhibits its outstanding injectability by being successfully withdrawn and injected through a medical needle (diameter: 1.2 mm) of a syringe.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a nematode-inspired transformable slender magnetic microrobot with aspect ratio >100, fabricated as an ultrathin polymer string with uniformly distributed magnetic beads and a larger head bead. It reports high flexibility (max curvature 0.904 mm^{-1}), locomotion (max speed 125 mm/s), navigation through 0.84 mm radius turns and 3D holes, wrapping/transport/release of a drug payload 95 times the robot's mass inside a static blood vessel mold, embolization in an aneurysm phantom, and injectability through a 1.2 mm needle.

Significance. If the reported performance metrics and deformation-based payload handling prove robust, the work could advance endovascular microrobotics by demonstrating a high-aspect-ratio, injectable platform capable of complex navigation and heavy-payload manipulation in confined spaces. The uniform bead distribution enabling body deformation for wrapping and the successful phantom demonstrations of 3D hole passage and aneurysm winding are concrete engineering contributions that address versatility challenges in magnetic actuation.

major comments (3)
  1. [Results] Results section (performance metrics): The largest curvature (0.904 mm^{-1}) and maximum speed (125 mm/s) are stated as point values without error bars, number of trials, sample sizes, or statistical tests. These omissions directly affect assessment of the central claims of 'great flexibility' and 'locomotion capability' and prevent evaluation of reproducibility.
  2. [Application demonstration] Application demonstration (blood vessel mold experiments): All navigation, sharp-turn passage (0.84 mm radius), and drug-wrapping/transport results (95× payload) are obtained in static rigid phantoms. The manuscript provides no tests or analysis under pulsatile flow, fluid drag, or compliant walls, leaving the translation of the optimized bead distribution and geometry to controllable in vivo operation as an untested assumption that underpins the interventional surgery potential claim.
  3. [Fabrication] Fabrication and optimization (geometry and bead distribution): The text states that geometry and uniform magnetic bead distribution were optimized 'based on the experiments and analyses,' yet no quantitative criteria, data, or procedure for this post-hoc optimization are supplied. This gap is load-bearing for claims of the final prototype's superior performance.
minor comments (2)
  1. [Abstract] Notation: 'mm-1' appears in the abstract and text; standard mathematical formatting (mm^{-1}) should be used consistently.
  2. [Methods] Methods: The magnetic actuation hardware, field strengths, and control protocol are referenced only implicitly; explicit description of the experimental setup would improve reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We are grateful to the referee for the insightful comments that help improve the clarity and rigor of our manuscript. We address the major comments below and indicate the revisions we plan to make.

read point-by-point responses

  1. Referee: [Results] Results section (performance metrics): The largest curvature (0.904 mm^{-1}) and maximum speed (125 mm/s) are stated as point values without error bars, number of trials, sample sizes, or statistical tests. These omissions directly affect assessment of the central claims of 'great flexibility' and 'locomotion capability' and prevent evaluation of reproducibility.

    Authors: We agree that including error bars, trial numbers, and sample sizes would strengthen the presentation and allow better assessment of reproducibility. In the revised manuscript, we will add these details for the reported curvature and speed values, specifying the number of trials performed and including ranges or standard deviations from repeated measurements. revision: yes

  2. Referee: [Application demonstration] Application demonstration (blood vessel mold experiments): All navigation, sharp-turn passage (0.84 mm radius), and drug-wrapping/transport results (95× payload) are obtained in static rigid phantoms. The manuscript provides no tests or analysis under pulsatile flow, fluid drag, or compliant walls, leaving the translation of the optimized bead distribution and geometry to controllable in vivo operation as an untested assumption that underpins the interventional surgery potential claim.

    Authors: The demonstrations were performed in static rigid phantoms to establish proof-of-concept for the robot's navigation, deformation-based payload handling, and embolization capabilities under controlled conditions, which is a standard first step in microrobotics research. We acknowledge that this leaves open questions about performance under dynamic flow or compliant tissue. In the revision, we will add an expanded discussion section addressing these limitations, including qualitative considerations of fluid drag and wall compliance based on the magnetic actuation and slender geometry, while clarifying that in vivo validation remains future work. revision: partial

  3. Referee: [Fabrication] Fabrication and optimization (geometry and bead distribution): The text states that geometry and uniform magnetic bead distribution were optimized 'based on the experiments and analyses,' yet no quantitative criteria, data, or procedure for this post-hoc optimization are supplied. This gap is load-bearing for claims of the final prototype's superior performance.

    Authors: We will elaborate on the optimization process in the revised manuscript. The uniform bead distribution and high aspect ratio were selected following preliminary experiments that evaluated trade-offs between magnetic torque uniformity (for consistent body deformation) and bending stiffness (for flexibility and injectability). We will include a supplementary section summarizing the key experimental observations and criteria used to arrive at the final geometry. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental prototype demonstration

full rationale

The manuscript presents fabrication, geometry optimization via experiments/analyses, and direct physical testing of a slender magnetic microrobot in static phantoms. No equations, derivations, fitted parameters, or predictions are claimed; results (curvature 0.904 mm⁻¹, speed 125 mm/s, turning radius 0.84 mm, payload wrapping) are measured outcomes from the built device. No self-citation chains or ansatzes appear in the provided text. The work is self-contained as an engineering demonstration.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete. The design rests on empirical selection of bead distribution and string geometry after unspecified experiments; no explicit free parameters, axioms, or invented physical entities are stated.
