Energy threshold in Smith-Purcell radiation

Sunchao Huang , Xihang Shi , Xiaoqiuyan Zhang , Suguo Chen , Yue Wang , Shengpeng Yang , Ping Zhang , Min Hu

show 1 more author

Yubin Gong

Authors on Pith no claims yet

Pith reviewed 2026-05-10 13:15 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords Smith-Purcell radiationenergy thresholdquantum thresholdclassical thresholdelectron reversalenergy-momentum conservationlight sources

0 comments

The pith

Smith-Purcell radiation has a quantum energy threshold set by energy-momentum conservation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that Smith-Purcell radiation possesses a quantum energy threshold for incident electrons, contrary to classical expectations that it lacks any such limit. By applying conservation of energy and momentum to the process of photon emission in the grating geometry, the authors obtain a strict lower bound on electron energy below which radiation cannot occur. Near this threshold the electron emits the photon and then reverses its direction of motion. They also identify a separate classical threshold, obtained via the Duane-Hunt limit, below which classical theory itself breaks down. Between these two thresholds quantum theory is required to describe the radiation correctly.

Core claim

A quantum energy threshold for Smith-Purcell radiation follows directly from energy-momentum conservation and supplies a rigorous lower limit on electron energy for photon emission to begin. At this threshold the incident electron emits a photon and reverses its direction of motion. A classical energy threshold is obtained by applying the Duane-Hunt limit to the same geometry; classical theory therefore fails for electron energies lying between the classical and quantum thresholds.

What carries the argument

The quantum energy threshold obtained by imposing energy-momentum conservation on the electron-photon interaction with the grating, which simultaneously fixes the radiation onset and the condition for post-emission electron reversal.

If this is right

Classical descriptions of Smith-Purcell radiation are invalid below a definite electron energy.
Near the quantum threshold the emitted photon is accompanied by reversal of the electron's direction of motion.
Quantum theory must be used whenever electron energy falls between the classical and quantum thresholds.
Compact low-energy electron beams can drive heralded quantum light sources based on this radiation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Measuring the scattering angle or direction of electrons just above threshold could directly confirm the predicted reversal.
The same conservation argument may impose analogous thresholds on other free-electron radiation processes in periodic structures.
Tuning electron energy immediately above threshold could enable energy-selective or single-photon sources with minimal beam energy.
Heralding schemes might exploit the reversal event itself as a timing or coincidence signal.

Load-bearing premise

Energy and momentum conservation can be applied directly to the electron-photon interaction in the Smith-Purcell geometry without a detailed quantum-field treatment of the grating or higher-order corrections.

What would settle it

Observation of Smith-Purcell radiation from an electron beam whose kinetic energy lies below the calculated quantum threshold would falsify the claimed threshold.

Figures

Figures reproduced from arXiv: 2604.13550 by Min Hu, Ping Zhang, Shengpeng Yang, Suguo Chen, Sunchao Huang, Xiaoqiuyan Zhang, Xihang Shi, Yubin Gong, Yue Wang.

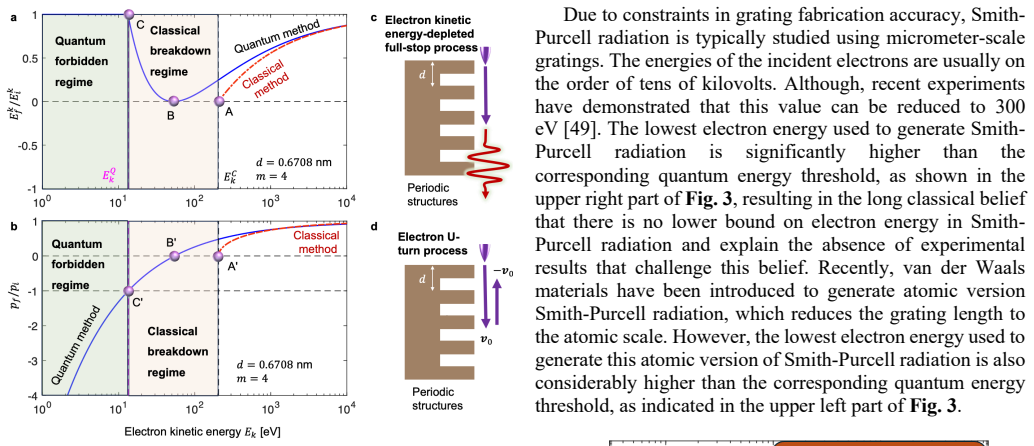

**Figure 2.** Figure 2: Comparison of the Classical and Quantum Threshold Effects of the Smith-Purcell Effect. This figure presents a comparison of the kinetic energy (a) and momentum (b) of the incident electron after emitting a photon through Smith-Purcell radiation, analyzed through both classical and quantum theories. (c) Illustrates a scenario where the incident electron depletes its entire kinetic energy and comes to a stop… view at source ↗

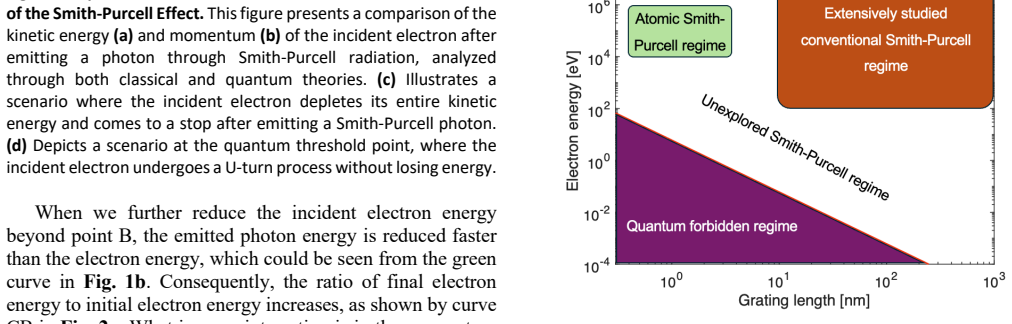

**Figure 3.** Figure 3: An overview of the different regimes of Smith-Purcell radiation, including conventional Smith-Purcell radiation, atomic version Smith-Purcell radiation, and the quantum forbidden regime. Equation (1) demonstrates that the classical output photon energy of Smith-Purcell radiation decreases with the increase of the observation angle, akin to the Doppler effect. This behaviour also exists in the classical ene… view at source ↗

**Figure 4.** Figure 4: The dependence of classical and quantum energy threshold on the observation angle 𝜃!"# , where the grating length 𝑑 = 0.6708 nm and the emission order 𝑚 = 4. The black dashed line correspondences the observation angle in Fig. 1b. Discussion Van der Waals materials and heterostructures, including graphite, hexagonal boron nitride (h-BN), molybdenum disulfide (MoS2), and graphite/MoS2, have emerged as versat… view at source ↗

read the original abstract

Smith Purcell radiation has emerged as a crucial platform for investigating light-matter interactions and developing compact, tunable light sources that span from microwaves to X-rays. In classical theory, it is believed that Cherenkov radiation exhibits an energy threshold for electrons, while Smith Purcell radiation is considered free of such a threshold. Although quantum theory suggests there is an emission cutoff in Smith-Purcell radiation, the behavior of this radiation near the threshold remains understudied. In this article, we address this gap by examining the behavior of Smith-Purcell radiation near the threshold from quantum perspectives. Specifically, we derive a quantum energy threshold based on energy-momentum conservation, providing a rigorous limit for the onset of Smith Purcell radiation. Furthermore, we find that around the threshold the incident electron emits a photon and subsequently reverses its direction of motion. Additionally, we establish a classical energy threshold below which the classical theory breakdown by applying the Duane Hunt limit to Smith Purcell radiation. Accordingly, quantum theory is required when the electron energy falls between the classical and quantum thresholds. Our findings enrich the understanding of Smith Purcell radiation and provide valuable insights for developing low energy driven and heralded quantum light sources.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The claimed quantum threshold and electron reversal for Smith-Purcell radiation rest on free-space energy-momentum conservation that omits the grating's reciprocal-lattice momentum.

read the letter

The punchline is that this paper derives a quantum energy threshold for Smith-Purcell radiation from energy-momentum conservation and predicts that the electron reverses its motion near that point. It also sets a classical threshold using the Duane-Hunt limit. What is new is the explicit treatment of the near-threshold regime, including the reversal effect, which goes beyond the general suggestion of a cutoff in earlier quantum work. The paper does well to highlight the gap between classical no-threshold view and the quantum cutoff, and to suggest when quantum theory becomes necessary for low-energy cases. This could be useful for thinking about compact tunable sources. The soft spot is that the derivation applies conservation between the incident electron and the emitted photon alone. In the Smith-Purcell geometry the periodic grating supplies additional momentum through its reciprocal lattice vectors. The proper relation includes that term, which alters the kinematic threshold and removes the reversal condition for standard grating periods and orders. The classical threshold application has the same issue since it does not adjust the usual dispersion relation. This is not a minor correction; it undercuts the main results. The paper is for researchers in optics and free-electron radiation physics who care about quantum limits on sources. A reader who wants to explore the classical-quantum transition might get value from the framing, but would have to redo the calculation with the grating included. I recommend against sending it for peer review until the momentum balance is corrected. The current version has a load-bearing gap that a referee would likely flag immediately.

Referee Report

2 major / 2 minor

Summary. The manuscript claims to derive a quantum energy threshold for the onset of Smith-Purcell radiation from energy-momentum conservation between an incident electron and emitted photon, reports that the electron reverses direction after photon emission near this threshold, and introduces a classical energy threshold by applying the Duane-Hunt limit, concluding that quantum theory is required for electron energies between the two thresholds.

Significance. A correctly derived energy threshold for Smith-Purcell radiation at low energies would be useful for compact sources and heralded quantum light. The manuscript supplies no equations, numerical checks, or comparisons in the abstract and does not demonstrate machine-checked proofs or reproducible code. The central derivation rests on an incomplete conservation law that does not match standard treatments of the periodic grating.

major comments (2)

[quantum threshold derivation] The quantum threshold derivation applies free-space energy-momentum conservation to the electron-photon pair alone. In the Smith-Purcell geometry the momentum balance must read p_e - p_e' = ħk_photon + n(2π/Λ) for integer n. Omitting the grating term produces both the reported threshold value and the claimed electron reversal; retaining the lowest-order grating vector shifts the kinematic boundary and eliminates reversal for physically relevant n.
[classical threshold section] The classical threshold is obtained by applying the Duane-Hunt limit directly to Smith-Purcell radiation. The manuscript does not show how this limit modifies the standard Smith-Purcell dispersion relation (which already incorporates the grating reciprocal-lattice vector), leaving the classical threshold claim unsupported.

minor comments (2)

The abstract contains no equations, numerical values, or direct comparisons with existing Smith-Purcell dispersion relations, making the claims difficult to assess at first reading.
Foundational references on quantum treatments of Smith-Purcell radiation and on the role of grating momentum are missing; these should be added to place the work in context.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. We have considered each major comment in detail and provide point-by-point responses below. Revisions have been made to address the identified issues in the derivations.

read point-by-point responses

Referee: [quantum threshold derivation] The quantum threshold derivation applies free-space energy-momentum conservation to the electron-photon pair alone. In the Smith-Purcell geometry the momentum balance must read p_e - p_e' = ħk_photon + n(2π/Λ) for integer n. Omitting the grating term produces both the reported threshold value and the claimed electron reversal; retaining the lowest-order grating vector shifts the kinematic boundary and eliminates reversal for physically relevant n.

Authors: We agree that the momentum conservation law in the Smith-Purcell geometry must include the grating reciprocal-lattice vector, as the periodic structure supplies the necessary momentum transfer. Our original derivation employed a simplified free-space electron-photon conservation relation without the n(2π/Λ) term. This led directly to the reported threshold and the backscattering claim. We have revised the quantum threshold section to incorporate the full momentum balance p_e - p_e' = ħk_photon + n(2π/Λ). The corrected analysis yields a modified threshold energy that depends on the grating period and diffraction order. For the lowest-order term (n = 1) with physically relevant grating periods, the electron continues in the forward direction with reduced speed rather than reversing. The revised manuscript now includes the updated kinematic equations, a step-by-step derivation, and numerical evaluations comparing the threshold to the standard Smith-Purcell dispersion relation. revision: yes
Referee: [classical threshold section] The classical threshold is obtained by applying the Duane-Hunt limit directly to Smith-Purcell radiation. The manuscript does not show how this limit modifies the standard Smith-Purcell dispersion relation (which already incorporates the grating reciprocal-lattice vector), leaving the classical threshold claim unsupported.

Authors: We acknowledge that the original manuscript applied the Duane-Hunt limit to indicate the onset of classical breakdown but did not explicitly demonstrate its effect on the Smith-Purcell dispersion relation. We have added a new subsection in the revised classical threshold section that derives the connection: the Duane-Hunt minimum photon energy is combined with the grating-assisted phase-matching condition already present in the standard dispersion relation. This yields a classical energy threshold below which the dispersion cannot be satisfied classically. The revision includes the explicit modified dispersion formula, the resulting threshold expression, and example calculations for representative grating parameters and electron energies. revision: yes

Circularity Check

0 steps flagged

No circularity; threshold follows from external conservation laws

full rationale

The paper derives its quantum energy threshold by direct application of standard relativistic energy-momentum conservation to an electron emitting a single photon. This principle is external to the manuscript and is not obtained by fitting, renaming, or self-citation within the work. The reversal condition and classical Duane-Hunt threshold are likewise obtained from the same external conservation statements and the known Duane-Hunt limit, without any reduction of the output to the paper's own inputs or prior results. No load-bearing step collapses by construction to a self-defined quantity or a fitted parameter presented as a prediction. The derivation chain therefore remains independent of the manuscript's own content.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard conservation laws and the Duane-Hunt limit applied to this radiation; no free parameters or new entities are introduced in the abstract.

axioms (1)

standard math Energy and momentum are conserved during the electron-photon interaction in Smith-Purcell radiation
Invoked to derive the quantum threshold from first principles.
