Uplink Single-Snapshot Frugal SLAM in Phase-Coherent Distributed MIMO Systems

Henk Wymeersch; Miljko Eri\'c; Musa Furkan Keskin; Nenad Vukmirovi\'c; Petar Djuri\'c; Xin Tong; Yu Ge

arxiv: 2604.13807 · v2 · submitted 2026-04-15 · 📡 eess.SP

Uplink Single-Snapshot Frugal SLAM in Phase-Coherent Distributed MIMO Systems

Yu Ge , Xin Tong , Nenad Vukmirovi\'c , Musa Furkan Keskin , Miljko Eri\'c , Petar Djuri\'c , Henk Wymeersch This is my paper

Pith reviewed 2026-05-10 12:57 UTC · model grok-4.3

classification 📡 eess.SP

keywords frugal SLAMphase-coherent distributed MIMOcoherent imagingsynthetic aperturesingle-snapshotuplink localizationjoint detectionreflective surfaces

0 comments

The pith

Phase-coherent frugal SLAM becomes feasible in distributed MIMO with only single-snapshot narrowband uplink signals by forming a coherent spatial image from distributed single-antenna access points.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to show that simultaneous localization and mapping can operate under minimal hardware constraints in phase-coherent distributed MIMO systems. It recasts the uplink single-snapshot observations as samples across a large synthetic aperture to build a spatial image of the environment. This image then supports a joint framework that detects the user equipment position along with reflective surfaces and scatterers. Readers would care if the approach truly lowers the cost and complexity of wireless SLAM by eliminating the need for wideband signals or multi-antenna access points.

Core claim

We formulate phase-coherent frugal SLAM as a coherent imaging problem, constructing a spatial image over a region of interest by treating the distributed AP observations as coming from a large synthetic aperture. Based on the coherent image, we develop a detection and localization framework that jointly identifies the UE, reflective surfaces, and scatterers.

What carries the argument

The coherent imaging formulation that treats single-snapshot narrowband observations from distributed single-antenna access points as a large synthetic aperture to construct a spatial image for detection and localization.

If this is right

Joint detection and localization of the UE, reflective surfaces, and scatterers is achieved from minimal single-snapshot data.
The framework operates with only one subcarrier and one snapshot at each single-antenna AP.
Detection performance varies with grid resolution and off-grid error in the constructed image.
Simulations provide quantitative insights into how these parameters affect accuracy in the frugal setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The synthetic-aperture view may allow reuse of existing distributed MIMO infrastructure for environmental mapping without added hardware.
It could connect to array imaging methods in other domains, such as radar or sonar, but adapted to communication bands.
Practical deployments might test robustness by relaxing phase coherence through calibration routines.

Load-bearing premise

The method assumes perfect phase coherence across all distributed access points and that narrowband single-snapshot observations suffice to form a usable coherent image without significant multipath or synchronization errors.

What would settle it

An experiment that introduces small phase offsets between access points or adds strong multipath components and shows that detection and localization of the UE and scatterers then fail or degrade sharply.

Figures

Figures reproduced from arXiv: 2604.13807 by Henk Wymeersch, Miljko Eri\'c, Musa Furkan Keskin, Nenad Vukmirovi\'c, Petar Djuri\'c, Xin Tong, Yu Ge.

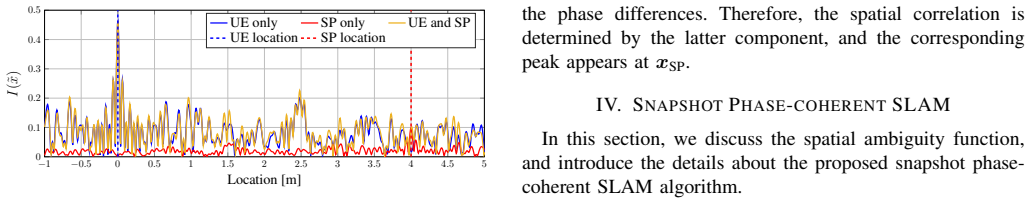

**Figure 2.** Figure 2: A one-dimensional illustrative example of [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

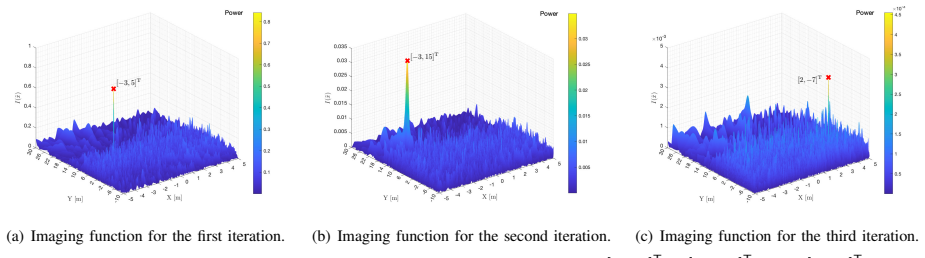

**Figure 3.** Figure 3: The imaging results of the proposed algorithm. The UE, VUE, and the SP are located at [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

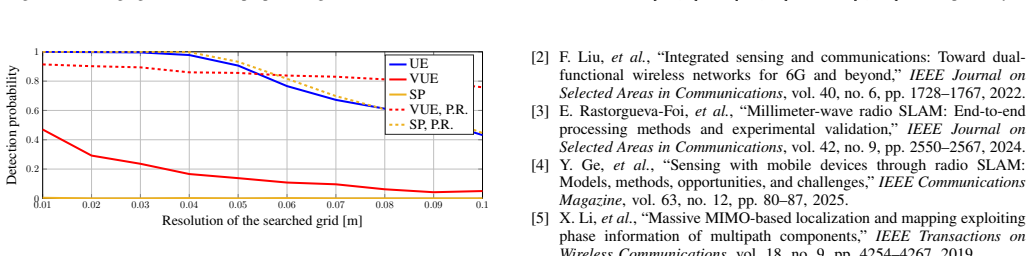

**Figure 4.** Figure 4: Detection probability of the targets, where “P.R.” stands for the perfect [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

read the original abstract

We consider uplink frugal simultaneous localization and mapping (SLAM) in phase-coherent distributed MIMO (D-MIMO) systems, where a network of spatially separated single-antenna access points (APs) coherently receives narrowband, single-snapshot pilot signals from a single-antenna user equipment (UE). In contrast to existing phase-coherent localization and SLAM methods that rely on wideband measurements and/or multi-antenna APs, the proposed frugal setting operates with the minimum possible localization resources: a single subcarrier and a single snapshot at each single-antenna AP. In this paper, we formulate phase-coherent frugal SLAM as a coherent imaging problem, constructing a spatial image over a region of interest by treating the distributed AP observations as coming from a large synthetic aperture. Based on the coherent image, we develop a detection and localization framework that jointly identifies the UE, reflective surfaces, and scatterers. Simulation results validate the proposed framework and provide insights into the impact of grid resolution and off-grid error on detection and localization performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

They recast frugal SLAM as coherent imaging over a synthetic aperture from single-antenna APs with one snapshot and one subcarrier, which is a clean extension but rests on strong phase-coherence assumptions.

read the letter

The main takeaway is that the authors treat the distributed single-antenna AP observations as samples from a virtual large aperture and form a spatial image via coherent summation. From the resulting image peaks they then jointly detect and localize the UE, reflective surfaces, and scatterers. This framing lets them operate with the absolute minimum resources: narrowband, single snapshot, single antenna per AP. That combination does not appear in the prior coherent localization work they cite, so the specific frugal setup is new on its own terms. The detection framework built on top of the image is straightforward and the simulations give concrete numbers on how grid resolution and off-grid mismatch affect detection rates and localization error. Those results are useful for anyone thinking about resource-constrained wireless sensing. The formulation itself looks internally consistent and the imaging step is a direct application of phase-aligned matched filtering, which is reproducible in principle. The soft spot is the reliance on perfect inter-AP phase coherence and the claim that narrowband single-snapshot data suffices. Any uncompensated delay or phase offset will shift or split the image peaks, and multipath will create ghosts that the downstream thresholding has to handle. The simulations appear to assume ideal synchronization and propagation, so they do not yet show how much performance drops under realistic sync errors or richer scattering. Without real hardware data or analytic bounds on those effects, the practical margin remains unclear. This paper is for researchers already working on distributed MIMO localization and SLAM. A reader in that niche will find the resource-reduction angle and the imaging perspective worth examining. It deserves peer review because the core construction is technically grounded and the simulations provide initial evidence, even if revisions will need to address robustness to the coherence assumption.

Referee Report

3 major / 1 minor

Summary. The paper claims to formulate uplink frugal SLAM in phase-coherent distributed MIMO systems as a coherent imaging problem. Distributed single-antenna APs provide narrowband single-snapshot observations that are treated as samples from a large synthetic aperture; a spatial image is formed over a region of interest via coherent summation, after which a detection/localization framework jointly identifies the UE, reflective surfaces, and scatterers. Simulation results are presented to illustrate the effects of grid resolution and off-grid errors.

Significance. If the phase-coherence and narrowband assumptions hold, the imaging-based formulation offers a genuinely resource-minimal alternative to existing wideband or multi-antenna SLAM techniques and could be relevant for dense 6G-style networks. The explicit treatment of the distributed APs as a synthetic aperture and the joint detection step are conceptually clean. However, the simulation-only validation without theoretical bounds, robustness analysis, or baseline comparisons limits the immediate impact.

major comments (3)

[Coherent imaging formulation] The coherent imaging construction (abstract and method description) treats the N single-antenna AP observations as phase-aligned samples of a virtual aperture and forms the image by matched filtering over a discretized ROI. With only one subcarrier, any uncompensated inter-AP phase offset or differential path delay maps directly to a shifted or split peak; no analysis of image degradation under realistic synchronization error or residual multipath is supplied, yet this assumption is load-bearing for the subsequent detection and localization claims.
[Detection and localization framework] The joint detection/localization framework thresholds or clusters peaks in the formed image to declare UE, surfaces, and scatterers. Because the image is generated from single-snapshot narrowband data, range ambiguities and sidelobe interference are not resolved by bandwidth; the manuscript provides no quantitative characterization (e.g., probability of ghost peaks or localization bias) of how these artifacts propagate into the detection step.
[Simulation results] Simulation results are invoked to validate the framework and to study grid resolution/off-grid error, yet the abstract and available description supply neither the number of APs, SNR regime, nor any comparison against existing phase-coherent or wideband SLAM baselines. Without these controls it is impossible to confirm that the reported performance actually demonstrates the claimed frugality advantage.

minor comments (1)

[Abstract] The abstract states that simulations 'provide insights into the impact of grid resolution and off-grid error' but does not report concrete metrics (RMSE, detection probability, false-alarm rate) or parameter settings, reducing clarity.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the thorough review and valuable suggestions. Below we respond to each major comment and describe the changes we will make to the manuscript.

read point-by-point responses

Referee: [Coherent imaging formulation] The coherent imaging construction (abstract and method description) treats the N single-antenna AP observations as phase-aligned samples of a virtual aperture and forms the image by matched filtering over a discretized ROI. With only one subcarrier, any uncompensated inter-AP phase offset or differential path delay maps directly to a shifted or split peak; no analysis of image degradation under realistic synchronization error or residual multipath is supplied, yet this assumption is load-bearing for the subsequent detection and localization claims.

Authors: The formulation assumes perfect phase coherence across APs, consistent with the phase-coherent D-MIMO system model in the paper. We agree that sensitivity analysis is important. In the revised version, we will add a discussion on the impact of inter-AP phase offsets and differential delays, supported by additional simulations showing image quality under realistic error levels. This will clarify the conditions under which the coherent summation remains effective. revision: yes
Referee: [Detection and localization framework] The joint detection/localization framework thresholds or clusters peaks in the formed image to declare UE, surfaces, and scatterers. Because the image is generated from single-snapshot narrowband data, range ambiguities and sidelobe interference are not resolved by bandwidth; the manuscript provides no quantitative characterization (e.g., probability of ghost peaks or localization bias) of how these artifacts propagate into the detection step.

Authors: We will enhance the detection framework section with quantitative characterization. Specifically, we plan to include Monte Carlo simulation results quantifying the probability of ghost peaks due to sidelobes and the resulting localization bias as functions of SNR and the number of APs. This will provide a more complete assessment of the framework's performance in the presence of ambiguities inherent to narrowband operation. revision: yes
Referee: [Simulation results] Simulation results are invoked to validate the framework and to study grid resolution/off-grid error, yet the abstract and available description supply neither the number of APs, SNR regime, nor any comparison against existing phase-coherent or wideband SLAM baselines. Without these controls it is impossible to confirm that the reported performance actually demonstrates the claimed frugality advantage.

Authors: The detailed simulation parameters are described in the body of the manuscript (Section IV), but we will update the abstract to explicitly state the number of APs, SNR range, and other key settings. For baseline comparisons, we will add results against a non-coherent distributed localization approach to highlight the benefits of the coherent imaging method. Direct comparisons to wideband SLAM techniques are challenging due to differing resource requirements, but we will discuss this in the revised text to better support the frugality claim. revision: partial

standing simulated objections not resolved

A comprehensive theoretical analysis of image degradation under arbitrary synchronization errors and multipath would extend beyond the scope of this simulation-focused paper.

Circularity Check

0 steps flagged

No circularity: coherent imaging is a direct modeling choice

full rationale

The paper's central step formulates frugal SLAM as coherent imaging by treating the N single-antenna AP observations as samples of a virtual synthetic aperture and performing phase-aligned summation over a discretized ROI. This is presented as a modeling decision grounded in the phase-coherent narrowband single-snapshot assumption, not as a redefinition of any fitted quantity or reduction to prior self-cited results. The subsequent detection/localization via peak identification follows directly from standard imaging processing without introducing self-definitional loops, fitted-input predictions, or load-bearing self-citations. The derivation remains self-contained against the stated assumptions and does not collapse to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on the assumption that phase coherence can be maintained across distributed single-antenna APs and that the narrowband single-snapshot model produces a usable image; no free parameters or invented entities are named in the abstract.

axioms (2)

domain assumption Phase coherence across spatially separated single-antenna APs is achievable for narrowband signals
Invoked when treating distributed observations as a single synthetic aperture
domain assumption Single-snapshot narrowband pilots suffice to resolve UE, surfaces, and scatterers via imaging
Central to the coherent imaging formulation
