arxiv: 2604.14292 · v1 · submitted 2026-04-15 · 🌌 astro-ph.GA · astro-ph.HE

The splash beneath the largest radio bubble in a cluster core

H. R. Russell , P. E. J. Nulsen , A. C. Fabian , B. R. McNamara , J. S. Sanders , N. Werner This is my paper

Pith reviewed 2026-05-10 12:01 UTC · model grok-4.3

classification 🌌 astro-ph.GA astro-ph.HE
keywords Ophiuchus clusterradio bubblesintracluster mediumturbulencecool coresAGN feedbackXRISM
0
0 comments X

The pith

Turbulence stirred up by the largest radio bubble in the Ophiuchus cluster is too weak to offset the core's rapid cooling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports XRISM Resolve spectroscopy of the Ophiuchus cluster core that detects a modest bulk velocity shift of -80 km/s and a rise in velocity dispersion from 135 km/s to 210 km/s in the wake of its giant radio bubble. These values are consistent with a localized updraft or splash beneath a buoyantly rising bubble whose path is inclined to our line of sight. Even so, the turbulent kinetic energy stored in the wake supplies only 1 percent of the thermal energy radiated over the core's 7 Gyr cooling time and the dissipation rate falls a factor of three below the observed cooling luminosity. The authors conclude that bubble-driven turbulence cannot prevent rapid cooling across the core despite the bubble's enormous power.

Core claim

XRISM Resolve spectra show that the velocity dispersion increases and a bulk shift appears primarily in the central part of the bubble wake, matching the expected splash from a rising cavity, yet the resulting turbulent energy remains far too small to balance radiative losses over either the cooling timescale or the bubble rise time.

What carries the argument

High-resolution X-ray line spectroscopy with XRISM Resolve that extracts line-of-sight velocity shifts and dispersions from the Fe K complex in the intracluster gas.

If this is right

  • The velocity increase is concentrated in the very center of the wake, matching the geometry of an updraft beneath a rising bubble.
  • Turbulent kinetic energy equals only 1 percent of the thermal energy lost over the 7 Gyr cooling time.
  • The turbulent dissipation heating rate lies a factor of approximately three below the core cooling luminosity.
  • Even if the entire wake region contributes, the energy propagates too slowly to offset cooling throughout the core.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Other heating channels or repeated bubble cycles may still be needed to offset cooling in this and similar systems.
  • The low observed line-of-sight velocities imply that many radio bubbles in clusters may be oriented at large angles to the observer.
  • If comparable modest turbulence is found behind other giant bubbles, it would indicate that turbulent dissipation is generally insufficient to regulate cool cores.

Load-bearing premise

The fitted velocity shifts and dispersions accurately trace the bubble-driven motions and turbulence without dominant projection effects, unresolved multi-phase structure, or systematic errors in the spectral response.

What would settle it

A measurement with substantially higher velocity dispersion or a much larger bulk shift in the same region, obtained with an independent instrument or emission line, would show that the current motions have been underestimated.

Figures

Figures reproduced from arXiv: 2604.14292 by A. C. Fabian, B. R. McNamara, H. R. Russell, J. S. Sanders, N. Werner, P. E. J. Nulsen.

Figure 1
Figure 1. Figure 1: Left: Chandra X-ray image (0.5 − 7 keV) of the Ophiuchus cluster showing the X-ray cavity and rim to the SE of the cool core. The XRISM field of view is shown by the blue region. Right: With GMRT 210 MHz radio contours from Giacintucci et al. (2025). The X-ray cavity is filled with radio emission. A radio minihalo is detected in the cluster core and a head-tail radio galaxy appears to the SW [PITH_FULL_IM… view at source ↗
Figure 2

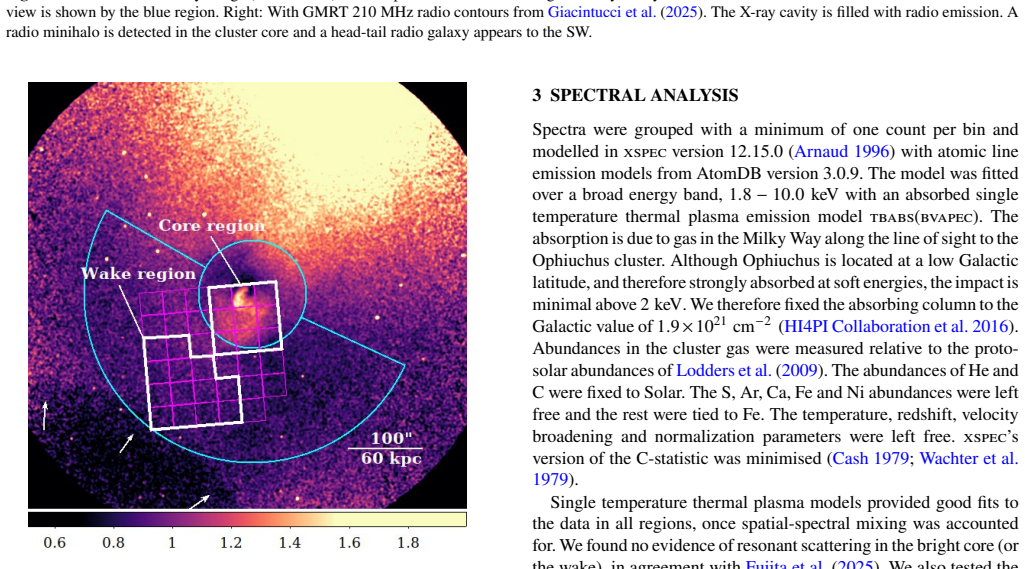

Figure 2. Figure 2: Chandra residual image where the surface brightness has been divided by the average value at each radius, which was evaluated in circular annuli that were each 2.5 arcsec in width. The core and wake detector regions used are shown in white and the sky regions used for the spatial-spectral mixing analysis are shown in cyan. background, from unresolved distant AGN, is even fainter than the NXB. Therefore, fo… view at source ↗
Figure 3
Figure 3. Figure 3: Resolve spectra, models and ratios for the core and wake regions shown in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

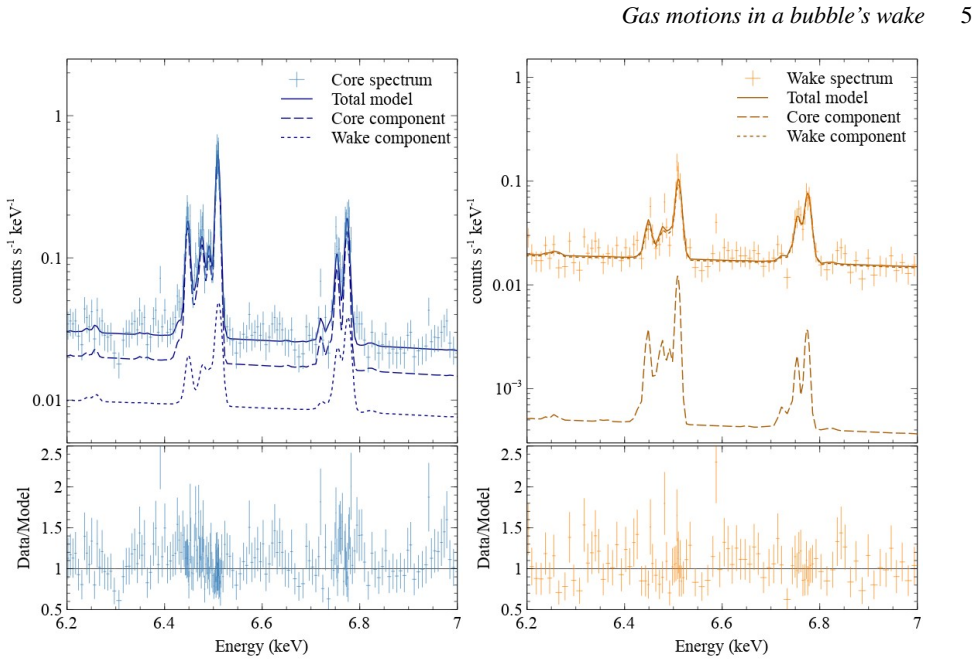

Figure 4. Figure 4: Resolve spectra, models and ratios for the core and wake regions shown in [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Chandra residual image (as in [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 5
Figure 5. Figure 5: Resolve spectra, models and ratios for the core and wake regions shown in [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
read the original abstract

We present a 100 ks XRISM Resolve observation of the Ophiuchus cluster that measures turbulence and bulk motion in the wake of the largest radio bubble on the sky. We detect a significant velocity shift of $-80\pm20$ km/s from the cluster centre to the bubble's wake and a clear increase in velocity dispersion from $135\pm10$ km/s to $210\pm20$ km/s. The measured bulk velocity in the wake is low and suggests that the bubble's trajectory is inclined with respect to the line of sight. If we subdivide the bubble's wake, fitting spectra simultaneously with cross-region responses, we find that the velocity shift and dispersion increase are primarily detected in the very centre of the wake. This is consistent with the expected updraft, or `splash', found beneath buoyantly rising radio bubbles. In the cluster's cool core, the turbulent kinetic energy is only 1% of the thermal energy radiated over a cooling timescale of 7 Gyr, and even falls short, by a factor of 5, of the thermal energy radiated over the bubble's rise time. Whilst turbulent energy generated in the large wake region may provide additional heating, this propagates too slowly to prevent rapid cooling across the core. The turbulent-dissipation heating rate is a factor of ~3 below the cooling luminosity. Despite the vast power of the giant radio bubble in the Ophiuchus cluster, the gas motions in the wake are remarkably modest and turbulent-dissipation appears unable to prevent rapid cooling.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports a 100 ks XRISM Resolve observation of the Ophiuchus cluster, detecting a velocity shift of −80±20 km/s from the cluster centre to the wake of the largest radio bubble and an increase in velocity dispersion from 135±10 km/s to 210±20 km/s. Subdividing the wake with simultaneous cross-region spectral fitting shows the changes are concentrated in the wake centre, interpreted as an updraft or splash. The turbulent kinetic energy is stated to be only 1% of the thermal energy radiated over a 7 Gyr cooling time, with the dissipation rate a factor of ~3 below the cooling luminosity, leading to the conclusion that turbulent dissipation cannot offset rapid cooling despite the bubble's power.

Significance. If the velocity measurements hold after accounting for projection and modeling effects, the result supplies a direct observational limit on the heating efficiency of AGN-driven turbulence in cluster cores. It demonstrates that even the most powerful radio bubble on the sky produces only modest gas motions whose dissipation falls short of balancing cooling on the bubble rise time, thereby tightening constraints on feedback models and motivating consideration of additional heating channels such as sound waves or multi-phase mixing.

major comments (2)
  1. [Results on velocity measurements and energy budget calculation] The central claim that turbulent dissipation is unable to prevent rapid cooling rests on the wake velocity dispersion (210±20 km/s) and shift (−80±20 km/s) faithfully tracing the volume-averaged 3D turbulent field. The manuscript notes the bubble trajectory is inclined but does not quantify the line-of-sight projection suppression factor or test how a 30–50% underestimation would alter the reported KE ratios (1% of 7 Gyr radiated energy; dissipation ~1/3 of cooling luminosity).
  2. [Spectral analysis and fitting procedure] The abstract states that spectra are fitted simultaneously with cross-region responses, yet the full text provides no explicit description of the region definitions, the response matrix construction, or the covariance matrix between regions. Without these, it is impossible to evaluate whether systematic biases in the Resolve spectral response could shift the reported dispersion or bulk velocity by amounts comparable to the stated uncertainties, directly affecting the factor-of-3 shortfall in heating rate.
minor comments (2)
  1. [Introduction and abstract] The abstract and main text use “splash” in quotes without a prior definition or reference to the expected hydrodynamic feature; a brief explanatory sentence would improve clarity for readers unfamiliar with bubble-wake simulations.
  2. [Figure showing subdivided wake results] Table or figure presenting the subdivided wake spectra should include the exact extraction regions and the number of counts per region to allow independent assessment of the signal-to-noise driving the velocity constraints.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript on the XRISM Resolve observation of the Ophiuchus cluster. We address each major comment point by point below, providing the strongest honest defense of our analysis while making revisions where the manuscript was incomplete or could be strengthened.

read point-by-point responses

  1. Referee: [Results on velocity measurements and energy budget calculation] The central claim that turbulent dissipation is unable to prevent rapid cooling rests on the wake velocity dispersion (210±20 km/s) and shift (−80±20 km/s) faithfully tracing the volume-averaged 3D turbulent field. The manuscript notes the bubble trajectory is inclined but does not quantify the line-of-sight projection suppression factor or test how a 30–50% underestimation would alter the reported KE ratios (1% of 7 Gyr radiated energy; dissipation ~1/3 of cooling luminosity).

    Authors: We agree that a quantitative assessment of projection effects strengthens the interpretation. The observed bulk velocity shift of only −80 km/s indicates that the bubble trajectory is significantly inclined to the line of sight. In the revised manuscript we have added a dedicated paragraph in the Discussion that estimates the possible suppression. For isotropic turbulence, the line-of-sight dispersion could underestimate the 3D value by up to a factor of ∼1.5 if the dominant motions lie in the plane of the sky. Scaling the observed 210 km/s dispersion upward by this factor increases the turbulent kinetic energy by ∼2.25 and the dissipation rate by the same factor. Even under this conservative assumption the heating rate remains ∼1.3 times below the cooling luminosity, preserving the conclusion that turbulent dissipation cannot balance cooling on the bubble rise time. We have also noted the corresponding range for the 1% KE ratio relative to the 7 Gyr radiated energy. While a full 3D deprojection is not possible without additional geometric constraints, the sensitivity test demonstrates that the central claim is robust to plausible projection corrections. revision: partial

  2. Referee: [Spectral analysis and fitting procedure] The abstract states that spectra are fitted simultaneously with cross-region responses, yet the full text provides no explicit description of the region definitions, the response matrix construction, or the covariance matrix between regions. Without these, it is impossible to evaluate whether systematic biases in the Resolve spectral response could shift the reported dispersion or bulk velocity by amounts comparable to the stated uncertainties, directly affecting the factor-of-3 shortfall in heating rate.

    Authors: We thank the referee for identifying this omission. The original manuscript was indeed insufficiently detailed on the fitting procedure. We have now expanded the Methods section with a new subsection entitled 'Simultaneous Cross-Region Spectral Fitting'. It provides: (i) precise definitions and sky coordinates of the cluster-center, full-wake, and subdivided wake regions; (ii) the construction of the cross-region response matrices using the XRISM Resolve calibration files, explicitly including the PSF convolution and energy-dependent effective area; and (iii) the form of the covariance matrix employed in the joint fit to account for correlated uncertainties arising from the shared background and response. We have also added a short paragraph assessing potential systematic shifts from the spectral response model, showing that they are smaller than the quoted statistical uncertainties. These additions allow full reproduction and evaluation of the analysis. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely observational measurements of velocities and derived energy ratios

full rationale

The paper reports direct spectral fits from XRISM Resolve data yielding velocity shift (-80±20 km/s) and dispersion (135 to 210 km/s) in the bubble wake. Energy ratios (turbulent KE = 1% of 7 Gyr radiated energy; dissipation ~1/3 cooling luminosity) are computed from these measured quantities using standard kinetic energy and dissipation formulas. No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations appear in the derivation chain. The central claims rest on external spectral data and do not reduce to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Observational study; central claims rest on spectral extraction and fitting assumptions that are not enumerated in the abstract. No new theoretical free parameters, axioms, or invented entities are introduced.
