Twisted Bilayer Graphene Lifetimes At Integer Fillings: An Analytic Result

Haoyu Hu , Yuelin Shao , Lorenzo Crippa , Dumitru C\u{a}lug\u{a}ru , Giorgio Sangiovanni , Tim Wehling , Leonid I. Glazman , B. Andrei Bernevig

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:00 UTC · model grok-4.3

classification ❄️ cond-mat.str-el

keywords twisted bilayer graphenetopological heavy-fermion modelinteger fillingsself-energyscattering ratesHubbard bandsDirac modesperturbative expansion

0 comments

The pith

The topological heavy-fermion model yields analytic expressions for the self-energy and scattering rates of both Dirac and Hubbard-band excitations in twisted bilayer graphene at integer fillings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops an analytic treatment of correlated single-particle excitations in twisted bilayer graphene near integer fillings. It begins with the exactly solvable decoupled limit of the topological heavy-fermion model, in which free Dirac fermions coexist with zero-width Hubbard bands formed by interacting f electrons. Small hybridization and Hund coupling are then added perturbatively to produce closed-form expressions for the self-energy. These expressions directly give the renormalized dispersion and finite lifetimes of both the high-energy Hubbard bands and the low-energy Dirac modes. A reader would care because the formulas allow quantitative predictions for linewidths and band shifts that experiments can test without full numerical simulations.

Core claim

In the decoupled limit of the topological heavy-fermion model, free Dirac fermions coexist with interacting f electrons that form zero-width Hubbard bands. Treating the fc hybridization and Hund coupling perturbatively around this solvable limit produces analytical results for the single-particle self-energy. From this self-energy the authors derive explicit expressions for dispersion renormalization and scattering rates of both Hubbard-band excitations and low-energy Dirac modes.

What carries the argument

Perturbative expansion of the single-particle self-energy around the decoupled limit of the topological heavy-fermion model, separating free Dirac fermions from interacting f electrons.

If this is right

Scattering of Gamma3 Dirac electrons arises from a different mechanism than that of Gamma1,2 electrons.
Strain modifies the analytic expressions for dispersion and lifetimes in a controlled way.
The derived scattering rates and renormalizations agree with DMFT results for the same model.
Both Hubbard-band and low-energy Dirac excitations acquire finite lifetimes that can be computed explicitly.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The distinct scattering channels for different Dirac flavors suggest that polarization-resolved probes could isolate one mechanism.
Higher-order terms in the same perturbative expansion could be used to estimate interaction-induced gaps near integer filling.
The analytic lifetimes supply a concrete starting point for modeling ARPES or tunneling spectra in strained samples.

Load-bearing premise

When hybridization and Hund coupling are absent, the model is exactly solvable with free Dirac fermions coexisting with zero-width Hubbard bands.

What would settle it

A numerical calculation of the self-energy at small nonzero hybridization that deviates systematically from the derived analytic formulas would falsify the perturbative result.

Figures

Figures reproduced from arXiv: 2604.14303 by B. Andrei Bernevig, Dumitru C\u{a}lug\u{a}ru, Giorgio Sangiovanni, Haoyu Hu, Leonid I. Glazman, Lorenzo Crippa, Tim Wehling, Yuelin Shao.

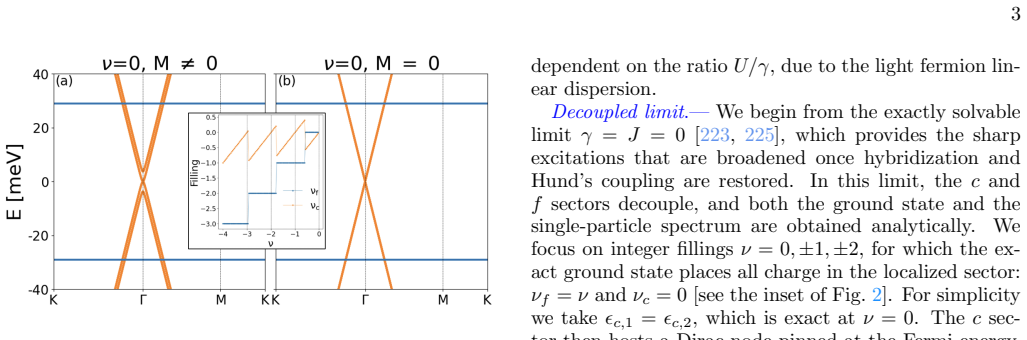

**Figure 2.** Figure 2: FIG. 2. Exactly solvable decoupled limit of the THF model, [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. Line cuts of the hybridization-expansion spectra near [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

read the original abstract

Twisted bilayer graphene near integer fillings hosts correlated single-particle excitations whose dispersion and linewidth are increasingly accessible experimentally. We study these excitations using the topological heavy-fermion model, which captures both strong correlations and band topology of twisted bilayer graphene. In the decoupled limit, where both the single-particle fc hybridization and the Hund coupling between f and c electrons are absent, the model admits exact solutions in which free Dirac fermions coexist with interacting f electrons that form zero-width Hubbard bands. By treating the fc hybridization and Hund coupling perturbatively around this solvable limit, we obtain analytical results for the single-particle self-energy. From the resulting self-energy, we derive explicit expressions for both dispersion renormalization and scattering rates of both Hubbard-band excitations and low-energy Dirac modes, thereby establishing an analytical framework for understanding correlated excitations in twisted bilayer graphene. We analyze the scattering of the two kinds, Gamma3 and Gamma1,2, of Dirac electrons and find that they arise from different mechanisms. We also briefly investigate the effect of strain. Finally, we compare these analytical expressions with DMFT results for the same model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper works out explicit perturbative formulas for self-energy, dispersions, and scattering rates in the topological heavy-fermion model for TBG at integer fillings, starting from an exact decoupled limit.

read the letter

The main advance is the controlled expansion around the solvable point where free Dirac c-electrons sit alongside zero-width f-electron Hubbard bands. From there they extract closed-form expressions for the real and imaginary parts of the self-energy, then convert those into renormalized dispersions and lifetimes for both the Hubbard bands and the low-energy Dirac modes. They also separate the scattering channels for the two Dirac species (Gamma3 versus Gamma1,2) and show they come from distinct symmetry-allowed processes. The short strain section and the side-by-side DMFT comparison give the analytics something concrete to sit against. The central limit is internally consistent in the model, and the perturbation looks standard with no hidden diagram classes or fitting loops. One modest limitation is that the expansion is reliable only at small hybridization and Hund coupling, so it covers a slice of parameter space rather than the full experimental range, but the DMFT check helps mark where the formulas remain useful. This is aimed at theorists and experimentalists who want analytic handles on quasiparticle lifetimes in moire flat-band systems instead of pure numerics. It deserves a serious referee because the derivations are new, reproducible in principle, and directly tied to measurable quantities.

Referee Report

2 major / 2 minor

Summary. The manuscript develops an analytic perturbative framework for single-particle excitations in twisted bilayer graphene at integer fillings, based on the topological heavy-fermion model. It begins from an exactly solvable decoupled limit (V=0, J=0) in which free Dirac c-electrons coexist with f-electrons forming zero-width Hubbard bands, then expands to first order in fc hybridization and Hund coupling to obtain explicit expressions for the self-energy. From the self-energy the authors derive closed-form results for dispersion renormalization and scattering rates of both Hubbard-band excitations and the low-energy Dirac modes, distinguishing the scattering channels for the two symmetry-distinct Dirac species (Gamma3 versus Gamma1,2), with a brief strain analysis and direct comparison to DMFT spectra.

Significance. If the derivations are correct, the work supplies a rare set of explicit, parameter-controlled analytic formulas for lifetimes and renormalizations in a strongly correlated topological system where most results are numerical. The controlled expansion from a solvable limit, the symmetry-based separation of scattering mechanisms, and the DMFT benchmark constitute genuine strengths that could aid interpretation of ARPES and tunneling data on TBG.

major comments (2)

[§4, Eq. (17)] §4, Eq. (17) and following: the first-order imaginary part of the self-energy for the Dirac modes is stated to arise solely from the hybridization vertex; however, the paper does not explicitly demonstrate that this expression satisfies the expected vanishing of the scattering rate at the Dirac point for integer filling (as required by the absence of available phase space), nor does it quantify the size of omitted second-order diagrams that could contribute at the same order in the low-energy limit.
[§5] §5 (DMFT comparison): the analytic scattering rates are compared to DMFT only at a single set of parameters; no systematic scan is shown to confirm that the perturbative expressions remain accurate when the hybridization V is increased toward the regime where the decoupled-limit assumption begins to break down.

minor comments (2)

[§2] The definition of the two Dirac species (Gamma3 vs Gamma1,2) and the symmetry-allowed vertices should be restated with explicit matrix elements in the main text rather than deferred to an appendix.
[Figure 3] Figure 3 caption: the DMFT curves are plotted without error bars or indication of the number of disorder realizations or k-point sampling used; this makes quantitative assessment of the agreement with the analytic curves difficult.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and the recommendation for minor revision. The comments are constructive and we address each major point below, indicating the revisions we will make.

read point-by-point responses

Referee: [§4, Eq. (17)] §4, Eq. (17) and following: the first-order imaginary part of the self-energy for the Dirac modes is stated to arise solely from the hybridization vertex; however, the paper does not explicitly demonstrate that this expression satisfies the expected vanishing of the scattering rate at the Dirac point for integer filling (as required by the absence of available phase space), nor does it quantify the size of omitted second-order diagrams that could contribute at the same order in the low-energy limit.

Authors: We thank the referee for this observation. The first-order imaginary self-energy for the Dirac modes, arising from the hybridization, does vanish at the Dirac point (ω = 0) for integer filling. This follows directly from the phase-space restriction: at integer filling the chemical potential sits at the Dirac point, and the available scattering channels for zero-energy excitations are closed. We will add an explicit analytic verification of this vanishing in the revised §4. Regarding the omitted second-order diagrams, these enter at O(V², J²) and are therefore parametrically smaller within the perturbative expansion around the decoupled limit. While a complete numerical estimate of their magnitude would require an additional calculation outside the present scope, the existing DMFT benchmark in §5 already indicates that the first-order results remain accurate for the parameters considered. We will add a short paragraph discussing the expected order of these corrections. revision: partial
Referee: [§5] §5 (DMFT comparison): the analytic scattering rates are compared to DMFT only at a single set of parameters; no systematic scan is shown to confirm that the perturbative expressions remain accurate when the hybridization V is increased toward the regime where the decoupled-limit assumption begins to break down.

Authors: We agree that a broader comparison would better delineate the range of validity. In the revised manuscript we will add DMFT spectra for several values of the hybridization V (both smaller and larger than the value used in the original figure) while keeping all other parameters fixed. This will explicitly show where the analytic expressions begin to deviate as the decoupled-limit assumption weakens. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation begins from an exactly solvable decoupled limit (V=0, J=0) in which the topological heavy-fermion model reduces to free Dirac c-electrons coexisting with an atomic Hubbard problem for f-electrons that produces zero-width bands at integer filling. Controlled perturbative expansion in fc hybridization and Hund coupling then yields explicit analytic expressions for the self-energy, from which dispersion renormalizations and scattering rates are obtained by direct calculation. No fitted parameters are relabeled as predictions, no load-bearing uniqueness theorem is imported via self-citation, and no ansatz is smuggled in; the final formulas are independent outputs of the perturbative expansion rather than rearrangements of the inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the topological heavy-fermion model being an accurate effective description and on the validity of the perturbative expansion around the decoupled limit. No new particles or forces are postulated; the hybridization and Hund terms are treated as small external parameters.

axioms (2)

domain assumption The topological heavy-fermion model captures both strong correlations and band topology of twisted bilayer graphene.
This is the foundational model invoked throughout the abstract for the analysis of excitations.
standard math In the decoupled limit the model admits exact solutions consisting of free Dirac fermions coexisting with zero-width Hubbard bands.
Explicitly stated as the solvable starting point for the perturbative treatment.

pith-pipeline@v0.9.0 · 5529 in / 1390 out tokens · 59675 ms · 2026-05-10T12:00:05.605793+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

6 extracted references

[1]

At orderγ 2, the self-energy is related toF ij(iω, iω′, iω′) through Eq

Self-energy from the hybridization expansion We are now in a position to evaluate the self-energy within the hybridization expansion. At orderγ 2, the self-energy is related toF ij(iω, iω′, iω′) through Eq. (S60) Σ(1) f,ij(iω) =γ 2δi,j X iω′,i′ ∆(iω′)F ii′ (iω, iω′, iω′) 1 [Gf,loc(iω)]2 (S128) We first perform the sum overi ′. Using the explicit expressio...
[2]

In this subsection, we derive an analytic expression for ∆(iω)

Hybridization function The self-energy derived in the previous subsection depends explicitly on the hybridization function ∆(iω). In this subsection, we derive an analytic expression for ∆(iω). In Eq. (S2),H (c,η) andH (cf,η) are defined as H(c,η)(k) = σ0(ϵc,1 −µ)v ⋆(ηkxσ0 +ik yσz) v⋆(ηkxσ0 −ik yσz)σ 0(ϵc,2 −µ) +M σ x H(cf,η)(k) = γσ0 +v ′ ⋆(ηkxσx +k yσy)...
[3]

Similarly to theM= 0 limit, the self-energy off-electron can be written as (Eqs

Effect of finiteM We next investigate the effect of finiteM. Similarly to theM= 0 limit, the self-energy off-electron can be written as (Eqs. (S151) and (S5)) ΣCN P f (iω) = U2 1 ZM,a 4i(iω)ω ZM,a(iω) = 1−π(N f + 1)κfM(iω) = 1−π(N f + 1)κ log |v⋆Λc|2 +ω 2 ω2 − M 2iω log iω+M iω−M − 1 2 log M2 +ω 2 ω2 (S36) Via the auxiliary field, the effective Green’s fu...
[4]

We focus on charge neutrality withfelectron fillingn f =N f /2

Evaluation ofΣ c(iω) We now evaluate Σc explicitly. We focus on charge neutrality withfelectron fillingn f =N f /2. We first consider the susceptibility offelectron (Eq. (S14)). At charge neutrality, we have :f † R,ifR,j :=f † R,ifR,j − ⟨f † R,ifR,j⟩Sdecouple =f † R,ifR,j −δ i,j nf Nf (S21) Using Eq. (S36), the four Fermion correlation function without no...
[5]

Using the eigenvalues and eigenvectors of thecelectron Hamiltonian Eqs

Evaluation of the Green’s function We now evaluate the Green’s function ofcelectron at charge neutrality. Using the eigenvalues and eigenvectors of thecelectron Hamiltonian Eqs. (S143) and (S144), thecelectron Green’s function Eq. (S17) is expressed as GSdecouple c,a1η1s1,a2η2s2(iω,k) =δ s1,s2 δη1,η2 4X n=1 U η1,c k,a1n[U η1,c k,a2n]∗ iω−E η1,c k,n (S35) ...
[6]

(S33) and (S34), we proved that at low temperature, only the Γ 1 ⊕Γ 2 celectrons acquire a dynamical self-energy at orderj∼J 2 due to the local-moment fluctuations offelectrons

Effect of strain In Eqs. (S33) and (S34), we proved that at low temperature, only the Γ 1 ⊕Γ 2 celectrons acquire a dynamical self-energy at orderj∼J 2 due to the local-moment fluctuations offelectrons. Thus, we expect that if the local- momentum fluctuations are quenched, the damping rate will also be suppressed at orderj. To verify this, we investigate ...
