arxiv: 2604.14372 · v1 · submitted 2026-04-15 · 📡 eess.SY · cs.SY

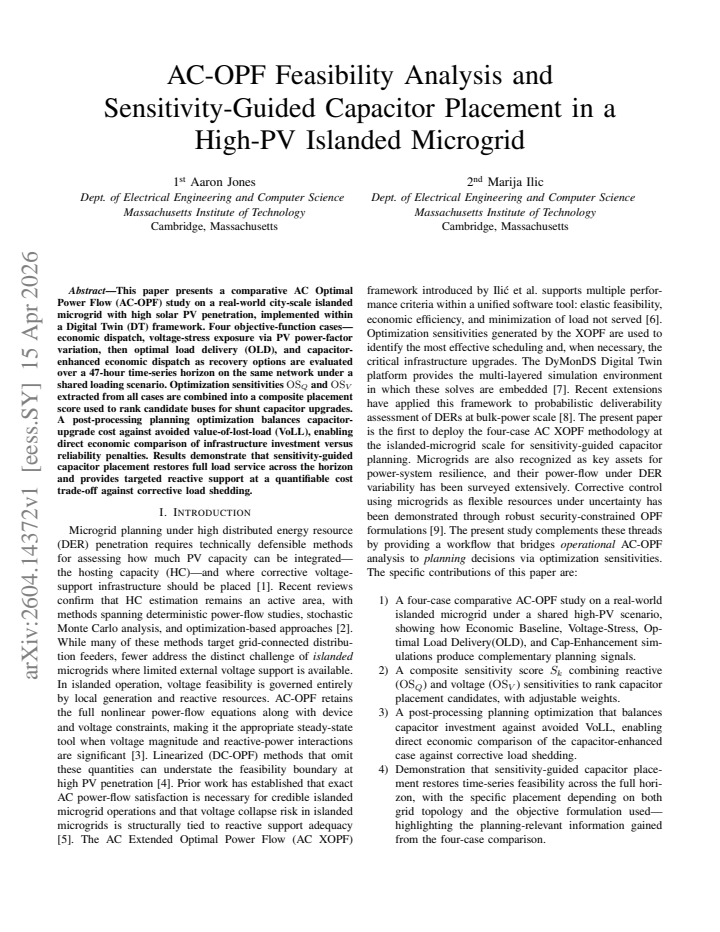

AC-OPF Feasibility Analysis and Sensitivity-Guided Capacitor Placement in a High-PV Islanded Microgrid

Aaron Jones , Marija Ilic This is my paper

Pith reviewed 2026-05-10 12:16 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords AC optimal power flowislanded microgridshunt capacitor placementsensitivity analysishigh PV penetrationload sheddingeconomic dispatchreactive power support
0
0 comments X

The pith

Sensitivity-guided capacitor placement restores full load service in a high-PV islanded microgrid.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a comparative AC optimal power flow study on a city-scale islanded microgrid with high solar PV penetration over a 47-hour time series. Four objective cases are evaluated on the same network, and sensitivities from those runs are combined into a score to rank buses for shunt capacitor placement. Results show that this placement restores full load service and allows direct comparison of capacitor costs against the penalties from load shedding. A sympathetic reader cares because islanded microgrids with variable PV need practical methods to ensure feasibility without excessive shedding, and this turns existing optimization data into an investment decision.

Core claim

In an AC-OPF study of a high-PV islanded microgrid, sensitivities OSQ and OSV from multiple objective cases are combined into a composite placement score that ranks buses for shunt capacitor installation; installing capacitors at the highest-ranked locations restores full load service feasibility across the time horizon, with the upgrade cost balanced against avoided load-shedding penalties in a post-processing optimization.

What carries the argument

Composite placement score from OSQ and OSV sensitivities, which ranks candidate buses for shunt capacitor upgrades to restore AC-OPF feasibility.

If this is right

  • Full load service is restored across the 47-hour horizon when capacitors are placed according to the score.
  • Targeted reactive support is provided at selected buses.
  • The capacitor cost is directly compared to the value of lost load from corrective shedding.
  • Four objective cases allow comparison of economic dispatch, voltage stress minimization, load delivery, and capacitor-enhanced dispatch.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Planners could apply the same sensitivity scoring to other time horizons or loading scenarios without re-deriving the full network model each time.
  • This method might reduce computational burden in digital twin planning by using existing sensitivity outputs rather than repeated full optimizations.
  • Similar scoring could guide placement of other reactive devices like static var compensators in microgrids.

Load-bearing premise

That the composite placement score derived from OSQ and OSV sensitivities will correctly identify capacitor locations that actually restore feasibility when the full AC-OPF is re-solved with the capacitors installed.

What would settle it

Re-running the AC optimal power flow after placing capacitors at the top-ranked buses and observing that load shedding is still required or that the problem remains infeasible under the original loading scenario.

Figures

Figures reproduced from arXiv: 2604.14372 by Aaron Jones, Marija Ilic.

Figure 1
Figure 1. Figure 1: System Topology Plotted from PSS/E Raw File [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Hourly Demand Recorded over Five Days D. Positioning Relative to Prior Hosting-Capacity Work Table I positions the present study against the most closely related work. The key gap is that no prior study combines: (i) comparative evaluation of multiple OPF objectives on the same islanded microgrid, (ii)a composite sensitivity score for capacitor-placement ranking, and (iii) a planning optimization that fram… view at source ↗
Figure 3
Figure 3. Figure 3: Case 1 — Time-series dispatch profile: real power, reactive power, [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Case 2 — Time-series dispatch profile under altered PV power factors. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Case 3 — Time-series dispatch profile with corrective load shedding. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Weighted sensitivity score Sk = 0.5 |OSV | + 0.5 |OSQ| used for capacitor placement ranking. over the 47-hour horizon, corresponding to $97 per MW of recovered demand. This value provides the threshold for the planning decision from (9): if the site-specific VoLL exceeds $97/MW, capacitor installation is cost-justified. Both cases correct the voltage stress exposed in Case 2, but through op￾posite mechanis… view at source ↗
Figure 8
Figure 8. Figure 8: Cross-case comparison of total cost, load served, mismatch, and [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
read the original abstract

This paper presents a comparative AC Optimal Power Flow study on a real world city scale islanded microgrid with high solar PV penetration, implemented within a Digital Twin framework. Four objective function cases economic dispatch, voltage stress exposure via PV power factor variation, then optimal load delivery, and capacitor enhanced economic dispatch as recovery options are evaluated over a 47 hour time series horizon on the same network under a shared loading scenario. Optimization sensitivities OSQ and OSV extracted from all cases are combined into a composite placement score used to rank candidate buses for shunt capacitor upgrades. A post processing planning optimization balances capacitor upgrade cost against avoided value-of-lost-load, enabling direct economic comparison of infrastructure investment versus reliability penalties. Results demonstrate that sensitivity guided capacitor placement restores full load service across the horizon and provides targeted reactive support at a quantifiable cost trade off against corrective load shedding.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. This paper presents a comparative AC Optimal Power Flow (AC-OPF) study on a real-world city-scale islanded microgrid with high solar PV penetration, implemented in a Digital Twin framework. Four objective function cases (economic dispatch, voltage stress via PV power factor, optimal load delivery, and capacitor-enhanced dispatch) are evaluated over a 47-hour horizon. Sensitivities OSQ and OSV are extracted, combined into a composite placement score to rank shunt capacitor locations, and a post-processing planning optimization balances capacitor costs against avoided value-of-lost-load. Results claim that sensitivity-guided placement restores full load service across the horizon with targeted reactive support.

Significance. If the post-installation verification holds, the work provides a practical, sensitivity-driven workflow for restoring AC-OPF feasibility in high-PV islanded microgrids while quantifying the economic trade-off between capacitor investment and load-shedding penalties. This could support planning decisions in similar real-world systems and demonstrates the utility of Digital Twin-based sensitivity analysis for infrastructure upgrades.

major comments (1)
  1. [Results section (post-processing verification)] The central claim that the composite OSQ/OSV score identifies locations that restore feasibility rests on the post-installation AC-OPF re-solve; the manuscript should explicitly report the feasibility status, any remaining voltage or power balance violations, and load-service levels after capacitor placement (e.g., in the results section corresponding to the 47-hour horizon).
minor comments (2)
  1. [Abstract] Abstract: Include at least one key equation or quantitative metric (e.g., the form of the composite score or the cost trade-off value) to substantiate the stated results.
  2. [Method section on sensitivities] Notation: Define OSQ and OSV explicitly with equations at first use, including how they are normalized or weighted in the composite score.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and positive recommendation for minor revision. We address the single major comment below and will incorporate the requested details into the revised manuscript.

read point-by-point responses

  1. Referee: The central claim that the composite OSQ/OSV score identifies locations that restore feasibility rests on the post-installation AC-OPF re-solve; the manuscript should explicitly report the feasibility status, any remaining voltage or power balance violations, and load-service levels after capacitor placement (e.g., in the results section corresponding to the 47-hour horizon).

    Authors: We agree that explicit reporting strengthens the presentation of the post-processing verification. The AC-OPF re-solve after sensitivity-guided capacitor placement confirms restoration of feasibility with no voltage or power-balance violations remaining and 100% load service maintained over the full 47-hour horizon. In the revised manuscript we will add a dedicated subsection (or table) in the Results section that tabulates these metrics—feasibility status, maximum voltage deviation, power-balance residuals, and served load percentage—both before and after capacitor placement for the entire horizon. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's workflow extracts OSQ and OSV sensitivities from AC-OPF runs under different objectives, forms a composite placement score to rank capacitor locations, and then executes a separate post-processing planning optimization that trades capacitor cost against avoided load-shedding value. The central claim of restored full-load feasibility is supported by an explicit verification step in which the AC-OPF is re-solved with the selected capacitors installed across the 47-hour horizon, confirming feasibility. This re-solution constitutes an independent check rather than a reduction to the original sensitivity inputs by construction. No self-definitional equations, fitted inputs renamed as predictions, or load-bearing self-citations appear in the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; full manuscript required for ledger.
