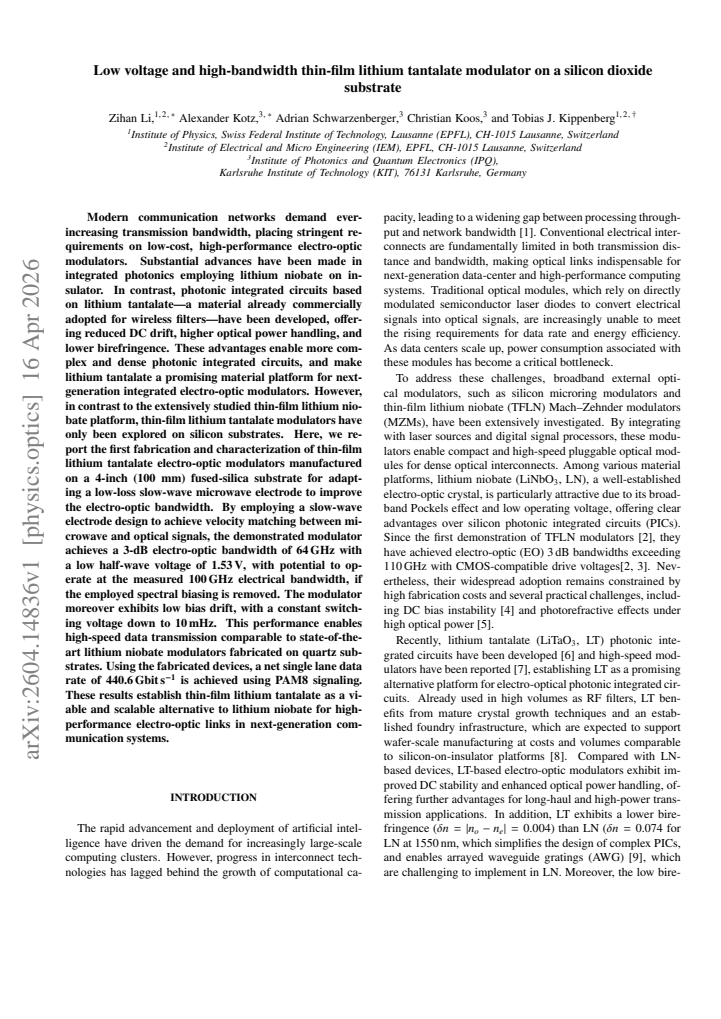

Low voltage and high-bandwidth thin-film lithium tantalate modulator on a silicon dioxide substrate

Zihan Li , Alexander Kotz , Adrian Schwarzenberger , Christian Koos , Tobias J. Kippenberg This is my paper

Pith reviewed 2026-05-10 10:43 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords thin-film lithium tantalateelectro-optic modulatorslow-wave electrodevelocity matchinghigh bandwidthfused silica substratePAM8 signalinglow bias drift
0
0 comments X

The pith

Thin-film lithium tantalate modulators on fused silica reach 64 GHz electro-optic bandwidth with 1.53 V half-wave voltage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper reports the first fabrication of thin-film lithium tantalate electro-optic modulators on fused-silica substrates. A slow-wave electrode design matches the velocities of microwave and optical signals to deliver a 3-dB bandwidth of 64 GHz and a half-wave voltage of 1.53 V. The devices maintain stable switching voltage down to 10 mHz with minimal bias drift and support 440.6 Gbps net data transmission using PAM8 signaling. This approach positions lithium tantalate as a platform with reduced DC drift and higher optical power handling compared to lithium niobate alternatives.

Core claim

By employing a slow-wave electrode design to achieve velocity matching between microwave and optical signals, the demonstrated modulator achieves a 3-dB electro-optic bandwidth of 64 GHz with a low half-wave voltage of 1.53 V, with potential to operate at the measured 100 GHz electrical bandwidth if the employed spectral biasing is removed. The modulator moreover exhibits low bias drift, with a constant switching voltage down to 10 mHz. Using the fabricated devices, a net single lane data rate of 440.6 Gbps is achieved using PAM8 signaling.

What carries the argument

Slow-wave electrode design to achieve velocity matching between microwave and optical signals on a fused-silica substrate

If this is right

  • High-speed single-lane data transmission reaches 440.6 Gbps using PAM8 modulation.
  • The device can potentially operate at the full 100 GHz electrical bandwidth once spectral biasing is removed.
  • Low bias drift maintains constant switching voltage at frequencies as low as 10 mHz.
  • Performance matches state-of-the-art lithium niobate modulators fabricated on quartz substrates.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Reduced birefringence in lithium tantalate may enable denser and more complex photonic integrated circuits than lithium niobate allows.
  • Higher optical power handling could extend use to applications requiring elevated optical intensities without material damage.
  • Fabrication on 4-inch fused silica wafers opens a path to lower-cost, higher-volume production of high-performance modulators.

Load-bearing premise

The slow-wave electrode design achieves true velocity matching on the fused-silica substrate without introducing unaccounted losses or fabrication defects that limit the measured bandwidth and voltage performance.

What would settle it

A direct measurement revealing significant velocity mismatch between microwave and optical signals, or an observed 3-dB electro-optic bandwidth well below 64 GHz under the same drive conditions, would show the claimed matching has not been realized.

Figures

Figures reproduced from arXiv: 2604.14836 by Adrian Schwarzenberger, Alexander Kotz, Christian Koos, Tobias J. Kippenberg, Zihan Li.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

Modern communication networks demand ever-increasing transmission bandwidth, placing stringent requirements on low-cost, high-performance electro-optic modulators. Substantial advances have been made in integrated photonics employing lithium niobate on insulator. In contrast, photonic integrated circuits based on lithium tantalate -- a material already commercially adopted for wireless filters -- have been developed, offering reduced DC drift, higher optical power handling, and lower birefringence. These advantages enable more complex and dense photonic integrated circuits, and make lithium tantalate a promising material platform for next-generation integrated electro-optic modulators. However, in contrast to the extensively studied thin-film lithium niobate platform, thin-film lithium tantalate modulators have only been explored on silicon substrates. Here, we report the first fabrication and characterization of thin-film lithium tantalate electro-optic modulators manufactured on a 4-inch (100 mm) fused-silica substrate for adapting a low-loss slow-wave microwave electrode to improve the electro-optic bandwidth. By employing a slow-wave electrode design to achieve velocity matching between microwave and optical signals, the demonstrated modulator achieves a 3-dB electro-optic bandwidth of 64 GHz with a low half-wave voltage of 1.53 V, with potential to operate at the measured 100 GHz electrical bandwidth, if the employed spectral biasing is removed. The modulator moreover exhibits low bias drift, with a constant switching voltage down to 10 mHz. This performance enables high-speed data transmission comparable to state-of-the-art lithium niobate modulators fabricated on quartz substrates. Using the fabricated devices, a net single lane data rate of 440.6 Gbps is achieved using PAM8 signaling.
