arxiv: 2604.15342 · v1 · submitted 2026-03-13 · 💻 cs.HC

SuperProvenanceWidgets: Tracking and Visualizing Analytic Provenance Across UI Control Elements

Antariksh Verma , Kaustubh Odak , Arpit Narechania This is my paper

Pith reviewed 2026-05-15 11:28 UTC · model grok-4.3

classification 💻 cs.HC
keywords provenance trackingUI visualizationanalytic workflowsuser interface designinteraction loggingbias mitigation
0
0 comments X

The pith

SuperProvenanceWidgets extends tracking of user interactions to span multiple UI controls simultaneously.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents SuperProvenanceWidgets as an extension to the ProvenanceWidgets library. It adds a SuperWidget that tracks and visualizes provenance across several UI elements rather than one at a time. Through three example scenarios the authors show how this helps audit workflows, reduce biases in exploration, and improve interface design. A self-assessment with Cognitive Dimensions of Notations evaluates developer usability. The library is released as open source.

Core claim

SuperProvenanceWidgets features a new SuperWidget that tracks recency and frequency of interactions across multiple UI controls and overlays this information to show how, when, and whether different controls were used.

What carries the argument

The SuperWidget, a cross-control component that aggregates provenance data from individual UI controls to provide a unified view of usage patterns.

If this is right

  • Analysis workflows can be audited and shared more transparently.
  • Users can identify and address biases in how they explore data through different controls.
  • Developers gain insights for designing and personalizing user interfaces based on actual usage.
  • The Cognitive Dimensions assessment guides improvements in the library's notation for developers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integration into existing tools could make provenance tracking standard in data analysis software.
  • Future work might quantify the bias mitigation effects in controlled experiments.
  • Similar cross-element tracking could apply to other domains like web forms or dashboard interfaces.

Load-bearing premise

The three example usage scenarios and the Cognitive Dimensions self-assessment suffice to demonstrate the SuperWidget's practical value without user studies or quantitative evaluations.

What would settle it

A controlled user study measuring no significant improvement in workflow auditing or bias reduction when using the SuperWidget compared to individual widgets.

Figures

Figures reproduced from arXiv: 2604.15342 by Antariksh Verma, Arpit Narechania, Kaustubh Odak.

Figure 1

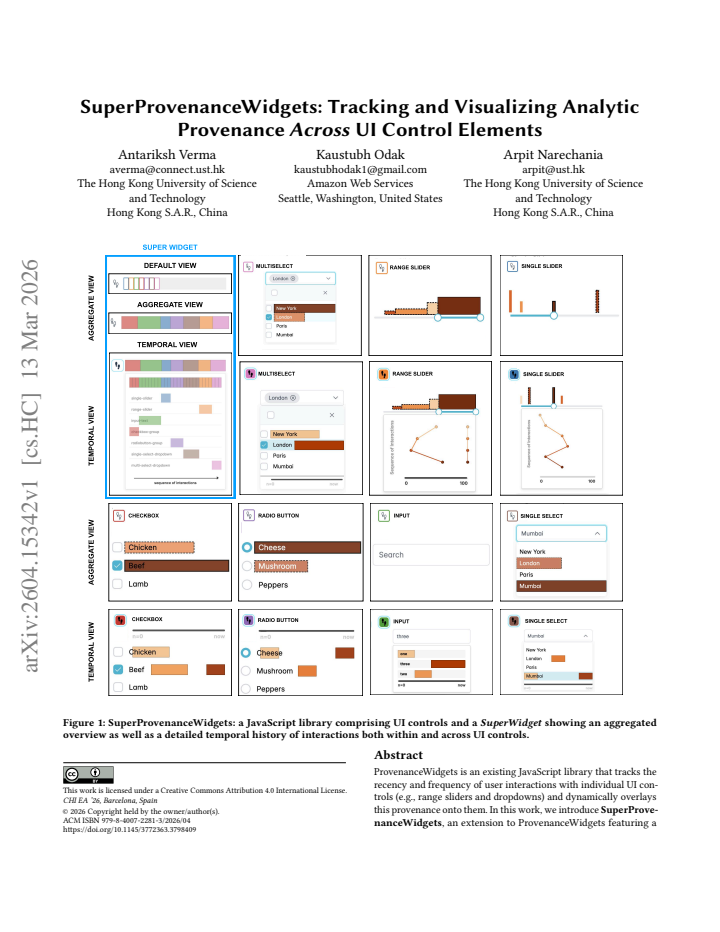

Figure 1. Figure 1: SuperProvenanceWidgets: a JavaScript library comprising UI controls and a [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Different representations of user interactions (a) as a Sankey flow diagram and (b) as a Gantt chart. [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Two checkboxes with different interaction statuses [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Temporal View: (a) empty interaction status, (b) inter [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Scenario: (a) Widgets are out of viewport during a [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: High-level process diagram for offline UI layout [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

ProvenanceWidgets is an existing JavaScript library that tracks the recency and frequency of user interactions with individual UI controls (e.g., range sliders and dropdowns) and dynamically overlays this provenance onto them. In this work, we introduce SuperProvenanceWidgets, an extension to ProvenanceWidgets featuring a new SuperWidget that similarly tracks and visualizes provenance but across multiple UI controls, enabling users to understand how, when, and whether different UI controls were used. Through three example usage scenarios, we demonstrate how this cross-control SuperWidget helps (a) audit and share analysis workflows, (b) surface and mitigate exploration biases, and (c) facilitate user interface design and personalization. We also perform a technical self-assessment using the Cognitive Dimensions of Notations to evaluate the library's usability for developers. SuperProvenanceWidgets is integrated into the ProvenanceWidgets library and is available as open-source software at ProvenanceWidgets.github.io, empowering developers to build advanced provenance applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript introduces SuperProvenanceWidgets as an extension to the existing ProvenanceWidgets JavaScript library. The key addition is a SuperWidget that tracks and visualizes analytic provenance across multiple UI controls (rather than per-control). Utility is illustrated via three usage scenarios for workflow auditing, bias surfacing/mitigation, and UI design/personalization; the authors also include a technical self-assessment via the Cognitive Dimensions of Notations framework. The library is released as open-source software integrated with the original ProvenanceWidgets repository.

Significance. If the cross-control tracking functions as described, the work supplies a concrete, reusable component for provenance-aware interfaces that could support more transparent analytic workflows. The open-source release and integration with an established library are clear strengths. The significance for practical HCI applications is reduced, however, because the utility claims rest entirely on illustrative scenarios and a developer-oriented self-assessment rather than any user evaluation or quantitative outcome measures.

major comments (1)
  1. [three example usage scenarios] The central claims that the SuperWidget 'helps (a) audit and share analysis workflows, (b) surface and mitigate exploration biases, and (c) facilitate user interface design and personalization' are supported solely by three illustrative scenarios (described in the abstract and the usage-scenarios portion of the manuscript). No user studies, controlled comparisons, bias-detection metrics, task-performance data, or other empirical validation are reported. This directly affects the strength of the practical-utility assertions.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the value of the open-source release and integration with the existing ProvenanceWidgets library. We address the major comment below.

read point-by-point responses

  1. Referee: [three example usage scenarios] The central claims that the SuperWidget 'helps (a) audit and share analysis workflows, (b) surface and mitigate exploration biases, and (c) facilitate user interface design and personalization' are supported solely by three illustrative scenarios (described in the abstract and the usage-scenarios portion of the manuscript). No user studies, controlled comparisons, bias-detection metrics, task-performance data, or other empirical validation are reported. This directly affects the strength of the practical-utility assertions.

    Authors: We agree that the practical-utility assertions rest on illustrative scenarios rather than empirical user studies or quantitative metrics. The manuscript presents SuperProvenanceWidgets as a systems contribution: a reusable JavaScript extension that adds cross-control provenance tracking. The three scenarios are designed to demonstrate how the SuperWidget's functionality can be applied in realistic contexts (workflow auditing, bias surfacing, and UI personalization), consistent with how other HCI toolkits and libraries are typically introduced. The Cognitive Dimensions of Notations assessment supplies a developer-oriented evaluation of the library's usability. To strengthen alignment between claims and evidence, we will revise the abstract and the usage-scenarios section to explicitly characterize the scenarios as illustrative examples of potential use rather than validated outcomes. This is a minor textual clarification. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper introduces SuperProvenanceWidgets as a direct code extension to the cited ProvenanceWidgets library, with utility shown through three new illustrative scenarios and a standard Cognitive Dimensions self-assessment. No mathematical derivations, equations, predictions, fitted parameters, or uniqueness theorems are present. The central contribution consists of independent new functionality and examples that do not reduce to self-definitions, fitted inputs renamed as predictions, or load-bearing self-citations; the prior library serves as external foundation rather than a circular premise.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The paper introduces a software component without fitted parameters, unstated axioms, or new postulated entities beyond the named SuperWidget; it relies on standard web development practices and the existing library.

invented entities (1)
  • SuperWidget no independent evidence
    purpose: To track and visualize provenance across multiple UI controls simultaneously
    New component introduced in the extension to enable cross-control tracking, with no independent evidence provided beyond the implementation description.

pith-pipeline@v0.9.0 · 5476 in / 1134 out tokens · 41571 ms · 2026-05-15T11:28:51.740871+00:00 · methodology
