Mechanism Behind the Recombination Requirement for Benign Termination of Relativistic Electron Beams
Pith reviewed 2026-05-10 09:12 UTC · model grok-4.3
The pith
Resistivity from recombination, not free electron density, governs benign termination of relativistic electron beams
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

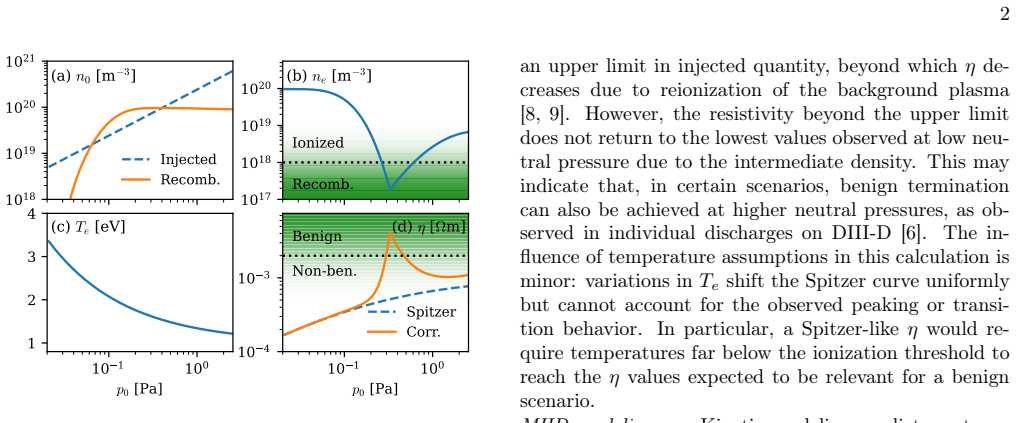

Kinetic modeling that includes neutrals shows neutral injection over a finite quantity window increases bulk resistivity through recombination. Nonlinear MHD simulations demonstrate that this resistivity rise preferentially amplifies edge tearing modes. The resulting more stochastic edge magnetic field during RE deconfinement produces a larger RE wetted area. Resistivity, rather than free electron density, governs access to benign termination.
What carries the argument

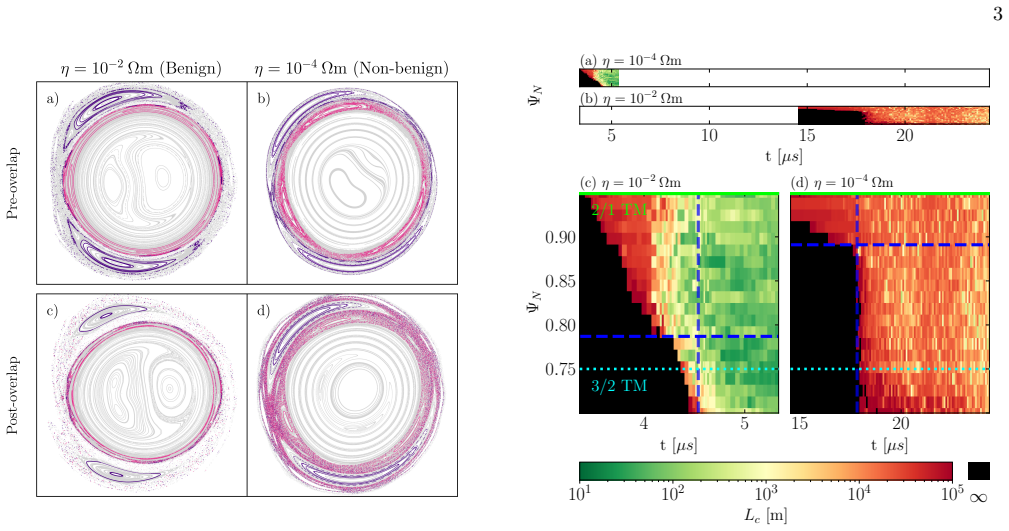

The recombination-driven increase in bulk resistivity that amplifies edge tearing modes in nonlinear MHD simulations, creating greater edge stochasticity and a larger RE wetted area
If this is right
- Neutral injection must occur within a specific quantity window to produce the resistivity increase required for benign termination
- Amplified edge tearing modes create greater magnetic stochasticity and therefore a larger area over which the beam deconfines
- The mechanism is consistent with existing experiments and supplies a basis for extrapolation to next-step devices
- Benign termination depends on resistivity changes rather than free electron density
Where Pith is reading between the lines
- Methods other than neutral injection that raise resistivity could be tested as alternative routes to benign termination
- The coupling between kinetic recombination and MHD mode amplification indicates that hybrid kinetic-MHD modeling will be required for reliable predictions in larger devices
- Runaway electron mitigation strategies may shift focus toward active resistivity control rather than density manipulation alone
Load-bearing premise
The resistivity increase from recombination directly causes the amplification of edge tearing modes in the MHD simulations that reproduce experimental benign termination
What would settle it
An experiment that raises resistivity without recombination and without neutral injection, yet fails to amplify edge tearing modes or produce benign termination, would falsify the mechanism
Figures
read the original abstract

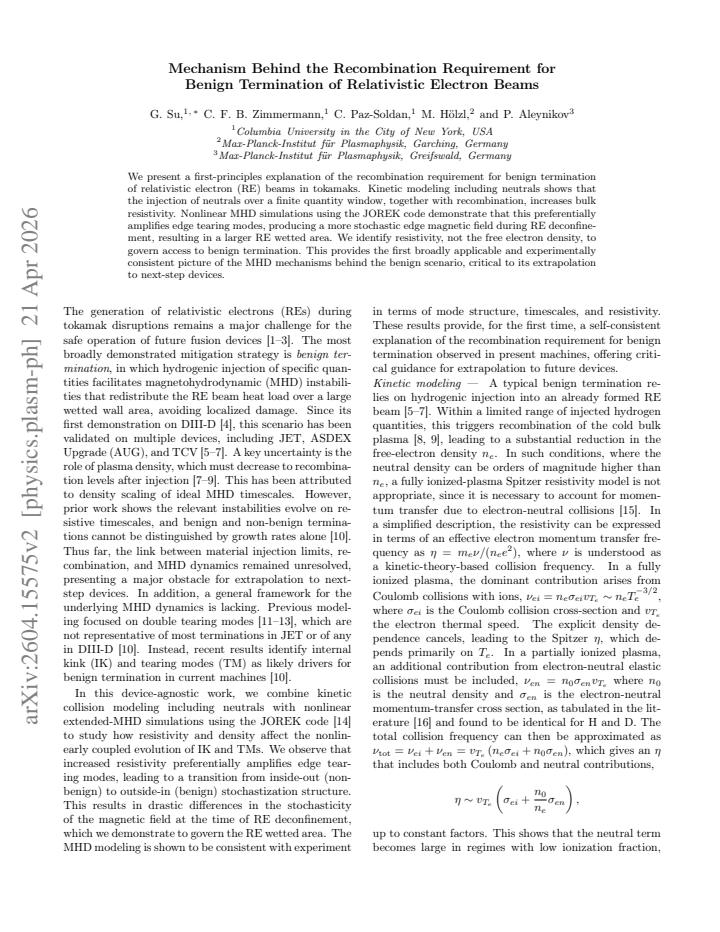

We present a first-principles explanation of the recombination requirement for benign termination of relativistic electron (RE) beams in tokamaks. Kinetic modeling including neutrals shows that the injection of neutrals over a finite quantity window, together with recombination, increases bulk resistivity. Nonlinear MHD simulations using the JOREK code demonstrate that this preferentially amplifies edge tearing modes, producing a more stochastic edge magnetic field during RE deconfinement, resulting in a larger RE wetted area. We identify resistivity, not the free electron density, to govern access to benign termination. This provides the first broadly applicable and experimentally consistent picture of the MHD mechanisms behind the benign scenario, critical to its extrapolation to next-step devices.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript claims to provide a first-principles explanation for the recombination requirement in benign termination of relativistic electron (RE) beams in tokamaks. Kinetic modeling that includes neutrals demonstrates that neutral injection within a finite quantity window, combined with recombination, increases bulk resistivity. Nonlinear MHD simulations performed with the JOREK code then show that this resistivity increase preferentially amplifies edge tearing modes, producing a more stochastic edge magnetic field during RE deconfinement and thereby a larger RE wetted area. The central identification is that resistivity, rather than free-electron density, governs access to the benign termination scenario.
Significance. If the central causal link holds, the work supplies the first broadly applicable and experimentally consistent MHD picture of the mechanisms underlying benign RE termination. This is important for reliable extrapolation to next-step devices. The combination of established kinetic modeling with neutrals and the JOREK code provides a reproducible framework that can be tested against existing experiments.
major comments (1)
- [MHD simulations description] The manuscript presents the kinetic and JOREK calculations sequentially (see the description following the abstract and the MHD results section) but does not demonstrate that the resistivity profiles or time histories obtained from the kinetic model with neutrals are actually imported into the JOREK runs. If the JOREK simulations instead employ independent or generic resistivity assumptions, the claim that resistivity (rather than free-electron density or other neutral-induced effects) is the governing parameter is not established. This connection is load-bearing for the central result.
Simulated Author's Rebuttal
We thank the referee for the positive assessment of the work's significance and for the constructive major comment. We address the point below and will revise the manuscript to improve clarity on the modeling connection.
read point-by-point responses
-
Referee: The manuscript presents the kinetic and JOREK calculations sequentially (see the description following the abstract and the MHD results section) but does not demonstrate that the resistivity profiles or time histories obtained from the kinetic model with neutrals are actually imported into the JOREK runs. If the JOREK simulations instead employ independent or generic resistivity assumptions, the claim that resistivity (rather than free-electron density or other neutral-induced effects) is the governing parameter is not established. This connection is load-bearing for the central result.
Authors: We agree that the manuscript's description of the link between the two modeling stages could be more explicit. The JOREK runs do employ resistivity profiles and values that are directly informed by the kinetic modeling results (specifically the bulk resistivity enhancement arising from recombination within the neutral injection window identified in the kinetic study). The kinetic model provides the resistivity as a function of neutral density and temperature, which is then used to set the spatially varying resistivity in the MHD domain. However, the current text does not include an explicit statement of this mapping or a supporting figure showing the imported resistivity profile. We will revise the MHD results section to add a concise description of the resistivity input procedure, including the source of the profile from the kinetic calculation and confirmation that no other neutral-related effects (such as direct changes to free-electron density beyond their impact on resistivity) are included in the JOREK setup. This will make the causal isolation of resistivity unambiguous. revision: yes
Circularity Check
No significant circularity; derivation uses independent sequential models
full rationale
The paper's chain consists of a kinetic model (with neutrals) that produces a resistivity increase from recombination, followed by separate JOREK MHD simulations that demonstrate edge tearing mode amplification and larger wetted area. No step reduces by the paper's own equations to a fitted parameter renamed as prediction, nor does any self-citation supply a load-bearing uniqueness theorem or ansatz that forces the resistivity identification. The two modeling domains remain distinct codes with no demonstrated algebraic equivalence or self-definitional loop; the conclusion that resistivity (rather than free-electron density) governs benign termination is presented as an inference across the models rather than a tautology. This is the normal case of a self-contained multi-physics study against external experimental benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Kinetic modeling including neutrals correctly predicts the resistivity increase from recombination within the stated neutral-injection window.
- domain assumption Nonlinear MHD simulations with JOREK accurately reproduce the amplification of edge tearing modes driven by the resistivity change.
Reference graph
Works this paper leans on
- [1]
- [2]
-
[3]
S. Ratynskaiaet al., Plasma Phys. Control. Fusion (2025)
work page 2025
-
[4]
C. Paz-Soldanet al., Plasma Phys. Control. Fusion61, 054001 (2019)
work page 2019
- [5]
- [6]
-
[7]
U.Sheikhet al.,PlasmaPhys.Control.Fusion66,035003 (2024)
work page 2024
-
[8]
E. M. Hollmannet al., Nucl. Fusion63, 036011 (2023)
work page 2023
-
[9]
M. Hoppeet al., Plasma Phys. Control. Fusion67, 045015 (2025)
work page 2025
-
[10]
C. F. B. Zimmermannet al., Nucl. Fusion66, 056004 (2026). 6
work page 2026
-
[11]
V. Bandaruet al., Plasma Phys. Control. Fusion63, 035024 (2021)
work page 2021
- [12]
- [13]
- [14]
- [15]
-
[16]
D. E. Goldenet al., Phys. Rev.146, 40 (1966)
work page 1966
- [17]
- [18]
- [19]
- [20]
-
[21]
R. M. Coelhoet al., Phys. Plasmas6, 1194 (1999)
work page 1999
- [22]
-
[23]
H. Bergströmet al., Plasma Phys. Control. Fusion67, 035004 (2025)
work page 2025
-
[24]
A. B. Rechester and M. N. Rosenbluth, Phys. Rev. Lett. 40, 38 (1978)
work page 1978
-
[25]
A. H. Boozer and A. Punjabi, Phys. Plasmas23, 102513 (2016)
work page 2016
- [26]
