arxiv: 2604.15869 · v1 · submitted 2026-04-17 · ⚛️ physics.flu-dyn

Large-eddy simulation of the FDA benchmark blood pump: validation against experiments and implications for turbulent flow mechanisms

Xuanming Huang , Chi Ding , Yujie Sun , Shidi Huang , Andrea Cioncolini , Damiano Padovani , Ju Liu This is my paper

Pith reviewed 2026-05-10 08:14 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn
keywords large-eddy simulationblood pumpFDA benchmarkturbulent flowrotor-stator interactionventricular assist devicecomputational fluid dynamicsvalidation
0
0 comments X

The pith

Large-eddy simulation with transient rotor-stator coupling matches experimental velocity fields in blood pumps more closely than Reynolds-averaged methods, especially in turbulent diffuser regions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that large-eddy simulation using transient sliding interfaces between rotor and stator domains reproduces measured velocity fields in the FDA benchmark centrifugal blood pump more accurately than Reynolds-averaged Navier-Stokes approaches. The advantage appears most clearly in the diffuser, where flows exhibit strong intermittency and wall-bounded turbulence that averaged models miss. This level of fidelity matters because ventricular assist devices rely on correct prediction of internal flow features that influence blood damage and device performance. The authors confirm that an 80-million-cell mesh reaches a well-resolved regime according to multiple quality metrics and then use the results to map vortical structures, turbulent kinetic energy, and energy spectra.

Core claim

LES with transient sliding-interface coupling produces velocity predictions that align more closely with particle image velocimetry data than either multiple-reference-frame or sliding-interface RANS formulations, particularly in the diffuser region. A mesh of approximately 80 million cells satisfies three complementary resolution metrics for a well-resolved LES. The validated simulations then reveal the spatial distribution of vortical structures, turbulent kinetic energy, and velocity spectra that characterize the unsteady internal flow.

What carries the argument

Large-eddy simulation (LES) with transient sliding-interface coupling between rotor and stator regions.

If this is right

  • Scale-resolving transient methods are required to capture the highly unsteady turbulence that dominates flow inside ventricular assist devices.
  • RANS approaches remain unreliable in diffuser sections where intermittency and wall interactions are strong.
  • Validated LES supplies a practical route to detailed analysis of vortical structures and turbulent kinetic energy for hemocompatibility assessment.
  • Mesh resolutions near 80 million cells suffice to reach a well-resolved regime for this class of pump geometry.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Design iterations for blood pumps could incorporate LES early to identify and reduce regions of high shear or recirculation before physical testing.
  • The same transient coupling approach may transfer to other rotating fluid machines that combine blades and stationary passages.
  • Accurate energy spectra from these simulations could support Lagrangian tracking of blood cells to estimate exposure to damaging flow conditions.

Load-bearing premise

An 80-million-cell mesh together with the selected subgrid-scale model and transient interface treatment reproduces the physical unsteady turbulence without dominant numerical artifacts or boundary-condition errors.

What would settle it

A simulation on a mesh at least twice as fine, or a direct numerical simulation of the same geometry and conditions, that produces velocity fields or spectra differing substantially from the reported LES results in the diffuser would indicate the current mesh and modeling choices are inadequate.

Figures

Figures reproduced from arXiv: 2604.15869 by Andrea Cioncolini, Chi Ding, Damiano Padovani, Ju Liu, Shidi Huang, Xuanming Huang, Yujie Sun.

Figure 1
Figure 1. Figure 1: The geometry of the FDA centrifugal blood pump. (a) The red line delineates the rotating subdomain in [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

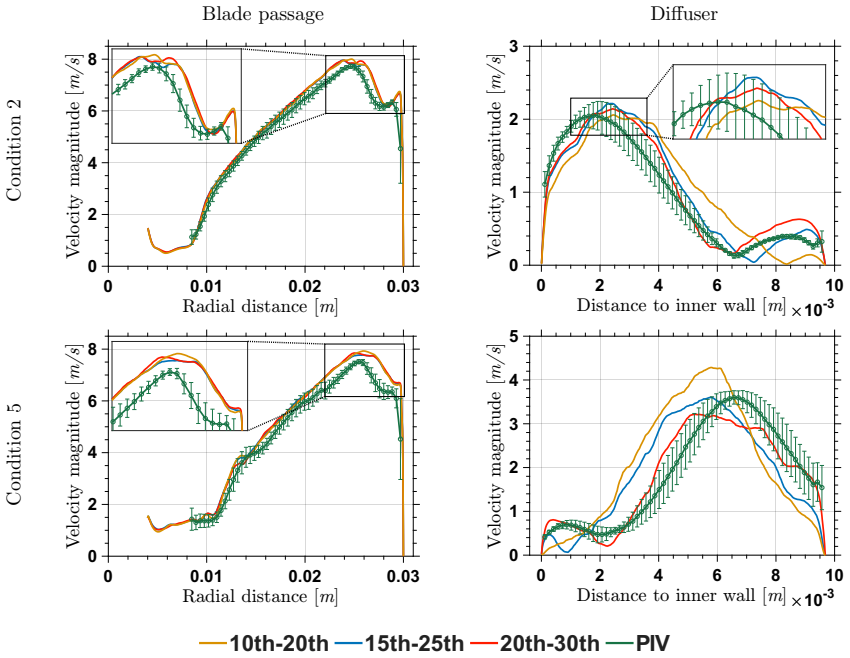

Figure 2. Figure 2: Effects of sampling interval on LES velocity profiles compared with PIV measurements in the blade [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

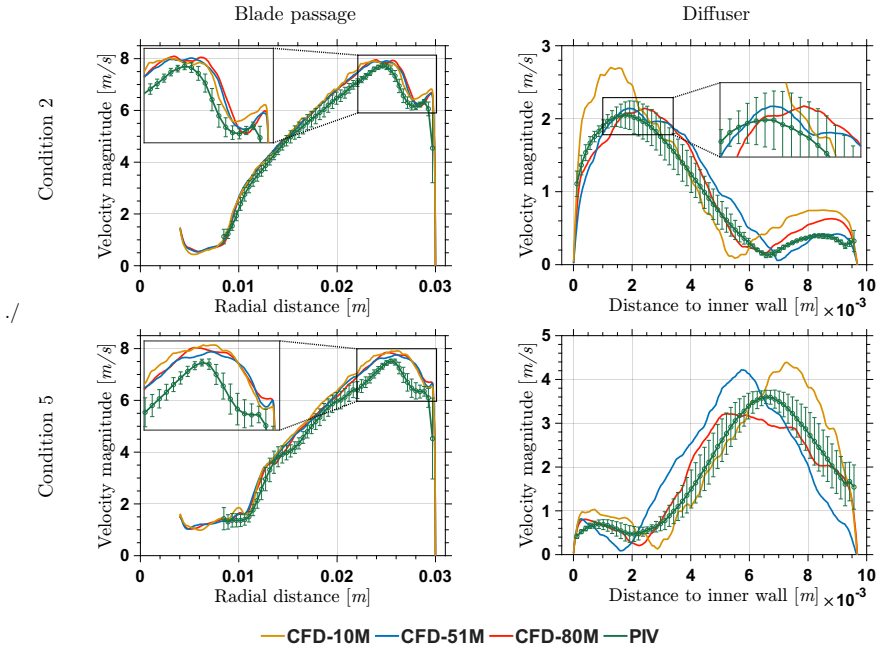

Figure 3. Figure 3: Velocity profile comparison between LES using three meshes and PIV experiments in the blade passage [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4

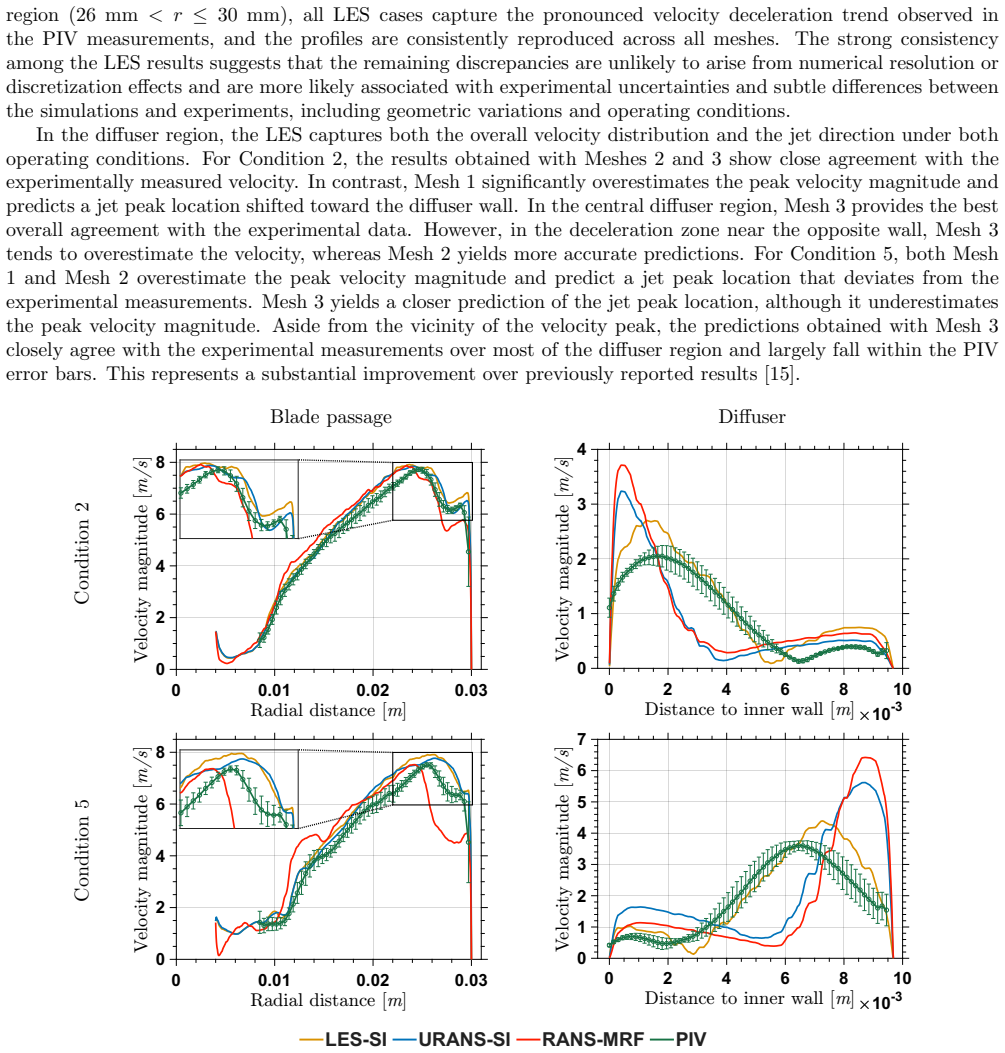

Figure 4. Figure 4: Velocity profile comparison in the blade passage and diffuser regions between three modeling approaches [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

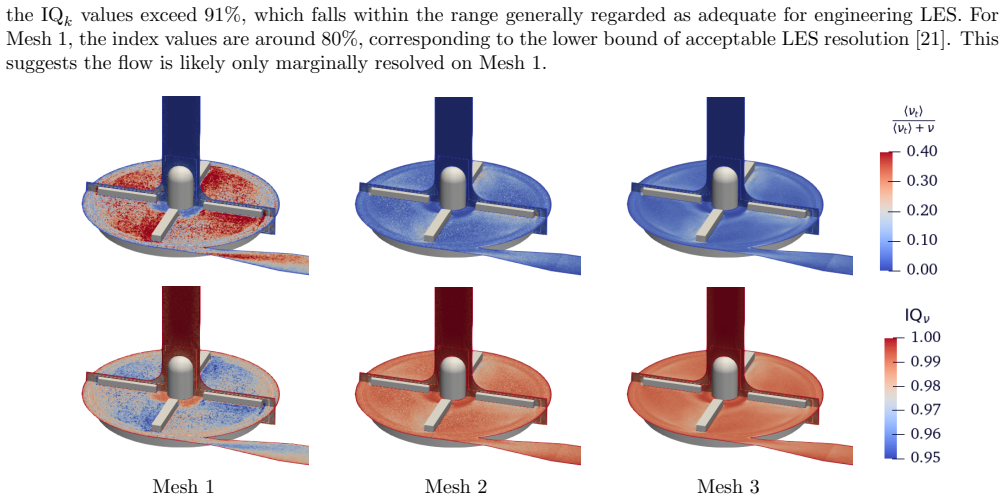

Figure 5. Figure 5: Contours of subgrid activity parameter and IQ [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

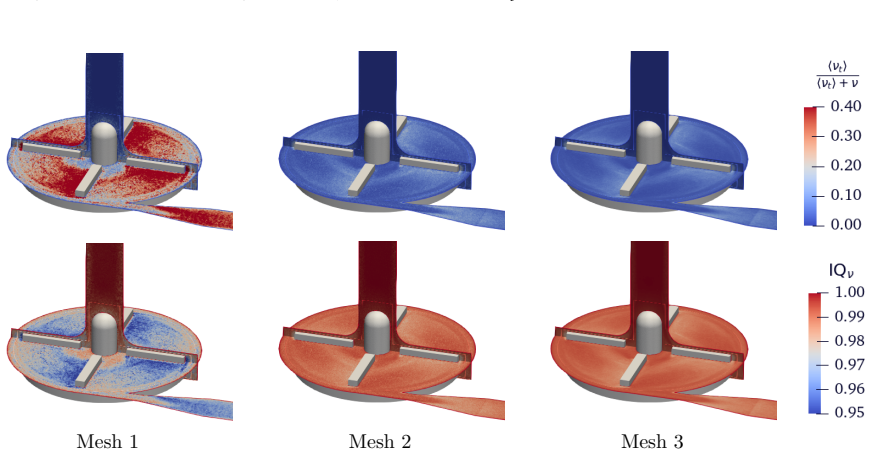

Figure 6. Figure 6: Contours of subgrid activity parameter and IQ [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

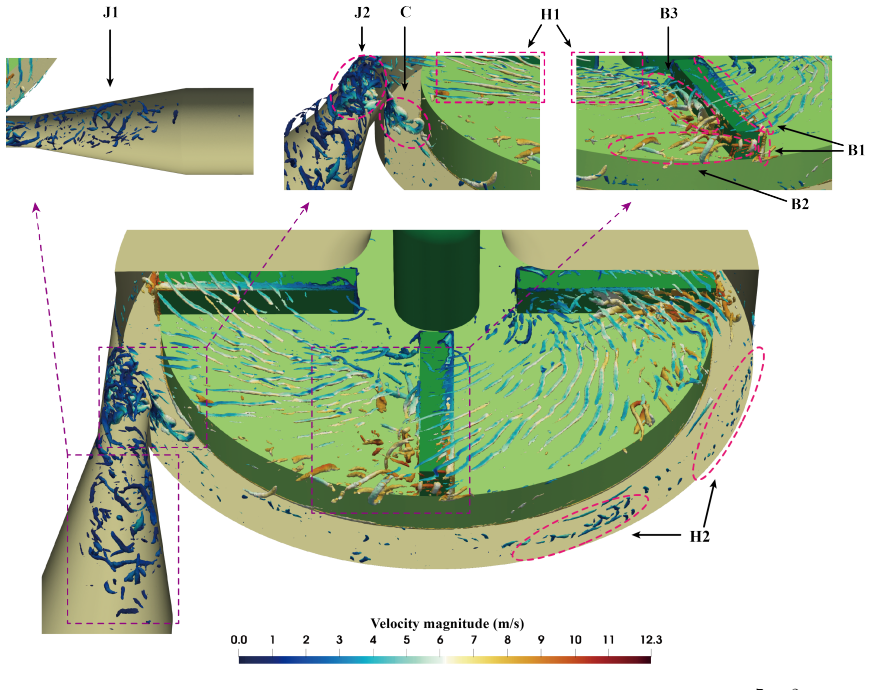

Figure 7. Figure 7: Vortical structures under Condition 2, isosurface of [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8

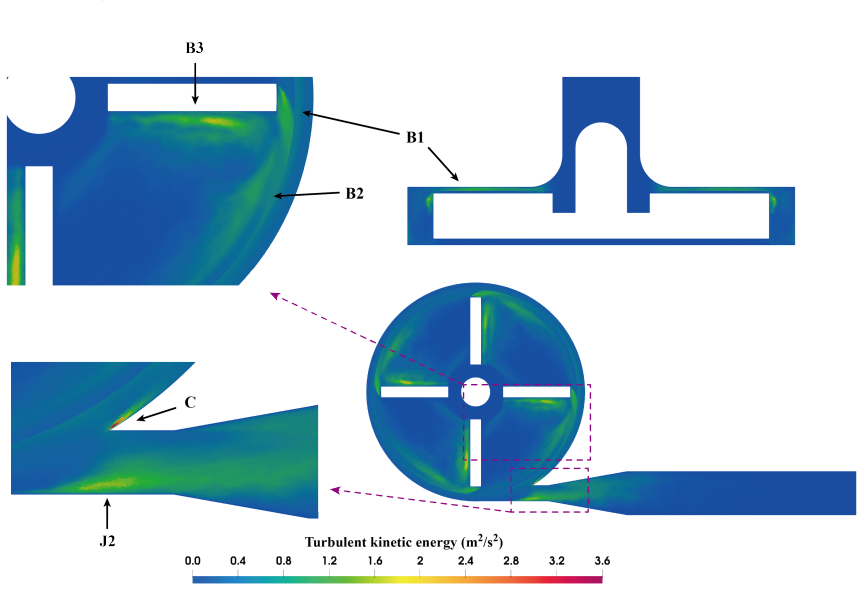

Figure 8. Figure 8: TKE contour under Condition 2. 14 [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

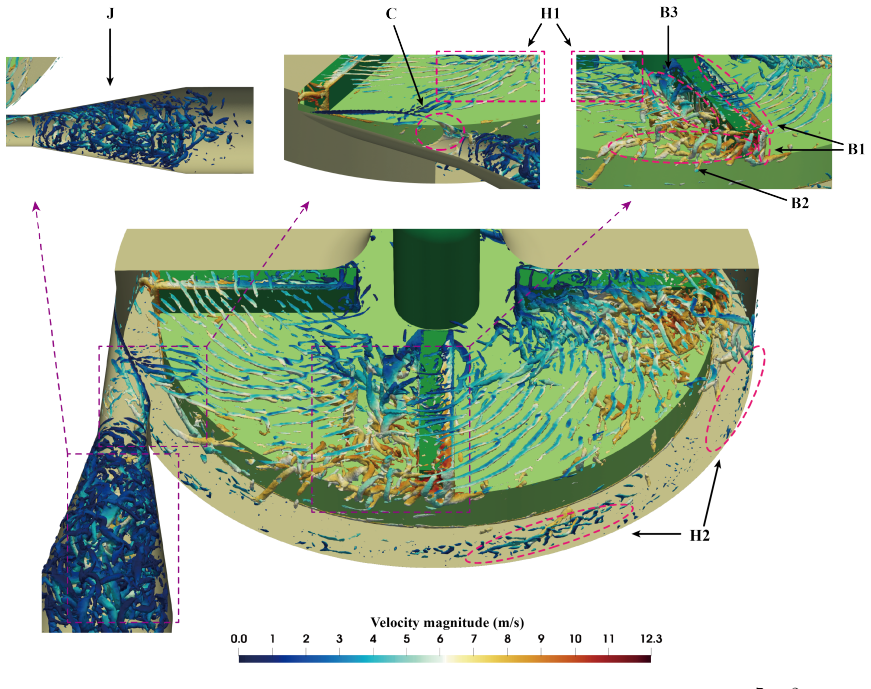

Figure 9. Figure 9: Vortical structures under Condition 5, isosurface of [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: TKE contour under Condition 5. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11

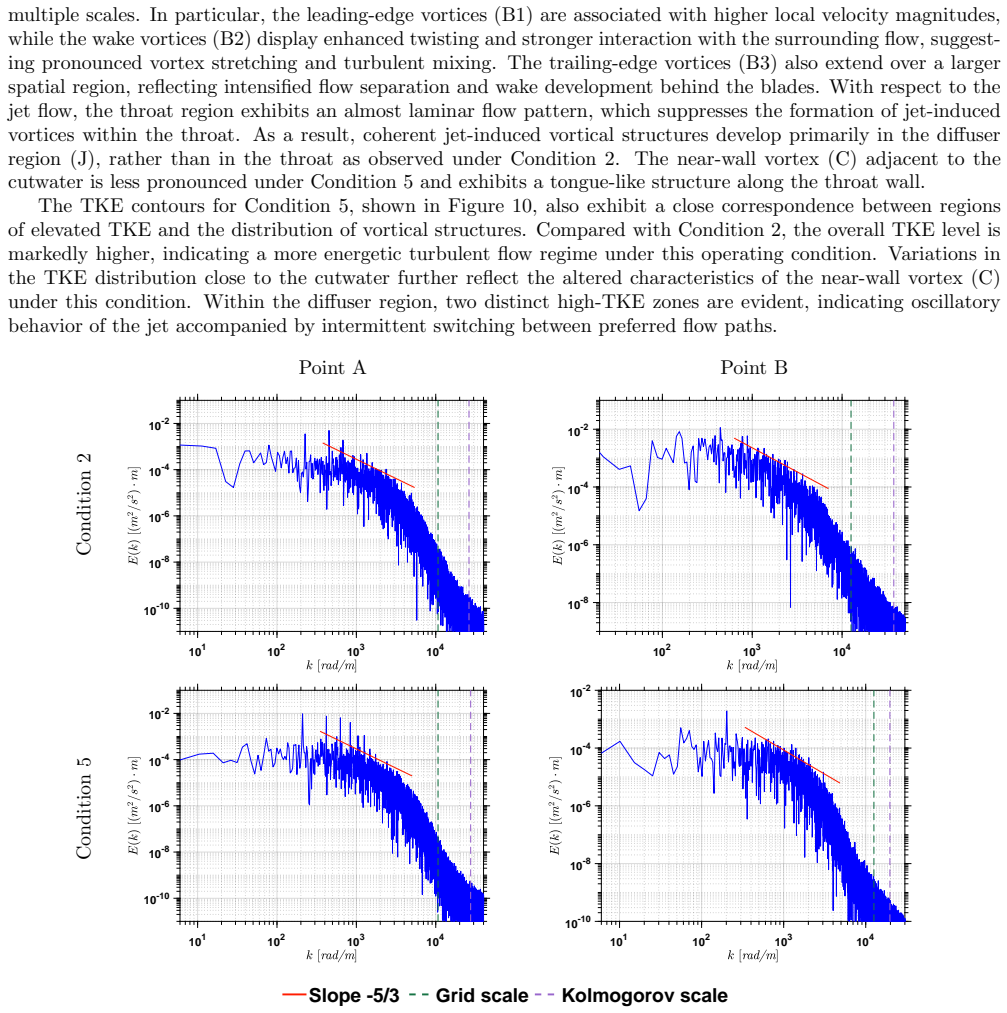

Figure 11. Figure 11: Velocity energy spectra at Points A and B. [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
read the original abstract

This study presents a systematic validation and comparative assessment of computational fluid dynamics (CFD) strategies for centrifugal blood pump simulations using the U.S. Food and Drug Administration benchmark model. A scale-resolving large eddy simulation (LES) with transient sliding-interface (SI) coupling is evaluated and compared against Reynolds-averaged Navier-Stokes (RANS) approaches employing both multiple reference frame and SI formulations. Numerical predictions are validated through direct comparison with particle image velocimetry measurements under two representative operating conditions. The results indicate that LES with transient rotor-stator coupling achieves consistently improved agreement with experimental velocity fields compared with RANS-based methods, particularly in the diffuser region where strong intermittency and wall-bounded turbulence are present. In contrast, RANS-based approaches exhibit noticeable discrepancies in these regions. A mesh sensitivity study and an assessment of temporal averaging effects are conducted for LES. The quality of the LES results is further quantified using three complementary metrics, demonstrating that a mesh resolution of approximately 80 million cells achieves a well-resolved LES regime. Building on the validated scale-resolving simulations, detailed analyses of vortical structures, turbulent kinetic energy distributions, and velocity energy spectra are performed to characterize the internal flow physics of the pump. This study demonstrates that scale-resolving, transient simulation approaches are essential for accurately capturing the highly unsteady, turbulence-dominated flow features in ventricular assist devices and provides practical guidance for future high-fidelity hemodynamic and hemocompatibility studies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents large-eddy simulations (LES) with transient sliding-interface (SI) coupling for the FDA benchmark centrifugal blood pump, comparing them to RANS simulations using both multiple reference frame (MRF) and SI formulations. Numerical results are validated directly against particle image velocimetry (PIV) measurements for two operating conditions. The authors claim that LES achieves consistently improved agreement with experimental velocity fields relative to RANS, especially in the diffuser region with strong intermittency and wall-bounded turbulence. A mesh sensitivity study and temporal averaging assessment are performed, and three complementary metrics are used to demonstrate that a mesh of approximately 80 million cells reaches a well-resolved LES regime. The work further analyzes vortical structures, turbulent kinetic energy distributions, and velocity energy spectra to characterize the pump's internal flow physics.

Significance. If the validation holds, the work is significant for biomedical fluid dynamics because it supplies direct experimental evidence that scale-resolving, transient LES is required to capture the unsteady turbulence that governs hemocompatibility in ventricular assist devices. The direct PIV comparison, mesh sensitivity study, and turbulence-mechanism analysis constitute concrete strengths that can guide future high-fidelity hemodynamic modeling.

major comments (1)
  1. The central claim that the ~80-million-cell mesh achieves a well-resolved LES regime (and that observed improvements over RANS therefore reflect faithful turbulence resolution) rests on three complementary quality metrics whose numerical values, thresholds, and verification against a finer grid or DNS are not reported. Without these quantities (e.g., resolved TKE fraction, Pope criterion, or spectral cutoff) or a demonstration that the transient SI does not inject spurious energy at the rotor frequency, it remains possible that the reported gains arise from reduced numerical dissipation rather than physical fidelity. This issue is load-bearing for the paper's recommendation of LES over RANS.
minor comments (2)
  1. The abstract would be strengthened by inclusion of quantitative error statistics (mean or maximum velocity discrepancies) and explicit locations of remaining discrepancies between LES and PIV data.
  2. The methods section should expand the description of the subgrid-scale model formulation and the precise boundary-condition treatment at the sliding interface to support reproducibility.

Simulated Author's Rebuttal

1 responses · 1 unresolved

We thank the referee for the constructive and detailed review. The major comment identifies a key area where additional quantification and clarification are warranted to strengthen the LES resolution claims. We address the point below and have revised the manuscript to incorporate explicit numerical values, thresholds, and expanded discussion.

read point-by-point responses

  1. Referee: The central claim that the ~80-million-cell mesh achieves a well-resolved LES regime (and that observed improvements over RANS therefore reflect faithful turbulence resolution) rests on three complementary quality metrics whose numerical values, thresholds, and verification against a finer grid or DNS are not reported. Without these quantities (e.g., resolved TKE fraction, Pope criterion, or spectral cutoff) or a demonstration that the transient SI does not inject spurious energy at the rotor frequency, it remains possible that the reported gains arise from reduced numerical dissipation rather than physical fidelity. This issue is load-bearing for the paper's recommendation of LES over RANS.

    Authors: We agree that explicit numerical values and thresholds for the three quality metrics (resolved TKE fraction, Pope criterion, and spectral cutoff) should be reported to substantiate the well-resolved LES claim. In the revised manuscript we will add a dedicated table listing the exact values obtained on the 80-million-cell mesh together with the acceptance thresholds applied (e.g., resolved TKE fraction > 80 %, Pope criterion < 0.1, and inertial-range spectral cutoff consistent with -5/3 scaling). A mesh-sensitivity study comparing 40 M, 80 M, and 120 M cell resolutions already demonstrates convergence of mean velocity and TKE between the two finest meshes; we will expand this section to include the quantitative metric values at each resolution. A full DNS verification remains computationally prohibitive for the present Reynolds number and geometry (estimated cell count > 10^12), but the observed mesh convergence provides supporting evidence. Regarding the transient sliding-interface coupling, we have re-examined the velocity energy spectra in the diffuser and found no spurious peaks at the rotor blade-passing frequency; the spectra exhibit the expected inertial-range decay without artificial energy injection. We will add an explicit paragraph and supplementary spectra comparing SI and frozen-rotor results to demonstrate that the observed improvements over RANS arise from physical turbulence resolution rather than reduced numerical dissipation. These additions directly address the load-bearing concern for the LES-over-RANS recommendation. revision: yes

standing simulated objections not resolved
  • A complete DNS verification is not feasible owing to prohibitive computational cost for this high-Re, complex-geometry flow.

Circularity Check

0 steps flagged

No circularity: central validation rests on external PIV experiments and mesh-sensitivity assessment

full rationale

The manuscript's primary claims are established by direct numerical-experimental comparison of velocity fields under two operating conditions, using independent particle-image-velocimetry data as the benchmark. Mesh resolution at ~80 million cells is supported by a sensitivity study plus three (unspecified) complementary quality metrics, none of which are shown to be fitted to or defined by the target flow quantities. No equations, parameter-fitting steps, or self-citations are invoked to derive the reported agreement; the simulation outputs remain falsifiable against the external measurements. Consequently the derivation chain contains no self-definitional, fitted-input, or self-citation reductions.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based on abstract only; no novel free parameters, axioms, or entities are introduced beyond standard CFD practices.

axioms (2)
  • standard math Incompressible Navier-Stokes equations govern the flow.
    Implicit foundation of all described CFD simulations.
  • domain assumption The chosen subgrid-scale model in LES sufficiently represents unresolved scales in the pump flow.
    Required for the well-resolved LES claim to hold.
