Low-rank eigenvalue solvers for block-sparse matrix product states

Pith reviewed 2026-05-10 07:53 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords eigenvalue solverslow-rank approximationsmatrix product statesSchrödinger equationspreconditioned inverse iterationrank truncationsubspace iterationfermionic systems
0
0 comments X

The pith

Preconditioned inverse iteration with rank truncation computes low-rank matrix product state approximations to Schrödinger eigenfunctions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an iterative eigensolver for Schrödinger equations that builds low-rank matrix product state approximations with ranks that adapt to the target accuracy. It centers on fermionic systems in second-quantized form, where block-sparse structures enforce particle number conservation. A full convergence analysis is supplied for the combination of preconditioned inverse iteration and rank truncation. The authors also outline a subspace iteration extension that simultaneously approximates multiple eigenstates. Numerical tests on model problems confirm the method performs reliably in practice.

Core claim

We provide a complete analysis of a solver based on preconditioned inverse iteration combined with rank truncation and propose a generalization to subspace iteration for the joint approximation of several eigenspaces. The solver constructs low-rank approximations of eigenfunctions with accuracy-adapted ranks for Schrödinger equations, with particular focus on fermionic Schrödinger equations in second-quantized form and on matrix product state approximations enforcing particle number conservation.

What carries the argument

preconditioned inverse iteration combined with rank truncation for block-sparse matrix product states

If this is right

  • The solver produces eigenfunction approximations whose ranks adjust automatically to the desired accuracy.
  • The approach applies directly to fermionic Schrödinger equations in second-quantized form that enforce particle number conservation.
  • Convergence guarantees hold for the inverse iteration scheme under the stated error-control assumptions.
  • The subspace iteration generalization computes several eigenstates jointly rather than one at a time.
  • Numerical experiments on model problems demonstrate that the method achieves the expected practical performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could reduce memory and runtime costs when simulating larger quantum many-body systems by keeping ranks minimal throughout the solve.
  • Analogous iterative low-rank techniques might extend to other tensor network formats or to operators beyond the Schrödinger equation.
  • Testing the solver on realistic molecular Hamiltonians would reveal whether the block-sparse preconditioning scales to chemically relevant sizes.
  • Coupling the rank-adaptation logic with learned preconditioners could further accelerate convergence for specific physical models.

Load-bearing premise

Rank truncation errors remain controlled during iteration and the preconditioner stays effective for the block-sparse matrix product state structure.

What would settle it

A concrete counterexample in which the iteration diverges or the approximation error grows for a fermionic Schrödinger operator, even when truncation thresholds are respected and the preconditioner is applied, would disprove the convergence analysis.

Figures

Figures reproduced from arXiv: 2604.16118 by Markus Bachmayr, Max Pfeffer, Sebastian Kr\"amer.

Figure 1
Figure 1. Figure 1: Applied orbitals as layed out in Section 7.1.1 for the setting de￾scribed in Section 7.2 [PITH_FULL_IMAGE:figures/full_fig_p027_1.png] view at source ↗

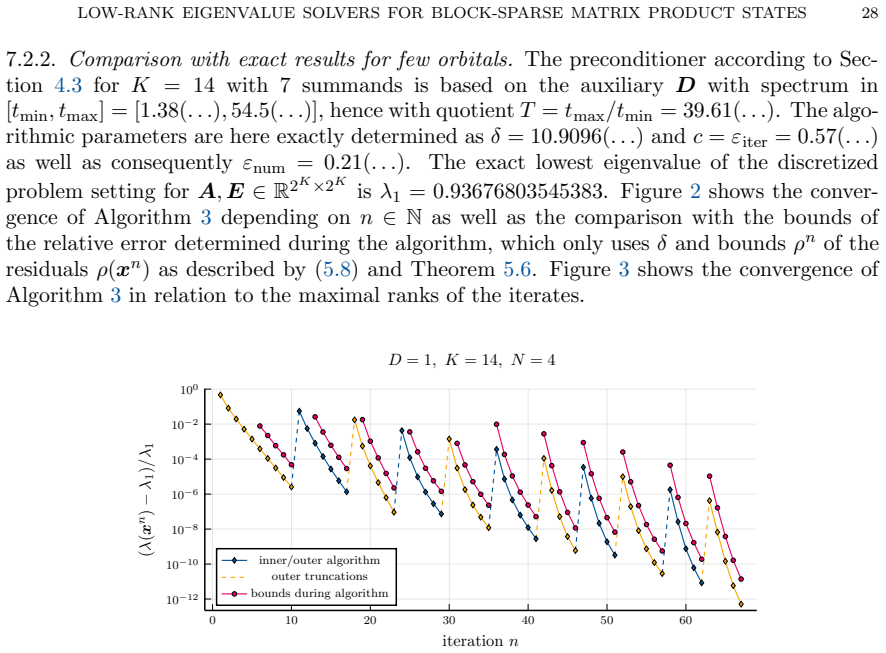

Figure 2
Figure 2. Figure 2: Exact eigenvalue error as well as the bound determined during the algorithm (cf. (5.8) and Theorem 5.6). Bounds in iterations in which (5.15) is violated have been omitted. 10−2 10−4 10−6 10−8 10−10 10−12 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 (λ(x n ) − λ1)/λ1 max ranks( x n ) only-inner iteration algorithm start of each outer iteration odd-numbered outer iterations outer truncations 10−2 10−… view at source ↗

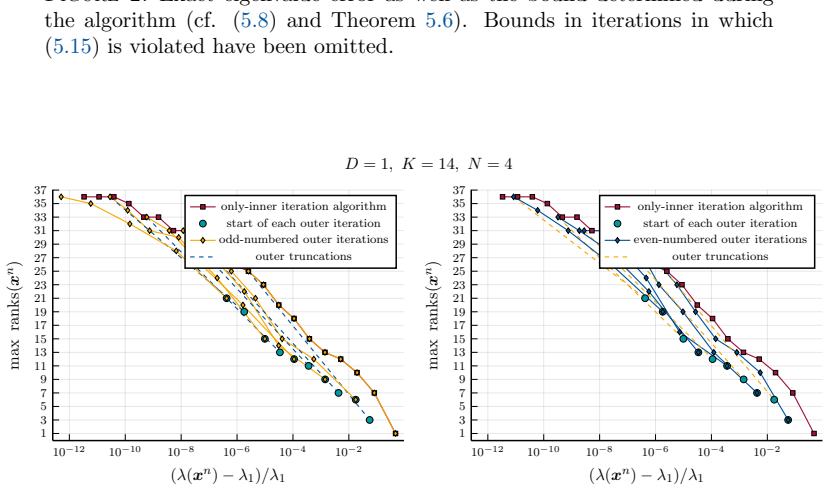

Figure 3
Figure 3. Figure 3: Maximal ranks of iterates in relation to convergence of Algo￾rithm 3 as well as the variant with only inner iterations. 7.2.3. High accuracy convergence results. The preconditioner for K = 30 with 8 summands is based on the auxiliary D with [tmin, tmax] = [1.38(. . .), 256.64(. . .)], hence with quotient T = tmax/tmin = 186.52(. . .). The algorithmic parameters are here extrapolated following Section 7.1.3… view at source ↗
Figure 4
Figure 4. Figure 4: shows the convergence of Algorithm 3 (where nmax is the number of iterations) in relation to the maximal ranks of the iterates [PITH_FULL_IMAGE:figures/full_fig_p029_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Maximal ranks of iterates (left) and residuals (right) in relation to the iteration number. 7.2.4. Simultaneous approximation of multiple eigenvalues. The same experiments as in Sec￾tions 7.2.2 and 7.2.3 are performed for the simultanous approximation of the first D = 4 eigenvalues with the joint inner iteration Algorithm 4. An additional, heuristic termination criterion is used here to not only ensure the… view at source ↗

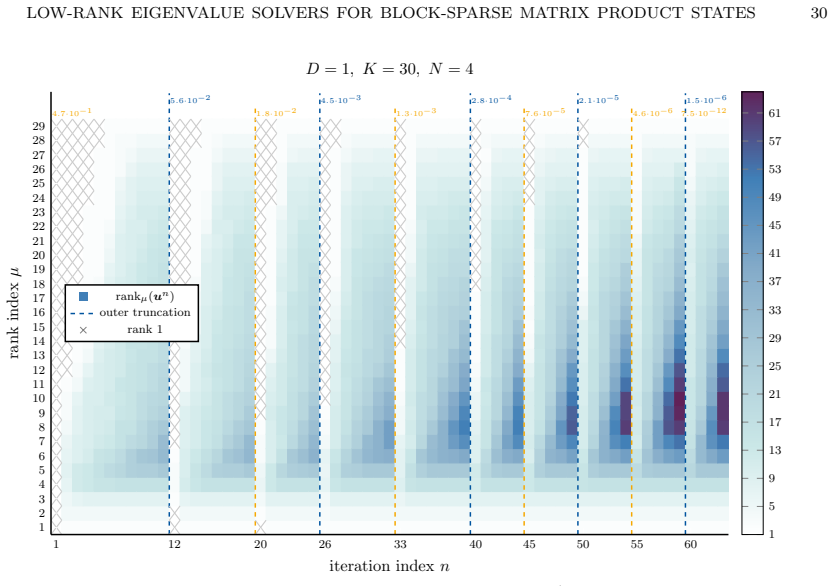

Figure 6
Figure 6. Figure 6: Ranks of iterates by iteration for the inner/outer iteration. The values next to the dashed lines show each the relative eigenvalue error (as specified in [PITH_FULL_IMAGE:figures/full_fig_p030_6.png] view at source ↗

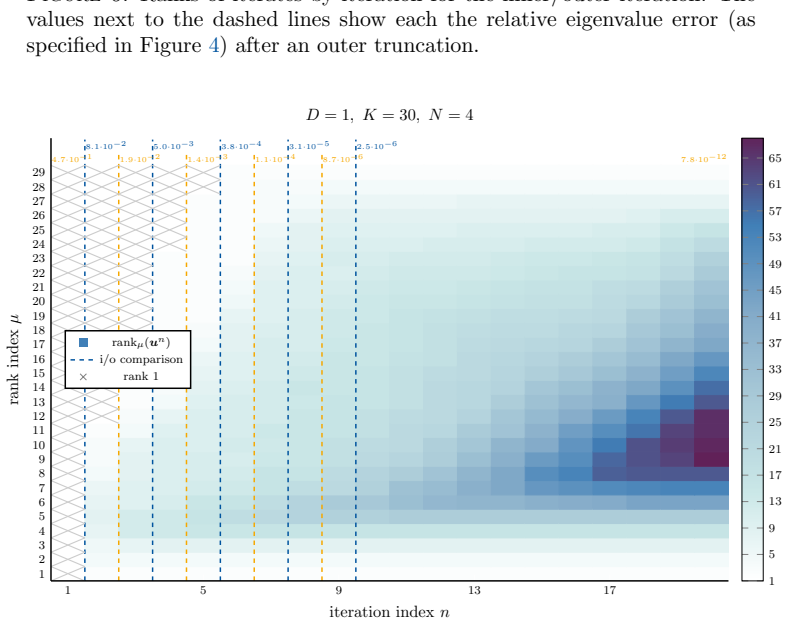

Figure 7
Figure 7. Figure 7: Ranks of iterates by iteration. The dashed lines instead indicate each the last iteration with a larger relative eigenvalue compared to such after outer truncations of the inner/outer iteration [PITH_FULL_IMAGE:figures/full_fig_p030_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Individual convergence of the D Rayleigh quotients determined by Algorithm 4. 10−2 10−4 10−6 10−8 4 7 10 13 16 19 22 25 28 31 34 37 40 43 46 49 52 55 58 61 64 67 ( PD i=1(λ(x n i ) − λi) 2) 1/2/( PD i=1 λ 2 i ) 1/2 max ranks( X n ) D = 4, K = 14, N = 4 start of each outer iteration inner/outer algorithm outer truncations 10−2 10−4 10−6 10−8 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 101 106 … view at source ↗
Figure 9
Figure 9. Figure 9: Maximal ranks of iterates in relation to convergence of Algo￾rithm 4 as well as the variant with only inner iterations. For K = 30, we compare with the last determined Rayleigh quotients. 7.3. Observations on numerical experiments. In summary, we observe in particular a clear effect of the inner-outer iteration scheme, where the truncation in each step of the outer iteration produces approximations with su… view at source ↗

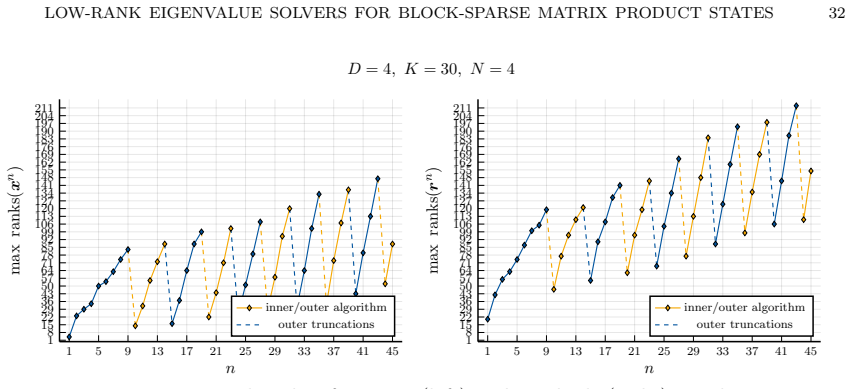

Figure 10
Figure 10. Figure 10: Maximal ranks of iterates (left) and residuals (right) in relation to the iteration number. 2.3·10−1 4.0·10−3 1.4·10−3 3.9·10−4 8.4·10−5 1.7·10−5 4.8·10−6 1.5·10−6 4.2·10−7 1.2·10−7 2.5·10−5 5.8·10−6 1.6·10−6 6.9·10−7 2.6·10−7 7.9·10−8 2.3·10−8 5.8·10−9 1.1·10−9 1 10 15 20 24 28 32 36 40 44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 iteration index n rank index µ D = … view at source ↗
Figure 11
Figure 11. Figure 11: Ranks of iterates by iteration for the inner/outer iteration. The values next to the dashed lines show each the relative eigenvalue error (as specified in [PITH_FULL_IMAGE:figures/full_fig_p032_11.png] view at source ↗

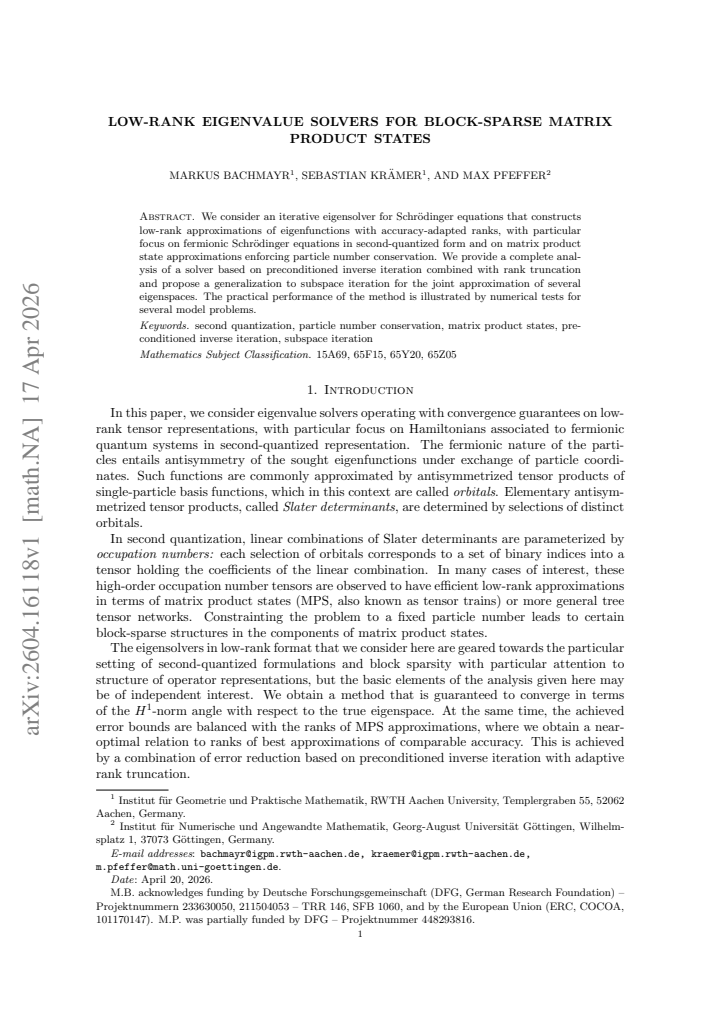

read the original abstract

We consider an iterative eigensolver for Schr\"odinger equations that constructs low-rank approximations of eigenfunctions with accuracy-adapted ranks, with particular focus on fermionic Schr\"odinger equations in second-quantized form and on matrix product state approximations enforcing particle number conservation. We provide a complete analysis of a solver based on preconditioned inverse iteration combined with rank truncation and propose a generalization to subspace iteration for the joint approximation of several eigenspaces. The practical performance of the method is illustrated by numerical tests for several model problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper develops iterative eigensolvers for Schrödinger equations that produce low-rank approximations to eigenfunctions with accuracy-adapted ranks, with emphasis on fermionic systems in second-quantized form using block-sparse matrix product states (MPS) that enforce particle-number conservation. It claims a complete analysis of preconditioned inverse iteration combined with rank truncation, proposes a generalization to subspace iteration for multiple eigenspaces, and illustrates performance via numerical tests on model problems.

Significance. If the central analysis holds with controlled truncation errors, the work would supply a rigorous, practical framework for low-rank eigen-solvers in quantum many-body problems, extending standard preconditioned inverse iteration and subspace methods to the block-sparse MPS setting while preserving conservation laws; this could improve efficiency in quantum chemistry and condensed-matter simulations where high-dimensional eigenproblems arise.

major comments (1)
  1. [Convergence analysis (theoretical sections following the method description)] The convergence analysis of the preconditioned inverse iteration scheme with rank truncation (claimed to be complete in the abstract and presumably detailed in the main theoretical sections) assumes that truncation errors remain controlled throughout the iteration but does not supply explicit bounds relating the truncation tolerance to the spectral gap or to the quality of the preconditioner under the block-sparse MPS structure and particle-number conservation constraints. This assumption is load-bearing for the central claim, as block-sparsity and the conservation law can alter error propagation relative to unstructured low-rank cases.
minor comments (2)
  1. [Numerical experiments] The numerical tests section would benefit from explicit statements of the model Hamiltonians, the precise truncation tolerances employed, and quantitative comparisons (e.g., iteration counts or residual norms) against standard dense or unstructured MPS eigensolvers to substantiate the practical advantage.
  2. [Method description] Notation for the block-sparse MPS tensors and the action of the preconditioner could be clarified with a short diagram or explicit index conventions early in the method section to aid readers unfamiliar with the particle-number conserving formulation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and constructive comments on our manuscript. We address the single major comment below.

read point-by-point responses
  1. Referee: [Convergence analysis (theoretical sections following the method description)] The convergence analysis of the preconditioned inverse iteration scheme with rank truncation (claimed to be complete in the abstract and presumably detailed in the main theoretical sections) assumes that truncation errors remain controlled throughout the iteration but does not supply explicit bounds relating the truncation tolerance to the spectral gap or to the quality of the preconditioner under the block-sparse MPS structure and particle-number conservation constraints. This assumption is load-bearing for the central claim, as block-sparsity and the conservation law can alter error propagation relative to unstructured low-rank cases.

    Authors: We thank the referee for this observation. The analysis establishes that the iteration converges provided the truncation tolerance is chosen sufficiently small relative to the current residual and the spectral gap, with the block-sparse MPS format ensuring that truncation is performed separately within each particle-number sector (thereby preventing leakage into forbidden sectors). This structure is explicitly used to preserve the conservation law at every step. We acknowledge, however, that the paper does not derive fully explicit constants that quantify the precise dependence of the required tolerance on the gap and preconditioner quality in the block-sparse setting. In the revised version we will add a dedicated remark clarifying the practical choice of tolerance and discussing how the sector-wise truncation modifies error propagation relative to the unstructured case. revision: partial

Circularity Check

0 steps flagged

No circularity: derivation applies standard inverse iteration to MPS without self-referential reduction

full rationale

The paper presents a complete analysis of preconditioned inverse iteration with rank truncation for low-rank eigenfunction approximations in block-sparse MPS, generalizing to subspace iteration. The abstract and context describe this as building directly on established numerical linear algebra techniques applied to the existing MPS framework with particle-number conservation. No quoted equations, sections, or steps reduce a claimed result to its own inputs by construction, nor do they rely on self-citations for load-bearing uniqueness theorems, ansatzes, or fitted parameters renamed as predictions. The convergence claim assumes controlled truncation errors (as noted in the reader's take) but does not exhibit self-definitional or fitted-input patterns; the analysis is positioned as independent verification against standard benchmarks for inverse iteration. This is the expected non-finding for a paper extending known methods without internal circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on standard convergence theory for inverse iteration and basic properties of low-rank MPS truncation; no free parameters, invented entities, or ad-hoc axioms are mentioned.

axioms (2)
  • standard math Convergence of preconditioned inverse iteration under suitable preconditioner assumptions
    Invoked for the analysis of the solver with rank truncation.
  • domain assumption Low-rank truncation preserves essential structure in block-sparse MPS representations
    Required for the accuracy-adapted ranks to remain effective in fermionic systems.

pith-pipeline@v0.9.0 · 5379 in / 1314 out tokens · 55589 ms · 2026-05-10T07:53:24.286184+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

35 extracted references · 35 canonical work pages

  1. [1]

    Bachmayr,Low-rank tensor methods for partial differential equations, Acta Numerica32(2023), 1– 121

    M. Bachmayr,Low-rank tensor methods for partial differential equations, Acta Numerica32(2023), 1– 121

  2. [2]

    Bachmayr and W

    M. Bachmayr and W. Dahmen,Adaptive near-optimal rank tensor approximation for high-dimensional operator equations, Found. Comput. Math.15(2015), no. 4, 839–898

  3. [3]

    ,Adaptive low-rank methods: problems on Sobolev spaces, SIAM J. Numer. Anal.54(2016), no. 2, 744–796

  4. [4]

    Bachmayr, M

    M. Bachmayr, M. G¨ otte, and M. Pfeffer,Particle number conservation and block structures in matrix product states, Calcolo59(2022), no. 2, Paper No. 24, 47

  5. [5]

    Bachmayr and V

    M. Bachmayr and V. Kazeev,Stability of low-rank tensor representations and structured multilevel pre- conditioning for elliptic PDEs, Foundations of Computational Mathematics20(2020), 1175–1236

  6. [6]

    Bachmayr and R

    M. Bachmayr and R. Schneider,Iterative methods based on soft thresholding of hierarchical tensors, Found. Comput. Math.17(2017), no. 4, 1037–1083

  7. [7]

    G. M. Crosswhite and D. Bacon,Finite automata for caching in matrix product algorithms, Physical Review A78(2008), no. 1, 012356

  8. [8]

    A. J. Daley, C. Kollath, U. Schollw¨ ock, and G. Vidal,Time-dependent density-matrix renormalization- group using adaptive effective Hilbert spaces, Journal of Statistical Mechanics: Theory and Experiment 2004(2004), no. 04, P04005

  9. [9]

    Dolfi, B

    M. Dolfi, B. Bauer, M. Troyer, and Z. Ristivojevic,Multigrid algorithms for tensor network states, Physical review letters109(2012), no. 2, 020604

  10. [10]

    Dolgov and B

    S. Dolgov and B. Khoromskij,Two-level QTT-Tucker format for optimized tensor calculus, SIAM Journal on Matrix Analysis and Applications34(2013), no. 2, 593–623

  11. [11]

    S. V. Dolgov, B. N. Khoromskij, I. V. Oseledets, and D. V. Savostyanov,Computation of extreme eigen- values in higher dimensions using block tensor train format, Computer Physics Communications185 (2014), no. 4, 1207–1216

  12. [12]

    G. C. Donovan, J. S. Geronimo, and D. P. Hardin,Orthogonal polynomials and the construction of piecewise polynomial smooth wavelets, SIAM J. Math. Anal.30(1999), no. 5, 1029–1056

  13. [13]

    G¨ otte,Applications of tensor networks in quantum chemistry and polynomial regression, 2022

    M. G¨ otte,Applications of tensor networks in quantum chemistry and polynomial regression, 2022

  14. [14]

    Grasedyck,Hierarchical singular value decomposition of tensors, SIAM Journal on Matrix Analysis and Applications31(2010), no

    L. Grasedyck,Hierarchical singular value decomposition of tensors, SIAM Journal on Matrix Analysis and Applications31(2010), no. 4, 2029–2054

  15. [15]

    Hackbusch,On the representation of symmetric and antisymmetric tensors, Contemporary Compu- tational Mathematics-A Celebration of the 80th Birthday of Ian Sloan, Springer, 2018, pp

    W. Hackbusch,On the representation of symmetric and antisymmetric tensors, Contemporary Compu- tational Mathematics-A Celebration of the 80th Birthday of Ian Sloan, Springer, 2018, pp. 483–515

  16. [16]

    56, Springer, Cham, 2019, Second edition

    ,Tensor spaces and numerical tensor calculus, Springer Series in Computational Mathematics, vol. 56, Springer, Cham, 2019, Second edition

  17. [17]

    Hackbusch and S

    W. Hackbusch and S. K¨ uhn,A new scheme for the tensor representation, Journal of Fourier Analysis and Applications15(2009), no. 5, 706–722

  18. [18]

    Kazeev, O

    V. Kazeev, O. Reichmann, and Ch. Schwab,Low-rank tensor structure of linear diffusion operators in the TT and QTT formats, Linear Algebra and its Applications438(2013), no. 11, 4204–4221

  19. [19]

    V. A. Kazeev and B. N. Khoromskij,Low-Rank Explicit QTT Representation of the Laplace Operator and Its Inverse, SIAM J. Matrix Anal. & Appl.33(2012), no. 3, 742–758

  20. [20]

    Keller, M

    S. Keller, M. Dolfi, M. Troyer, and M. Reiher,An efficient matrix product operator representation of the quantum chemical Hamiltonian, The Journal of Chemical Physics143(2015), no. 24, 244118

  21. [21]

    A. V. Knyazev and K. Neymeyr,A geometric theory for preconditioned inverse iteration. III. A short and sharp convergence estimate for generalized eigenvalue problems, vol. 358, 2003, Special issue on accurate solution of eigenvalue problems (Hagen, 2000), pp. 95–114

  22. [22]

    Matrix Anal

    ,Gradient flow approach to geometric convergence analysis of preconditioned eigensolvers, SIAM J. Matrix Anal. Appl.31(2009), no. 2, 621–628

  23. [23]

    Kressner, M

    D. Kressner, M. Steinlechner, and A. Uschmajew,Low-rank tensor methods with subspace correction for symmetric eigenvalue problems, SIAM J. Sci. Comput.36(2014), no. 5, A2346–A2368

  24. [24]

    Kressner and Ch

    D. Kressner and Ch. Tobler,Preconditioned low-rank methods for high-dimensional elliptic PDE eigen- value problems, Computational Methods in Applied Mathematics11(2011), no. 3, 363–381

  25. [25]

    I. P. McCulloch,From density-matrix renormalization group to matrix product states, Journal of Statistical Mechanics: Theory and Experiment2007(2007), no. 10, P10014

  26. [26]

    I. V. Oseledets,Tensor Train decomposition, SIAM Journal on Scientific Computing33(2011), no. 5, 2295–2317

  27. [27]

    ¨Ostlund and S

    S. ¨Ostlund and S. Rommer,Thermodynamic limit of density matrix renormalization, Physical review letters75(1995), no. 19, 3537

  28. [28]

    Pfeffer,Tensor methods for the numerical solution of high-dimensional parametric partial differential equations, Ph.D

    M. Pfeffer,Tensor methods for the numerical solution of high-dimensional parametric partial differential equations, Ph.D. thesis, TU Berlin, 2018

  29. [29]

    Rohwedder, R

    T. Rohwedder, R. Schneider, and A. Zeiser,Perturbed preconditioned inverse iteration for operator eigen- value problems with applications to adaptive wavelet discretization, Advances in Computational Mathe- matics34(2011), no. 1, 43–66. LOW-RANK EIGENVALUE SOLVERS FOR BLOCK-SPARSE MATRIX PRODUCT STATES 34

  30. [30]

    Schollw¨ ock,The density-matrix renormalization group in the age of matrix product states, Annals of physics326(2011), no

    U. Schollw¨ ock,The density-matrix renormalization group in the age of matrix product states, Annals of physics326(2011), no. 1, 96–192

  31. [31]

    Scholz and H

    S. Scholz and H. Yserentant,On the approximation of electronic wavefunctions by anisotropic Gauss and Gauss–Hermite functions, Numerische Mathematik136(2017), no. 3, 841–874

  32. [32]

    Singh, R

    S. Singh, R. N. C. Pfeifer, and G. Vidal,Tensor network states and algorithms in the presence of a global U(1)symmetry, Phys. Rev. B83(2011), 115125

  33. [33]

    Vidal,Efficient classical simulation of slightly entangled quantum computations, Physical review letters 91(2003), no

    G. Vidal,Efficient classical simulation of slightly entangled quantum computations, Physical review letters 91(2003), no. 14, 147902

  34. [34]

    S. R. White,Density matrix formulation for quantum renormalization groups, Phys. Rev. Lett.69(1992), 2863–2866

  35. [35]

    Yserentant,Regularity and approximability of electronic wave functions, Springer-Verlag, Berlin, 2010

    H. Yserentant,Regularity and approximability of electronic wave functions, Springer-Verlag, Berlin, 2010. AppendixA.Rayleigh Quotient Bounds A.1.Auxiliary result for Theorem 5.1. Lemma A.1.Letx,y,zbe vectors such thatλ(z)≤(1−t)λ(y) +tλ(x)as well as λ(x), λ(y)∈[λ k, λk+1)andλ(x)≥λ(y). Then if for aq∈[0,1), (A.1) λ(y)−λ k λk+1 −λ(y) ≤q 2 λ(x)−λ k λk+1 −λ(x)...
