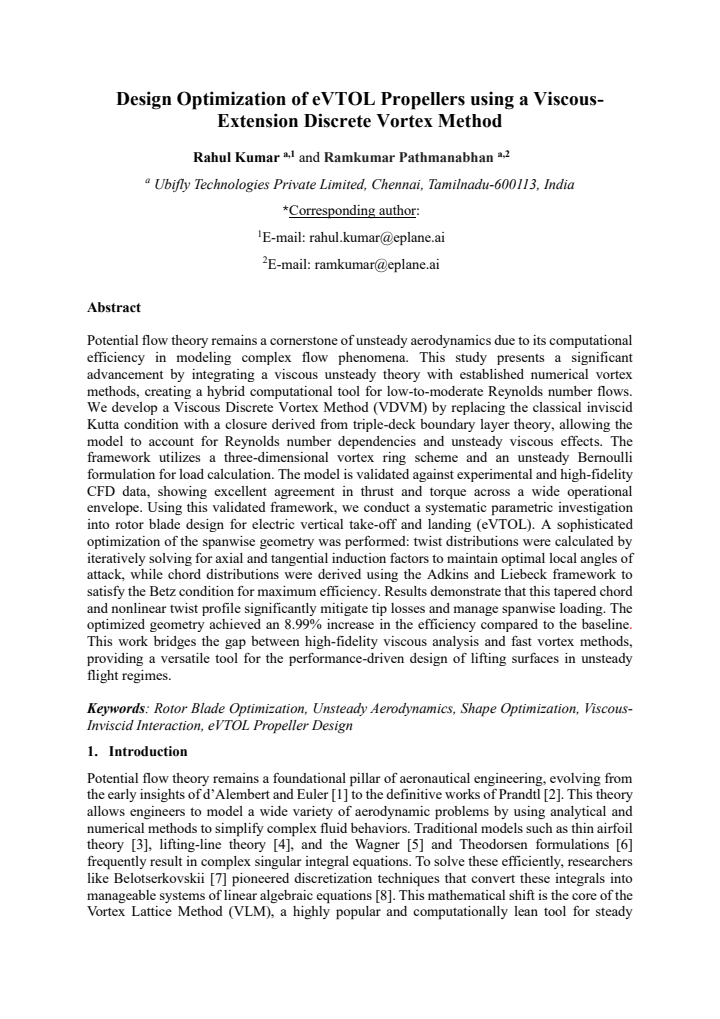

Design Optimization of eVTOL Propellers using a Viscous-Extension Discrete Vortex Method

Rahul Kumar , Ramkumar Pathmanabhan

Authors on Pith no claims yet

Pith reviewed 2026-05-10 14:33 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn

keywords eVTOL propellerviscous discrete vortex methodtriple-deck theorydesign optimizationunsteady aerodynamicsrotor efficiencyblade geometry

0 comments

The pith

A viscous correction to the Kutta condition in vortex methods enables an eVTOL propeller design with 8.99 percent higher efficiency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a Viscous Discrete Vortex Method that replaces the classical inviscid Kutta condition with a closure taken from triple-deck boundary-layer theory. This change lets the model capture Reynolds-number effects and unsteady viscous behavior while retaining the speed of a three-dimensional vortex-ring scheme and an unsteady Bernoulli load calculation. The authors validate the method against both experiments and high-fidelity CFD across a range of operating conditions. They then apply it to redesign the spanwise chord and twist of an eVTOL rotor so that local angles of attack remain near optimum and the Betz condition is satisfied. The resulting tapered-chord, nonlinear-twist blade raises efficiency by 8.99 percent relative to the baseline.

Core claim

The central discovery is a hybrid Viscous Discrete Vortex Method (VDVM) in which the inviscid Kutta condition is replaced by a viscous closure derived from triple-deck boundary-layer theory. The three-dimensional vortex-ring discretization together with the unsteady Bernoulli formulation then yields thrust and torque predictions that match experimental and CFD data over a wide envelope. When the validated solver is used to optimize blade geometry by iteratively solving for induction factors that maintain optimal local angles of attack and by applying the Adkins-Liebeck framework to enforce the Betz condition, the resulting tapered chord and nonlinear twist distribution produces an 8.99% gain

What carries the argument

The Viscous Discrete Vortex Method (VDVM), a three-dimensional vortex-ring scheme whose Kutta condition is closed by a triple-deck boundary-layer correction that supplies Reynolds-number dependence and unsteady viscous effects.

If this is right

The tapered chord and nonlinear twist distribution reduces tip losses and produces a more uniform spanwise loading.
The framework supplies a computationally inexpensive alternative to full CFD for parametric studies of unsteady lifting surfaces.
The same optimization procedure can be repeated for different operating points to generate families of efficient rotor designs.
Validation across a wide envelope indicates that the method remains reliable when both rotation and time-dependent inflow are present.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same viscous correction could be tested on other low-to-moderate Reynolds-number rotors such as drone propellers or small wind turbines to check whether comparable efficiency gains appear.
Direct comparison of the predicted boundary-layer displacement thickness against particle-image velocimetry on a rotating blade would provide an independent check on the triple-deck closure.
If the efficiency gain persists in full-vehicle flight tests, the reduced power draw could extend range or payload for electric vertical-takeoff aircraft.

Load-bearing premise

The triple-deck boundary-layer closure supplies an accurate viscous correction to the Kutta condition for the unsteady three-dimensional flow around a rotating propeller at the Reynolds numbers of interest.

What would settle it

Wind-tunnel measurements of thrust, torque, and efficiency on the optimized tapered-chord propeller at the design Reynolds number and advance ratio that show no improvement over the baseline geometry would falsify the reported performance gain.

read the original abstract

Potential flow theory remains a cornerstone of unsteady aerodynamics due to its computational efficiency in modeling complex flow phenomena. This study presents a significant advancement by integrating a viscous unsteady theory with established numerical vortex methods, creating a hybrid computational tool for low-to-moderate Reynolds number flows. We develop a Viscous Discrete Vortex Method (VDVM) by replacing the classical inviscid Kutta condition with a closure derived from triple-deck boundary layer theory, allowing the model to account for Reynolds number dependencies and unsteady viscous effects. The framework utilizes a three-dimensional vortex ring scheme and an unsteady Bernoulli formulation for load calculation. The model is validated against experimental and high-fidelity CFD data, showing excellent agreement in thrust and torque across a wide operational envelope. Using this validated framework, we conduct a systematic parametric investigation into rotor blade design for electric vertical take-off and landing (eVTOL). A sophisticated optimization of the spanwise geometry was performed: twist distributions were calculated by iteratively solving for axial and tangential induction factors to maintain optimal local angles of attack, while chord distributions were derived using the Adkins and Liebeck framework to satisfy the Betz condition for maximum efficiency. Results demonstrate that this tapered chord and nonlinear twist profile significantly mitigate tip losses and manage spanwise loading. The optimized geometry achieved an 8.99% increase in the efficiency compared to the baseline. This work bridges the gap between high-fidelity viscous analysis and fast vortex methods, providing a versatile tool for the performance-driven design of lifting surfaces in unsteady flight regimes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper adds a triple-deck viscous correction to a 3D vortex-ring method and uses it to optimize an eVTOL propeller for a reported 8.99% efficiency gain, but the validation numbers are too thin to judge how reliable that gain is.

read the letter

This paper replaces the classical Kutta condition with a triple-deck boundary-layer closure inside an unsteady 3D vortex-ring scheme, then applies the resulting Viscous Discrete Vortex Method to optimize twist and chord on an eVTOL rotor. The optimization follows the usual induction-factor iteration plus the Adkins-Liebeck chord rule to hit the Betz condition, and the authors report an 8.99% efficiency improvement over their baseline geometry. That concrete number is the main practical takeaway. The hybrid approach keeps the speed of vortex methods while adding some Reynolds dependence, which is useful for low-to-moderate Re rotors where full CFD is still expensive for many design iterations. The method itself is built on established potential-flow and boundary-layer ideas rather than new fitting, so the novelty sits mainly in the specific closure and its use for spanwise geometry optimization. Validation is claimed against both experiment and CFD with “excellent agreement,” but the abstract supplies no error metrics, no Reynolds-number range, and no breakdown of where the model matches or deviates. That absence makes it hard to know how much the 8.99% gain depends on the new closure or whether it would survive real 3D rotating-flow effects such as radial pumping and time-varying pressure gradients. The triple-deck correction is local and asymptotic, so any mismatch in those effects could shift the predicted circulation and change the optimized shape. For engineers doing early-stage eVTOL rotor design who need faster-than-CFD parametric studies, the tool could be worth trying once the validation details are filled in. The work shows clear, straightforward thinking about combining existing theories, so it is worth sending to a serious referee even though revisions on the quantitative evidence will almost certainly be requested.

Referee Report

3 major / 2 minor

Summary. The paper develops a Viscous Discrete Vortex Method (VDVM) by replacing the classical Kutta condition with a triple-deck boundary-layer closure to incorporate Reynolds-number and unsteady viscous effects into a 3D vortex-ring formulation with unsteady Bernoulli loads. The method is validated against experimental and CFD data for thrust and torque, then applied to optimize eVTOL propeller geometry: twist distributions are obtained by iteratively solving axial and tangential induction factors for optimal local angles of attack, while chord distributions follow the Adkins-Liebeck framework to satisfy the Betz condition. The optimized tapered-chord, nonlinear-twist blade is reported to deliver an 8.99% efficiency increase relative to the baseline.

Significance. If the triple-deck correction remains accurate under 3D rotating and unsteady conditions, the VDVM supplies a computationally efficient hybrid tool that bridges potential-flow speed with viscous sensitivity, enabling rapid parametric design studies for low-to-moderate-Re lifting surfaces such as eVTOL propellers. The explicit use of established induction-factor and Betz frameworks for the optimization step is a clear strength that keeps the geometry generation transparent and reproducible.

major comments (3)

[Abstract] Abstract and validation results: the claim of 'excellent agreement' with experiment and CFD is unsupported by any quantitative error metrics (RMS or maximum percentage errors in thrust/torque), Reynolds-number range, or baseline geometry definition. Without these, the reliability of the subsequent 8.99% efficiency gain cannot be assessed, as the gain depends directly on the accuracy of the viscous Kutta correction inside the induction-factor iteration.
[VDVM development section] VDVM formulation and triple-deck closure: the manuscript does not specify how the 2D asymptotic triple-deck trailing-edge correction is extended to include spanwise flow, Coriolis/centrifugal pumping, and time-varying pressure gradients present in the rotating, three-dimensional propeller flow. These omissions are load-bearing because the corrected circulation directly feeds the Betz-condition chord design and the reported efficiency improvement.
[Optimization results] Optimization procedure: the parametric study and final 8.99% gain are presented without sensitivity analysis to the viscous closure parameters or to the assumed local angle-of-attack targets. A single efficiency number is given; no table or figure quantifies how the gain varies with Reynolds number or with the strength of the triple-deck correction.

minor comments (2)

[Abstract] The abstract would be clearer if it stated the specific Reynolds-number range and the definition of the baseline propeller (e.g., constant-chord or reference twist) used for the 8.99% comparison.
[Optimization section] Notation for the induction factors and the viscous correction term should be introduced once with a consistent symbol list; repeated re-definition of local angle of attack in the optimization section reduces readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments highlight important areas where additional detail and analysis will strengthen the manuscript. We address each major comment below and will revise the paper accordingly.

read point-by-point responses

Referee: [Abstract] Abstract and validation results: the claim of 'excellent agreement' with experiment and CFD is unsupported by any quantitative error metrics (RMS or maximum percentage errors in thrust/torque), Reynolds-number range, or baseline geometry definition. Without these, the reliability of the subsequent 8.99% efficiency gain cannot be assessed, as the gain depends directly on the accuracy of the viscous Kutta correction inside the induction-factor iteration.

Authors: We agree that quantitative metrics are necessary to substantiate the validation claims and to allow readers to evaluate the 8.99% efficiency gain. In the revised manuscript we will report RMS and maximum percentage errors for thrust and torque coefficients, explicitly state the Reynolds-number range covered by the validation cases, and provide the precise geometric parameters of the baseline propeller. These additions will be placed in both the abstract and the validation section. revision: yes
Referee: [VDVM development section] VDVM formulation and triple-deck closure: the manuscript does not specify how the 2D asymptotic triple-deck trailing-edge correction is extended to include spanwise flow, Coriolis/centrifugal pumping, and time-varying pressure gradients present in the rotating, three-dimensional propeller flow. These omissions are load-bearing because the corrected circulation directly feeds the Betz-condition chord design and the reported efficiency improvement.

Authors: The present formulation applies the triple-deck correction in a locally two-dimensional manner at each spanwise station, using the effective angle of attack that already incorporates the three-dimensional induction field. Spanwise flow, Coriolis, and centrifugal effects are not explicitly folded into the boundary-layer closure itself. We will revise the VDVM development section to state this approximation clearly, discuss its expected range of validity for rotating blades, and note the associated limitations on the circulation correction. revision: yes
Referee: [Optimization results] Optimization procedure: the parametric study and final 8.99% gain are presented without sensitivity analysis to the viscous closure parameters or to the assumed local angle-of-attack targets. A single efficiency number is given; no table or figure quantifies how the gain varies with Reynolds number or with the strength of the triple-deck correction.

Authors: We will add a dedicated sensitivity subsection (with accompanying table and figure) that shows how the reported efficiency gain changes with Reynolds number and with variations in the triple-deck closure parameters. We will also examine the influence of the chosen local angle-of-attack targets used inside the induction-factor iteration. This will quantify the robustness of the 8.99% figure. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation uses external validation and standard frameworks

full rationale

The paper's derivation chain begins with an established potential-flow vortex-ring scheme, augments the Kutta condition via triple-deck boundary-layer closure drawn from prior literature, validates the resulting VDVM against independent experimental and CFD datasets, and then applies standard Adkins-Liebeck chord design plus induction-factor iteration to satisfy the Betz condition. The reported 8.99% efficiency gain is an output of this forward optimization loop rather than a reconstruction of any fitted input or self-referential definition. No load-bearing step reduces by construction to the target metric or to a self-citation whose content is itself unverified within the paper.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard potential-flow assumptions plus one domain-specific closure from triple-deck theory; the optimization introduces two procedural choices that function as free parameters.

free parameters (2)

local angle-of-attack targets
Iteratively solved axial and tangential induction factors chosen to keep each blade section at its optimal angle of attack.
chord distribution parameters
Derived via Adkins-Liebeck method to enforce the Betz condition; specific constants or limits not stated.

axioms (2)

domain assumption Potential flow theory remains a valid base model for the unsteady aerodynamics of the propeller.
Explicitly stated as the cornerstone of the approach.
domain assumption Triple-deck boundary-layer theory supplies a sufficiently accurate viscous closure for the Kutta condition at the relevant Reynolds numbers.
Used to replace the classical inviscid Kutta condition.
