arxiv: 2604.16857 · v1 · submitted 2026-04-18 · 🧮 math.GT

On hyperbolic L-space knots with braid index four and tunnel number two

Masakazu Teragaito This is my paper

Pith reviewed 2026-05-10 07:24 UTC · model grok-4.3

classification 🧮 math.GT
keywords L-space knotshyperbolic knotsbraid indextunnel numberstrongly invertibleSnapPy census
0
0 comments X

The pith

An infinite family of strongly invertible hyperbolic L-space knots with braid index four and tunnel number two is constructed.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes the existence of infinitely many strongly invertible hyperbolic L-space knots that have braid index four and tunnel number two. Previously, only three such knots were known from the SnapPy census: t09284, t10496, and o9_34409. By providing an explicit infinite family that includes t10496 and o9_34409, the work shows that these properties can be satisfied simultaneously in an infinite collection. A sympathetic reader would care because this advances the classification of L-space knots and their geometric properties in low braid index.

Core claim

In this paper, we give the first infinite family of strongly invertible hyperbolic L-space knots with braid index four and tunnel number two that includes t10496 and o9_34409.

What carries the argument

The infinite family of knots parametrized so that every member is hyperbolic, an L-space knot, strongly invertible, of braid index four, and of tunnel number two.

If this is right

  • There are infinitely many such knots rather than only the three previously known examples.
  • t10496 and o9_34409 belong to the same parametric family.
  • The combination of strong invertibility, hyperbolicity, and the L-space property occurs infinitely often at braid index four.
  • The tunnel number two condition is compatible with all the other properties in an infinite set.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar explicit families might exist for other fixed braid indices or tunnel numbers.
  • These examples could be used to test conjectures relating L-space knots to their covering spaces or surgeries.
  • Computational checks on small members of the family could verify the pattern holds beyond the two included census knots.

Load-bearing premise

Every knot in the constructed infinite family satisfies the hyperbolic, L-space, strongly invertible, braid index four, and tunnel number two conditions simultaneously.

What would settle it

Any specific member of the family that is shown to be non-hyperbolic or not an L-space knot would disprove that the entire family satisfies the stated conditions.

Figures

Figures reproduced from arXiv: 2604.16857 by Masakazu Teragaito.

Figure 1
Figure 1. Figure 1: The link K0 ∪ c. By performing (−1/n)-surgery along c, K0 will be changed into Kn. This diagram also shows a strongly invertible position of the link. Lemma 2.1. For any n ≥ 0, Kn is strongly invertible. Proof [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Kirby–Rolfsen calculus for (8, 0)-surgery on K0∪c. The result is a lens space L(9, 7). Lemma 2.3 ([3, Theorem 1.13 and Lemma 6.1], [4, Lemma 2.1]). Let K ∪ c be a link of an L–space knot K and an unknot c with linking number w = lk(K, c) > 1. Let Kn be the image of K after (−1/n)-surgery on c for integers n. If there exists a slope r ≥ 2g(K) − 1 such that (r, 0)-surgery on K ∪ c is an L–space, then Kn is a… view at source ↗
Figure 3
Figure 3. Figure 3: The diagram after the tangle replacements (top left) and its deformation. The box with integer n contains right handed horizontal n half twists. Lemma 3.2. If n ≥ 3, then Kn has tunnel number two. Proof. First, the two arcs t1 and t2, as shown in [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Further deformation. The resulting link (right) consists of two Montesinos tangles [−1/3, 1/3] and [−1/(n − 1), −1/2] [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: An unknotting tunnel system {t1, t2} for Kn. Remark 3.3. It is well known that a torus knot has tunnel number one, so is K0. For K2, which is s682, it is not hard to see that it admits an unknotting tunnel. In fact, t1, shown in [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

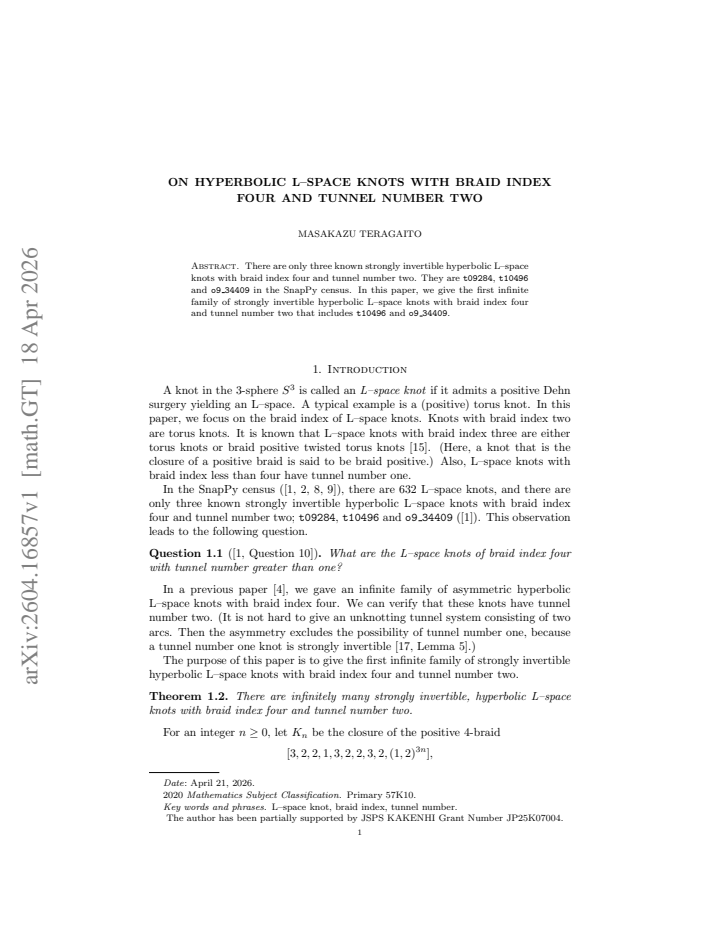

read the original abstract

There are only three known strongly invertible hyperbolic L-space knots with braid index four and tunnel number two. They are t09284, t10496 and o9_34409 in the SnapPy census. In this paper, we give the first infinite family of strongly invertible hyperbolic L-space knots with braid index four and tunnel number two that includes t10496 and o9_34409.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript asserts that only three strongly invertible hyperbolic L-space knots with braid index four and tunnel number two appear in the SnapPy census (t09284, t10496, o9_34409) and constructs the first infinite family of such knots, including t10496 and o9_34409.

Significance. An explicit infinite family satisfying all five conditions simultaneously would be a meaningful advance in the study of L-space knots, their geometric realizations, and the interplay between braid index, tunnel number, and strong invertibility. It would supply new examples for testing conjectures on L-space knots and potentially allow systematic computation of invariants across the family.

major comments (1)
  1. Abstract and introduction: the central claim is the existence of an infinite family in which every member is simultaneously hyperbolic, an L-space knot, strongly invertible, of braid index four, and of tunnel number two. No explicit construction, generating set, or verification argument is supplied in the provided text, so it is impossible to check whether the five conditions hold for all members or whether the family reduces to the three known examples by specialization.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review of our manuscript. We address the major comment regarding the explicit construction of the infinite family below. We will make revisions to improve the clarity and completeness of the presentation.

read point-by-point responses

  1. Referee: Abstract and introduction: the central claim is the existence of an infinite family in which every member is simultaneously hyperbolic, an L-space knot, strongly invertible, of braid index four, and of tunnel number two. No explicit construction, generating set, or verification argument is supplied in the provided text, so it is impossible to check whether the five conditions hold for all members or whether the family reduces to the three known examples by specialization.

    Authors: We agree with the referee that the abstract and introduction lack sufficient detail on the construction and verification. While the full manuscript provides the explicit construction of the infinite family in subsequent sections, we will revise the introduction to include a summary of the generating set for the family and an outline of the arguments verifying that each member satisfies the five conditions (hyperbolicity, L-space knot, strong invertibility, braid index four, and tunnel number two). We will also explicitly show that the family is infinite and includes t10496 and o9_34409 as special cases without reducing to only the three known examples. This revision will make the claims verifiable from the introduction as well. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The provided document contains only an abstract stating the existence of an infinite family of knots with listed properties and noting three known examples; no equations, constructions, definitions, theorems, proofs, or self-citations appear in the visible text. Without any derivation chain or load-bearing steps to inspect, no reduction to inputs by construction can be exhibited, satisfying the rule that circularity is claimed only when a specific quoted reduction is shown.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract provides no information on free parameters, axioms, or invented entities used in any construction.

pith-pipeline@v0.9.0 · 5346 in / 1096 out tokens · 53263 ms · 2026-05-10T07:24:03.729035+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

26 extracted references · 26 canonical work pages

  1. [1]

    Anderson, K

    C. Anderson, K. L. Baker, X. Gao, M. Kegel, K. Le, K. Miller, S. Onaran, G. Sangston, S. Tripp, A. Wood and A. Wright, L–space knots with tunnel number>1 by experiment,Exp. Math.32(2023), no. 4, 600–614

    work page 2023

  2. [2]

    K. L. Baker and M. Kegel, Census L–space knots are braid positive, except for one that is not,Algebr. Geom. Topol.24(2024), no. 1, 569–586

    work page 2024

  3. [3]

    K. L. Baker and K. Motegi, Seifert vs. slice genera of knots in twist families and a character- ization of braid axes,Proc. Lond. Math. Soc.(3)119(2019), no. 6, 1493–1530

    work page 2019

  4. [4]

    K. L. Baker and M. Teragatio, On asymmetric hyperbolic L–space knots of braid index four, preprint

    work page

  5. [5]

    S. A. Bleiler, Two-generator cable knots are tunnel one,Proc. Amer. Math. Soc.122(1994), no. 4, 1285–1287

    work page 1994

  6. [6]

    Borodzik and C

    M. Borodzik and C. Livingston, Semigroups,d-invariants and deformations of cuspidal singular points of plane curves,J. Lond. Math. Soc. (2)93(2016), no. 2, 439–463

    work page 2016

  7. [7]

    Burde, H

    G. Burde, H. Zieschang and M. Heusener,Knots, third, fully revised and extended edition, De Gruyter Studies in Mathematics, 5, De Gruyter, Berlin, 2014

    work page 2014

  8. [8]

    N. M. Dunfield, A census of exceptional Dehn fillings, inCharacters in low-dimensional topol- ogy, 143–155, Contemp. Math. Centre Rech. Math. Proc., 760 , Amer. Math. Soc., RI

    work page

  9. [9]

    N. M. Dunfield, Floer homology, group orderability, and taut foliations of hyperbolic 3- manifolds,Geom. Topol.24(2020), no. 4, 2075–2125

    work page 2020

  10. [10]

    R. H. Fox, Free differential calculus II,Ann. of Math.(2)59(1954) 196–210

    work page 1954

  11. [11]

    Franks and R

    J. Franks and R. F. Williams, Braids and the Jones polynomial,Trans. Amer. Math. Soc. 303(1987), no. 1, 97–108

    work page 1987

  12. [12]

    Kobayashi, Structures of the Haken manifolds with Heegaard splittings of genus two,Osaka J

    T. Kobayashi, Structures of the Haken manifolds with Heegaard splittings of genus two,Osaka J. Math.21(1984), no. 2, 437–455. 8 M. TERAGAITO

    work page 1984

  13. [13]

    Kodama, Knot, available athttp://www.artsci.kyushu-u.ac.jp/ ~sumi/C/knot/

    K. Kodama, Knot, available athttp://www.artsci.kyushu-u.ac.jp/ ~sumi/C/knot/

    work page

  14. [14]

    Krcatovich, The reduced knot Floer complex,Topology and its Applications194(2015), 171–201

    D. Krcatovich, The reduced knot Floer complex,Topology and its Applications194(2015), 171–201

    work page 2015

  15. [15]

    C. R. S. Lee and F. Vafaee, On 3-braids and L-space knots,Geom. Dedicata213(2021), 513–521

    work page 2021

  16. [16]

    J. M. Montesinos-Amilibia, Surgery on links and double branched covers ofS 3, inKnots, groups, and3-manifolds (Papers dedicated to the memory of R. H. Fox), pp. 227–259, Ann. of Math. Stud., No. 84, Princeton Univ. Press, Princeton, NJ

    work page

  17. [17]

    Morimoto, There are knots whose tunnel numbers go down under connected sum,Proc

    K. Morimoto, There are knots whose tunnel numbers go down under connected sum,Proc. Amer. Math. Soc.123(1995), no. 11, 3527–3532

    work page 1995

  18. [18]

    Morimoto and M

    K. Morimoto and M. Sakuma, On unknotting tunnels for knots,Math. Ann.289(1991), no. 1, 143–167

    work page 1991

  19. [19]

    H. R. Morton, Seifert circles and knot polynomials,Math. Proc. Cambridge Philos. Soc.99 (1986), no. 1, 107–109

    work page 1986

  20. [20]

    Morton, The Alexander polynomial of a torus knot with twists,J

    H. Morton, The Alexander polynomial of a torus knot with twists,J. Knot Theory Ramifica- tions15(2006), no. 8, 1037–1047

    work page 2006

  21. [21]

    Ozsv´ ath and Z

    P. Ozsv´ ath and Z. Szab´ o, On knot Floer homology and lens space surgeries,Topology44 (2005), no. 6, 1281–1300

    work page 2005

  22. [22]

    The Sage Developers. (2020). SageMath, the Sage Mathematics Software System, Version 9.1. Available at:https://www.sagemath.org

    work page 2020

  23. [23]

    Schubert, ¨Uber eine numerische Knoteninvariante,Math

    H. Schubert, ¨Uber eine numerische Knoteninvariante,Math. Z.61(1954), 245–288

    work page 1954

  24. [24]

    Stallings, Constructions of fibred knots and links, inAlgebraic and geometric topology (Proc

    J. Stallings, Constructions of fibred knots and links, inAlgebraic and geometric topology (Proc. Sympos. Pure Math., Stanford Univ., Stanford, Calif., 1976), Part 2, pp. 55–60, Proc. Sympos. Pure Math., XXXII, Amer. Math. Soc., Providence, R.I., 1978

    work page 1976

  25. [25]

    Torres, On the Alexander polynomial,Ann

    G. Torres, On the Alexander polynomial,Ann. of Math.(2)57(1953) 57–89

    work page 1953

  26. [26]

    Wang, Semigroups of L–space knots and nonalgebraic iterated torus knots,Math

    S. Wang, Semigroups of L–space knots and nonalgebraic iterated torus knots,Math. Res. Lett. 25(2018), no. 1, 335–346. Department of Mathematics Education, Hiroshima University, 1-1-1 Kagamiyama, Higashi-hiroshima 7398524, Japan. Email address:teragai@hiroshima-u.ac.jp

    work page 2018
