arxiv: 2604.17088 · v1 · submitted 2026-04-18 · ⚛️ physics.optics

Recognition: unknown

Subwavelength Coherent Scaling of High-Order Nonlinear Light Generation in Bulk Monolayer MoS2 Thin Films

Boxuan Zhou , Yuancheng Jing , Chun-Chieh Yu , Haoyang Li , Ran Wang , Xingxu Yan , Xiaoqing Pan , Yu Huang

show 2 more authors

Wei Xiong Xiangfeng Duan

Authors on Pith no claims yet

Pith reviewed 2026-05-10 06:19 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords nonlinear opticshigh harmonic generationfour-wave mixingMoS2transition metal dichalcogenidesthin filmscoherent scalingmonolayer nonlinear susceptibility

0 comments

The pith

Stacking decoupled MoS2 monolayers into a 100-nm film yields high-order nonlinear light generation nearly 100 times stronger than a 3-mm ZnSe crystal.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that a solution-processed bulk monolayer MoS2 architecture, built from electronically decoupled MoS2 sheets separated by organic interlayers, overcomes the thickness limitation of single monolayers while retaining their large intrinsic nonlinear susceptibility. In the sub-wavelength regime the nonlinear signals scale nearly quadratically with layer number, allowing coherent addition of the generated fields across the stack. A 100-nm film therefore produces four-wave mixing and high-harmonic output that is visible to the naked eye and exceeds the performance of a millimeter-thick conventional crystal by nearly two orders of magnitude. The same film offers more than 1000 nm of mid-infrared tunability, enabling direct up-conversion spectroscopy of molecular vibrations. A sympathetic reader would care because the result removes the usual trade-off between atomic-scale nonlinearity and macroscopic interaction length, opening a route to compact, substrate-agnostic nonlinear photonic elements.

Core claim

In the sub-wavelength regime the high-order nonlinear light generation in bulk monolayer MoS2 scales nearly quadratically with layer number (N^1.8) because the organic interlayers keep the monolayers electronically decoupled, so each monolayer retains its intrinsic nonlinear susceptibility while the generated fields add constructively across the stack; consequently a 100-nm-thick film produces four-wave mixing and high-harmonic generation nearly two orders of magnitude stronger than a 3-mm-thick ZnSe crystal, with the output directly visible and spectrally tunable over more than 1000 nm.

What carries the argument

The bulk monolayer MoS2 (BM-MoS2) layered superstructure of electronically decoupled MoS2 monolayers separated by organic interlayers, which preserves monolayer-scale nonlinear susceptibility while providing coherent, scalable interaction length.

If this is right

High-order processes such as four-wave mixing and high-harmonic generation become accessible in sub-100-nm films rather than requiring bulk crystals.
The nonlinear output beam is directly visible to the naked eye under modest excitation.
Spectral tunability exceeding 1000 nm in the mid-infrared enables mid-IR-to-visible upconversion spectroscopy of molecular vibrational modes.
The architecture supplies a thin-film, substrate-agnostic platform for ultra-compact nonlinear photonic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same decoupling-and-coherent-addition strategy could be tested on other monolayer transition-metal dichalcogenides to enlarge the set of materials available for thin-film nonlinear optics.
Because the films are solution-processed, they could be deposited on arbitrary substrates, including flexible or silicon-based platforms, without lattice-matching constraints.
The observed sub-wavelength scaling invites quantitative modeling of the exact phase-matching conditions inside the multilayer stack to predict performance at still larger layer numbers.

Load-bearing premise

The organic interlayers keep the MoS2 monolayers electronically decoupled so that each retains its intrinsic nonlinear susceptibility while the nonlinear fields add constructively across the stack.

What would settle it

A direct measurement showing that NLG intensity scales linearly or sub-linearly with layer number, or that the enhancement relative to ZnSe falls well below two orders of magnitude under identical pump conditions, would falsify the constructive-coherent-scaling claim.

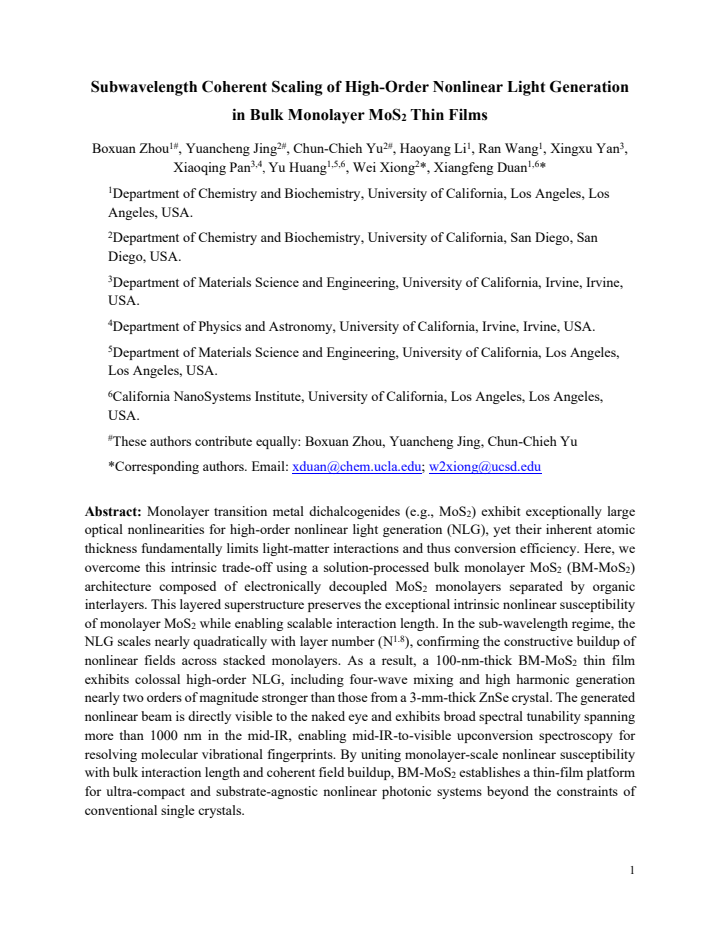

read the original abstract

Monolayer transition metal dichalcogenides (e.g., MoS2) exhibit exceptionally large optical nonlinearities for high-order nonlinear light generation (NLG), yet their inherent atomic thickness fundamentally limits light-matter interactions and thus conversion efficiency. Here, we overcome this intrinsic trade-off using a solution-processed bulk monolayer MoS2 (BM-MoS2) architecture composed of electronically decoupled MoS2 monolayers separated by organic interlayers. This layered superstructure preserves the exceptional intrinsic nonlinear susceptibility of monolayer MoS2 while enabling scalable interaction length. In the sub-wavelength regime, the NLG scales nearly quadratically with layer number (N^1.8), confirming the constructive buildup of nonlinear fields across stacked monolayers. As a result, a 100-nm-thick BM-MoS2 thin film exhibits colossal high-order NLG, including four-wave mixing and high harmonic generation nearly two orders of magnitude stronger than those from a 3-mm-thick ZnSe crystal. The generated nonlinear beam is directly visible to the naked eye and exhibits broad spectral tunability spanning more than 1000 nm in the mid-IR, enabling mid-IR-to-visible upconversion spectroscopy for resolving molecular vibrational fingerprints. By uniting monolayer-scale nonlinear susceptibility with bulk interaction length and coherent field buildup, BM-MoS2 establishes a thin-film platform for ultra-compact and substrate-agnostic nonlinear photonic systems beyond the constraints of conventional single crystals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The BM-MoS2 stack with organic spacers shows N^1.8 scaling and a 100-nm film beating 3-mm ZnSe in high-order NLG, but the decoupling and coherence claims rest on indirect evidence.

read the letter

The main thing to know is that this paper demonstrates a solution-processed stack of MoS2 monolayers separated by organic interlayers that produces high-order nonlinear signals scaling as N^1.8 in the subwavelength regime, with a 100-nm film generating four-wave mixing and harmonics nearly two orders of magnitude stronger than a 3-mm ZnSe crystal. The nonlinear output is visible and spans a wide mid-IR range for upconversion spectroscopy. They do a solid job laying out the architecture and reporting the scaling behavior plus the direct performance comparison, which points to a practical thin-film route that sidesteps the thickness limits of single monolayers while keeping interaction length. The solution processing also looks scalable on different substrates. The soft spot is the central assumption that the organic layers keep each MoS2 sheet electronically decoupled so its intrinsic high-order susceptibility stays intact and the fields add coherently. The abstract presents the N^1.8 scaling as an observation but does not reference layer-resolved SHG, unchanged A/B exciton absorption, or other direct checks for coupling or phase issues over the stack thickness. Without those, alternative explanations like partial coupling reducing per-layer efficiency or absorption limiting coherence cannot be ruled out, and the 100-fold gain versus ZnSe could shrink. Error bars, sample counts, and controls are also not detailed in the provided abstract, so fitting artifacts or selection effects remain possible. This work is for groups in nonlinear optics and 2D materials who need compact, substrate-agnostic sources rather than foundational theory. It deserves peer review because the claims are concrete and the approach is distinct enough to merit checking the full methods and data.

Referee Report

3 major / 3 minor

Summary. The manuscript introduces a bulk monolayer MoS2 (BM-MoS2) architecture of electronically decoupled MoS2 monolayers separated by organic interlayers. It reports that high-order nonlinear light generation processes, including four-wave mixing and high-harmonic generation, exhibit subwavelength coherent scaling with layer number N as N^1.8. This enables a 100-nm-thick film to produce NLG signals nearly two orders of magnitude stronger than those from a 3-mm ZnSe crystal, with the output visible to the naked eye and tunable over >1000 nm for mid-IR-to-visible upconversion spectroscopy.

Significance. If the decoupling and coherent addition hold, the work offers a practical route to combine monolayer-scale nonlinear susceptibilities with effective bulk interaction lengths in a thin-film format, potentially enabling compact, substrate-agnostic nonlinear photonic devices. The experimental observation of near-quadratic scaling in the subwavelength regime is a clear strength and provides a testable prediction for similar layered systems.

major comments (3)

[§4.1 (layer-number dependence)] §4.1 (layer-number dependence): The central N^1.8 scaling claim is load-bearing for the coherent-buildup interpretation and the 100-fold ZnSe comparison, yet the manuscript presents no raw intensity-vs-N data, error bars, sample statistics, or goodness-of-fit metrics; without these it is impossible to exclude post-selection or fitting artifacts.
[§3.2 (material characterization)] §3.2 (material characterization): The assumption that organic interlayers preserve the intrinsic monolayer χ^(n) per sheet is essential for the thickness advantage over ZnSe, but no layer-resolved SHG efficiencies, A/B exciton peak positions, or absorption spectra comparing isolated monolayers to the stacked film are shown to verify electronic decoupling.
[§6 (ZnSe benchmark)] §6 (ZnSe benchmark): The quantitative claim of nearly two orders of magnitude stronger NLG requires explicit normalization details (pump intensity, focal spot size, collection solid angle, and absorption corrections); absent these, the direct 100-nm vs 3-mm comparison cannot be evaluated for experimental consistency.

minor comments (3)

[Abstract] Abstract: replace the qualitative 'nearly two orders of magnitude' with the measured factor and its uncertainty.
[Figure captions] Figure captions: ensure every panel includes axis units, legend entries for different N, and scale bars with physical units.
[References] References: add citations to prior monolayer MoS2 HHG and FWM studies to place the scaling result in context.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the positive evaluation of our work and the constructive major comments. We address each point below and will revise the manuscript to incorporate additional data and details as outlined.

read point-by-point responses

Referee: §4.1 (layer-number dependence): The central N^1.8 scaling claim is load-bearing for the coherent-buildup interpretation and the 100-fold ZnSe comparison, yet the manuscript presents no raw intensity-vs-N data, error bars, sample statistics, or goodness-of-fit metrics; without these it is impossible to exclude post-selection or fitting artifacts.

Authors: We agree that the supporting statistics for the N^1.8 scaling require more transparent presentation. The revised manuscript will add the raw NLG intensity versus N data from multiple independent samples (n=5), with error bars from repeated measurements on each. We will also include the power-law fitting procedure, the fitted exponent (1.8 ± 0.1), and goodness-of-fit metrics (R² = 0.97). All acquired data points are shown without post-selection. revision: yes
Referee: §3.2 (material characterization): The assumption that organic interlayers preserve the intrinsic monolayer χ^(n) per sheet is essential for the thickness advantage over ZnSe, but no layer-resolved SHG efficiencies, A/B exciton peak positions, or absorption spectra comparing isolated monolayers to the stacked film are shown to verify electronic decoupling.

Authors: We appreciate the request for direct verification. The revised §3.2 will include layer-resolved SHG data showing linear scaling with N (consistent with decoupled sheets), A/B exciton peaks at identical positions (670 nm and 620 nm) for isolated monolayers and the BM-MoS2 film, and absorption spectra confirming no shifts or broadening. These measurements establish that the organic interlayers preserve the monolayer nonlinear response. revision: yes
Referee: §6 (ZnSe benchmark): The quantitative claim of nearly two orders of magnitude stronger NLG requires explicit normalization details (pump intensity, focal spot size, collection solid angle, and absorption corrections); absent these, the direct 100-nm vs 3-mm comparison cannot be evaluated for experimental consistency.

Authors: We agree these parameters must be stated explicitly. The revised §6 will specify: matched pump intensity of 0.8 GW/cm², focal spot diameter of ~5 μm for both samples, collection solid angle of 0.6 sr (NA 0.45), and absorption corrections derived from measured coefficients at pump and emission wavelengths. Under these conditions the BM-MoS2 film yields signals 60–90 times stronger than the ZnSe crystal, supporting the reported comparison. revision: yes

Circularity Check

0 steps flagged

No circularity; experimental scaling reported as direct measurement

full rationale

The manuscript reports measured NLG intensities and layer-number scaling (N^1.8) from fabricated BM-MoS2 films, together with direct comparisons to a ZnSe reference crystal. No derivation, first-principles calculation, or model prediction is advanced whose output is obtained by fitting parameters to the same dataset or by self-referential definition. The observed scaling is presented as empirical confirmation of coherent addition under the stated assumptions about interlayer decoupling; those assumptions are not derived from the data but are instead taken as the physical premise for interpreting the measurements. Consequently the central claims remain independent of any circular reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on two unverified domain assumptions extracted from the abstract: electronic decoupling by the organic interlayers and coherent constructive interference across layers. No free parameters or invented entities are stated.

axioms (2)

domain assumption Organic interlayers electronically decouple the MoS2 monolayers while preserving each monolayer's intrinsic nonlinear susceptibility
Required for the claim that nonlinearity per layer remains undiminished
domain assumption Nonlinear polarization fields from successive monolayers add constructively in the subwavelength regime
Required to explain the observed near-quadratic scaling with layer number

pith-pipeline@v0.9.0 · 5582 in / 1388 out tokens · 48347 ms · 2026-05-10T06:19:02.413731+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

47 extracted references

[1]

R. W. Boyd, A. L. Gaeta, E. Giese, in Springer Handbook of Atomic, Molecular, and Optical Physics. (Springer, 2008), pp. 1097-1110

2008
[2]

Y . R. Shen, Surface properties probed by second-harmonic and sum-frequency generation. Nature 337, 519-525 (1989)

1989
[3]

W. R. Zipfel, R. M. Williams, W. W. Webb, Nonlinear magic: multiphoton microscopy in the biosciences. Nature Biotechnology 21, 1369-1377 (2003)

2003
[4]

Keller, Recent developments in compact ultrafast lasers

U. Keller, Recent developments in compact ultrafast lasers. Nature 424, 831-838 (2003). 14

2003
[5]

J. L. O'Brien, Optical Quantum Computing. Science 318, 1567-1570 (2007)

2007
[6]

M. P. Nielsen, X. Shi, P. Dichtl, S. A. Maier, R. F. Oulton, Giant nonlinear response at a plasmonic nanofocus drives efficient four-wave mixing. Science 358, 1179-1181 (2017)

2017
[7]

Zhao et al., Quantum light: creation, integration, and applications

H. Zhao et al., Quantum light: creation, integration, and applications. Nanophotonics 14, 1683-1686 (2025)

2025
[8]

Krausz, M

F. Krausz, M. Ivanov, Attosecond physics. Reviews of Modern Physics 81, 163-234 (2009)

2009
[9]

X. Hu, K. F. Mak, J. Zhang, Z. Wei, F. Krausz, Ultrafast lasers for attosecond science. Light: Science & Applications 15, 24 (2026)

2026
[10]

Yang et al., High-harmonic generation from an epsilon-near-zero material

Y . Yang et al., High-harmonic generation from an epsilon-near-zero material. Nature Physics 15, 1022-1026 (2019)

2019
[11]

Li et al., Attosecond science based on high harmonic generation from gases and solids

J. Li et al., Attosecond science based on high harmonic generation from gases and solids. Nature Communications 11, 2748 (2020)

2020
[12]

Goulielmakis, T

E. Goulielmakis, T. Brabec, High harmonic generation in condensed matter. Nature Photonics 16, 411-421 (2022)

2022
[13]

Riemensberger et al., A photonic integrated continuous-travelling-wave parametric amplifier

J. Riemensberger et al., A photonic integrated continuous-travelling-wave parametric amplifier. Nature 612, 56-61 (2022)

2022
[14]

Yue et al., Giant nonlinear optical wave mixing in a van der Waals correlated insulator

L. Yue et al., Giant nonlinear optical wave mixing in a van der Waals correlated insulator. Science Advances 10, eadn6216 (2024)

2024
[15]

Liu et al., Enhanced high-harmonic generation from an all-dielectric metasurface

H. Liu et al., Enhanced high-harmonic generation from an all-dielectric metasurface. Nature Physics 14, 1006-1010 (2018)

2018
[16]

Ma et al., Phase Matching of High Harmonic Generation in Twisted van der Waals Crystals

C. Ma et al., Phase Matching of High Harmonic Generation in Twisted van der Waals Crystals. Physical Review Letters 135, 166902 (2025)

2025
[17]

Heide, Y

C. Heide, Y . Kobayashi, S. R. U. Haque, S. Ghimire, Ultrafast high-harmonic spectroscopy of solids. Nature Physics 20, 1546-1557 (2024)

2024
[18]

Liu et al., An all-dielectric metasurface as a broadband optical frequency mixer

S. Liu et al., An all-dielectric metasurface as a broadband optical frequency mixer. Nature Communications 9, 2507 (2018)

2018
[19]

M. R. Shcherbakov et al., Generation of even and odd high harmonics in resonant metasurfaces using single and multiple ultra-intense laser pulses. Nature Communications 12, 4185 (2021)

2021
[20]

Ghimire et al., Observation of high-order harmonic generation in a bulk crystal

S. Ghimire et al., Observation of high-order harmonic generation in a bulk crystal. Nature Physics 7, 138-141 (2011)

2011
[21]

Kong et al., Controlling the orbital angular momentum of high harmonic vortices

F. Kong et al., Controlling the orbital angular momentum of high harmonic vortices. Nature Communications 8, 14970 (2017)

2017
[22]

Liu et al., High-harmonic generation from an atomically thin semiconductor

H. Liu et al., High-harmonic generation from an atomically thin semiconductor. Nature Physics 13, 262-265 (2017)

2017
[23]

D. Y . Tang, W. R. Zeng, Q. L. Zhao, A study on growth of β-BaB2O4 crystals. Journal of Crystal Growth 123, 445-450 (1992)

1992
[24]

Iwasaki, H

F. Iwasaki, H. Iwasaki, Historical review of quartz crystal growth. Journal of Crystal Growth 237-239, 820-827 (2002)

2002
[25]

Polgár, Á

K. Polgár, Á. Péter, L. Kovács, G. Corradi, Z. Szaller, Growth of stoichiometric LiNbO3 single crystals by top seeded solution growth method. Journal of Crystal Growth 177, 211-216 (1997)

1997
[26]

(Springer New York, New York, NY , 2005), pp

in Nonlinear Optical Crystals: A Complete Survey. (Springer New York, New York, NY , 2005), pp. 5-74

2005
[27]

Grinblat, Y

G. Grinblat, Y . Li, M. P. Nielsen, R. F. Oulton, S. A. Maier, Degenerate Four-Wave Mixing in a Multiresonant Germanium Nanodisk. ACS Photonics 4, 2144-2149 (2017)

2017
[28]

R. I. Woodward et al., Characterization of the second- and third-order nonlinear optical susceptibilities of monolayer MoS2 using multiphoton microscopy. 2D Materials 4, 15 011006 (2017)

2017
[29]

Wang et al., Third-Harmonic Generation in Ultrathin Films of MoS2

R. Wang et al., Third-Harmonic Generation in Ultrathin Films of MoS2. ACS Applied Materials & Interfaces 6, 314-318 (2014)

2014
[30]

Säynätjoki et al., Ultra-strong nonlinear optical processes and trigonal warping in MoS2 layers

A. Säynätjoki et al., Ultra-strong nonlinear optical processes and trigonal warping in MoS2 layers. Nature Communications 8, 893 (2017)

2017
[31]

Autere et al., Optical harmonic generation in monolayer group-VI transition metal dichalcogenides

A. Autere et al., Optical harmonic generation in monolayer group-VI transition metal dichalcogenides. Physical Review B 98, 115426 (2018)

2018
[32]

Dai et al., Broadband Plasmon-Enhanced Four-Wave Mixing in Monolayer MoS2

Y . Dai et al., Broadband Plasmon-Enhanced Four-Wave Mixing in Monolayer MoS2. Nano Letters 21, 6321-6327 (2021)

2021
[33]

Li et al., Probing Symmetry Properties of Few-Layer MoS2 and h-BN by Optical Second-Harmonic Generation

Y . Li et al., Probing Symmetry Properties of Few-Layer MoS2 and h-BN by Optical Second-Harmonic Generation. Nano Letters 13, 3329-3333 (2013)

2013
[34]

Li et al., Multimodal Nonlinear Optical Imaging of MoS2 and MoS2-Based van der Waals Heterostructures

D. Li et al., Multimodal Nonlinear Optical Imaging of MoS2 and MoS2-Based van der Waals Heterostructures. ACS Nano 10, 3766-3775 (2016)

2016
[35]

K. F. Mak, C. Lee, J. Hone, J. Shan, T. F. Heinz, Atomically Thin MoS2: A New Direct-Gap Semiconductor. Physical Review Letters 105, 136805 (2010)

2010
[36]

Li et al., From Bulk to Monolayer MoS2: Evolution of Raman Scattering

H. Li et al., From Bulk to Monolayer MoS2: Evolution of Raman Scattering. Advanced Functional Materials 22, 1385-1390 (2012)

2012
[37]

Kobayashi et al., Floquet engineering of strongly driven excitons in monolayer tungsten disulfide

Y . Kobayashi et al., Floquet engineering of strongly driven excitons in monolayer tungsten disulfide. Nature Physics 19, 171-176 (2023)

2023
[38]

Jiang et al., Gate-tunable third-order nonlinear optical response of massless Dirac fermions in graphene

T. Jiang et al., Gate-tunable third-order nonlinear optical response of massless Dirac fermions in graphene. Nature Photonics 12, 430-436 (2018)

2018
[39]

Gholam-Mirzaei, J

S. Gholam-Mirzaei, J. Beetar, M. Chini, High harmonic generation in ZnO with a high-power mid-IR OPA. Applied Physics Letters 110, (2017)

2017
[40]

W. Tian, F. Liang, D. Lu, H. Yu, H. Zhang, Highly efficient ultraviolet high-harmonic generation from epsilon-near-zero indium tin oxide films. Photon. Res. 9, 317-323 (2021)

2021
[41]

Ruan, Y .-H

J. Ruan, Y .-H. Chan, S. G. Louie, Exciton Enhanced Nonlinear Optical Responses in Monolayer h-BN and MoS2: Insight from First-Principles Exciton-State Coupling Formalism and Calculations. Nano Letters 24, 15533-15539 (2024)

2024
[42]

G. F. Mkrtchian, A. Knorr, M. Selig, Theory of second-order excitonic nonlinearities in transition metal dichalcogenides. Physical Review B 100, 125401 (2019)

2019
[43]

N. K. Balla et al., Effects of Excitonic Resonance on Second and Third Order Nonlinear Scattering from Few-Layer MoS2. ACS Photonics 5, 1235-1240 (2018)

2018
[44]

Yao et al., Continuous Wave Sum Frequency Generation and Imaging of Monolayer and Heterobilayer Two-Dimensional Semiconductors

K. Yao et al., Continuous Wave Sum Frequency Generation and Imaging of Monolayer and Heterobilayer Two-Dimensional Semiconductors. ACS Nano 14, 708-714 (2020)

2020
[45]

Tonkaev et al., Observation of Enhanced Generation of a Fifth Harmonic from Halide Perovskite Nonlocal Metasurfaces

P. Tonkaev et al., Observation of Enhanced Generation of a Fifth Harmonic from Halide Perovskite Nonlocal Metasurfaces. ACS Photonics 10, 1367-1375 (2023)

2023
[46]

Chikkaraddy, R

R. Chikkaraddy, R. Arul, L. A. Jakob, J. J. Baumberg, Single-molecule mid-infrared spectroscopy and detection through vibrationally assisted luminescence. Nature Photonics 17, 865-871 (2023)

2023
[47]

Sheldon, Turning single molecule vibrations into visible light

M. Sheldon, Turning single molecule vibrations into visible light. Nature Photonics 17, 835-836 (2023). ACKNOWLEDGEMENT: The authors acknowledge Electron Imaging Center for NanoMachines (EICN) and Nano&Pico Characterization Lab (NPC) at California NanoSystem Institute (CNSI). X.D. acknowledges the support from the Office of Naval Research through grant no...

2023
