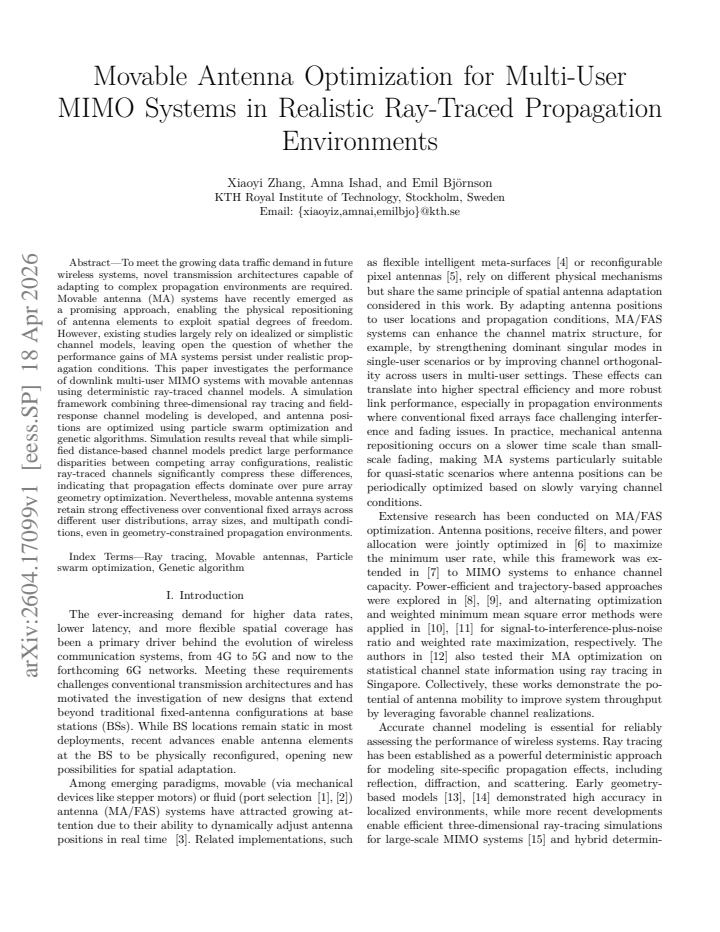

Movable Antenna Optimization for Multi-User MIMO Systems in Realistic Ray-Traced Propagation Environments

Xiaoyi Zhang , Amna Irshad , Emil Bj\"ornson This is my paper

Pith reviewed 2026-05-10 06:24 UTC · model grok-4.3

classification 📡 eess.SP
keywords movable antennasmulti-user MIMOray tracingantenna position optimizationrealistic propagationparticle swarm optimizationgenetic algorithmdownlink systems
0
0 comments X

The pith

Movable antennas provide performance advantages over fixed-position arrays in multi-user MIMO systems even when using realistic ray-traced channel models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines whether movable antenna systems that reposition elements to exploit spatial degrees of freedom maintain their benefits under complex real-world wireless conditions. It builds a simulation framework that combines three-dimensional ray tracing with field-response channel modeling and optimizes antenna positions via particle swarm optimization and genetic algorithms. Results show that realistic propagation compresses the large performance gaps between array configurations that appear in simplified distance-based models. Nevertheless, movable antenna systems still outperform conventional fixed arrays across different user distributions, array sizes, and multipath conditions, even when geometry is constrained.

Core claim

By combining three-dimensional ray tracing with field-response channel modeling, the authors optimize movable antenna positions in downlink multi-user MIMO using particle swarm optimization and genetic algorithms. Simulations demonstrate that movable antenna systems retain strong effectiveness over conventional fixed arrays across different user distributions, array sizes, and multipath conditions, even in geometry-constrained propagation environments. While simplified models predict large performance disparities, realistic ray-traced channels significantly compress these differences, showing that propagation effects dominate over pure array geometry optimization.

What carries the argument

Particle swarm optimization and genetic algorithms applied to select antenna positions inside a deterministic ray-traced propagation model.

If this is right

  • Movable-antenna performance gains persist when propagation is modeled realistically rather than with simple distance assumptions.
  • Simplified channel models overestimate the impact of array geometry differences.
  • Movable antennas remain beneficial across varied user locations, array scales, and multipath richness.
  • Propagation environment effects often overshadow optimization of antenna geometry alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Basic gains from movable antennas may require less precise environmental knowledge than idealized studies imply.
  • Hybrid planning that pairs movable antennas with ray-tracing predictions could improve reliability in dense urban deployments.
  • Future tests could check whether movement energy costs or rapid user mobility erode the reported advantages.

Load-bearing premise

The ray-traced channel model and the particle-swarm and genetic-algorithm optimizers faithfully represent real-world performance without quantitative validation against measurements.

What would settle it

A measurement campaign in a real indoor or outdoor site that compares achievable rates of optimized movable-antenna positions against fixed arrays on identical hardware would falsify the claim if no meaningful improvement appears.

Figures

Figures reproduced from arXiv: 2604.17099 by Amna Irshad, Emil Bj\"ornson, Xiaoyi Zhang.

Figure 1
Figure 1. Figure 1: Depiction of the system setup. Let V¯ (0) i be an orthonormal basis for the null space of H¯ i , i.e., H¯ iV¯ (0) i = 0. Then, the effective channel becomes HiV¯ (0) i = Ui [ Σi 0 0 0] [ V (1) i V (0) i ]H . (6) The BD precoder is defined as Wi = V¯ (0) i V (1) i D 1/2 i , (7) where V (1) i contains the right singular vectors correspond￾ing to non-zero singular values of the effective channel, and Di is th… view at source ↗
Figure 2
Figure 2. Figure 2: Ray tracing simulation setup [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 5
Figure 5. Figure 5: Average sum rate for varying numbers of reflections [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Sum rate for different number of BS antennas. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 7
Figure 7. Figure 7: Sum rate comparison for different antenna unit [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

To meet the growing data traffic demand in future wireless systems, novel transmission architectures capable of adapting to complex propagation environments are required. Movable antenna (MA) systems have recently emerged as a promising approach, enabling the physical repositioning of antenna elements to exploit spatial degrees of freedom. However, existing studies largely rely on idealized or simplistic channel models, leaving open the question of whether the performance gains of MA systems persist under realistic propagation conditions. This paper investigates the performance of downlink multi-user MIMO systems with movable antennas using deterministic ray-traced channel models. A simulation framework combining three-dimensional ray tracing and field-response channel modeling is developed, and antenna positions are optimized using particle swarm optimization and genetic algorithms. Simulation results reveal that while simplified distance-based channel models predict large performance disparities between competing array configurations, realistic ray-traced channels significantly compress these differences, indicating that propagation effects dominate over pure array geometry optimization. Nevertheless, movable antenna systems retain strong effectiveness over conventional fixed arrays across different user distributions, array sizes, and multipath conditions, even in geometry-constrained propagation environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a simulation framework for downlink multi-user MIMO systems with movable antennas (MAs), combining 3D deterministic ray-tracing for channel modeling with particle-swarm and genetic-algorithm optimization of antenna positions. It shows that ray-traced channels compress the large performance gaps predicted by distance-based models, yet MA configurations still outperform fixed arrays across user distributions, array sizes, and multipath conditions even in geometry-constrained environments.

Significance. If the results hold, the work supplies evidence that MA advantages persist under realistic propagation, moving beyond idealized models toward practical assessment. The deterministic ray-tracing plus field-response modeling is a clear strength for capturing geometry-dominated effects that simpler models miss.

major comments (2)
  1. [Optimization and Simulation Framework] The central claim that MA systems retain strong effectiveness over fixed arrays depends on the PSO and GA optimizers locating near-optimal positions, yet no benchmarking against exhaustive search (even for small antenna counts) or against measured channels in the same geometry is reported to support this assumption.
  2. [§IV] §IV (Simulation Results): performance is characterized only qualitatively (e.g., 'significantly compress these differences' and 'retain strong effectiveness') without numerical rate values, gap sizes, or error bars, so the magnitude of the retained advantage cannot be assessed quantitatively.
minor comments (2)
  1. [§III] Specify the exact PSO/GA hyperparameters (population size, iterations, mutation rates) and convergence criteria used in the optimizations.
  2. [§II] Add a brief description of how the ray-tracer was configured (frequency, material properties, maximum reflections) to allow reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment below and indicate the revisions we will incorporate.

read point-by-point responses

  1. Referee: [Optimization and Simulation Framework] The central claim that MA systems retain strong effectiveness over fixed arrays depends on the PSO and GA optimizers locating near-optimal positions, yet no benchmarking against exhaustive search (even for small antenna counts) or against measured channels in the same geometry is reported to support this assumption.

    Authors: We agree that explicit validation of the PSO and GA optimizers strengthens the central claim. For small antenna counts (e.g., 2–4 elements), exhaustive search is feasible and we will add a direct comparison in the revised manuscript to quantify how close the optimizers come to the global optimum. For larger arrays, exhaustive enumeration is computationally intractable, which is why meta-heuristics are employed. Benchmarking against measured channels in the identical geometry is not feasible within the present simulation study; our framework relies on deterministic ray-tracing to isolate geometry-specific propagation effects in a repeatable manner. Experimental channel measurements would require a separate hardware campaign and are noted as future work. revision: partial

  2. Referee: [§IV] §IV (Simulation Results): performance is characterized only qualitatively (e.g., 'significantly compress these differences' and 'retain strong effectiveness') without numerical rate values, gap sizes, or error bars, so the magnitude of the retained advantage cannot be assessed quantitatively.

    Authors: We concur that quantitative metrics improve interpretability. In the revised Section IV we will report concrete values for achievable sum rates under MA and fixed-array configurations, the absolute and relative performance gaps, and error bars (or standard deviations) computed over multiple independent user-location and channel realizations. These additions will be placed alongside the existing figures so that the retained MA advantage can be evaluated numerically. revision: yes

standing simulated objections not resolved
  • Benchmarking against measured channels in the same geometry

Circularity Check

0 steps flagged

No circularity: simulation framework with no analytical reductions or self-referential predictions

full rationale

The paper is entirely simulation-driven, combining deterministic ray-tracing with PSO/GA position optimization for MA in multi-user MIMO. No closed-form derivations, predictions, or first-principles results are claimed that could reduce to fitted inputs or self-citations by construction. Performance claims rest on numerical comparisons across user distributions and array sizes; these are empirical outputs, not tautological re-statements of model parameters. Self-citations (if present) are not load-bearing for any central result, as the work does not invoke uniqueness theorems or ansatzes from prior author work to force conclusions. The study is self-contained against external benchmarks in the sense that its methodology is fully specified and reproducible via the described ray-tracing and optimizers.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Because only the abstract is available, the ledger is necessarily incomplete. The central claim rests on the unstated assumption that the chosen ray-tracing engine and optimization algorithms produce representative results.

axioms (1)
  • domain assumption Ray-tracing software accurately captures all relevant propagation effects in the target environment.
    Invoked implicitly when the authors replace idealized models with ray-traced channels.
