Static and Dynamic Electronic Properties and the Possible Magnetic Structure of the 4f³-Gamma₆ System NdCo2Zn₁₈Ga₂ Investigated Using ⁵⁹Co Nuclear Quadrupole Resonance

Tetsuro Kubo , Atsushi Sasaki , Keita Murooka , Hisashi Kotegawa , Rikako Yamamoto , Takahiro Onimaru , Hideki Tou This is my paper

Pith reviewed 2026-05-10 05:50 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords NQRantiferromagnetismmagnetic frustrationNdCo2Zn18Ga2nuclear relaxation raterare-earth compoundsinternal magnetic field
0
0 comments X

The pith

Internal magnetic fields from Nd moments cancel at Co sites when nearest neighbors align antiferromagnetically, suggesting Ga substitution removes frustration and raises TN.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents 59Co NQR measurements on the compound NdCo2Zn18Ga2, which orders antiferromagnetically below 1.5 K. The resonance spectra remain unchanged across the transition temperature, yet the nuclear spin-lattice relaxation rate shows a clear anomaly there. An analysis of possible Nd moment alignments demonstrates that the internal fields they produce cancel exactly at the cobalt sites under antiferromagnetic nearest-neighbor ordering. The authors conclude that gallium substitution likely lifts magnetic frustration present in the parent compound, accounting for the observed transition temperature.

Core claim

We report 59Co NQR measurements on NdCo2Zn18Ga2, which undergoes an antiferromagnetic transition at TN = 1.5 K. Although the NQR spectra show no detectable change across TN, the nuclear spin-lattice relaxation rate 1/T1 exhibits a clear anomaly at TN. An analysis based on the alignment of the Nd moments demonstrates that the internal magnetic fields generated by these moments cancel each other at the Co sites. If the nearest-neighbor Nd moments align antiferromagnetically, this finding suggests that Ga substitution removes magnetic frustration, thereby increasing TN.

What carries the argument

Cancellation of internal magnetic fields at Co sites produced by antiferromagnetic alignment of nearest-neighbor Nd moments.

If this is right

  • The absence of spectral change across TN implies that any ordered moment produces no net static field shift or quadrupolar splitting at the Co nuclei.
  • The anomaly in 1/T1 at TN shows that critical spin fluctuations slow down and affect the nuclear relaxation even though the average field cancels.
  • If the cancellation requires antiferromagnetic nearest-neighbor order, the parent compound without Ga must host competing interactions that suppress TN.
  • Ga substitution stabilizes the antiferromagnetic state by lifting the degeneracy associated with geometric frustration on the Nd lattice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cancellation mechanism could be tested in related RCo2Zn18Ga2 compounds to see whether TN scales with the strength of the Nd-Ga interaction.
  • If the proposed structure is correct, specific-heat or magnetization data should show a single transition without additional low-temperature anomalies from residual frustration.
  • The result points to a general route for tuning transition temperatures in frustrated rare-earth intermetallics by selective site substitution.

Load-bearing premise

The assumption that nearest-neighbor Nd moments align antiferromagnetically, which is required to produce exact field cancellation at Co sites.

What would settle it

Neutron diffraction or muon spin rotation measurement that directly determines whether nearest-neighbor Nd moments are antiferromagnetically aligned and whether the local field at cobalt vanishes.

Figures

Figures reproduced from arXiv: 2604.17416 by Atsushi Sasaki, Hideki Tou, Hisashi Kotegawa, Keita Murooka, Rikako Yamamoto, Takahiro Onimaru, Tetsuro Kubo.

Figure 1
Figure 1. Figure 1: shows the 59Co-NMR spectrum obtained at B = 5 T and T = 90 K for NdCo2Zn18Ga2. The spec￾trum exhibits the characteristic features of a powder pat￾tern with quadrupolar splitting. The Hamiltonian for the 59Co nuclear spin can be expressed as H = HZ + HQ (1) HZ = −γnℏ(1 + K)I · Hext (2) HQ = 1 6 hνQ  3I 2 Z − I(I + 1) + 1 2 η [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (Color Online) Temperature dependence of 1 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (Color Online) Temperature dependence of (a) the [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

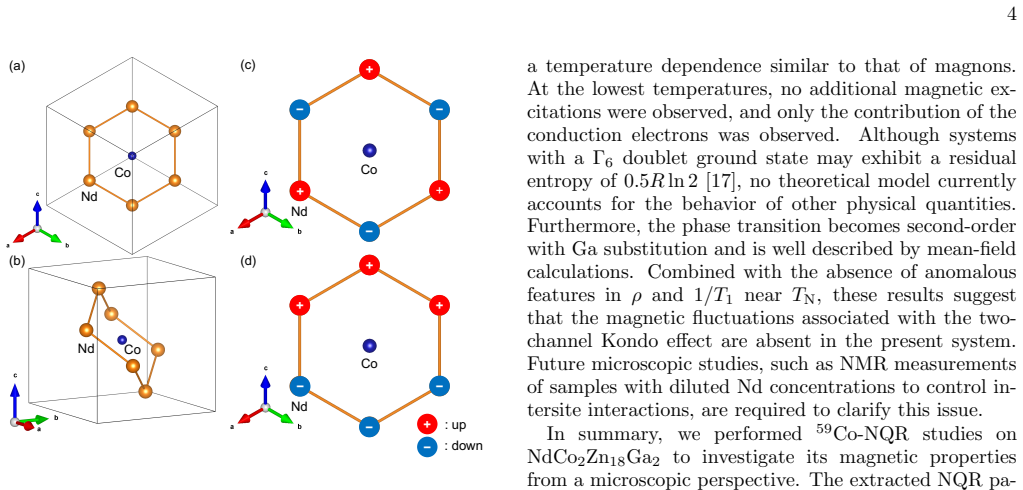

Figure 4. Figure 4: FIG. 4. (Color Online) (a,b) Positions of the Co atom and its [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

We report $^{59}$Co nuclear quadrupole resonance (NQR) measurements on the Nd-based compound NdCo$_2$Zn$_{18}$Ga$_2$, which undergoes an antiferromagnetic transition at $T_{\rm N} = 1.5$ K. Although the NQR spectra show no detectable change across $T_{\rm N}$, the nuclear spin-lattice relaxation rate, $1/T_1$, exhibits a clear anomaly at $T_{\rm N}$. An analysis based on the alignment of the Nd moments demonstrates that the internal magnetic fields generated by these moments cancel each other at the Co sites. If the nearest-neighbor Nd moments align antiferromagnetically, this finding suggests that Ga substitution removes magnetic frustration, thereby increasing $T_{\rm N}$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports 59Co NQR measurements on NdCo2Zn18Ga2, which undergoes an antiferromagnetic transition at TN = 1.5 K. The NQR spectra exhibit no detectable shift or splitting across TN, while the spin-lattice relaxation rate 1/T1 shows a clear anomaly at TN. An analysis of Nd moment alignments demonstrates that internal magnetic fields cancel at the Co sites when nearest-neighbor Nd moments are antiparallel; the authors interpret this as evidence that Ga substitution removes magnetic frustration relative to the pure Zn analog, thereby increasing TN.

Significance. If the central interpretation holds, the work provides a local-probe demonstration of how selective substitution can lift frustration in 4f-based intermetallics, linking microscopic field cancellation to macroscopic TN enhancement. The combination of static (spectra) and dynamic (1/T1) NQR data is a methodological strength, and the conditional structural argument is clearly stated.

major comments (2)
  1. [Abstract and discussion] Abstract and §4 (discussion of magnetic structure): the inference that Ga substitution removes frustration rests on the assumption that nearest-neighbor Nd moments adopt antiferromagnetic alignment to produce exact cancellation at Co sites. However, the observed absence of NQR shift or splitting is compatible with multiple configurations (paramagnetic state, other ordered structures with accidental cancellation, or partial ordering), none of which are ruled out by the data. Independent confirmation (neutron diffraction, magnetization anisotropy, or RKKY modeling) is required before the frustration-removal claim can be considered load-bearing.
  2. [§3.2] §3.2 (1/T1 anomaly): while an anomaly at TN is reported, the manuscript does not provide error bars, fitting details, or a quantitative comparison of the relaxation-rate jump magnitude with expectations for a conventional AFM transition versus a frustrated system. This weakens the link between the dynamic signature and the proposed structural change induced by Ga.
minor comments (2)
  1. [Figure 2] Figure 2 (NQR spectra): the vertical scale and baseline subtraction procedure should be stated explicitly so that the claimed absence of splitting can be assessed quantitatively.
  2. [Introduction] The comparison of TN with the pure Zn compound is stated but lacks a cited reference or tabulated value; include the parent-compound TN and its uncertainty for direct comparison.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We address each major point below and will revise the manuscript to improve clarity and address the concerns raised.

read point-by-point responses

  1. Referee: Abstract and §4 (discussion of magnetic structure): the inference that Ga substitution removes frustration rests on the assumption that nearest-neighbor Nd moments adopt antiferromagnetic alignment to produce exact cancellation at Co sites. However, the observed absence of NQR shift or splitting is compatible with multiple configurations (paramagnetic state, other ordered structures with accidental cancellation, or partial ordering), none of which are ruled out by the data. Independent confirmation (neutron diffraction, magnetization anisotropy, or RKKY modeling) is required before the frustration-removal claim can be considered load-bearing.

    Authors: We appreciate the referee highlighting this subtlety. The manuscript explicitly conditions the interpretation on antiferromagnetic alignment of nearest-neighbor Nd moments producing cancellation, and we connect this to the observed TN increase relative to the pure Zn analog as evidence that Ga doping lifts frustration. We agree that the NQR spectra alone do not exclude all alternative configurations that could coincidentally cancel the internal field. The paramagnetic regime is excluded by the 1/T1 anomaly at TN, but other ordered states remain possible in principle. In the revised manuscript we will rephrase the abstract and §4 to underscore the conditional character of the proposed structure, state that the data are consistent with (but do not uniquely prove) antiferromagnetic nearest-neighbor alignment, and note that independent confirmation by neutron diffraction or related techniques would be valuable. This revision will prevent any overstatement while preserving the physical argument supported by the present measurements. revision: partial

  2. Referee: §3.2 (1/T1 anomaly): while an anomaly at TN is reported, the manuscript does not provide error bars, fitting details, or a quantitative comparison of the relaxation-rate jump magnitude with expectations for a conventional AFM transition versus a frustrated system. This weakens the link between the dynamic signature and the proposed structural change induced by Ga.

    Authors: We agree that additional documentation of the relaxation data will strengthen the presentation. In the revised manuscript we will (i) add error bars to the 1/T1(T) figure, (ii) describe the fitting procedure used to extract T1 (including the functional form of the nuclear magnetization recovery), and (iii) add a short paragraph comparing the size of the anomaly at TN with typical values reported for conventional antiferromagnetic transitions in related 4f intermetallics. While a detailed quantitative model distinguishing frustrated versus non-frustrated dynamics lies outside the scope of this work, the clear anomaly remains consistent with the onset of long-range order at the reported TN. revision: yes

Circularity Check

0 steps flagged

No circularity: conditional interpretation of field cancellation stands independently of data

full rationale

The paper reports NQR spectra with no change across TN and a 1/T1 anomaly at TN=1.5 K. It then states that an analysis of Nd-moment alignments shows internal-field cancellation at Co sites, and conditionally notes that antiferromagnetic nearest-neighbor alignment would imply Ga substitution removes frustration. This conditional suggestion does not reduce any derived quantity to its own inputs by construction, invoke self-citations as uniqueness theorems, or rename fitted parameters as predictions. The spectroscopic observations and the geometric cancellation argument remain separate from the interpretive hypothesis, satisfying the criteria for a self-contained derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption of antiferromagnetic alignment of nearest-neighbor Nd moments to produce field cancellation; no free parameters or new entities are introduced in the abstract.

axioms (1)
  • domain assumption Nearest-neighbor Nd moments align antiferromagnetically so that their internal fields cancel at Co sites
    Invoked to explain the absence of NQR spectral change across TN and the effect of Ga substitution.
