arxiv: 2604.17595 · v1 · submitted 2026-04-19 · 🧮 math.CO

Fundamental cycles in grid graphs

Bart{\l}omiej Kielak , Daniel Kr\'al' , Ander Lamaison , Xichao Shu This is my paper

Pith reviewed 2026-05-10 05:24 UTC · model grok-4.3

classification 🧮 math.CO
keywords fundamental cyclesspanning treesgrid graphscycle lengthsbinary matroidsmatroid representationslower boundsaverage length
0
0 comments X

The pith

For any spanning tree of the n by n grid graph, the average length of its fundamental cycles is at least logarithmic in n.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proves that in the n by n square grid graph, every spanning tree forces the average length of the fundamental cycles to be at least on the order of log n. A fundamental cycle arises when an edge outside the tree is added back, closing a unique cycle with the tree path. The lower bound is obtained by averaging over all such cycles and using the grid's row-column structure to show that many long paths must appear. The same bound is shown to be tight because certain spanning trees achieve an average of O(log n). The result settles an open question on the sparsity of representations for binary matroids.

Core claim

We show that the average length of a fundamental cycle with respect to any fixed spanning tree of the n×n square grid is at least Ω(log n); the bound is asymptotically tight. This result answers in the affirmative a question posed by McCarty in relation to sparse representations of binary matroids.

What carries the argument

Averaging argument that sums lengths of all fundamental cycles induced by the non-tree edges and divides by their number, using the grid's bipartition and path-counting to obtain a logarithmic lower bound independent of tree choice.

If this is right

  • No spanning tree can keep the average fundamental cycle length below logarithmic order.
  • The lower bound holds uniformly for every spanning tree, not just for some special trees.
  • There exist spanning trees achieving an average of Theta(log n), so the bound cannot be strengthened asymptotically.
  • Sparse representations of the cycle matroid of the grid graph cannot avoid a logarithmic density factor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same averaging technique may yield logarithmic lower bounds on cycle lengths for spanning trees in higher-dimensional grids or other lattice graphs.
  • Algorithms that search for short-cycle spanning trees in grids will face an inherent logarithmic barrier on the average.
  • In matroid language, the grid implies that any representation of its binary cycle matroid must contain a logarithmic fraction of long circuits.

Load-bearing premise

That the standard definitions of spanning trees and fundamental cycles in the n by n grid graph permit an averaging argument that produces the stated Omega(log n) lower bound for every spanning tree.

What would settle it

Exhibiting a single spanning tree in a large n by n grid whose fundamental cycles have average length o(log n).

Figures

Figures reproduced from arXiv: 2604.17595 by Ander Lamaison, Bart{\l}omiej Kielak, Daniel Kr\'al', Xichao Shu.

Figure 1
Figure 1. Figure 1: The spanning trees T2 and T3 constructed in the proof of Theorem 1; the positions of the vertices in the figure determine the trees. The root vertex is depicted by the empty circle and the edges not contained in the tree are omitted. the bottom path of the grid, the edges forming the central vertical path, and four copies of T(n−1)/2 tiling the rest in the grid. The two copies of T(n−1)/2 to the right from… view at source ↗
Figure 2

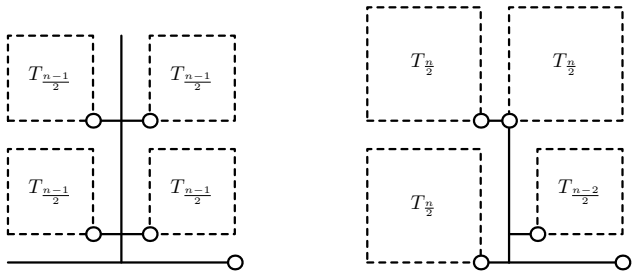

Figure 2. Figure 2: Illustration of the construction of the spanning tree [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

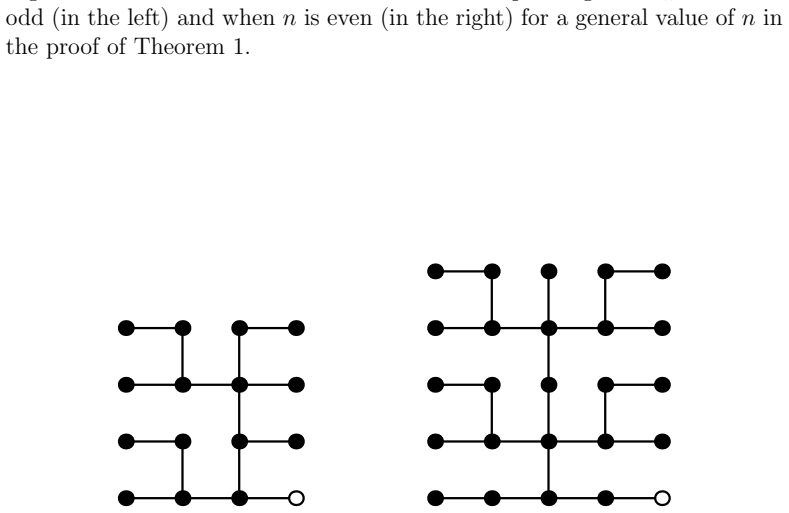

Figure 3. Figure 3: The spanning trees T4 and T5 constructed in the proof of Theorem 1. the positions of the vertices in the figure determine the trees. The root vertex is depicted by the empty circle and the edges not contained in the tree are omitted. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

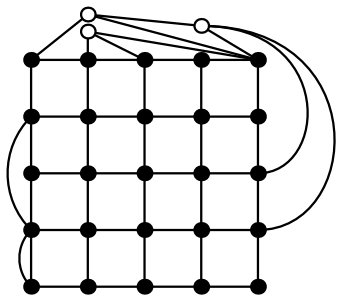

Figure 4. Figure 4: An expanded 5-grid. The duplicate vertices are drawn with empty [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

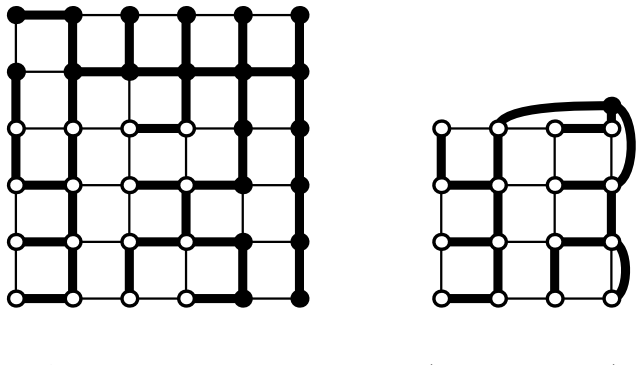

Figure 5. Figure 5: A 6-grid H with a spanning tree T (drawn in the left) and the expanded grid H[G′/T] (drawn in the right) where G′ is the subgrid with the vertices drawn by empty circles. The edges of the spanning tree T and the edges of the resulting spanning tree in H[G′/T] are drawn in bold. associated with the edges of the host grid of H that are not contained in T. Let H be an expanded grid, T a spanning tree of H and… view at source ↗
Figure 6

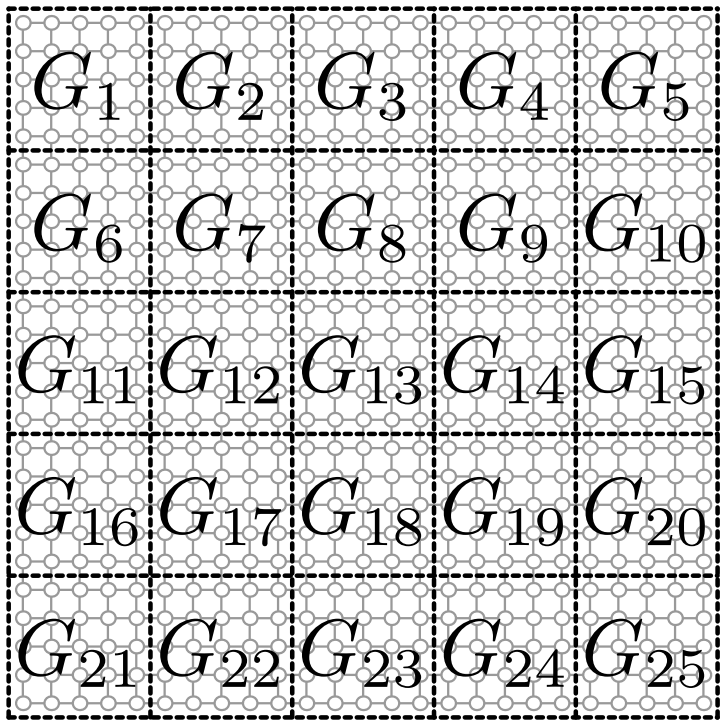

Figure 6. Figure 6: The tiling of the host 25-grid with the 5-grids [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

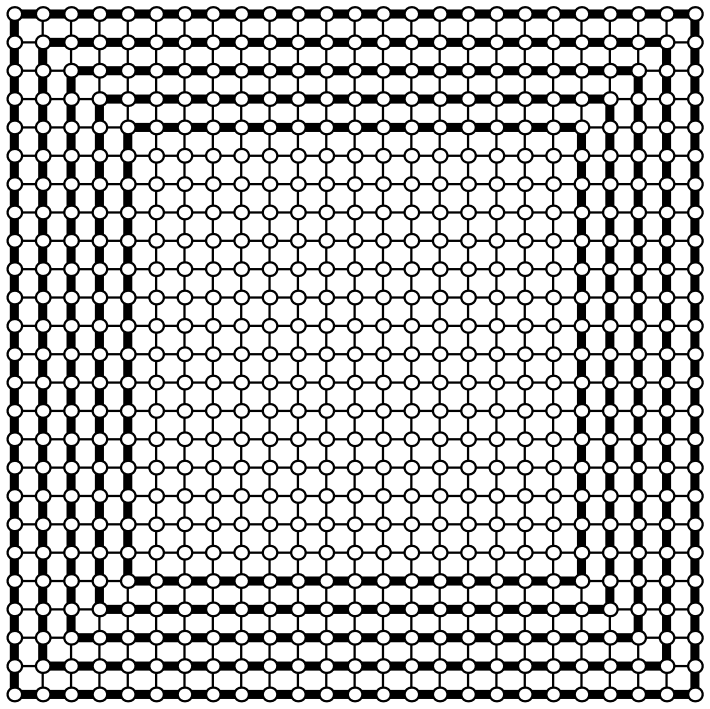

Figure 7. Figure 7: The cycles C1, . . . , C5 in the host 25-grid as defined in the proof of Theorem 4; the cycles are drawn using the bold edges. 11 [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
read the original abstract

We show that the average length of a fundamental cycle with respect to any fixed spanning tree of the $n\times n$ square grid is at least $\Omega(\log n)$; the bound is asymptotically tight. This result answers in the affirmative a question posed by McCarty in relation to sparse representations of binary matroids.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript proves that for any spanning tree T of the n×n grid graph, the average length of the fundamental cycles (i.e., 1 + dist_T(u,v) averaged over all chords uv) is Ω(log n). The bound is shown to be tight by exhibiting a quadtree-style spanning tree that achieves O(log n). The argument relies on a potential-function or contradiction counting that exploits the grid's recursive quadrant decomposition.

Significance. The result affirmatively resolves McCarty's question on sparse representations of binary matroids. The elementary, self-contained proof via quadrant recursion and the matching construction are strengths; the work gives a clean structural fact about cycle spaces in grid graphs with no hidden parameters or uniformity assumptions.

minor comments (2)
  1. In the introduction, briefly recall the precise definition of fundamental cycle length (1 + dist_T(u,v)) before stating the average; this will aid readers coming from matroid theory.
  2. Add a short paragraph or figure illustrating the quadtree construction for n=4 or n=8 to make the O(log n) upper bound more immediately visible.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive report, accurate summary of the main result, and recommendation to accept the manuscript. The work resolves McCarty's question on sparse representations of binary matroids via an elementary quadrant-recursion argument and matching quadtree construction.

Circularity Check

0 steps flagged

No circularity; direct self-contained combinatorial argument

full rationale

The manuscript derives the Ω(log n) lower bound on average fundamental-cycle length for any spanning tree T of the n×n grid via an elementary counting argument that exploits the grid's recursive quadrant decomposition and the necessary existence of long-distance chords in any spanning tree. The matching O(log n) upper bound is obtained by exhibiting an explicit quadtree-style tree. No parameter is fitted to data, no quantity is defined in terms of the target bound, and no load-bearing step reduces to a self-citation or prior result by the same authors. All steps are first-principles and externally verifiable from the grid graph definition alone.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The result rests on standard graph-theoretic definitions without introducing free parameters or new entities.

axioms (1)
  • standard math Basic properties of undirected graphs, spanning trees, and the uniqueness of the cycle formed by adding a chord to a tree.
    These definitions are invoked to define fundamental cycles and their lengths.
