EcoTIM: Fuel-saving multi-brand tillage with ISO 11783 TIM

Ruben Hefele , Timo Oksanen

Authors on Pith no claims yet

Pith reviewed 2026-05-10 04:18 UTC · model grok-4.3

classification 📡 eess.SY cs.SY

keywords fuel optimizationtillageISOBUSTractor Implement Managementmulti-branddiesel consumptiondistributed controlCVT tractors

0 comments

The pith

EcoTIM lets tractor and implement jointly minimize tillage fuel use by exchanging only two efficiency scalars over ISOBUS.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents EcoTIM, a distributed optimization method in which the tractor and tillage implement cooperate in real time to reduce fuel consumption per hectare. The tractor fuses its internal efficiencies into one scalar value plus its derivative with respect to speed and sends both to the implement at the standard 100 ms rate. The implement combines these scalars with its own draft force model to compute the fuel-consumption gradient, then commands the optimal speed and acceleration back to the tractor. Only these two values are exchanged, so neither party reveals proprietary models, enabling multi-brand and plug-and-play operation. The authors propose three new messages plus a backward-compatible extension to the TIM speed command for standardization in ISO 11783 and validate the idea with a simulation on six scenarios and a 1 km track.

Core claim

The tractor ECU computes and broadcasts a combined efficiency scalar together with its derivative with respect to vehicle speed; the implement ECU evaluates the fuel-consumption gradient from these scalars and its analytically known draft force model, then issues optimal speed and acceleration commands back through an extended TIM interface, achieving real-time minimization of fuel per hectare without disclosure of internal subsystem models.

What carries the argument

The two-scalar broadcast of combined efficiency and its speed derivative, which permits the implement to evaluate the fuel-consumption gradient while preserving proprietary models on both sides.

If this is right

The architecture is inherently multi-brand and plug-and-play because only two scalars are exchanged and no proprietary models are disclosed.
Three new messages plus a backward-compatible byte extension to the existing TIM speed command are required and proposed for inclusion in the ISO 11783 standard.
The acceleration command supplies feed-forward information that improves tractor transient response over speed-only commands.
Simulation across six tillage scenarios on a spatially varying 1 km track provides initial evidence that the gradient-based optimization reduces fuel use.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same two-scalar exchange pattern could be applied to other field operations such as seeding or spraying where speed also affects implement efficiency.
Because the data exchange is minimal and uses the existing CAN bus, manufacturers could add the feature through software updates without new hardware.
Spatially aware versions could incorporate GPS or soil-sensor data to adjust the target speed along the field.
The approach reduces the attack surface for cybersecurity threats relative to methods that would require full model sharing.

Load-bearing premise

The implement ECU can accurately compute the true fuel-consumption gradient by fusing the two received efficiency scalars with its analytically known draft force model.

What would settle it

A controlled field test in which measured fuel consumption per hectare shows no reduction when EcoTIM commands are active compared with standard operation, or in which the implement's computed gradient deviates substantially from observed fuel use because the draft force model or received scalars are inaccurate.

Figures

Figures reproduced from arXiv: 2604.17991 by Ruben Hefele, Timo Oksanen.

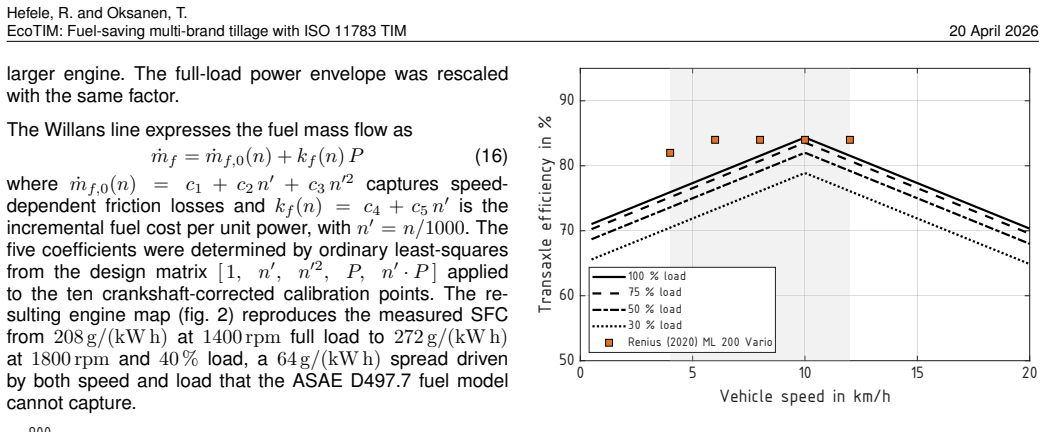

**Figure 3.** Figure 3: Transmission efficiency versus vehicle speed at four [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

**Figure 2.** Figure 2: Engine be map (Willans line, crankshaft-referenced after PTO correction with ηPTO = 0.93). Contour lines show constant be in g/(kW h). Orange dots: DLG measured operating points rescaled to crankshaft power, labelled with the corrected be. Thick line: full-load torque envelope. Dashed lines: constant-power hyperbolas. Transmission efficiency. An analytical model based on the Kress [15] power-split framewo… view at source ↗

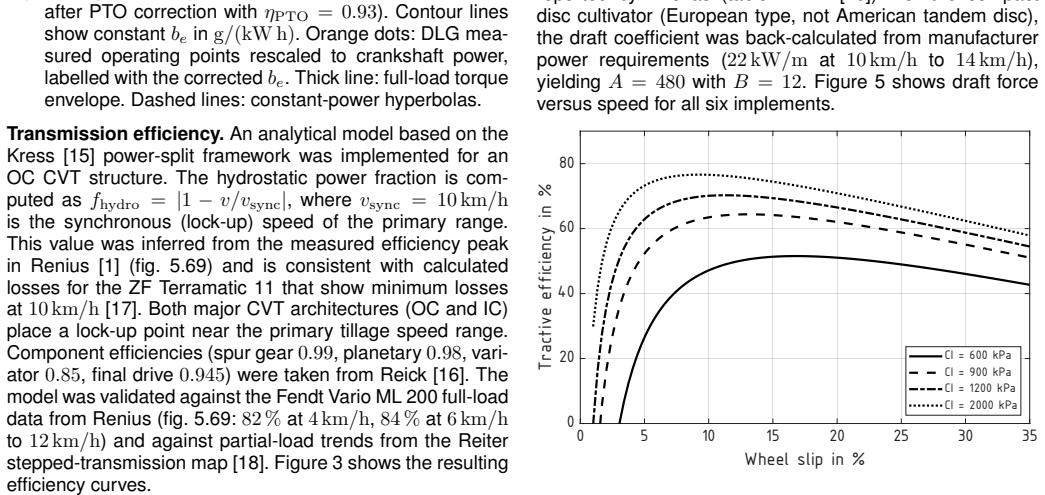

**Figure 4.** Figure 4: Tractive efficiency versus wheel slip for four soil cone [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
